remote.conf repository

  • In addition to my Tanix TX5 Pro post with dedicated codec.info button made for LE7 (based on Jarvis)

    Here's some more improvments to this tiny-handy remote to meet LE 8-9 (Krypton) demands

    Basic layout stays the same, but some buttons have several functions now via keyboard.xml:

    1) Pause/Play=Power (always available with PVR and Video playback)

    2) Stop=Mute (always available with PVR and Video playback)

    3) OSDAudio Settings=UP (available in fullscreen PVR and Video only)

    4) OSDVideo Settings=DOWN (available in fullscreen PVR and Video only)

    5) PVRGuideInfo=LEFT (shows current programm description, available in fullscreen PVR only)

    6) PVROSDGuide=RIGHT (shows curent channel EPG Guide list, available in fullscreen PVR only)

    7) Current Playlist=MENU (available in fullscreen Video only)

    8- PlayerProcessInfo=MOUSE (available in fullscreen PVR and Video only)

    9) PlayerDebugInfo=MOUSE-Longpressed (available in fullscreen PVR and Video only)


    To use all these features, download and unzip the attachment

    Place remote.conf in /Configfiles/

    Place keyboard.xml in /Userdata/keymaps/

    Restart Kodi


    remote.zip

  • Here's some more improvments to this tiny-handy remote

    Pretty Damn Good.

    Just tried it and it works great.

    Well thought out. A lot of functions for a tiny remote with only 8 Buttons & Navigation Wheel. ;)

  • hi,

    have a small remote (IR odroid c1 remote from pollin) worked great on my odroid c2(android) now i am on libreelec (kzaq-latest build) and only the start button works(anyone a file)?????

  • I appriciate your help but I dont know - non of the config are working.

    Iam logging into the box with ftp root. the file goes into .config right? This is the only folder where I found the old remote.conf

    rebooting the box, but nothing happens. I also switchted the batteries of the remote.

    What iam doing wrong?

  • In addition to my Tanix TX5 Pro post with dedicated codec.info button made for LE7 (based on Jarvis)

    Here's some more improvments to this tiny-handy remote to meet LE 8-9 (Krypton) demands

    Basic layout stays the same, but some buttons have several functions now via keyboard.xml:

    .

    .

    This remote works with S912 Box Vorke z6 - maybe vorke is a clone from Tanix

  • Hi @all,


    i got buy this Box few Days ago.

    i got the problem with my remote it doesnt work under Libreelec.

    On this box isn´t a remote conf but two different files (remote.cfg and remote.tab).

    I got rename both files to remote.conf but it doesn´t work under Libreelec.


    Can anybody help me?


    both files as Attachment


    Thx Christian

    Files

    • Archiv.zip

      (1.41 kB, downloaded 183 times, last: )
  • Can someone help me positively identify this remote and the config file I can use? I have been through about a dozen.


    1pc-M8-Remote-Controller-for-M8-Android-TV-Box-XBMC-with-high-quality-replacement-Remote-Control.jpg

  • So I answered my own question and determined it is a Matricom G-Box Q remote. Couldn't find a remote so I made my own config that you can find attached. Everything works as it should.


    I also included the remotesecond.conf file with the factory_infcode=1 added so you can use it as a second remote.

    Files

    • Gbox Q.zip

      (77.71 kB, downloaded 308 times, last: )

    Edited once, last by Skripo ().

  • Quick tip I got from one of the forums long ago that should be added to remote config file creation tutorial.


    Rebooting the box every time you want to test the remote gets real old real fast. Type this into your SSH terminal window every time you saved and are ready to test:


    remotecfg /storage/.config/nameofyourremotefile.conf


    In my case it was called test remote so I typed in remotecfg /storage/.config/testremote.conf

  • Here is mine. remote.zip

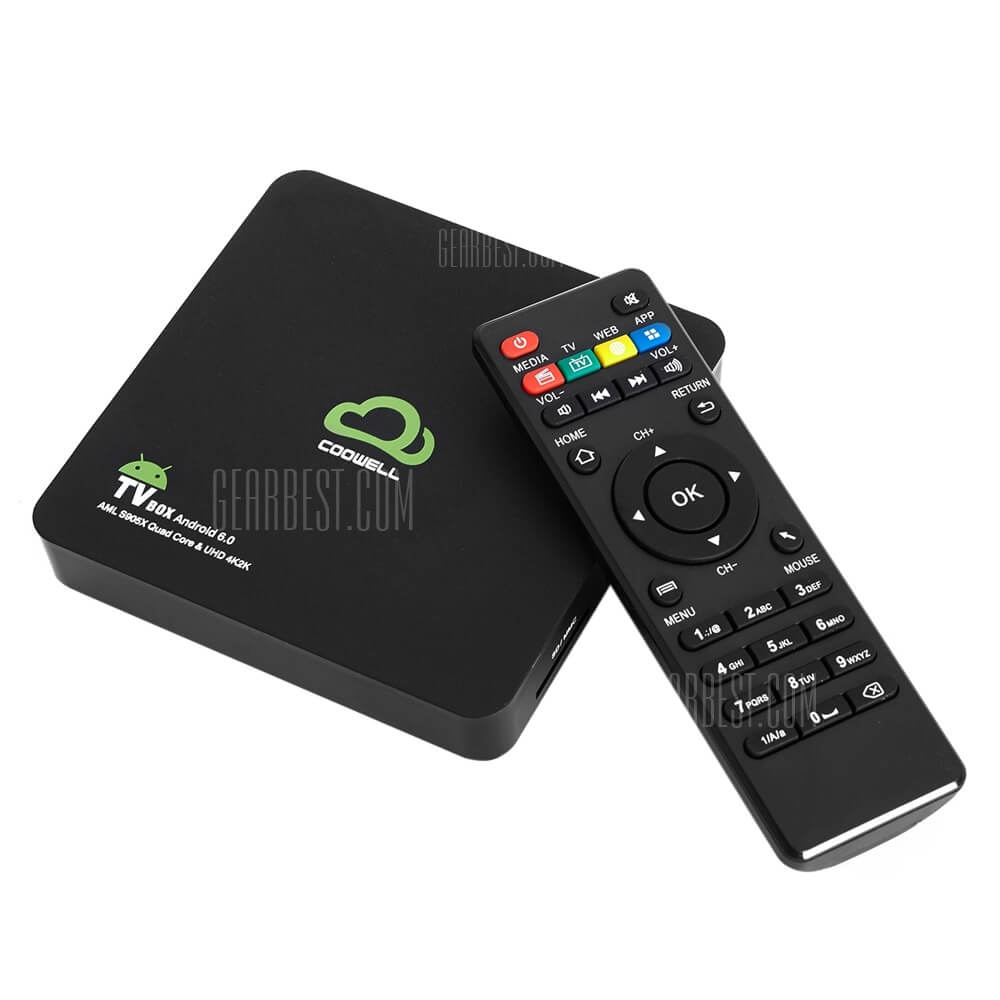

  • COOWELL V2 Android Smart TV Box


    key_begin

    0x00 31 #S (Power) -> Shutdown menu

    0x0c 113 #MUTE (MUTE)


    # 0x01 398 #RED (Media)

    # 0x05 399 #GREEN (TV)

    # 0x09 400 #YELLOW (WEB)

    # 0x0d 401 #BLUE (APP)


    0x01 24 #O (Media) -> Codec info

    0x05 35 #H (TV) -> Live TV channels window

    0x09 18 #E (WEB) -> Live TV EPG/TV guide

    0x0d 364 #FAVORITES(APP) -> Favorites


    0x06 168 #REWIND (|<<)

    0x02 114 #VOLUMEDOWN (VOL-)

    0x0a 208 #FASTFORWARD (>>|)

    0x0e 115 #VOLUMEUP (VOL+)


    0x03 102 #HOME (HOME)

    0x0f 1 #ESC (RETURN)


    0x10 105 #LEFT (<)

    0x12 106 #RIGHT (>)

    0x07 103 #UP (CH+)

    0x44 108 #DOWN (CH-)

    0x11 28 #ENTER (OK)


    0x40 46 #C (MENU)

    0x4c 23 #I(NFO) (MOUSE) -> Info


    0x49 11 #No.0

    0x41 2 #No.1

    0x45 3 #No.2

    0x4d 4 #No.3

    0x42 5 #No.4

    0x46 6 #No.5

    0x4e 7 #No.6

    0x43 8 #No.7

    0x47 9 #No.8

    0x4f 10 #No.9


    0x48 38 #L (1/A/a) -> Subtitle

    0x4a 128 #STOP (BACKSPACE) -> Stop


    Files

    • remote.zip

      (1.35 kB, downloaded 434 times, last: )

    Edited once, last by Heinmueck: a "description" for the button ().

  • Have same remote but red botton (power on/off) not working :(

    (h96+ pro 3/32 gb)

    Help! :)

    I have the s912 h96 pro +, power off (red button) does work, but power On doesn't.,help!(i used both pelican's conf and from post#4, same outcome)
