LE9.0 remote configs ir-keytable Amlogic devices

    Could someone please tell me the relation between remote.conf file and actions in kodi?

    I'm using a harmony one plus remote, configured as "minix u9" and a matching remote.conf (I guess).

    Display Spoiler

    #*********************************************************************************************************

    #this file is configuration for each factory remote device

    # work_mode 0 :software mode 1 :hardware mode

    # repeat_enable 0 :disable repeat 1 :enable repeat

    #

    # factory_code each device has it's unique factory code.

    # pattern:custom_code(16bit)+index_code(16bit)

    # examble: 0xff000001 = 0xff00(custom cod) 0001 (index)

    #

    # release_delay unit:ms.release will report from kernel to user layer after this period of time

    # from press or repeat triggered.

    #

    # debug_enable 0 :debug disable 1 :debug disable

    #

    # SW MODE:

    # bit_count how many bits in each frame

    # tw_leader_act time window for leader active

    # tw_bit0 time window for bit0 time.

    # tw_bit1 time window for bit1 time

    # tw_repeat_leader time window for repeat leader

    # REG

    # reg_base_gen set value for PREG_IR_DEC_BASE_GEN

    # reg_control set value for PREG_IR_DEC_CONTROL

    # reg_leader_act set value for PREG_IR_DEC_LEADER_ACTIVE

    # reg_leader_idle set value for PREG_IR_DEC_LEADER_IDLE

    # reg_repeat_leader set value for PREG_IR_DEC_REPEAT_IDLE

    # reg_bit0_time set value for PREG_IR_DEC_BIT0_TIME

    #*************************************************************************************************************

    #amlogic NEC remote

    factory_code = 0xfe010001

    work_mode = 0

    repeat_enable = 1

    repeat_delay = 40

    repeat_peroid = 50

    release_delay = 100

    debug_enable = 1

    left_key_scancode = 0x47

    right_key_scancode = 0x15

    up_key_scancode = 0x46

    down_key_scancode = 0x16

    ok_key_scancode = 0x55


    key_begin

    0x47 105 #DPAD_LEFT

    0x15 106 #DPAD_RIGHT

    0x46 103 #DPAD_UP

    0x16 108 #DPAD_DOWN

    0x55 97 #ENTER

    0x40 1 #BACK

    0x04 125 #MENU

    0x14 115 #VOLUME_UP

    0x10 114 #VOLUME_DOWN

    0x0d 102 #HOME

    0x18 116 #POWER WAKE

    0x12 243 #SETTING_MENU

    0x20 131 #ZOOM_OUT

    0x21 130 #ZOOM_IN

    0x22 217 #SEARCH

    0x23 113 #VOLUME_MUTE

    0x24 208 #MEDIA_FAST_FORWARD

    0x25 168 #MEDIA_REWIND

    0x26 164 #MEDIA_PLAY_PAUSE

    0x27 128 #MEDIA_STOP

    0x28 163 #MEDIA_NEXT

    0x29 165 #MEDIA_PREVIOUS

    0x30 2 #1

    0x31 3 #2

    0x32 4 #3

    0x33 5 #4

    0x34 6 #5

    0x35 7 #6

    0x36 8 #7

    0x37 9 #8

    0x38 10 #9

    0x39 11 #0

    0x41 14 #DEL

    0x3a 52 #dot

    0x3b 28 #ENTER

    0x3c 359 #RECORD

    0x3d 94 #prog1

    0x3e 95 #prog2

    0x3f 514 #prog3

    0x41 515 #prog4

    0x42 177 #pageup

    0x43 178 #pagedown

    0x44 23 #info

    0x45 24 #guide

    0x48 402 #CH+

    0x49 403 #CH-

    key_end

    I'm using kszaq's latest stable build - 8.2.2.3

    Some buttons bring up some actions within Kodi, but not always the actions they are supposed to.

    How or where can I reassign the buttons?

    Some hints on where to start would be appreciated.

    Hey guys, i recently tried the 8.90.5 build. I did a fresh install over the previous 8.2 build. What i instantly noticed is that the IR remote is very sluggish and double/triple repeats sometimes. I did not have this issue in the 8.2 stable build, where my IR remote was working flawless and responsive.

    Device: Tanix TX3 Mini

    Quote from kostaman

    Read the opening page 1.

    I already tried "ir-keytable -D 375 -P 100" and "ir-ctl -t 50000" if that's what you mean. It made no difference, except now it repeats even more on every key input, and still very sluggish and unresponsive.

    EDIT: The sluggish and delayed key inputs seem to affect only the up/down/left/right keys. The ok/home/back/menu buttons are still snappy and responsive.

    Edited once, last by Orman (March 20, 2018 at 11:03 PM).

    So I upgraded to 8.90.6 alpha on my Mecool m8s pro+ box (used LibreELEC-S905.arm-8.90.6.img.gz file) onto external microSD card. And the remote does not work. Updated the dtb.img tree to the latest from the update directory (gxl_p212_2g.dtb). Also renamed that file to dtb.img. But the remote still does not work. So maybe it is not baked in as per previous version. I then tried to create the keymap and rc_map.cfg file.

    SSH into Libreelec and stopped kodi and LIRC in SSH successfully.

    Ran "ir-keytable -t" command and got the following message -

    "/sys/class/rc/: No such file or directory

    No devices found"


    Checked using Winscp and true enough there is no /sys/class/rc directory. Obviously I also cannot create that directory manually. Any help or suggestions?

    Edited once, last by sirzur (March 25, 2018 at 2:45 AM).

    The mecool remote configuration is still integrated into the image

    No devices found means you are not using the correct DTB

    I'm guessing you have LE installed on internal?

    Adamg - thanks for your builds and keep up the good work

    Sorry - I edited the post later to say that I have it installed on microSD card. I dont know which other DTB to use. The Mecool m8S Pro+ that I have is definitely S905X chip and it is also definitely 2GB RAM - I checked in previous versions of your alpha build. The other DTBs are for kvim, lepotato, nand, slowemmc - none of which describes my player.

    Any suggestions. Does the error message also suggest incorrect DTB? Also of note is that the CEC still works, so I can still control using the TV remote

    Thanks.

    An update

    Yes I downloaded the DTB from that directory. I also downloaded all the 2GB DTB and the generic 1GB and 3GB DTB and unsuccessfully tried them all. On some of the DTB, it would not even boot up pass the Mecool screen, so I can assume that the DTB is being overridden

    So I finally re-wrote the 8.90.6 image to a new microSD card and the remote worked straight away. Looks like the update process from 8.90.5 to 8.90.6 (via placing the newest in the update directory) must have messed something up. I re-did the update 3 times, each time unsuccessfully.

    One message that I got during the update process - "Dirty bit is set. Fs was not properly unmounted and some data may be corrupt. Automatically removing dirty bit". Maybe that affected the update process.

    TL:DR - If having a problem (whether remote or TVheadend) after updating to latest, best to start from scratch

    Quote from sirzur

    One message that I got during the update process - "Dirty bit is set. Fs was not properly unmounted and some data may be corrupt. Automatically removing dirty bit". Maybe that affected the update process.

    Possibly, I have seen that error message myself before.

    I'm happy to hear you got it sorted anyway.

    As much as I would like upgrading to work seamlessly, it is not always possible, especially with the Alpha releases there has been too many changes recently.

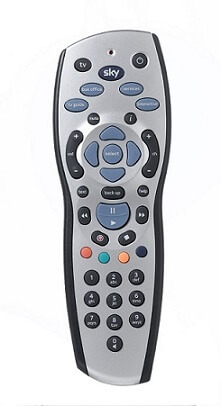

    Sky+ HD Remote

    skyremote.zip


    it needs the timing adjusting otherwise you get double clicks,this is achieved with
    # ir-ctl -t 50000

    the post below lists how to make it survive restarts

    Quote from HiassofT

    autostart.sh should work, but it' be better to create a udev rule for that. Copy /usr/lib/udev/rules.d/70-input-repeat.rules to /storage/.config/udev.rules.d, and then add this line at the end (all in a single line, after the LABEL="end" line):

    Code
    ACTION=="add|change", KERNEL=="lirc*[0-9]", DRIVERS=="meson-ir", RUN+="/usr/bin/ir-ctl -d $devnode -t 50000"


    so long,

    Hias

    Edited 2 times, last by deanochips (March 27, 2018 at 11:26 AM).
