remote.conf repository

  • Goodevening you all, i have just recieved a brand new box of pendoo T95z plus. it looks great and works just fine in Android. but in Libreelec the remote is dead and not working at all. please help and advise. Thank you in advance. Greetings

  • - what is the linux Code for changing the audio/language? I dont find it anywhere. It is the action "AudioNextLanguage"

    - For me it seems that "home" and "back" have the same function inside kodi could that be?

    - with the keyboard I use "tabulator" for switching between menu and video/Audio/picture (whatever is been showed in that moment). Which linux code could that be? I think it is the Action "FullScreen"


    1) Use "A'' letter for ''AudioNextLanguage''

    Code
    1. 0x12 30

    2) "HOME" opens the topmost window directly while "BACK" returnes all window history

    3) "TAB" is 15


    All Linux input codes located there:

    linux/input-event-codes.h at master · torvalds/linux · GitHub

  • Goodevening you all, i have just recieved a brand new box of pendoo T95z plus. it looks great and works just fine in Android. but in Libreelec the remote is dead and not working at all. please help and advise. Thank you in advance. Greetings

    Hi Jallal, I trust you put the original remote.conf from the Android system onto the partition called LIBREELEC on your SD card/USB stick with which you boot into LibreELEC? If not, try that.

    Cheers,


    chessplayer



    Formerly: Intel Atom, Dockstar/Pogoplug (headless PVR Server)

    Production: Wetek Play, RPi3, Cubietruck (headless PVR Server), Nvidia Shield client, XBOX ONE Tuner, Sundtek Media TV Sticks

    Experimental: Various AMLogic S905X (W) devices

  • Hi Chessplayer,


    thank you for your respond. i just did what you said. i did find the remote.conf. and copied the file into SD card. but still nothing happens.

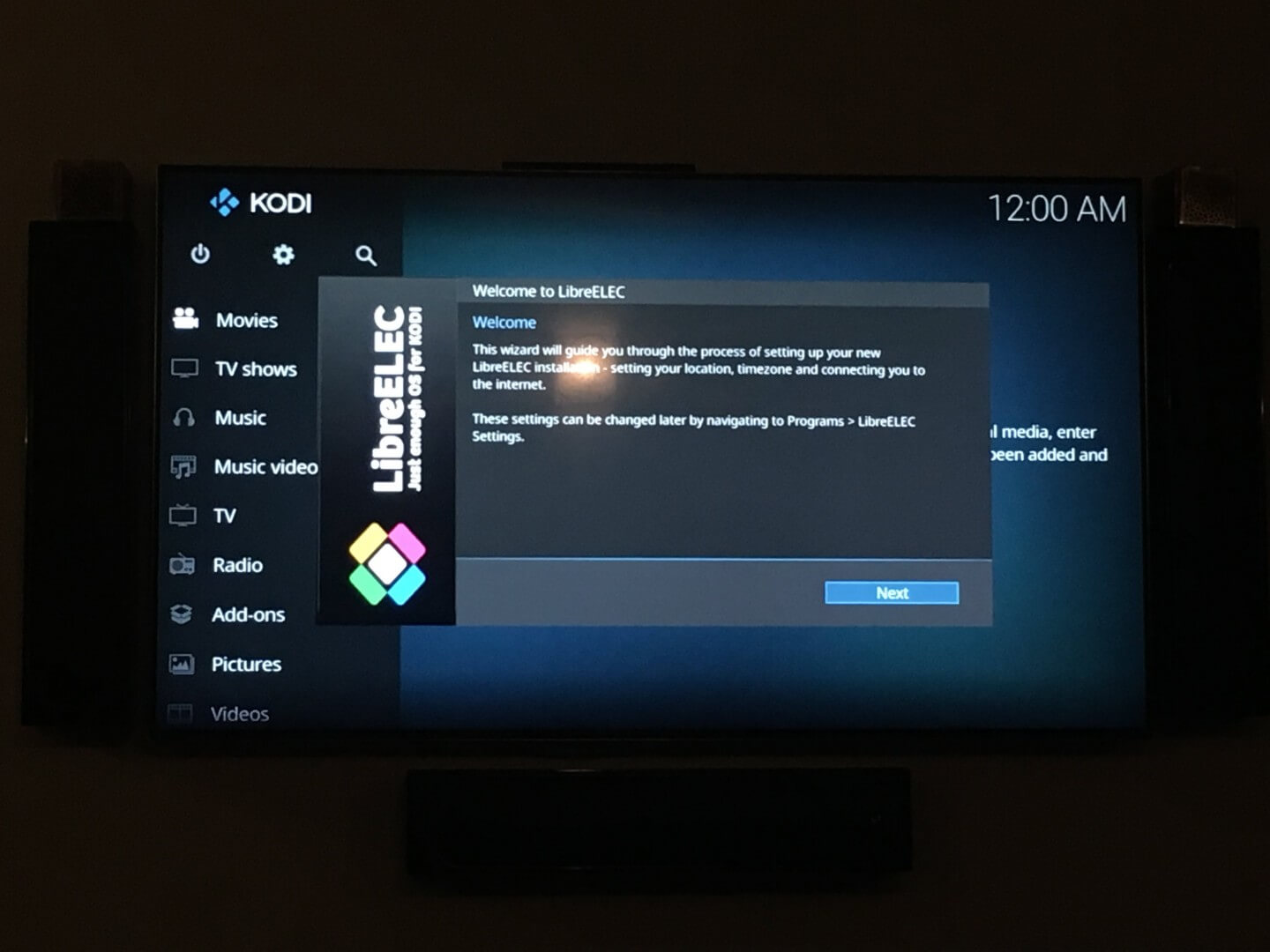

    after boot of LE i see this screen and i can not go further due to not responding of my remote.

    please advise.

  • Hi Chessplayer,


    thank you for your respond. i just did what you said. i did find the remote.conf. and copied the file into SD card. but still nothing happens.

    after boot of LE i see this screen and i can not go further due to not responding of my remote.

    please advise.

    did you copy the remote.conf to \storage\config ?


    to get access to that, you need to enable ssh in the initial Libreelec settings on first boot use a keyboard if neccessary

    Samsung RU7400 Onkyo HTX22HDX Nvidia Shield HD Homerun Duo (Living Room)

    Samsung UE40ES5500 H96 Pro (Coreelec), Fire TV 4K Stick (Bedroom)

    Synology DS414 Plex Pass

    :)

  • i have some mecool KII boxes, on LE8.2 i can with my remote.conf change the Bouquet in Live TV with DTV Button, on LE9 this one dont work, anyone know what can i do?

  • Hi,


    A, I mean "30" is not Audionextlanguage, it is Audio delay :-(

    "Fullscreen" worked, thanks


    Sorry, forgot my keyboard xml has an option

    Code
    1. <keymap>
    2. <FullscreenVideo>
    3. <keyboard>
    4. <a>AudioNextLanguage</a>
    5. </keyboard>
    6. </FullscreenVideo>
    7. </keymap>

    You can either use keymap editor addon to map the same function or just put attached keyboard xml to /userdata/keymaps/

    Don't forget to unzip and reboot your box

    keyboard.zip

  • ! Thanks !

    I changed subtitle to "L". With your keyboard modification the nexaudiolanguage works fine. Full Code for MeCool M8S L now:

  • I can not power on my h96 pro+ box (32gb/3gb) with my remote. I use the remote from pelican from this thread. Thr original remote.conf from android does not work.

    Don't know if there is a problem with my remote or that my box is turned complete off when I shutdown from libreelec and the box won't respond to anything.

  • Hi Chessplayer. I can confirm that the ANTSIR remote.conf works in Libreelec with the original remote that was shipped with the box. Thanks for posting the file.

    MXIII-G, M8 and Beeklink MXIII Plus LE 8.2.2 - Demetris, Mecool M8S Pro+/Abox A1, Abox A1 Max Coreelec 9.0.2. Thanks to all.

  • Hi dear libreelec people,


    I own a Beelink M18 with the following remote control:




    I have a problem. I would like to map the yellow WEB button to active/deactive subtitles when playing a video.

    Next to that I would like to map the blue APP button to select the next subtitle when playing a video.


    Does someone own the same Beelink M18 and have experience with configuring those buttons?

    Could someone give me a helping hand or directions in how I can get this to work like I want to?


    Thank you in advance!!

  • I have a similar remote, I think the coloured buttons are for operating the tv, & cannot be mapped to libreelec.


    I think, you press one of the red buttons until the LED on the remote blinks, then using your tv remote, press one of the buttons to pair it.

    Samsung RU7400 Onkyo HTX22HDX Nvidia Shield HD Homerun Duo (Living Room)

    Samsung UE40ES5500 H96 Pro (Coreelec), Fire TV 4K Stick (Bedroom)

    Synology DS414 Plex Pass

    :)

  • I have a similar remote, I think the coloured buttons are for operating the tv, & cannot be mapped to libreelec.


    I think, you press one of the red buttons until the LED on the remote blinks, then using your tv remote, press one of the buttons to pair it.

    I think they can be mapped. If I look into the s905_libreelec_remote_to_170307b.zip (link post) in the beelink m18 remote-workingM18.conf the keys looked to be mapped to different functions.


    Code
    1. key_begin
    2. 0x51 31
    3. 0x4d 66 ;MUTE
    4. 0x09 24 ;MEDIA - codec info - was 61
    5. 0x11 166 ;MUSIC - now stop - was 60
    6. 0x54 164 ;WEB - now play pause
    7. 0x4f 84 ;APP - not work for kodi

    I did not try this remote.conf but It looks like the buttons can be mapped to different actions.


    I would like to map the yellow WEB button to active/deactive subtitles when playing a video.

    and I would like to map the blue APP button (or the red MEDIA button) to select the next subtitle when playing a video.


    Does someone know what codes I need to use to get this working?
