S802/S812-Libreelec images for 7/8/9

    Bought an usb stick and used several sd cards but i still stuck with errors (prepare_sysroot, could not mount /dev/SYSTEM)
    Used LibreELEC-S802.arm-8.0.1-S82.img

    Do i have to install version 7 first or can i start with 8? Downloading 7 needs a password.

    Which device tree do i have to choose for Mbox S83B V2.2 S802B/A P6330/ 2/16GB Mali 450?
    Do i have to copy anthing else to the internal memory of the box if i like to boot from SD?

    Thanks a lot.

    Edited once, last by anavrin (March 28, 2017 at 7:48 PM).

    Quote from Demetris


    I found the cause of Bluetooth issue and
    Now all is needed is testing. Will release new images soon

    Sent from the Island of Venus
    [hr]


    Are you using the latest image?

    Sent from the Island of Venus

    yes I'm actually having the same issue today on an mx3 permission denied but it runs off the sd perfect
    [hr]

    Quote from piperider

    yes I'm actually having the same issue today on an mx3 permission denied but it runs off the sd perfect

    actually I just realized I wasn't but the new firmware I get job control turned off on bootup
    [hr]

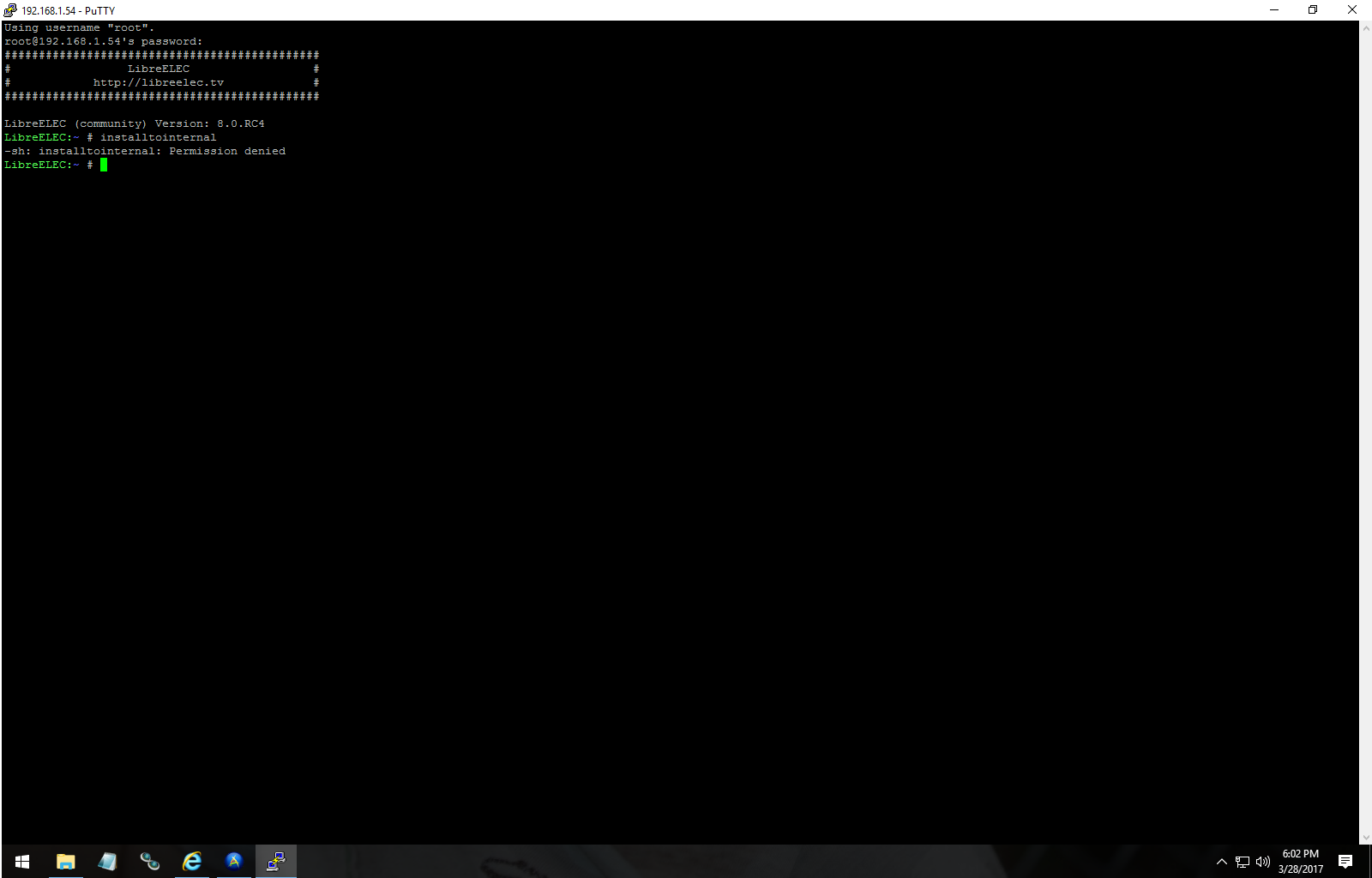

    heres what I get everytime I try to install to internal

    Quote from lestat70


    I installed Libreelec-S802.arm-8.0.1a-S82.img.gz via sdcard on a minix x8-h device, now I want to install it on the NAND but when I execute the command I get the error

    Code
    LibreELEC: ~ # installtointernal
-sh: installtointernal: Permission denied

    Any ideas?

    Thanks in advance

    how did you fix this I tried everything but no luck

    I started to try to get liberelec on my S82 more than one week ago. I found detailed how-tos for other devices. I recognice this is not a help forum cause my stupid noob questions are still open.
    DEVICE TREE? From 905? From 911 Turbo? Maybe my grandmother knows the truth.
    I have experience with rooting and roms on several smartphones. Customizing recievers, 360 etc... I still believe in myself. I have bit more intelligence than a monkey. But this one is to frustrating. DEVICE TREE? Can i have a look in the woods? How long should it be?

    Hello Demetris,
    After you mentioned New images are up, enjoy. I tried several times to update my box to the latest version. Everytime the remote stopped working.
    I tried it also on monday 27 march. Everytime I have to re-install again the version of 25 februari Libreelec-S802,S82 arm-8.0.RC4 img.gz. That version is perfect.
    I see that there are more readers with the same problem. I still hope that you can provide us with a working version of the latest new images.
    Beside the remote problem, Your still great.
    I

    Remote config is bring your own.
    Here is mine:
    [code=php]
    #*********************************************************************************************************
    #this file is configuration for each factory remote device
    # work_mode 0 :software mode 1 :hardware mode
    # repeat_enable 0 :disable repeat 1 :enable repeat
    #
    # factory_code each device has it's unique factory code.
    # pattern:custom_code(16bit)+index_code(16bit)
    # examble: 0xff000001 = 0xff00(custom cod) 0001 (index)
    #
    # release_delay unit:ms.release will report from kernel to user layer after this period of time
    # from press or repeat triggered.
    #
    # debug_enable 0 :debug disable 1 :debug disable
    #
    # SW MODE:
    # bit_count how many bits in each frame
    # tw_leader_act time window for leader active
    # tw_bit0 time window for bit0 time.
    # tw_bit1 time window for bit1 time
    # tw_repeat_leader time window for repeat leader
    # REG
    # reg_base_gen set value for PREG_IR_DEC_BASE_GEN
    # reg_control set value for PREG_IR_DEC_CONTROL
    # reg_leader_act set value for PREG_IR_DEC_LEADER_ACTIVE
    # reg_leader_idle set value for PREG_IR_DEC_LEADER_IDLE
    # reg_repeat_leader set value for PREG_IR_DEC_REPEAT_IDLE
    # reg_bit0_time set value for PREG_IR_DEC_BIT0_TIME
    #*************************************************************************************************************
    #amlogic NEC remote
    factory_code = 0xfe010001
    work_mode = 0
    repeat_enable = 1
    repeat_delay = 40
    repeat_peroid = 39
    release_delay = 121
    debug_enable = 1

    fn_key_scancode = 0x00
    left_key_scancode = 0x51
    right_key_scancode = 0x50
    up_key_scancode = 0x16
    down_key_scancode = 0x1a
    ok_key_scancode = 0x13
    pageup_key_scancode = 0x55
    pagedown_key_scancode = 0x54

    mouse_begin
    0 0x51
    1 0x50
    2 0x16
    3 0x1a
    mouse_end

    key_begin
    0x01 11
    0x4e 2
    0x0d 3
    0x0c 4
    0x4a 5
    0x09 6
    0x08 7
    0x46 8
    0x05 9
    0x04 10
    0x13 97
    0x19 15
    0x42 14
    0x16 103
    0x1a 108
    0x51 105
    0x50 106
    0x11 102
    0x18 104
    0x10 109
    0x4c 125
    0x5a 119
    0x59 122
    0x52 128
    0x58 123
    0x54 120
    0x55 121
    0x40 116
    0x41 113
    0x45 130
    0x49 134
    0x0a 133
    0x48 138
    0x4d 70
    0x0e 136
    0x0f 138
    0x43 132
    0x03 127
    0x06 139
    0x44 140
    0x00 63
    0x02 395
    key_end
    repeat_key_begin
    0x01 11
    0x4e 2
    0x0d 3
    0x0c 4
    0x4a 5
    0x09 6
    0x08 7
    0x46 8
    0x05 9
    0x04 10
    0x13 97
    0x19 15
    0x42 14
    0x16 103
    0x1a 108
    0x51 105
    0x50 106
    0x11 102
    0x18 104
    0x10 109
    0x4c 125
    0x5a 119
    0x59 122
    0x52 128
    0x58 123
    0x54 120
    0x55 121
    0x40 116
    0x41 113
    0x45 130
    0x49 134
    0x0a 133
    0x48 138
    0x4d 70
    0x0e 136
    0x0f 138
    0x43 132
    0x03 127
    0x06 139
    0x44 140
    0x00 63
    0x02 395
    repeat_key_end
    [/php]


    Sent from the Island of Venus

    Edited once, last by Demetris (March 29, 2017 at 4:29 PM).

    LE newbie here so please bear with me. I am trying to install this version of LE on an M8 device currently running Android 4.4.2 ..... tried the .img file and AMlogic USB Burner will not load it, tried the RC4 zip via the toothpick method and the flashing stops half way though. Then I get a message saying Ërasing and the box factory resets to what it was running before.

    Any help would be greatly appreciated.

    Never worked with .tar or .img.gz files before hence my being stuck

    Edited once, last by zickler (March 29, 2017 at 7:50 PM).

    Quote from Demetris


    Start fresh with android I have merged s802 with s812 and now they are called S8X2

    Sent from the Island of Venus

    that's what I'm trying to do. now i'm trying to flash with twrp but still no success. any idea how to get this installed on the M8 please?

    Quote from Demetris


    Start fresh with android I have merged s802 with s812 and now they are called S8X2

    Sent from the Island of Venus

    Hi Demetris

    I put back the Android OS on my MX-III 2GB and is back to factory defaults and working normally.

    Then I downloaded
    LibreELEC-S8X2.arm-8.0.1-S82.img.gz and used Etcher to put the image on 8GB microSD

    SD content after preparation:
    Volume Label : LIBREELEC
    Files:
    aml_autoscript
    kernel
    kernel.img.md5
    system
    system.md5
    .LOST.DIR (folder)

    Boot from SD is working but it stops as soon as it puts the LibreElec splash screen and shows:

    Quote

    cp: can´t stat ´/flash/SYSTEM´: No such file or directory
    *** Error in prepare_sysroot: mount_common: Could not mount /dev/SYSTEM ***
    ### Starting debugging shell... type exit to quit ###
    sh: can´t access tty: job control turned off
    #_

    What am I doing wrong. Please advise.

    I also tried burning the image using Etcher onto a USB drive and boot. The device has 2 regular USB ports and one Micro USB port. I tried the USB drive on all three ports, go into recovery and reboot, but never boots into LE and always ends up on Android

    My box is MXIII S802 Amlogic 2GB RAM/8GB Storage Mali 450.

    Edited once, last by gujal (March 30, 2017 at 4:13 AM).

    As posted my 7up latest image doesn't detect Bluetooth adapter on my TRMK1 using M8 image.
    Ir Remote is working although if i press my power button and click suspend i cant wake it back up again, i have to flick power switch on box.
    Many thanks for keeping these box's alive, going out of your way and taking time away from your loved ones to provide us with these images
    Paul

    Sent from my SM-G930F using Tapatalk

    I also had issues last night loading up the most recent build for MXIII.

    Received this error:
    Error in prepare_sysroot: mount_common: Could not mount /dev/SYSTEM ***
    ### Starting debugging shell... type exit to quit ###
    sh: can´t access tty: job control turned off

    I loaded up the previous build from February and it worked fine.
