LED (VFD) Displays in LibreELEC

  • No, I personally use no paid services at all on tx3 or any other box, so no netflix, amazon, zattoo-Premium or elsewhat here. The few live-tv-channels I need occasionally I get via zattoo basic and/or 7live-tv addons in Kodi. Most files I play are on 1tb external hdd(formatted ext4, but ext2 without journaling would be even some milliseconds faster), from 4tb in nas or Radiostreams via radio or somafm addons.. and because nand is so fast compared to pendrives or cards I prefer libre there with the mass of files to load-and the change in a existing dual boot rom is pretty easy and done in under 10 minute

  • @coolest


    I found the issue it was this:


    IF YOU CHANGE VFD.CONF FILES YOU HAVE TO RUN THE "sh uninstall.sh" THEN "sh install.sh" WITH THE NEW VFD.CONF FILE.


    I do actually now have another problem. I can't change the clock in the display. I changed it in android AFTER i ran the sh install.sh command.


    Do you have to set the clock in android first then run the command??

    MXQ M10 S805 - LibreELEC 8.1.9
    NEXBOX A5 S905X - LibreELEC 8.1.9
    BEELINK MXIII II S905X - LibreELEC 8.1.10

  • kodiuser1


    Android has nothing to do with the OpenVFD/FD628 driver in LE.

    If you change a config file, the driver needs to be restarted, yes - you can reinstall it or just restart the box.

    I don't understand what you mean by "can't change the clock". The time displayed is the system time, you shouldn't have to change anything in the driver, just make sure that the system time is set correctly on your box (in Kodi).

  • kodiuser1


    Android has nothing to do with the OpenVFD/FD628 driver in LE.

    If you change a config file, the driver needs to be restarted, yes - you can reinstall it or just restart the box.

    I don't understand what you mean by "can't change the clock". The time displayed is the system time, you shouldn't have to change anything in the driver, just make sure that the system time is set correctly on your box (in Kodi).

    The current time here is 15:45 MST

    The time on my Kodi is 15:45

    The time on my Android side says 3:45PM

    The time on my display says 21:45


    I tried restarting the box after changing the vfd.conf file and nothing changed. Only when I uninstalled and reinstalled the command via ssh did it change.

    MXQ M10 S805 - LibreELEC 8.1.9
    NEXBOX A5 S905X - LibreELEC 8.1.9
    BEELINK MXIII II S905X - LibreELEC 8.1.10

  • kodiuser1


    /shrug

    It still something with your time settings.

    Android is irrelevant, LibreELEC doesn't get time from Android.

    Set it to auto in Kodi, pick the correct time zone, should work just fine.

  • Thanks that was a simple fix. What i had to do though was change to a different time zone then change it back again.

    MXQ M10 S805 - LibreELEC 8.1.9
    NEXBOX A5 S905X - LibreELEC 8.1.9
    BEELINK MXIII II S905X - LibreELEC 8.1.10

  • I have an important question if I use another bootable SD cards with LE for testing and running both newer and/or older firmware builds on my TX9 Pro box. So now that I have moved the storage to internal memory, what will happen when I change the bootable SD card for a different one that has previously been used, which of course will still have the on-card original storage partition labelled LIBREELEC_DISK. Whcih one will Libreelec use at bootup when seeing two separate partitions both with the same LIBREELEC-DISK label ?? If it tries to use both (doubtful) won't that cause some data corruptions or even a crash. If it uses just the internal storage memory then it will be the wrong strorage area without the settings and add-ons needed for the different bootable SD card's I want to use. Have not tried it yet as I do not want to corrupt my new internal storage partition for my LE 8.2.5 422 Chroma 10 bit firmware build but would appreicate an answer if anyone knows. Probably our good freind The Coolest will have am easy answer.


    Sure I can simply on my PC remove the SD card big second partition label manually to "" but this is not the answer if I want to boot into and retain the storage area settings and addons on the SD card for this differetn sd card set up ??

    Cheers
    RayW


    Tanix TX9 Pro 3/32GB S912

    Tanix TX7 2/32GB S905X

    Beelink MINI MXIII II 2/16GB S905X
    MXQ M12CX 1/8GB S905X
    MXQ M12 1/8GB S805
    Denon X500 AVR System

    LG 55SJ850T Super UHD TV

  • RayW

    This isn't really on topic with the thread, so I don't want to go into much detail on this issue here. I personally never used that method of working with LE. As I see it, you'll have two partitions with the same name, and I don't know Linux well enough to know what will happen in that case. Better ask the question in the relevant thread.

  • Hi Coolest.

    I got a Magicsee Tvbox s905x whith a lcd panel.

    The lcd chip is FD655s.

    Can you help for working lcd panel?

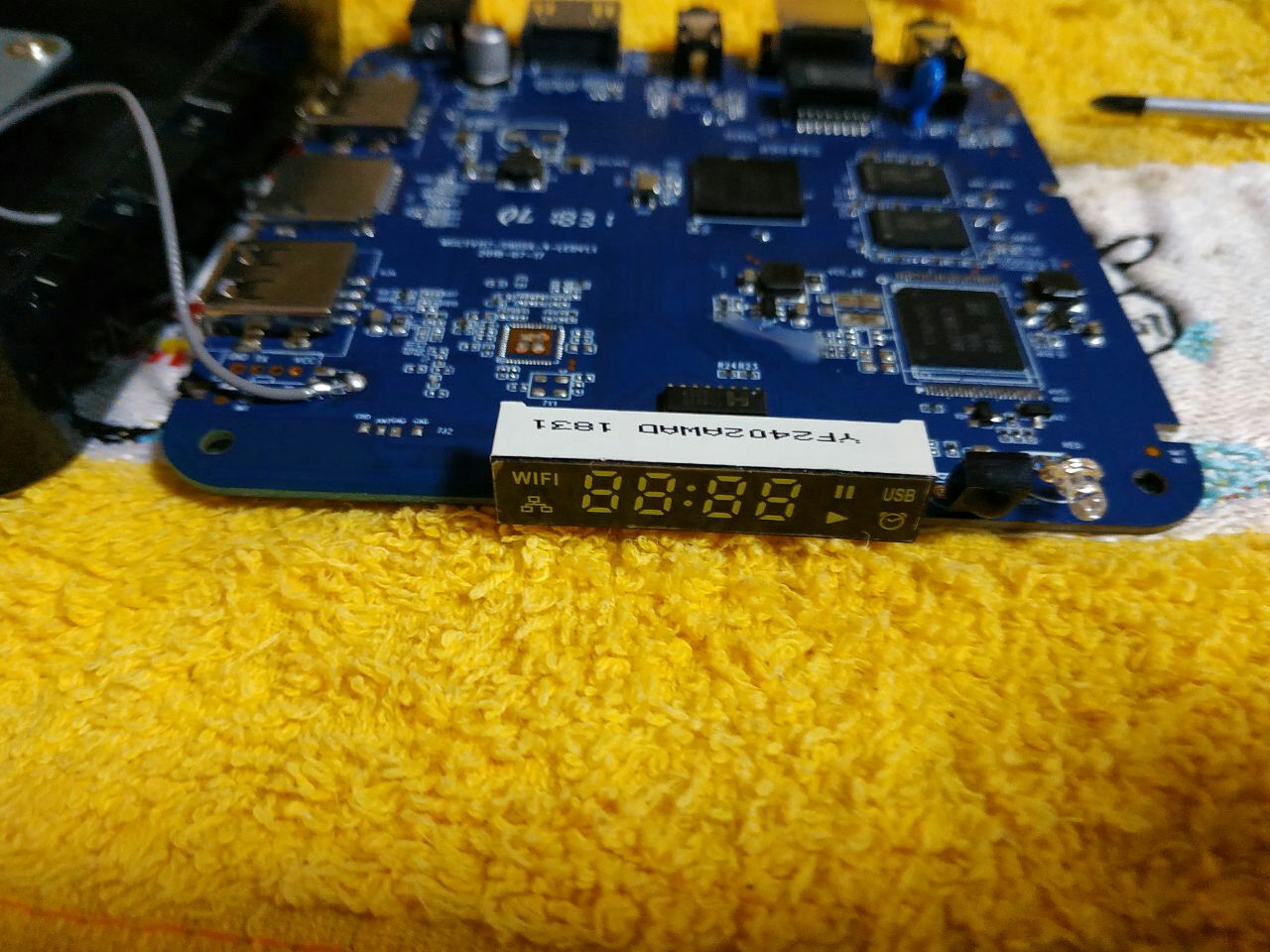

    I send yo original android dtb and a pic of the chip..

    Current in 8.2.5 Chroma Wxrtaxy_kzasq.

    Thanks in avance.

    magicsee.zip

  • miankel


    Could you take a picture of the display so that I can see what icons it has?

    Also, what's the full model number of the box? Is it the N5?

    I suggest you follow the installation instructions and use the DTBs in this post, and test the attached VFD config. But I can't provide support for builds that may not have an up to date driver.

  • tested with the two files in coreelec and 8.2.5 and the screen is black. Something else to try? What method should I follow?

    thanks for your help.

  • Hi,


    I'm searching for the right gxm_q200_3g_x92.dtb file but the link is broken. I have found one version file in my laptop, then install the OpenVFD service, config the vfd.conf, reboot then but the display doesn't work. Where could I find it?
