LE9.0 remote configs ir-keytable Amlogic devices

kostaman · February 15, 2018 at 6:48 AM

External Content pastebin.com

Content embedded from external sources will not be displayed without your consent.

Through the activation of external content, you agree that personal data may be transferred to third party platforms. We have provided more information on this in our privacy policy.

To eliminate confusion with the old remote.conf

Members can share their remote files here in this thread.

A photo of remote may help those with obscure named boxes.

Remote configurations for WeTek/Mecool/Minix/Tanix TX5 TX7 Tx Mini TX3 have already been baked into the COMMUNITY images.

Update Device tree if you receive the 'no devices found' message or your remote does not work with above devices with remote baked in image.

Note : If you have changed remote Delay and Period due to sluggish commands, please disclose.

TX3 Mini that i used.

Changed Repeat delay to 375 ms and repeat period to 100 ms

Code

ir-ctl -t 50000
ir-keytable -D 375 -P 100

Also please read LE9.0 remote configs ir-keytable Amlogic devices

Further tweeks

nice · February 15, 2018 at 8:04 AM

Hi,

I have generated a config file for my Beelink GT1 and GT1U remote. I think the ir codes are the same with the Mini MV III II. I have mapped a few keys to use it with Libreelec. Please take a look in the beelink_gt1 file.

**The Coolest** · February 15, 2018 at 10:49 AM

T95m/T95N remote (pic).

Code

# table T95m/T95N, type: NEC
0x140 KEY_POWER
0x155 KEY_POWER         # TV Control - Power
0x156 KEY_VOLUMEUP      # TV Control - Vol+
0x157 KEY_VOLUMEDOWN    # TV Control - Vol-
0x158 KEY_HOMEPAGE      # TV Control - TV In
0x159 KEY_CONFIG        # TV Control - Set
0x118 KEY_VOLUMEUP
0x110 KEY_VOLUMEDOWN
0x141 KEY_MUTE
0x10f KEY_GREEN
0x143 KEY_RED
0x111 KEY_HOME
0x119 KEY_BACK
0x116 KEY_UP
0x151 KEY_LEFT
0x113 KEY_ENTER
0x150 KEY_RIGHT
0x11a KEY_DOWN
0x14c KEY_MENU
0x100 KEY_CONTEXT_MENU
0x101 KEY_0
0x14e KEY_1
0x10d KEY_2
0x10c KEY_3
0x14a KEY_4
0x109 KEY_5
0x108 KEY_6
0x146 KEY_7
0x105 KEY_8
0x104 KEY_9
0x142 KEY_BACKSPACE

Display More

* The remote from my old M8S Plus (S812), which looks very similar, works correctly right out of the box.

**HiassofT** · February 15, 2018 at 12:59 PM

To get scancodes of other protocols than NEC and rc-6 (which are the current default setup) you can also simply use

ir-keytable -c -p all -t

But note that unfortunately ir-keytable -t doesn't show the protocol for decoded scancodes. That's a pity because for proper operation the protocol has to be included in the header of the keymap file.

So, in general, when creating a keymap file it's best to manually set a single protocol, eg

ir-keytable -c -p nec -t

A lot of the boxes from asia seem to ship with NEC protocol remotes, so -p nec is a good start. If that doesn't work try -p rc-5 or -p rc-6, these are also very popular protocols. If you still get nothing try the other ones.

so long,

Hias

gulp79 · February 15, 2018 at 1:28 PM

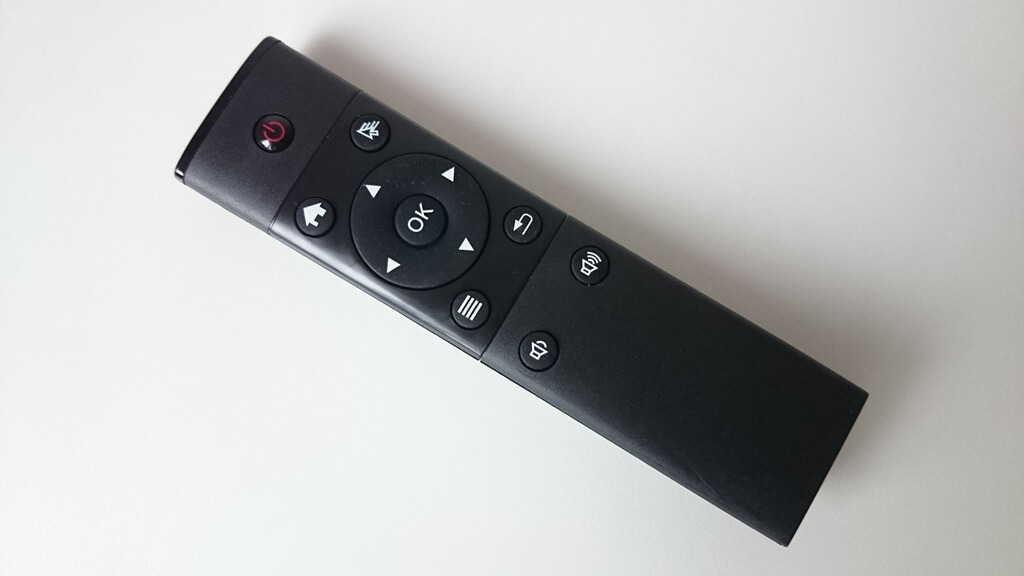

This is my config for a Beelink R68II.

It has this remote:

boot2k3 · February 15, 2018 at 1:52 PM

X92 modified remote with longpress buttons

To use all described functionality:

copy the file "X92" to "/storage/.config/rc_keymaps/" and "rc_maps.cfg" to "/storage/.config/"
copy "keymaps.xml" to "/storage/.kodi/userdata/keymaps/" and "Lircmap.xml" to "/storage/.kodi/userdata/"
copy "98-eventlircd.rules" to "/storage/.config/udev.rules.d/"
ir-keytable -a /storage/.config/rc_maps.cfg -s rc0
reboot

Also I use ir-keytable -D 475 -P 125 for delays, you can test your delays.

And ir-ctl -t 20000 for release button delay(20000 is minimal for this remote, if doesn't work try 21000 and upper)

Green buttons description:

6 - a) works as backspace on virtual keyboard

_ _ b) delete for selections and return in all other places

_ _ c) at home screen - go to weather

5 - a) main screen - channel EPG

_ _ b) PVR - channel EPG, longpress as EPG

_ _ c) video - bookmarks

4 - a) In PVR - OSD Channel list

_ _ b) in main menu as TV channel list

_ _ c) as context menu somewhere, longpress as other menu,

3 - shows player info for video content, longpress - home screen

2 - change audio stream for video content, longpress - Favorites

1 - a) info about video or about PVR channel, longpress - PlayerDebug

_ _ b) in main menu it open settings

power + longpress - power menu

OK + longpress - content menu

Old config(without longpress)

X92 modified remote

X92.zip

To use all described functionality:

systemctl stop kodi
systemctl stop eventlircd
copy the file "X92" to "/storage/.config/rc_keymaps/" and "rc_maps.cfg" to "/storage/.config/"
copy "remote.xml" to "/storage/.kodi/userdata/keymaps/" and "Lircmap.xml" to "/storage/.kodi/userdata/"
ir-keytable -a /storage/.config/rc_maps.cfg -s rc0
systemctl start eventlircd
systemctl start kodi

Green buttons description:

6 - works as backspace on virtual keyboard, delete for selections and return in all other places (exclude PVR)

5 - as EPG, for videos it works as bookmarks

4 - as context menu somewhere, in PVR as OSD Channel list, in main menu as TV channel list

3 - shows player info in video streams

2 - change audio language in video streams

1 - info about video or about PVR channel, in main menu it open settings

kmarci · February 15, 2018 at 5:19 PM

Quote from gulp79

This is my config for a Beelink R68II.

It has this remote:

Thank you! Confirmed this works with Beelink mini mx III II.

korr · February 15, 2018 at 8:44 PM

gulp79 · February 16, 2018 at 8:08 AM

This is my config for an Alfawise H96 Pro +

It has this remote:

atreyu · February 16, 2018 at 9:32 AM

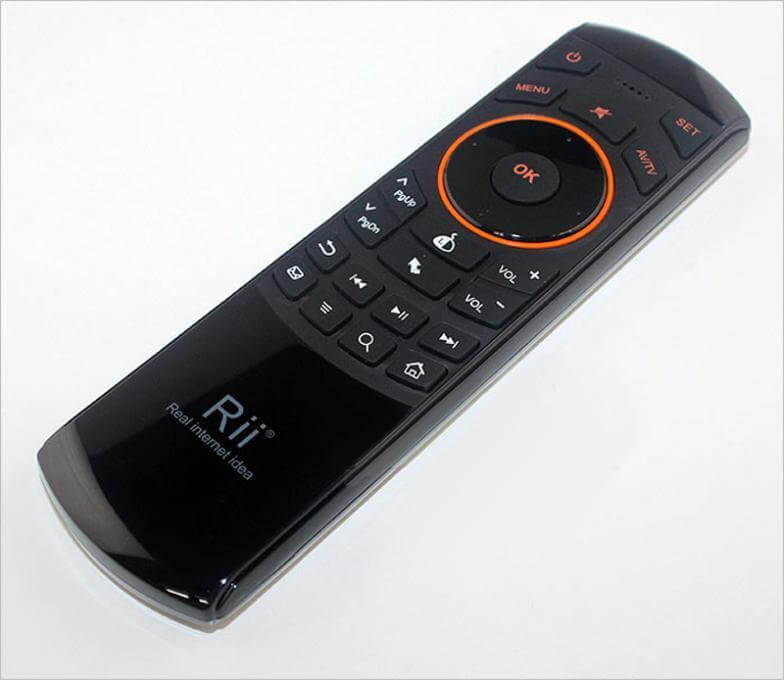

This is my config for the RIII25.

The keys above the directional keys and the power button are IR. All others are RF.

janaha · February 16, 2018 at 3:54 PM

Beelink MiniMXIII S905

Code

ir-keytable -D 130 -P 120
ir-ctl -t 25000

adm · February 16, 2018 at 5:41 PM

Hi,

Here is a a95x remote config file for lirc

rajawaqas · February 16, 2018 at 6:44 PM

Quote from adm

Hi,

Here is a a95x remote config file for lirc

how to add this file and where? I have also nexbox andriod tv player

**The Coolest** · February 16, 2018 at 7:10 PM

rajawaqas

Why don't people read?

check post #1 and #5.

bubblegum57 · February 16, 2018 at 8:16 PM

Thanks gulp79, your remote is the same as mine, I have a H96 Pro (not +)

It works on my box

**The Coolest** · February 16, 2018 at 8:39 PM

bubblegum57 gulp79

It's identical to my T95m and T95N remotes.

adm · February 17, 2018 at 7:00 AM

Quote from rajawaqas

how to add this file and where? I have also nexbox andriod tv player

copy the file "a95x.txt" to "/storage/.config/rc_keymaps/"
create "rc_maps.cfg" into "/storage/.config/" and write "meson-ir * a95x.txt" in it (without quotes)

Quote from boot2k3

copy "remote.xml" to "/storage/.kodi/userdata/keymaps/" and "Lircmap.xml" to "/storage/.kodi/userdata/"

I suggest you to use boot2k3's remote.xml file

Once finished, reboot your box.

Regards

rajawaqas · February 17, 2018 at 7:13 AM

Quote from adm

copy the file "a95x.txt" to "/storage/.config/rc_keymaps/"

create "rc_maps.cfg" into "/storage/.config/" and write "meson-ir * a95x.txt" in it (without quotes)

I advice you tu use both boot2k3's xml files

Once finished, reboot your box.

Regards

thanks, I know it is stupid question but I m simple user. How to create rc_maps.cfg?
