Geniatech t230c

1st Official Post

    After the update of Libre-elec to 9.0.2 I can't atch tv anymore I got a warning htsp client server unreachable. In tv-headend, there's no adapter showing up. Dmesg gives this outp[ut. Anybody knows what to do?

    • Official Post

    The adapter is found:

    [ 9.976369] dvbdev: DVB: registering new adapter (Mygica T230C2 DVB-T/T2/C)

    However; You're getting errors

    [ 16.268660] dvb-usb: bulk message failed: -110 (1/0) ** Repeated **

    I'd check your power supply (Try a powered USB hub and see if that improves anything)

    Otherwise, check the DVB drivers for updates.

    The usb-hub is powered. So what I did: restored an backup, didn't help. Deleted the tvheadend server and client, rebooted, installed tvheadend server and client again. Adapters in DVB inputs came back. I can watch tv again but recording still doesnt work.

    Storage space in tv-headend says 0/0/0/ . Also my recordings are not visible in tvheadend, while I can see them in under videos.

    I'm trying to figure out, what map to put in tvheadend for storage.

    I've tried storage/downloads/Recordings

    videos

    Does anybody have an idea?

    • Official Post

    I've just installed (albeit on an RPi4) 9.1.501 with a MyGica (I believe it is a T230) DVB-T2 adapter with default DVB drivers and it works flawlessly.

    As you reinstalled TVH you'd have lost the TVH settings - you could see if a restored backup resolves this.

    The default location is /storage/recordings - but as this is not created on installation, you'll need to create it first - then TVH will report the correct freespace.

    In latest V4L DVB drivers Geniatech T230, T230C, T230C v2 support moved to dvb-usb-dvbsky driver (dvb-usb-v2 core).

    In my latest media_build also moved support for this devices (+ Geniatech X9330) from dvb-usb-cxusb to dvb-usb-dvbsky

    Quote from crazycat

    In latest V4L DVB drivers Geniatech T230, T230C, T230C v2 support moved to dvb-usb-dvbsky driver (dvb-usb-v2 core).

    In my latest media_build also moved support for this devices (+ Geniatech X9330) from dvb-usb-cxusb to dvb-usb-dvbsky

    What does this mean? If I use T230c, Which dvb module driver should I use? (default vs TBS vs media_build)

    Hi all,

    I bought two T230C DVB-C MyGica adapters and i can't make it work.

    I was trying 2 different OS ( Coreelec and Libreelec).

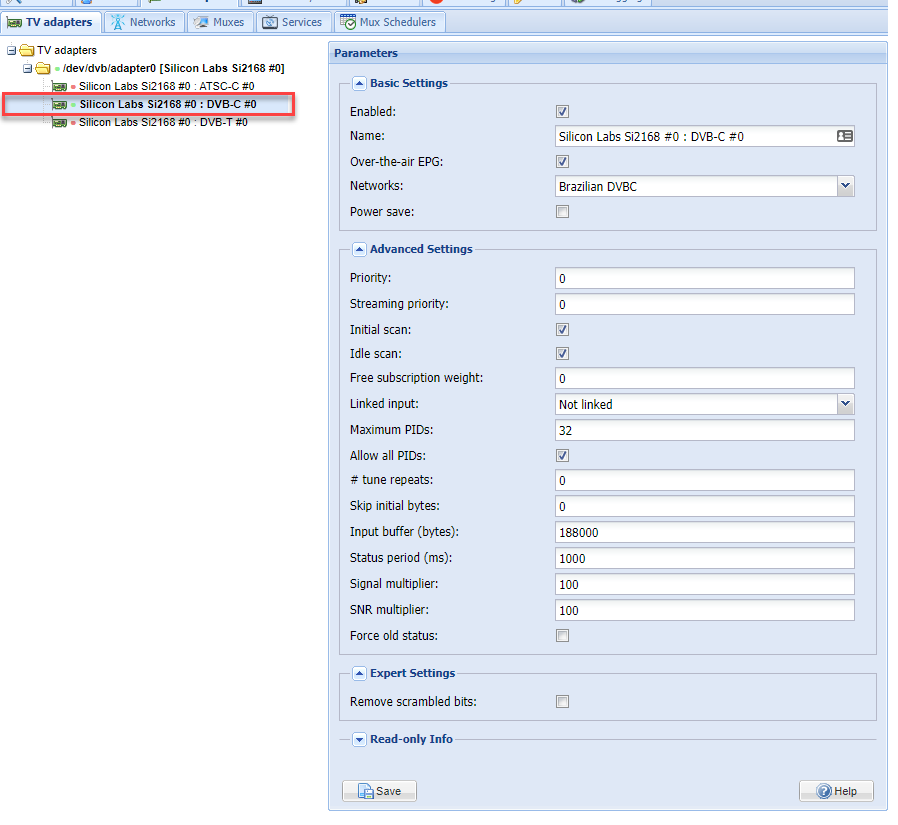

    Tvheadend recognizes the adapter on both when I'm using crazycat driver, everything looks ok.

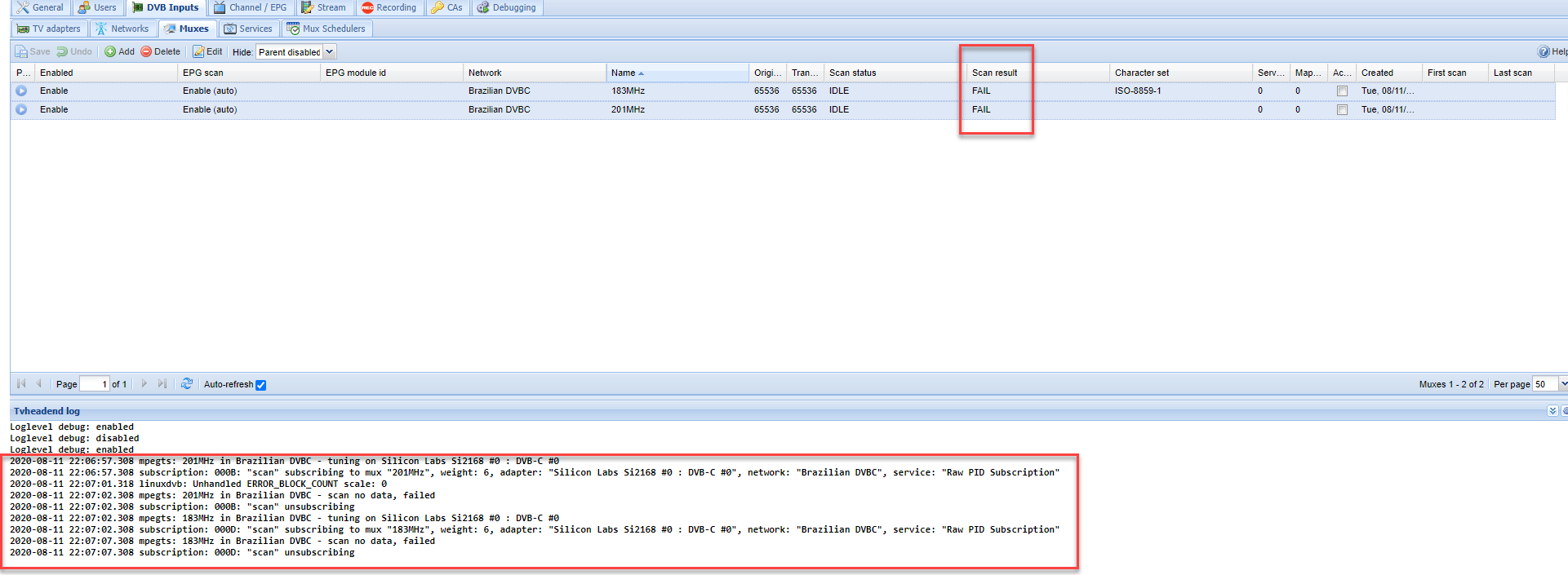

    when I'm trying to scan I'm getting: failed.



    TVHEADEND

    Display Spoiler

    2020-08-11 22:06:57.308 mpegts: 201MHz in Brazilian DVBC - tuning on Silicon Labs Si2168 0 : DVB-C 0

    2020-08-11 22:06:57.308 subscription: 000B: scan subscribing to mux 201MHz, weght: 6, adapter: Silicon Labs Si2168 0 : DVB-C 0, network: Brazilian DVBC, service: Raw PID Subscription

    2020-08-11 22:07:01.318 linuxdvb: Unhandled ERROR_BLOCK_COUNT scale: 0

    2020-08-11 22:07:02.308 mpegts: 201MHz in Brazilian DVBC - scan no data, failed

    2020-08-11 22:07:02.308 subscription: 000B: scan unsubscribing

    2020-08-11 22:07:02.308 mpegts: 183MHz in Brazilian DVBC - tuning on Silicon Labs Si2168 0 : DVB-C 0

    2020-08-11 22:07:02.308 subscription: 000D: scan subscribing to mux 183MHz, weght: 6, adapter: Silicon Labs Si2168 0 : DVB-C 0, network: Brazilian DVBC, service: Raw PID Subscription

    2020-08-11 22:07:07.308 mpegts: 183MHz in Brazilian DVBC - scan no data, failed

    2020-08-11 22:07:07.308 subscription: 000D: scan unsubscribing

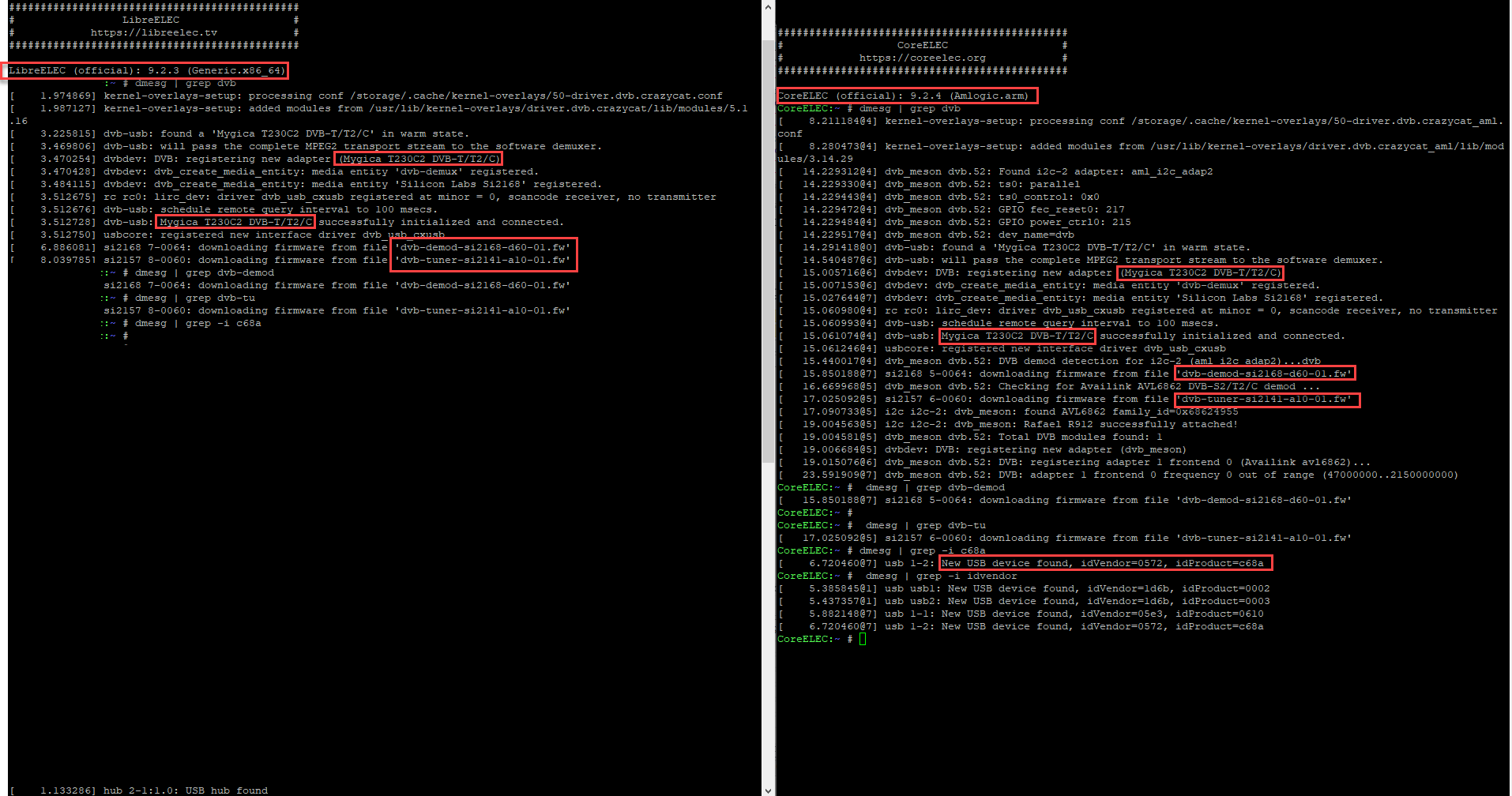

    Resume dmesg

    dvb-usb: found a 'Mygica T230C2 DVB-T/T2/C' in warm state.

    si2168 5-0064: downloading firmware from file 'dvb-demod-si2168-d60-01.fw'

    si2157 6-0060: downloading firmware from file 'dvb-tuner-si2141-a10-01.fw'

    usb 1-2: New USB device found, idVendor=0572, idProduct=c68a

    COREELEC OS

    Display Spoiler

    ##############################################

    # #

    # https://.org #

    ##############################################

    x(official): 9.2.4 (Amlogic.arm)

    x:~ # dmesg | grep dvb

    [ 8.211184@4] kernel-overlays-setup: processing conf /storage/.cache/kernel-overlays/50-driver.dvb.crazycat_aml.nf

    [ 8.280473@4] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/driver.dvb.crazycat_aml/lib/modes/3.14.29

    [ 14.229312@4] dvb_meson dvb.52: Found i2c-2 adapter: aml_i2c_adap2

    [ 14.229330@4] dvb_meson dvb.52: ts0: parallel

    [ 14.229443@4] dvb_meson dvb.52: ts0_control: 0x0

    [ 14.229472@4] dvb_meson dvb.52: GPIO fec_reset0: 217

    [ 14.229484@4] dvb_meson dvb.52: GPIO power_ctrl0: 215

    [ 14.229517@4] dvb_meson dvb.52: dev_name=dvb

    [ 14.291418@0] dvb-usb: found a 'Mygica T230C2 DVB-T/T2/C' in warm state.

    [ 14.540487@6] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.

    [ 15.005716@6] dvbdev: DVB: registering new adapter (Mygica T230C2 DVB-T/T2/C)

    [ 15.007153@6] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registered.

    [ 15.027644@7] dvbdev: dvb_create_media_entity: media entity 'Silicon Labs Si2168' registered.

    [ 15.060980@4] rc rc0: lirc_dev: driver dvb_usb_cxusb registered at minor = 0, scancode receiver, no transmitter

    [ 15.060993@4] dvb-usb: schedule remote query interval to 100 msecs.

    [ 15.061074@4] dvb-usb: Mygica T230C2 DVB-T/T2/C successfully initialized and connected.

    [ 15.061246@4] usbcore: registered new interface driver dvb_usb_cxusb

    [ 15.440017@4] dvb_meson dvb.52: DVB demod detection for i2c-2 (aml_i2c_adap2)...dvb

    [ 15.850188@7] si2168 5-0064: downloading firmware from file 'dvb-demod-si2168-d60-01.fw'

    [ 16.669968@5] dvb_meson dvb.52: Checking for Availink AVL6862 DVB-S2/T2/C demod ...

    [ 17.025092@5] si2157 6-0060: downloading firmware from file 'dvb-tuner-si2141-a10-01.fw'

    [ 17.090733@5] i2c i2c-2: dvb_meson: found AVL6862 family_id=0x68624955

    [ 19.004563@5] i2c i2c-2: dvb_meson: Rafael R912 successfully attached!

    [ 19.004581@5] dvb_meson dvb.52: Total DVB modules found: 1

    [ 19.006684@5] dvbdev: DVB: registering new adapter (dvb_meson)

    [ 19.015076@6] dvb_meson dvb.52: DVB: registering adapter 1 frontend 0 (Availink avl6862)...

    [ 23.591909@7] dvb_meson dvb.52: DVB: adapter 1 frontend 0 frequency 0 out of range (47000000..2150000000)

    x:~ # dmesg | grep dvb-demod

    [ 15.850188@7] si2168 5-0064: downloading firmware from file 'dvb-demod-si2168-d60-01.fw'

    x:~ # dmesg | grep dvb-tune

    [ 17.025092@5] si2157 6-0060: downloading firmware from file 'dvb-tuner-si2141-a10-01.fw'

    x:~ # ^C

    x:~ # dmesg | grep -i c68a

    [ 6.720460@7] usb 1-2: New USB device found, idVendor=0572, idProduct=c68a

    LIBREELEC OS X86 (Intel i5)

    Display Spoiler

    ##############################################

    # LibreELEC #

    # LibreELEC – Just enough OS for KODI #

    ##############################################

    LibreELEC (official): 9.2.3 (Generic.x86_64)

    :~ # dmesg | grep dvb

    [ 1.974869] kernel-overlays-setup: processing conf /storage/.cache/kernel-overlays/50-driver.dvb.crazycat.conf

    [ 1.987127] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/driver.dvb.crazycat/lib/modules/5.1 .16

    [ 3.225815] dvb-usb: found a 'Mygica T230C2 DVB-T/T2/C' in warm state.

    [ 3.469806] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.

    [ 3.470254] dvbdev: DVB: registering new adapter (Mygica T230C2 DVB-T/T2/C)

    [ 3.470428] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registered.

    [ 3.484115] dvbdev: dvb_create_media_entity: media entity 'Silicon Labs Si2168' registered.

    [ 3.512675] rc rc0: lirc_dev: driver dvb_usb_cxusb registered at minor = 0, scancode receiver, no transmitter

    [ 3.512676] dvb-usb: schedule remote query interval to 100 msecs.

    [ 3.512728] dvb-usb: Mygica T230C2 DVB-T/T2/C successfully initialized and connected.

    [ 3.512750] usbcore: registered new interface driver dvb_usb_cxusb

    [ 6.886081] si2168 7-0064: downloading firmware from file 'dvb-demod-si2168-d60-01.fw'

    [ 8.039785] si2157 8-0060: downloading firmware from file 'dvb-tuner-si2141-a10-01.fw'

    :~ # dmesg | grep dvb-demod

    [ 6.886081] si2168 7-0064: downloading firmware from file 'dvb-demod-si2168-d60-01.fw'

    :~ # dmesg | grep dvb-tu

    [ 8.039785] si2157 8-0060: downloading firmware from file 'dvb-tuner-si2141-a10-01.fw'

    :~ # dmesg | grep -i c68a

    :~ #
