Intel NUC, kodi on 4K is limited to 30FPS

BoKKER · July 6, 2017 at 6:02 PM

Hey, I am running LibreELEC on a intel nuc that is capable of outputing 4K at 60FPS with a TV that is capable of showing 4K 60FPS. both units have hdmi 2 or 2.1 ports. On 4K I cant get higher FPS than 30. is there a limit on the linux drivers or in kodi? Thanks

**vpeter** · July 7, 2017 at 7:46 AM

Probably which NUC info would be very helpful

**Klojum** · July 7, 2017 at 9:55 AM Official Post

Wait... Intel made more than one NUC ?!?

Providing a kodi.log file would make things much easier.

BoKKER · July 7, 2017 at 1:51 PM

Intel NUC NUC6CAYH

Possible Spam Detected

Sorry I just thought that this is not going to be a hardware problem

**nickr** · July 8, 2017 at 12:41 AM Official Post

Quote

18:41:22.109 T:139972188337408 NOTICE: Disabled debug logging due to GUI setting. Level 0.

Not a debug log.

BoKKER · July 8, 2017 at 8:30 AM

my bad

07:29:01.208 T:139819383908480 NOTICE: special://profile/ is mapped to: special - Pastebin.com

gwilly7 · July 8, 2017 at 7:54 PM

I am having the same issue on a new Vizio M65-E0 tv. I am curious, what tv are you using. I see Sony in the log but not the model number.

BoKKER · July 9, 2017 at 8:11 AM

kd-65xd7505

**escalade** · July 9, 2017 at 2:16 PM

Your log is reporting 1080p@60 as the maximum:

Code

INFO: ID:0x48 Name:1920x1080 Refresh:60.000000 Width:1920 Height:1080

For a recent NUC I would recommend a community build with the latest and greatest kernel / display driver stack. Try mine or Milhouse's.

BoKKER · July 9, 2017 at 3:56 PM

I just tried your build and its the same thing. 3840x2160p@30fps max.

**escalade** · July 9, 2017 at 6:43 PM

Are you sure the hardware supports it with HDMI? Perhaps try DP.

BoKKER · July 9, 2017 at 9:02 PM

they both have a hdmi 2.0 port. even tho one of the sites stated only 1.4 for my TV but it seems that a firmware upgrade enables 2.0 on older models. I do have a updated system. but will keep looking for bugs if I find something wrong with the setup. TV and the NUC only have hdmi. no display port

**chewitt** · July 9, 2017 at 9:52 PM Official Post

Try adding the modeline manually via xrandr.. it wouldn't be the first time the Intel driver had a bug!

gwilly7 · July 10, 2017 at 2:29 AM

I have been looking around for good instructions on using xrandr but do not find anything that explains it good enough for me to really give it a try. Do you have any example by any chance.

**chewitt** · July 10, 2017 at 10:19 PM Official Post

Code

xrandr --output HDMI1 --mode 3840x2160 --rate 60.00

^ something like that

gwilly7 · July 11, 2017 at 5:25 AM

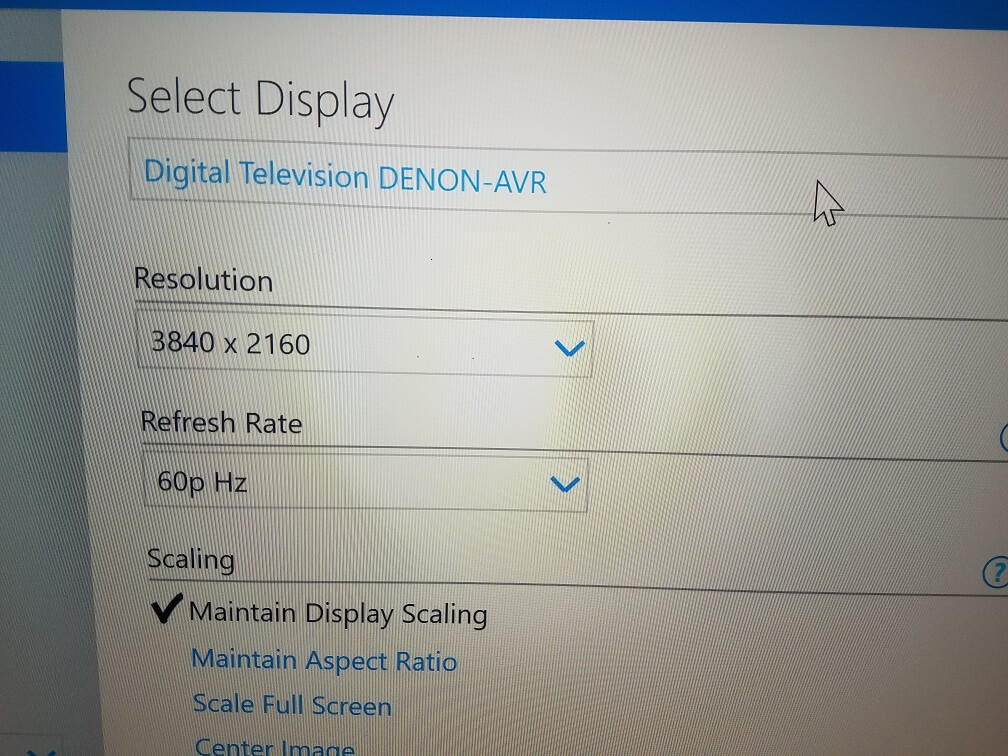

Thank you very much for your help. Used the code but with DP1 instead of HDMI1, no errors but did not give me the 60hz refresh rate. I do have the same nuc as BoKKER. I also installed windows today to make sure I was not crazy and to make sure bios and firmware were up to date and was able to get 3840X2160 @60. I included a pic below.

I have also attached a link to my log. NSZY

Also here is the xrandr command I tried

LibreELECnuc:~ # xrandr --output DP1 --mode 3840x2160 --rate 60.00

LibreELECnuc:~ # xrandr

Screen 0: minimum 8 x 8, current 3840 x 2160, maximum 32767 x 32767

DP1 connected primary 3840x2160+0+0 (normal left inverted right x axis y axis) 1430mm x 800mm

3840x2160 30.00*+ 24.00 29.97 23.98

4096x2160 24.00 23.98

1920x1080 60.00 59.94 30.00 24.00 29.97 23.98

1920x1080i 60.00 59.94

2880x480 60.00 59.94

1280x720 60.00 59.94

1024x768 75.03 70.07 60.00

1440x480 60.00 59.94

800x600 72.19 75.00 60.32

720x480 60.00 59.94

640x480 75.00 60.00 59.94

720x400 70.08

BoKKER · July 11, 2017 at 3:03 PM

I did install windows today too to check that there it works. too bad I did not see your post. It would have saved me a few hours. I added 60 fps 4K with xrandr but I always end up with the

xrandr: configure crtc 0 failed

error. I tried to tweak it but I did not manage to get it work.

gwilly7 · July 11, 2017 at 3:30 PM

I did not get any errors when I ran the xrandr command from above, but no changes either. Did you change HDMI1 to DP1 from the example above from Chewitt?
