j3455-itx motherboard and LibreELEC 8.1.0 Beta

hugues · August 20, 2017 at 10:37 AM

Hello,

I bought a asrock j3455-itx motherboard (GPU Intel HD Graphics 500) and i installed first LibreELEC 8.0.2.

After i installed manualy via SSH LibreELEC 8.1.0 BETA to have 4k 10 bit hardware decoding. That work ! Thx.

But i met a other problem on 8.1.0 BETA, the passthrough audio don’t work. All format audio (AC3, DTS, DTS-HD, etc.) is converted to PCM. (Note : Same thing, if passthrough option isn’t selected.)

On the 8.0.2 version, only Dolby Digital and DTS passthrough work other format (DTS-HD, TRUE-HD) is converted to Dolby Digital or DTS, if only passthrough Dolby Digital or DTS is selected. If i selected DTS-HD, TRUE-HD in passtrought menu, I was entitled to silence.

I know that 8.1.0 is a beta version, but why this difference compared to 8.0.2 ?

Is it a configuration problem in Kodi ? Or LibreElec ? Is a driver bug ? Is there a workaround?

Someone can help or explain me?

Thanks

Regards.

Hugues.

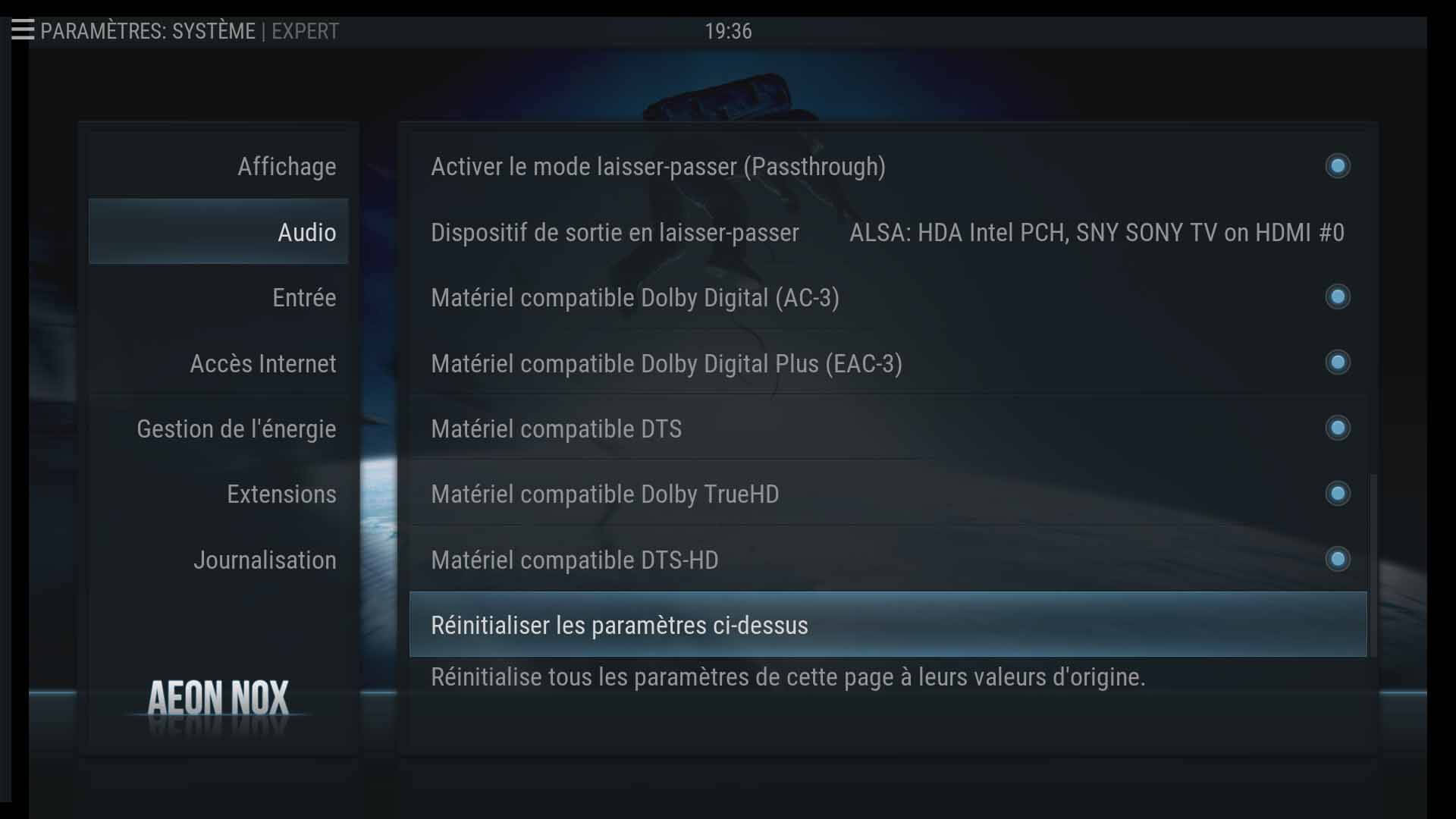

Ps : I put kodi.log in zip & a screenshot of gui passtrought.

**chewitt** · August 20, 2017 at 8:38 PM Official Post

Make sure "sync playback to display" it not selected, as this forces output to PCM.

hugues · August 21, 2017 at 9:41 AM

Hello chewitt,

Thx for info. Is the good solution.

This option is little vicious. I read the disputation at kodi forum.

Other thing , why DTS-HD and DD TRUE-HD is not recognized ? When i enable this in passtrought, it's the silence.

I must disable to convert these flux in simple DTS or DD.

Thanks for answers.

Regards.

**CvH** · August 21, 2017 at 9:52 AM Official Post

Quote from hugues

Other thing , why DTS-HD and DD TRUE-HD is not recognized ? When i enable this in passtrought, it's the silence.

Intel drivers doesn't support this "feature" at Linux

If this get fixed at all some day is highly unclear till date.

hugues · August 21, 2017 at 11:08 AM

Hello,

Thx for this precision.

Regards

**CvH** · August 21, 2017 at 1:52 PM Official Post

Quote from hugues

Thx for this precision.

btw this is just for the J3455 and J4205, the older and the newer generations have support for it (due that converter chip that they build in for HDMI2.0). ~~The upcoming boards have native HDMI2.0 and most likely passtrought again.~~ *edit* sadly not

hugues · August 22, 2017 at 6:25 AM

Hello,

Thank you for this additional information.

Regards.

**5schatten** · September 18, 2017 at 1:23 PM

hugues

Have you installed the latest beta? I've got no more sound output over hdmi after installing it. Reverting back to 8.02 fixed it. I'm using the same J3455-itx board and faced similar problems as you.

I've created an edid entry and also updated LSPcon to v1.66 since the same chip is used to convert the signal. Also I've set "Keep audio device alive" to "Always" and this seems to work until updating to the beta version.

Menrad · February 20, 2018 at 9:40 AM

Hi,

I intend to buy a motherboard with J3455 apu onboard, is the HD audio passthrough still an issue in latest Libreelec versions ?

Thanks.

**5schatten** · February 20, 2018 at 10:19 AM

works fine with these builds:

LE8 "Remix" (Generic/RPi) Emulationstation/Chrome/Spotify PROVIDE LOGS IF PROBLEMS
