How helpful will this be to getting LibreELEC on allwinner android boxes?

hungns35 · Aug 15th 2019

Thanks

jernej · Aug 15th 2019

Quote from hungns35

How helpful will this be to getting LibreELEC on allwinner android boxes?

There are already two boxes supported (Beelink X2 - H3 and Beelink GS1 - H6) and support for another one (Tanix TX6 - H6) is close to being ready. Actually, this Tanix TX6 image is known to work on other H6 boxes.

Which android box do you have in mind?

RedFighterCZ · Dec 30th 2019

Q Plus Android 9.0 TV Box Smart TV Box 4GB RAM 64GB Allwinner H6 Quad Core 6K H.265 USD3.0 2.4G Wifi

Hardware	CPU	Allwinner H6 Quad core ARM Cortex-A53
	GPU	Mali-T720MP2
	SDRAM	4GB
	FLASH	32GB/64GB
	DC In	DC 5V/2A
	USB Host	1x USB 3.0, 2x USB 2.0, support U DISK and USB HDD
	Card Reader	SD/SDHC/MMC cards
	Lan	RJ45 Ethernet port(100M)
	Wifi	2.4GHz
	SPDIF	Coaxial
	Power Indicator	Power On: Blue

jernej · Dec 30th 2019

Can you try Tanix TX6 image? AFAIK it should work on that box.

RedFighterCZ · Jan 10th 2020

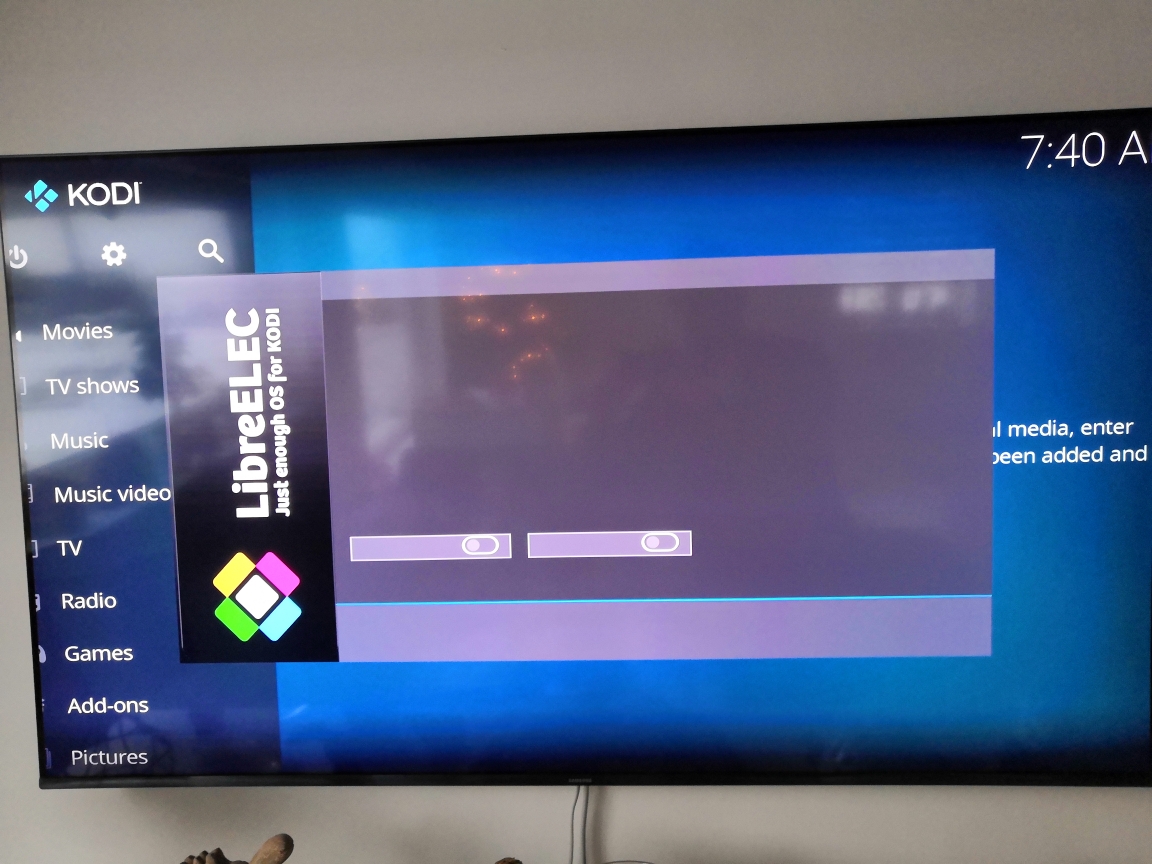

This image is running, but how turn off a box on picture? Thx

RedFighterCZ · Jan 10th 2020

Hi. Helpful a reflashing SD card and new settings KODI. All functions are ready, without instaling add-ons. Any reason?

jernej · Jan 10th 2020

currently there is a bug in Kodi regarding addon repositories which should be solved soon: Nightly images where Addons?

Opp-74 · Jan 13th 2020

where do you find the tanix tx6 libreelec files and what's the steps to getting it running fast and simple?

Everything else I have seen is tear it apart reprogramming solder etc no thanks I'm into simple and quick reboot update, toothpick restore screen etc

RedFighterCZ · Jan 21st 2020

Hallo new ver. Tanix TX6 not booting? Pls help.

SWen · Jan 22nd 2020

Quote from RedFighterCZ

Hallo new ver. Tanix TX6 not booting? Pls help.

Yes, I also have this problem.

We have to wait what jernej to say.

jernej · Jan 23rd 2020

I tested latest nightly (Jan. 20.) and latest master (Jan. 23) and both work fine for me. If it doesn't work work you with any of those images, please connect serial cable according to Tanix TX6 - linux-sunxi.org and give me output during boot.

SWen · Jan 23rd 2020

Hello. I hope this help you.

Code

U-Boot SPL 2020.01-rc1 (Jan 20 2020 - 13:57:23 +0100)
DRAM: 4096 MiB
Trying to boot from MMC1
NOTICE: BL31: v2.1(release):9.0.0-2495-g5c2daec2d2
NOTICE: BL31: Built : 12:25:17, Jan 20 2020
NOTICE: BL31: Detected Allwinner H6 SoC (1728)
NOTICE: BL31: Found U-Boot DTB at 0xc07a970, model: Eachlink H6 Mini
NOTICE: PMIC: Probing AXP805
ERROR: Start clear bit timeout
ERROR: PMIC: Cannot put AXP805 to master mode.

U-Boot 2020.01-rc1 (Jan 20 2020 - 13:57:23 +0100) Allwinner Technology, Build: jenkins-H6-165

CPU: Allwinner H6 (SUN50I)
Model: Eachlink H6 Mini
DRAM: 3 GiB
MMC: [email protected]: 0, [email protected]: 1
Loading Environment from FAT... *** Warning - bad CRC, using default environment

In: [email protected]
Out: [email protected]
Err: [email protected]
Net: No ethernet found.
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
179 bytes read in 6 ms (28.3 KiB/s)
1: LibreELEC
Retrieving file: /KERNEL
17803776 bytes read in 1784 ms (9.5 MiB/s)
append: boot=UUID=2001-5337 disk=UUID=da6f8d5d-34a2-4da8-82e5-b411dfc2a7ac quiet console=ttyS0,115200 console=tty1
Retrieving file: /sun50i-h6-tanix-tx6.dtb
18134 bytes read in 6 ms (2.9 MiB/s)
## Flattened Device Tree blob at 4fa00000
Booting using the fdt blob at 0x4fa00000
Loading Device Tree to 0000000049ff8000, end 0000000049fff6d5 ... OK

Starting kernel ...

[ 0.278349] sun50i-de2-bus 1000000.bus: Error couldn't map SRAM to device
[ 0.279177] sun4i-usb-phy 5100400.phy: failed to get clock usb0_phy
[ 0.284353] sun4i-pwm 300a000.pwm: get bus clock failed (____ptrval____)

Display More

jernej · Jan 23rd 2020

hm... this seems to be ok, but not enough information. Please edit extlinux/extlinux.conf on FAT32 partition and remove "quiet" and "console=tty1" and add "systemd.debug-shell=1" at the end of the same line. That way you should get much more verbose output and if kernel boots up, console access. If you get that far, output of dmesg would be useful.

SWen · Jan 23rd 2020

Code

U-Boot SPL 2020.01-rc1 (Jan 20 2020 - 13:57:23 +0100)
DRAM: 4096 MiB
Trying to boot from MMC1
NOTICE:  BL31: v2.1(release):9.0.0-2495-g5c2daec2d2
NOTICE:  BL31: Built : 12:25:17, Jan 20 2020
NOTICE:  BL31: Detected Allwinner H6 SoC (1728)
NOTICE:  BL31: Found U-Boot DTB at 0xc07a970, model: Eachlink H6 Mini
NOTICE:  PMIC: Probing AXP805
ERROR:   Start clear bit timeout
ERROR:   PMIC: Cannot put AXP805 to master mode.


U-Boot 2020.01-rc1 (Jan 20 2020 - 13:57:23 +0100) Allwinner Technology, Build: jenkins-H6-165

CPU:   Allwinner H6 (SUN50I)
Model: Eachlink H6 Mini
DRAM:  3 GiB
MMC:   [email protected]0000: 0, [email protected]: 1
Loading Environment from FAT... *** Warning - bad CRC, using default environment

In:    [email protected]
Out:   [email protected]
Err:   [email protected]
Net:   No ethernet found.
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
182 bytes read in 5 ms (35.2 KiB/s)
1:    LibreELEC
Retrieving file: /KERNEL
17803776 bytes read in 1785 ms (9.5 MiB/s)
append: boot=UUID=2001-5337 disk=UUID=da6f8d5d-34a2-4da8-82e5-b411dfc2a7ac console=ttyS0,115200 systemd.debug-shell=1
Retrieving file: /sun50i-h6-tanix-tx6.dtb
18134 bytes read in 5 ms (3.5 MiB/s)
## Flattened Device Tree blob at 4fa00000
   Booting using the fdt blob at 0x4fa00000
   Loading Device Tree to 0000000049ff8000, end 0000000049fff6d5 ... OK

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[    0.000000] Linux version 5.4.7 ([email protected]) (gcc version 8.3.0 (GNU Toolchain for the A-profile Architecture 8.3-2019.03 (arm-rel-8.36))) #1 SMP PREEMPT Mon Jan 20 12:24:25 CET 2020
[    0.000000] Machine model: Tanix TX6
[    0.000000] efi: Getting EFI parameters from FDT:
[    0.000000] efi: UEFI not found.
[    0.000000] cma: Reserved 384 MiB at 0x00000000e8000000
[    0.000000] NUMA: No NUMA configuration found
[    0.000000] NUMA: Faking a node at [mem 0x0000000040000000-0x00000000ffffffff]
[    0.000000] NUMA: NODE_DATA [mem 0xe79e0800-0xe79e1fff]
[    0.000000] Zone ranges:
[    0.000000]   DMA32    [mem 0x0000000040000000-0x00000000ffffffff]
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000040000000-0x00000000ffffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x00000000ffffffff]
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.1 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: MIGRATE_INFO_TYPE not supported.
[    0.000000] psci: SMC Calling Convention v1.1
[    0.000000] percpu: Embedded 22 pages/cpu s49624 r8192 d32296 u90112
[    0.000000] Detected VIPT I-cache on CPU0
[    0.000000] CPU features: detected: ARM erratum 845719
[    0.000000] Speculative Store Bypass Disable mitigation not required
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 774144
[    0.000000] Policy zone: DMA32
[    0.000000] Kernel command line: boot=UUID=2001-5337 disk=UUID=da6f8d5d-34a2-4da8-82e5-b411dfc2a7ac console=ttyS0,115200 systemd.debug-shell=1
[    0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[    0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 2672812K/3145728K available (9660K kernel code, 746K rwdata, 3912K rodata, 3008K init, 348K bss, 79700K reserved, 393216K cma-reserved)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.000000] rcu: Preemptible hierarchical RCU implementation.
[    0.000000] rcu:     RCU restricting CPUs from NR_CPUS=64 to nr_cpu_ids=4.
[    0.000000]     Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] GIC: Using split EOI/Deactivate mode
[    0.000000] random: get_random_bytes called from start_kernel+0x2b8/0x444 with crng_init=0
[    0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    0.000004] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    0.000253] Console: colour dummy device 80x25
[    0.000323] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[    0.000334] pid_max: default: 32768 minimum: 301
[    0.000423] LSM: Security Framework initializing
[    0.000496] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    0.000520] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    0.000570] *** VALIDATE tmpfs ***
[    0.001006] *** VALIDATE proc ***
[    0.001258] *** VALIDATE cgroup1 ***
[    0.001267] *** VALIDATE cgroup2 ***
[    0.024031] ASID allocator initialised with 32768 entries
[    0.032027] rcu: Hierarchical SRCU implementation.
[    0.040505] EFI services will not be available.
[    0.048062] smp: Bringing up secondary CPUs ...
[    0.080508] Detected VIPT I-cache on CPU1
[    0.080557] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[    0.112442] Detected VIPT I-cache on CPU2
[    0.112473] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[    0.144500] Detected VIPT I-cache on CPU3
[    0.144529] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[    0.144601] smp: Brought up 1 node, 4 CPUs
[    0.144618] SMP: Total of 4 processors activated.
[    0.144625] CPU features: detected: 32-bit EL0 Support
[    0.144632] CPU features: detected: CRC32 instructions
[    0.150262] CPU: All CPU(s) started at EL2
[    0.150286] alternatives: patching kernel code
[    0.151956] devtmpfs: initialized
[    0.156136] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.156158] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[    0.167493] pinctrl core: initialized pinctrl subsystem
[    0.168321] DMI not present or invalid.
[    0.168688] NET: Registered protocol family 16
[    0.170137] DMA: preallocated 256 KiB pool for atomic allocations
[    0.170157] audit: initializing netlink subsys (disabled)
[    0.170322] audit: type=2000 audit(0.168:1): state=initialized audit_enabled=0 res=1
[    0.171282] cpuidle: using governor menu
[    0.171529] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    0.172154] Serial: AMBA PL011 UART driver
[    0.189126] HugeTLB registered 1.00 GiB page size, pre-allocated 0 pages
[    0.189141] HugeTLB registered 32.0 MiB page size, pre-allocated 0 pages
[    0.189149] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages
[    0.189157] HugeTLB registered 64.0 KiB page size, pre-allocated 0 pages
[    0.192331] cryptd: max_cpu_qlen set to 1000
[    0.197558] iommu: Default domain type: Translated
[    0.197961] SCSI subsystem initialized
[    0.198466] usbcore: registered new interface driver usbfs
[    0.198522] usbcore: registered new interface driver hub
[    0.198607] usbcore: registered new device driver usb
[    0.199004] mc: Linux media interface: v0.10
[    0.199045] videodev: Linux video capture interface: v2.00
[    0.199216] pps_core: LinuxPPS API ver. 1 registered
[    0.199224] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <[email protected]>
[    0.199248] PTP clock support registered
[    0.199900] Advanced Linux Sound Architecture Driver Initialized.
[    0.200749] clocksource: Switched to clocksource arch_sys_counter
[    0.200972] VFS: Disk quotas dquot_6.6.0
[    0.201032] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[    0.201073] *** VALIDATE ramfs ***
[    0.201090] *** VALIDATE hugetlbfs ***
[    0.208668] thermal_sys: Registered thermal governor 'step_wise'
[    0.208672] thermal_sys: Registered thermal governor 'power_allocator'
[    0.209195] NET: Registered protocol family 2
[    0.209656] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[    0.209717] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    0.209987] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear)
[    0.210492] TCP: Hash tables configured (established 32768 bind 32768)
[    0.210611] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    0.210710] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    0.210924] NET: Registered protocol family 1
[    0.211362] RPC: Registered named UNIX socket transport module.
[    0.211369] RPC: Registered udp transport module.
[    0.211374] RPC: Registered tcp transport module.
[    0.211379] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.250474] Initialise system trusted keyrings
[    0.250603] workingset: timestamp_bits=44 max_order=20 bucket_order=0
[    0.258508] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.259249] NFS: Registering the id_resolver key type
[    0.259277] Key type id_resolver registered
[    0.259282] Key type id_legacy registered
[    0.259296] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    0.259464] 9p: Installing v9fs 9p2000 file system support
[    0.277179] NET: Registered protocol family 38
[    0.277195] Key type asymmetric registered
[    0.277202] Asymmetric key parser 'x509' registered
[    0.277208] Asymmetric key parser 'pkcs8' registered
[    0.277266] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 244)
[    0.277395] io scheduler mq-deadline registered
[    0.277403] io scheduler kyber registered
[    0.277906] sun50i-de2-bus 1000000.bus: Error couldn't map SRAM to device
[    0.278722] sun4i-usb-phy 5100400.phy: failed to get clock usb0_phy
[    0.283114] sun50i-h6-r-pinctrl 7022000.pinctrl: initialized sunXi PIO driver
[    0.283745] sun4i-pwm 300a000.pwm: get bus clock failed (____ptrval____)
[    0.296814] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[    0.300555] panfrost 1800000.gpu: clock rate = 432000000
[    0.300583] panfrost 1800000.gpu: bus_clock rate = 100000000
[    0.300605] panfrost 1800000.gpu: 1800000.gpu supply mali not found, using dummy regulator
[    0.300705] panfrost 1800000.gpu: mali-t720 id 0x720 major 0x1 minor 0x1 status 0x0
[    0.300715] panfrost 1800000.gpu: features: 00000000,10309e40, issues: 00000000,21054400
[    0.300725] panfrost 1800000.gpu: Features: L2:0x07110206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002821 AS:0xf JS:0x7
[    0.300733] panfrost 1800000.gpu: shader_present=0x3 l2_present=0x1
[    0.302131] [drm] Initialized panfrost 1.1.0 20180908 for 1800000.gpu on minor 0
[    0.302519] cacheinfo: Unable to detect cache hierarchy for CPU 0
[    0.309939] loop: module loaded
[    0.312166] libphy: Fixed MDIO Bus: probed
[    0.313157] tun: Universal TUN/TAP device driver, 1.6
[    0.315737] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    0.315750] ehci-platform: EHCI generic platform driver
[    0.315945] ehci-platform 5101000.usb: EHCI Host Controller
[    0.315971] ehci-platform 5101000.usb: new USB bus registered, assigned bus number 1
[    0.316087] ehci-platform 5101000.usb: irq 23, io mem 0x05101000
[    0.328762] ehci-platform 5101000.usb: USB 2.0 started, EHCI 1.00
[    0.329454] hub 1-0:1.0: USB hub found
[    0.329488] hub 1-0:1.0: 1 port detected
[    0.330069] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    0.330097] ohci-platform: OHCI generic platform driver
[    0.330282] ohci-platform 5101400.usb: Generic Platform OHCI controller
[    0.330303] ohci-platform 5101400.usb: new USB bus registered, assigned bus number 2
[    0.330406] ohci-platform 5101400.usb: irq 24, io mem 0x05101400
[    0.393432] hub 2-0:1.0: USB hub found
[    0.393468] hub 2-0:1.0: 1 port detected
[    0.394386] usbcore: registered new interface driver uas
[    0.394476] usbcore: registered new interface driver usb-storage
[    0.397170] sun6i-rtc 7000000.rtc: registered as rtc0
[    0.397183] sun6i-rtc 7000000.rtc: RTC enabled
[    0.397289] i2c /dev entries driver
[    0.397801] IR NEC protocol handler initialized
[    0.397808] IR RC5(x/sz) protocol handler initialized
[    0.397813] IR RC6 protocol handler initialized
[    0.397818] IR JVC protocol handler initialized
[    0.397822] IR Sony protocol handler initialized
[    0.397827] IR SANYO protocol handler initialized
[    0.397832] IR Sharp protocol handler initialized
[    0.397837] IR MCE Keyboard/mouse protocol handler initialized
[    0.397841] IR XMP protocol handler initialized
[    0.397846] ir_imon_decoder: IR iMON protocol handler initialized
[    0.397851] IR RCMM protocol handler initialized
[    0.398016] sun50i-h6-r-pinctrl 7022000.pinctrl: 7022000.pinctrl supply vcc-pl not found, using dummy regulator
[    0.398238] Registered IR keymap rc-tanix-tx5max
[    0.398322] rc rc0: sunxi-ir as /devices/platform/soc/7040000.ir/rc/rc0
[    0.398458] input: sunxi-ir as /devices/platform/soc/7040000.ir/rc/rc0/input0
[    0.398736] rc rc0: lirc_dev: driver sunxi-ir registered at minor = 0, raw IR receiver, no transmitter
[    0.398888] sunxi-ir 7040000.ir: initialized sunXi IR driver
[    0.399058] usbcore: registered new interface driver xbox_remote
[    0.400486] sunxi-wdt 7020400.watchdog: Watchdog enabled (timeout=16 sec, nowayout=0)
[    0.401052] sun50i-cpufreq-nvmem: probe of sun50i-cpufreq-nvmem failed with error -2
[    0.401355] sdhci: Secure Digital Host Controller Interface driver
[    0.401362] sdhci: Copyright(c) Pierre Ossman
[    0.401479] Synopsys Designware Multimedia Card Interface Driver
[    0.402142] sdhci-pltfm: SDHCI platform and OF driver helper
[    0.402802] ledtrig-cpu: registered to indicate activity on CPUs
[    0.403066] hidraw: raw HID events driver (C) Jiri Kosina
[    0.403834] usbcore: registered new interface driver usbhid
[    0.403845] usbhid: USB HID core driver
[    0.404781] cedrus 1c0e000.video-codec: Device registered as /dev/video0
[    0.408014] Initializing XFRM netlink socket
[    0.408039] NET: Registered protocol family 17
[    0.408231] 9pnet: Installing 9P2000 support
[    0.408261] Key type dns_resolver registered
[    0.408593] registered taskstats version 1
[    0.408599] Loading compiled-in X.509 certificates
[    0.425310] sun50i-h6-pinctrl 300b000.pinctrl: initialized sunXi PIO driver
[    0.425815] sun50i-h6-pinctrl 300b000.pinctrl: 300b000.pinctrl supply vcc-pb not found, using dummy regulator
[    0.457183] sun50i-h6-pinctrl 300b000.pinctrl: 300b000.pinctrl supply vcc-ph not found, using dummy regulator
[    0.457602] printk: console [ttyS0] disabled
[    0.478418] 5000000.serial: ttyS0 at MMIO 0x5000000 (irq = 18, base_baud = 1500000) is a 16550A
[    1.681215] printk: console [ttyS0] enabled
[    1.705109] sun4i-drm display-engine: bound 1100000.mixer (ops sun8i_mixer_ops)
[    1.712578] sun4i-drm display-engine: bound 6510000.tcon-top (ops sun8i_tcon_top_ops)
[    1.720679] sun4i-drm display-engine: bound 6515000.lcd-controller (ops sun4i_tcon_ops)
[    1.728748] sun8i-dw-hdmi 6000000.hdmi: 6000000.hdmi supply hvcc not found, using dummy regulator
[    1.737939] sun8i-dw-hdmi 6000000.hdmi: Detected HDMI TX controller v2.12a with HDCP (DWC HDMI 2.0 TX PHY)
[    1.748058] sun8i-dw-hdmi 6000000.hdmi: registered DesignWare HDMI I2C bus driver
[    1.756444] sun4i-drm display-engine: bound 6000000.hdmi (ops sun8i_dw_hdmi_ops)
[    1.763858] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[    1.770472] [drm] No driver support for vblank timestamp query.
[    1.776721] [drm] Initialized sun4i-drm 1.0.0 20150629 for display-engine on minor 1
[    1.784521] [drm] Cannot find any crtc or sizes
[    1.789936] xhci-hcd xhci-hcd.3.auto: xHCI Host Controller
[    1.795450] xhci-hcd xhci-hcd.3.auto: new USB bus registered, assigned bus number 3
[    1.803238] xhci-hcd xhci-hcd.3.auto: hcc params 0x0220f064 hci version 0x100 quirks 0x0000000002010010
[    1.812676] xhci-hcd xhci-hcd.3.auto: irq 25, io mem 0x05200000
[    1.819115] [drm] Cannot find any crtc or sizes
[    1.823875] hub 3-0:1.0: USB hub found
[    1.827658] hub 3-0:1.0: 1 port detected
[    1.831870] xhci-hcd xhci-hcd.3.auto: xHCI Host Controller
[    1.837373] xhci-hcd xhci-hcd.3.auto: new USB bus registered, assigned bus number 4
[    1.845038] xhci-hcd xhci-hcd.3.auto: Host supports USB 3.0 SuperSpeed
[    1.851616] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[    1.860208] hub 4-0:1.0: USB hub found
[    1.863991] hub 4-0:1.0: 1 port detected
[    1.868832] ehci-platform 5311000.usb: EHCI Host Controller
[    1.874430] ehci-platform 5311000.usb: new USB bus registered, assigned bus number 5
[    1.882266] ehci-platform 5311000.usb: irq 26, io mem 0x05311000
[    1.900763] ehci-platform 5311000.usb: USB 2.0 started, EHCI 1.00
[    1.907413] hub 5-0:1.0: USB hub found
[    1.911196] hub 5-0:1.0: 1 port detected
[    1.915890] ohci-platform 5311400.usb: Generic Platform OHCI controller
[    1.922529] ohci-platform 5311400.usb: new USB bus registered, assigned bus number 6
[    1.930378] ohci-platform 5311400.usb: irq 27, io mem 0x05311400
[    1.997313] hub 6-0:1.0: USB hub found
[    2.001097] hub 6-0:1.0: 1 port detected
[    2.005886] usb_phy_generic usb_phy_generic.4.auto: usb_phy_generic.4.auto supply vcc not found, using dummy regulator
[    2.017079] musb-hdrc musb-hdrc.5.auto: MUSB HDRC host driver
[    2.022848] musb-hdrc musb-hdrc.5.auto: new USB bus registered, assigned bus number 7
[    2.031255] hub 7-0:1.0: USB hub found
[    2.035040] hub 7-0:1.0: 1 port detected
[    2.043001] ac200-ephy ac200-ephy: DMA mask not set
[    2.052874] sun50i-h6-pinctrl 300b000.pinctrl: 300b000.pinctrl supply vcc-pf not found, using dummy regulator
[    2.063323] sunxi-mmc 4020000.mmc: Got CD GPIO
[    2.093148] sunxi-mmc 4020000.mmc: initialized, max. request size: 16384 KB, uses new timings mode
[    2.127063] sunxi-mmc 4022000.mmc: initialized, max. request size: 2048 KB, uses new timings mode
[    2.137806] asoc-simple-card sound: i2s-hifi <-> 5091000.i2s mapping ok
[    2.144477] asoc-simple-card sound: ASoC: no DMI vendor name!
[    2.151101] sun6i-rtc 7000000.rtc: setting system clock to 1970-01-01T00:00:05 UTC (5)
[    2.159295] ALSA device list:
[    2.162302]   #0: allwinner-hdmi
[    2.167161] Freeing unused kernel memory: 3008K
[    2.170088] mmc0: host does not support reading read-only switch, assuming write-enable
[    2.185483] mmc0: new high speed SDHC card at address aaaa
[    2.188804] Run /init as init process
[    2.191766] mmcblk0: mmc0:aaaa SL16G 14.8 GiB
[    2.209439]  mmcblk0: p1 p2
[H[J[?25l

Display More

The kernel started? I think no.

jernej · Jan 23rd 2020

it seems something wrong with handling eMMC. Recently there were some changes to double the speed, as they should be from the beginning. However, that change works just fine on my box. You can try to boot Android from eMMC (if you still have it), to see if everything is ok with it and maybe fix any filesystem issue. If not, I will prepare test updates with possible solutions or workarounds.

SWen · Jan 23rd 2020

Builds up to LibreELEC-H6.arm-9.80-nightly-20200119-635fa1e-tanix-tx6 work fine. I can to boot LibreELEC from eMMC.

I saw a change on git. I assumed that the problem would be fixed based on feedback. But judging by the activity on the forum, my box is worse.

jernej · Jan 24th 2020

so, is the issue booting from eMMC or also from SD card?

SWen · Jan 24th 2020

No difference. Logs are from boot sd card.
