¿existe el controlador para esta sintonizadora?
a mi no me la detecta con diferentes libreelec 8.0.2 a 8.2.5
-edit- english
Is there a driver for this tuner?
it does not detect it with different libreelec 8.0.2 to 8.2.5
Geniatech Mygica HDStar DVB-S2 USB HD not working
-
asaber -
June 5, 2018 at 10:41 PM -
Thread is Unresolved
-
-
- Official Post
First of all, this is an English only forum, so please always add the English translation to your posts.
Also, using capital letters only in your text is considered yelling or screaming, according to Internet etiquette, so please don't do that.
-
- Official Post
Is there a driver for this tuner?
as far as I know it may work with 8.2.5 but the tuner is known as very
if the tuner is not working pls log in via ssh and post the output of dmesg | paste
-
First of all ask for the capital letters and not to publish in English
I just installed version 8.2.5 and accessing the web in Settings / DVB Entries does not detect the tuner.
I have entered by SSH and executed the dmesg command and it has given me this
Code
Display MoreLibreELEC (official): 8.2.5 (RPi2.arm) LibreELEC:~ # dmesg [ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 4.9.80 (chewitt@build1) (gcc version 6.2.0 (GCC) ) #1 SMP Fri Apr 13 11:08:35 BST 2018 [ 0.000000] CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt:Machine model: Raspberry Pi 3 Model B Rev 1.2 [ 0.000000] cma: Reserved 8 MiB at 0x2f800000 [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] On node 0 totalpages: 196608 [ 0.000000] free_area_init_node: node 0, pgdat 80c36080, node_mem_map af136000 [ 0.000000] Normal zone: 1728 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 196608 pages, LIFO batch:31 [ 0.000000] percpu: Embedded 14 pages/cpu @af0f0000 s25292 r8192 d23860 u57344 [ 0.000000] pcpu-alloc: s25292 r8192 d23860 u57344 alloc=14*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 194880 [ 0.000000] Kernel command line: 8250.nr_uarts=0 bcm2708_fb.fbwidth=1824 bcm2708_fb.fbheight=984 bcm2708_fb.fbswap=1 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 boot=/dev/mmcblk0p1 disk=/dev/mmcblk0p2 quiet root=/dev/ram0 rdinit=/init BOOT_IMAGE=/kernel.img usbcore.autosuspend=-1 [ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes) [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) [ 0.000000] Memory: 758304K/786432K available (6144K kernel code, 221K rwdata, 1380K rodata, 3072K init, 394K bss, 19936K reserved, 8192K cma-reserved) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB) [ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB) [ 0.000000] vmalloc : 0xb0800000 - 0xff800000 (1264 MB) [ 0.000000] lowmem : 0x80000000 - 0xb0000000 ( 768 MB) [ 0.000000] modules : 0x7f000000 - 0x80000000 ( 16 MB) [ 0.000000] .text : 0x80008000 - 0x80700000 (7136 kB) [ 0.000000] .init : 0x80900000 - 0x80c00000 (3072 kB) [ 0.000000] .data : 0x80c00000 - 0x80c37560 ( 222 kB) [ 0.000000] .bss : 0x80c39000 - 0x80c9b9ec ( 395 kB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Hierarchical RCU implementation. [ 0.000000] Build-time adjustment of leaf fanout to 32. [ 0.000000] NR_IRQS:16 nr_irqs:16 16 [ 0.000000] arm_arch_timer: Architected cp15 timer(s) running at 19.20MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns [ 0.000006] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns [ 0.000015] Switching to timer-based delay loop, resolution 52ns [ 0.000197] Console: colour dummy device 80x30 [ 0.000210] console [tty0] enabled [ 0.000226] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.00 BogoMIPS (lpj=64000) [ 0.000241] pid_max: default: 32768 minimum: 301 [ 0.000373] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.000380] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.001181] Disabling memory control group subsystem [ 0.001215] CPU: Testing write buffer coherency: ok [ 0.001537] CPU0: update cpu_capacity 1024 [ 0.001544] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 [ 0.001571] Setting up static identity map for 0x100000 - 0x100034 [ 0.003169] CPU1: update cpu_capacity 1024 [ 0.003176] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 [ 0.003805] CPU2: update cpu_capacity 1024 [ 0.003811] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002 [ 0.004386] CPU3: update cpu_capacity 1024 [ 0.004392] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003 [ 0.004467] Brought up 4 CPUs [ 0.004476] SMP: Total of 4 processors activated (153.00 BogoMIPS). [ 0.004480] CPU: All CPU(s) started in HYP mode. [ 0.004483] CPU: Virtualization extensions available. [ 0.005037] devtmpfs: initialized [ 0.015091] VFP support v0.3: implementor 41 architecture 3 part 40 variant 3 rev 4 [ 0.015326] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns [ 0.015342] futex hash table entries: 1024 (order: 4, 65536 bytes) [ 0.015817] pinctrl core: initialized pinctrl subsystem [ 0.016686] NET: Registered protocol family 16 [ 0.018685] DMA: preallocated 1024 KiB pool for atomic coherent allocations [ 0.033343] cpuidle: using governor ladder [ 0.046708] cpuidle: using governor menu [ 0.047175] Serial: AMBA PL011 UART driver [ 0.048806] bcm2835-mbox 3f00b880.mailbox: mailbox enabled [ 0.049260] uart-pl011 3f201000.serial: could not find pctldev for node /soc/gpio@7e200000/uart0_pins, deferring probe [ 0.101013] bcm2835-dma 3f007000.dma: DMA legacy API manager at b080d000, dmachans=0x1 [ 0.102628] SCSI subsystem initialized [ 0.102908] usbcore: registered new interface driver usbfs [ 0.102978] usbcore: registered new interface driver hub [ 0.103055] usbcore: registered new device driver usb [ 0.103600] raspberrypi-firmware soc:firmware: Attached to firmware from 2018-04-06 18:05 [ 0.104802] clocksource: Switched to clocksource arch_sys_counter [ 0.105082] FS-Cache: Loaded [ 0.115948] NET: Registered protocol family 2 [ 0.116633] TCP established hash table entries: 8192 (order: 3, 32768 bytes) [ 0.116740] TCP bind hash table entries: 8192 (order: 4, 65536 bytes) [ 0.116923] TCP: Hash tables configured (established 8192 bind 8192) [ 0.117008] UDP hash table entries: 512 (order: 2, 16384 bytes) [ 0.117049] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes) [ 0.117244] NET: Registered protocol family 1 [ 0.117570] RPC: Registered named UNIX socket transport module. [ 0.117574] RPC: Registered udp transport module. [ 0.117578] RPC: Registered tcp transport module. [ 0.117582] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.250764] workingset: timestamp_bits=14 max_order=18 bucket_order=4 [ 0.265062] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.266437] FS-Cache: Netfs 'nfs' registered for caching [ 0.267326] NFS: Registering the id_resolver key type [ 0.267353] Key type id_resolver registered [ 0.267357] Key type id_legacy registered [ 0.267371] nfs4filelayout_init: NFSv4 File Layout Driver Registering... [ 0.267610] FS-Cache: Netfs 'cifs' registered for caching [ 0.270849] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.270855] io scheduler noop registered (default) [ 0.270860] io scheduler deadline registered [ 0.271087] io scheduler cfq registered [ 0.276546] BCM2708FB: allocated DMA memory ef910000 [ 0.276567] BCM2708FB: allocated DMA channel 0 @ b080d000 [ 0.321716] Console: switching to colour frame buffer device 228x61 [ 0.348603] bcm2835-rng 3f104000.rng: hwrng registered [ 0.348702] vc-mem: phys_addr:0x00000000 mem_base=0x3ec00000 mem_size:0x40000000(1024 MiB) [ 0.349208] vc-sm: Videocore shared memory driver [ 0.362644] brd: module loaded [ 0.362800] loop: module loaded [ 0.366417] nbd: registered device at major 43 [ 0.378183] usbcore: registered new interface driver rtsx_usb [ 0.378189] Loading iSCSI transport class v2.0-870. [ 0.378608] iscsi: registered transport (tcp) [ 0.379108] libphy: Fixed MDIO Bus: probed [ 0.379157] tun: Universal TUN/TAP device driver, 1.6 [ 0.379161] tun: (C) 1999-2004 Max Krasnyansky <[email='[email protected]'][/email]> [ 0.379447] usbcore: registered new interface driver lan78xx [ 0.379504] usbcore: registered new interface driver dm9601 [ 0.379585] usbcore: registered new interface driver smsc95xx [ 0.379622] dwc_otg: version 3.00a 10-AUG-2012 (platform bus) [ 0.607641] Core Release: 2.80a [ 0.607648] Setting default values for core params [ 0.607672] Finished setting default values for core params [ 0.808020] Using Buffer DMA mode [ 0.808026] Periodic Transfer Interrupt Enhancement - disabled [ 0.808029] Multiprocessor Interrupt Enhancement - disabled [ 0.808034] OTG VER PARAM: 0, OTG VER FLAG: 0 [ 0.808045] Dedicated Tx FIFOs mode [ 0.808364] WARN::dwc_otg_hcd_init:1032: FIQ DMA bounce buffers: virt = 0xaf904000 dma = 0xef904000 len=9024 [ 0.808387] FIQ FSM acceleration enabled for : [ 0.808387] Non-periodic Split Transactions [ 0.808387] Periodic Split Transactions [ 0.808387] High-Speed Isochronous Endpoints [ 0.808387] Interrupt/Control Split Transaction hack enabled [ 0.808392] dwc_otg: Microframe scheduler enabled [ 0.808435] WARN::hcd_init_fiq:459: FIQ on core 1 at 0x8053a680 [ 0.808444] WARN::hcd_init_fiq:460: FIQ ASM at 0x8053a9e0 length 36 [ 0.808454] WARN::hcd_init_fiq:486: MPHI regs_base at 0xb087c000 [ 0.808498] dwc_otg 3f980000.usb: DWC OTG Controller [ 0.808529] dwc_otg 3f980000.usb: new USB bus registered, assigned bus number 1 [ 0.808557] dwc_otg 3f980000.usb: irq 62, io mem 0x00000000 [ 0.808602] Init: Port Power? op_state=1 [ 0.808606] Init: Power Port (0) [ 0.808777] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002 [ 0.808787] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 0.808795] usb usb1: Product: DWC OTG Controller [ 0.808801] usb usb1: Manufacturer: Linux 4.9.80 dwc_otg_hcd [ 0.808808] usb usb1: SerialNumber: 3f980000.usb [ 0.809518] hub 1-0:1.0: USB hub found [ 0.809550] hub 1-0:1.0: 1 port detected [ 0.810168] dwc_otg: FIQ enabled [ 0.810172] dwc_otg: NAK holdoff enabled [ 0.810176] dwc_otg: FIQ split-transaction FSM enabled [ 0.810187] Module dwc_common_port init [ 0.810391] usbcore: registered new interface driver usb-storage [ 0.810589] mousedev: PS/2 mouse device common for all mice [ 0.810736] i2c /dev entries driver [ 0.812119] bcm2835-wdt 3f100000.watchdog: Broadcom BCM2835 watchdog timer [ 0.812379] bcm2835-cpufreq: min=600000 max=1200000 [ 0.812849] sdhci: Secure Digital Host Controller Interface driver [ 0.812853] sdhci: Copyright(c) Pierre Ossman [ 0.813132] sdhost-bcm2835 3f202000.sdhost: could not get clk, deferring probe [ 0.815342] mmc-bcm2835 3f300000.mmc: could not get clk, deferring probe [ 0.815429] sdhci-pltfm: SDHCI platform and OF driver helper [ 0.817652] ledtrig-cpu: registered to indicate activity on CPUs [ 0.817753] hidraw: raw HID events driver (C) Jiri Kosina [ 0.818697] usbcore: registered new interface driver usbhid [ 0.818699] usbhid: USB HID core driver [ 0.819127] vchiq: vchiq_init_state: slot_zero = 0xaf980000, is_master = 0 [ 0.820117] [vc_sm_connected_init]: start [ 0.827408] [vc_sm_connected_init]: end - returning 0 [ 0.828107] NET: Registered protocol family 10 [ 0.828667] NET: Registered protocol family 17 [ 0.828718] Key type dns_resolver registered [ 0.828900] Registering SWP/SWPB emulation handler [ 0.832919] uart-pl011 3f201000.serial: cts_event_workaround enabled [ 0.832967] 3f201000.serial: ttyAMA0 at MMIO 0x3f201000 (irq = 87, base_baud = 0) is a PL011 rev2 [ 0.833849] sdhost: log_buf @ af907000 (ef907000) [ 0.888141] mmc0: sdhost-bcm2835 loaded - DMA enabled (>1) [ 0.890149] mmc-bcm2835 3f300000.mmc: mmc_debug:0 mmc_debug2:0 [ 0.890153] mmc-bcm2835 3f300000.mmc: DMA channel allocated [ 0.941543] console [netcon0] enabled [ 0.941545] netconsole: network logging started [ 0.941547] of_cfs_init [ 0.941606] of_cfs_init: OK [ 0.946391] Freeing unused kernel memory: 3072K [ 0.958408] mmc1: queuing unknown CIS tuple 0x80 (2 bytes) [ 0.959983] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.961509] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.965149] mmc1: queuing unknown CIS tuple 0x80 (7 bytes) [ 0.967666] mmc0: host does not support reading read-only switch, assuming write-enable [ 0.970832] mmc0: new high speed SDHC card at address e8fe [ 0.971307] mmcblk0: mmc0:e8fe SU08G 7.40 GiB [ 0.974342] mmcblk0: p1 p2 [ 1.014925] Indeed it is in host mode hprt0 = 00021501 [ 1.076468] random: fast init done [ 1.126906] mmc1: new high speed SDIO card at address 0001 [ 1.188160] usb 1-1: new high-speed USB device number 2 using dwc_otg [ 1.188245] Indeed it is in host mode hprt0 = 00001101 [ 1.378287] usb 1-1: New USB device found, idVendor=0424, idProduct=9514 [ 1.378294] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.378730] hub 1-1:1.0: USB hub found [ 1.378775] hub 1-1:1.0: 5 ports detected [ 1.658140] usb 1-1.1: new high-speed USB device number 3 using dwc_otg [ 1.748259] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00 [ 1.748264] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.750641] smsc95xx v1.0.5 [ 1.800026] smsc95xx 1-1.1:1.0 eth0: register 'smsc95xx' at usb-3f980000.usb-1.1, smsc95xx USB 2.0 Ethernet, b8:27:eb:cf:0f:d1 [ 1.888139] usb 1-1.4: new high-speed USB device number 4 using dwc_otg [ 1.978411] usb 1-1.4: New USB device found, idVendor=abcd, idProduct=1234 [ 1.978416] usb 1-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 1.978419] usb 1-1.4: Product: UDisk [ 1.978423] usb 1-1.4: Manufacturer: General [ 1.978426] usb 1-1.4: SerialNumber: 1408161613361714084314 [ 1.978779] usb-storage 1-1.4:1.0: USB Mass Storage device detected [ 1.979153] scsi host0: usb-storage 1-1.4:1.0 [ 2.184807] usb 1-1.2: new high-speed USB device number 5 using dwc_otg [ 2.275239] usb 1-1.2: New USB device found, idVendor=1f4d, idProduct=3000 [ 2.275244] usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 2.275248] usb 1-1.2: Product: USB Stick [ 2.275251] usb 1-1.2: Manufacturer: Max [ 2.275255] usb 1-1.2: SerialNumber: 080116 [ 2.985267] scsi 0:0:0:0: Direct-Access General UDisk 5.00 PQ: 0 ANSI: 2 [ 2.985907] sd 0:0:0:0: [sda] 6731704 512-byte logical blocks: (3.45 GB/3.21 GiB) [ 2.986024] scsi 0:0:0:1: CD-ROM General UDisk 5.00 PQ: 0 ANSI: 2 [ 2.986095] sd 0:0:0:0: [sda] Write Protect is off [ 2.986100] sd 0:0:0:0: [sda] Mode Sense: 0b 00 00 08 [ 2.986199] sd 0:0:0:0: [sda] No Caching mode page found [ 2.986204] sd 0:0:0:0: [sda] Assuming drive cache: write through [ 2.986721] sr 0:0:0:1: [sr0] scsi3-mmc drive: 0x/0x caddy [ 2.986728] cdrom: Uniform CD-ROM driver Revision: 3.20 [ 2.987058] sr 0:0:0:1: Attached scsi CD-ROM sr0 [ 2.987889] sda: sda1 [ 2.988714] sd 0:0:0:0: [sda] Attached SCSI removable disk [ 3.455316] EXT4-fs (mmcblk0p2): couldn't mount as ext3 due to feature incompatibilities [ 3.455867] EXT4-fs (mmcblk0p2): couldn't mount as ext2 due to feature incompatibilities [ 3.487386] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null) [ 3.971563] systemd[1]: System time before build time, advancing clock. [ 3.984272] systemd[1]: systemd 232 running in system mode. (-PAM -AUDIT -SELINUX -IMA -APPARMOR -SMACK -SYSVINIT -UTMP -LIBCRYPTSETUP -GCRYPT -GNUTLS -ACL -XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD -IDN) [ 3.984574] systemd[1]: Detected architecture arm. [ 3.984763] systemd[1]: Set hostname to <LibreELEC>. [ 4.064077] systemd[1]: Started Dispatch Password Requests to Console Directory Watch. [ 4.064265] systemd[1]: Listening on udev Kernel Socket. [ 4.064429] systemd[1]: Listening on Journal Socket. [ 4.064719] systemd[1]: Listening on RPCbind Server Activation Socket. [ 4.064771] systemd[1]: Reached target RPC Port Mapper. [ 4.064953] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe. [ 4.065045] systemd[1]: Listening on Journal Socket (/dev/log). [ 4.452062] systemd-journald[230]: Received request to flush runtime journal from PID 1 [ 4.874341] random: crng init done [ 5.330024] Console: switching to colour dummy device 80x30 [ 5.416627] gpiomem-bcm2835 3f200000.gpiomem: Initialised: Registers at 0x3f200000 [ 5.444386] rc_core: loading out-of-tree module taints kernel. [ 5.445292] WARNING: You are using an experimental version of the media stack. [ 5.445292] As the driver is backported to an older kernel, it doesn't offer [ 5.445292] enough quality for its usage in production. [ 5.445292] Use it with care. [ 5.445292] Latest git patches (needed if you report a bug to [email='[email protected]'][/email]): [ 5.445292] a83dbc951051ded0ec728f65cc918b7320600b55 Remove unused stv6120 headers. [ 5.481144] WARNING: You are using an experimental version of the media stack. [ 5.481144] As the driver is backported to an older kernel, it doesn't offer [ 5.481144] enough quality for its usage in production. [ 5.481144] Use it with care. [ 5.481144] Latest git patches (needed if you report a bug to [email='[email protected]'][/email]): [ 5.481144] a83dbc951051ded0ec728f65cc918b7320600b55 Remove unused stv6120 headers. [ 5.629271] dw2102: su3000_identify_state [ 5.629282] dvb-usb: found a 'SU3000HD DVB-S USB2.0' in warm state. [ 5.629307] dw2102: su3000_power_ctrl: 1, initialized 0 [ 5.630067] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer. [ 5.630227] dvbdev: DVB: registering new adapter (SU3000HD DVB-S USB2.0) [ 5.634311] dvb-usb: MAC address: 00:af:78:66:2e:d1 [ 5.705412] usbcore: registered new interface driver brcmfmac [ 5.978229] Invalid probe, probably not a DS300x [ 6.023062] Unable to handle kernel NULL pointer dereference at virtual address 00000000 [ 6.023071] pgd = adeb4000 [ 6.023074] [00000000] *pgd=00000000 [ 6.023087] Internal error: Oops: 80000005 [#1] SMP ARM [ 6.023106] Modules linked in: m88ds3103(O) i2c_mux ds3000(O) brcmfmac dvb_usb_dw2102(O+) brcmutil dvb_usb(O) cfg80211 dvb_core(O) rc_core(O) rfkill bcm2835_gpiomem fixed [ 6.023153] CPU: 2 PID: 270 Comm: systemd-udevd Tainted: G O 4.9.80 #1 [ 6.023162] Hardware name: BCM2835 [ 6.023171] task: adda4740 task.stack: ae0d4000 [ 6.023180] PC is at 0x0 [ 6.023202] LR is at su3000_frontend_attach+0x360/0x4d4 [dvb_usb_dw2102] [ 6.023213] pc : [<00000000>] lr : [<7f0f2580>] psr: 20070013 [ 6.023213] sp : ae0d5b38 ip : 00000001 fp : ae0d5bc4 [ 6.023226] r10: aeb9ca28 r9 : aeb9c7c8 r8 : aeb9ca28 [ 6.023234] r7 : ae096102 r6 : ae0cae00 r5 : 00000001 r4 : ae096100 [ 6.023243] r3 : 00000000 r2 : 7f1895dc r1 : 00000000 r0 : ae0cae00 [ 6.023253] Flags: nzCv IRQs on FIQs on Mode SVC_32 ISA ARM Segment user [ 6.023263] Control: 10c5383d Table: 2deb406a DAC: 00000055 [ 6.023271] Process systemd-udevd (pid: 270, stack limit = 0xae0d4210) [ 6.023281] Stack: (0xae0d5b38 to 0xae0d6000) [ 6.023289] 5b20: 00000001 00000000 [ 6.023302] 5b40: 00000000 00000000 00000000 00000000 00000000 00000000 019bfcc0 00030021 [ 6.023314] 5b60: 00003e80 00129900 00000000 00000000 00000000 6438386d 30313373 00000033 [ 6.023327] 5b80: 00000000 00000000 00680000 ae0d5b58 00000000 00000000 00000000 00000000 [ 6.023339] 5ba0: aeb9ca28 00000000 aeb9ca28 aeb9caec 7f0df1f0 7f0df240 ae0d5bfc ae0d5bc8 [ 6.023360] 5bc0: 7f0df5c0 7f0f222c 7f0df3d4 7f032c80 7f0f6c80 aeb9ca28 aeb9c000 aeb9c000 [ 6.023385] 5be0: 024080c0 7f0e0b50 aeb9d7d0 aeb9c038 ae0d5c5c ae0d5c00 7f0de998 7f0df4c8 [ 6.023409] 5c00: 7f0f5ef8 7f0e0bf0 00000000 aeb9ca28 aeb9c01c 00000000 aeb9d2e8 7f0e1480 [ 6.023434] 5c20: 7f0e0b9c 00000000 00000000 7f0f5ef8 7f0f0c4c adddd800 7f0fab00 7f0f6c80 [ 6.023459] 5c40: adf3e600 7f0f0c4c adf3e600 7f0fa614 ae0d5c8c ae0d5c60 7f0f050c 7f0de4b4 [ 6.023484] 5c60: 7f0f6c80 adf3e620 ade46870 adf3e620 ade46870 ade46800 00000000 7f0fa4dc [ 6.023508] 5c80: ae0d5cc4 ae0d5c90 8050c664 7f0f0218 802604ac ffffffed ae0d5cc4 80c6b3bc [ 6.023533] 5ca0: adf3e620 00000000 7f0fa4dc 00000013 ad1f43a4 7f0fa980 ae0d5cec ae0d5cc8 [ 6.023558] 5cc0: 8048fe58 8050c564 adf3e620 7f0fa4dc adf3e654 00000000 7f0fa980 ad1f43a4 [ 6.023582] 5ce0: ae0d5d0c ae0d5cf0 8048ffc4 8048fc58 00000000 7f0fa4dc 8048ff04 00000000 [ 6.023607] 5d00: ae0d5d34 ae0d5d10 8048e01c 8048ff10 ae9b015c adef1834 ae9b0170 7f0fa4dc [ 6.023632] 5d20: ae096180 80c268f0 ae0d5d44 ae0d5d38 8048f6d0 8048dfb8 ae0d5d6c ae0d5d48 [ 6.023657] 5d40: 8048f214 8048f6b8 7f0f51a8 ae0d5d58 7f0fa4dc 80c268f0 7f0fa4dc 7f0f5198 [ 6.023681] 5d60: ae0d5d84 ae0d5d70 80490524 8048f118 7f0fa4a8 80c268f0 ae0d5dac ae0d5d88 [ 6.023706] 5d80: 8050b1c8 804904b0 7f0fd000 ffffe000 ad1f4380 ad1f4440 00000000 ad1f43a4 [ 6.023731] 5da0: ae0d5dbc ae0d5db0 7f0fd024 8050b15c ae0d5e34 ae0d5dc0 8010179c 7f0fd00c [ 6.023756] 5dc0: 00000c44 b269c000 2e606000 ae0d5df8 000018c0 b269c000 2e606000 00000003 [ 6.023781] 5de0: ad1f43a4 7f0fa980 ae0d5e24 ae0d5df8 ae801e40 024000c0 ae0d5e34 ae0d5e08 [ 6.023805] 5e00: 801e49ac 806d7054 80c614e8 7f0fa980 00000001 7f0fa980 00000001 ad1f4380 [ 6.023830] 5e20: ad1f4440 00000003 ae0d5e5c ae0d5e38 8019ab50 8010175c ae0d5e5c ae0d5e48 [ 6.023855] 5e40: ae0d5f44 00000001 ad1f4380 00000001 ae0d5f1c ae0d5e60 80185cbc 8019aaf4 [ 6.023879] 5e60: 7f0fa98c 00007fff 7f0fa980 80183490 807c1d68 807c1d40 807c1d98 807c1d34 [ 6.023904] 5e80: 80703c94 7f0fa98c 00000000 b26ac4ac ae0d5f44 80182fdc 7f0fa9c8 024000c0 [ 6.023929] 5ea0: ae0d5eec ae0d5eb0 801faf5c 801fadd8 b269c000 00000000 00000000 00000000 [ 6.023953] 5ec0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 [ 6.023977] 5ee0: 00000000 00000000 00000000 00000000 7fffffff 00000000 00000010 76f3a773 [ 6.024002] 5f00: 0000017b 80107ba4 ae0d4000 00000000 ae0d5fa4 ae0d5f20 80186400 80184168 [ 6.024026] 5f20: 7fffffff 00000000 00000003 ae0d5f38 801b8c9c b269c000 000104fc 00000000 [ 6.024051] 5f40: 00000000 b269c000 000104fc b26ac114 b26ac038 b26a8c58 0000ab20 0000b120 [ 6.024075] 5f60: 00000000 00000000 00000000 000028cc 00000017 00000018 00000010 00000000 [ 6.024099] 5f80: 0000000a 00000000 00000000 76e31388 00000000 00000000 00000000 ae0d5fa8 [ 6.024124] 5fa0: 801079e0 8018635c 76e31388 00000000 00000010 76f3a773 00000000 7eaa09b4 [ 6.024148] 5fc0: 76e31388 00000000 00000000 0000017b 00000000 0097afa8 00000000 00020000 [ 6.024173] 5fe0: 7eaa0950 7eaa0940 76f334cc 76e567f0 60010010 00000010 00000000 69687372 [ 6.024193] Backtrace: [ 6.024225] [<7f0f2220>] (su3000_frontend_attach [dvb_usb_dw2102]) from [<7f0df5c0>] (dvb_usb_adapter_frontend_init+0x104/0x1e0 [dvb_usb]) [ 6.024254] r9:7f0df240 r8:7f0df1f0 r7:aeb9caec r6:aeb9ca28 r5:00000000 r4:aeb9ca28 [ 6.024283] [<7f0df4bc>] (dvb_usb_adapter_frontend_init [dvb_usb]) from [<7f0de998>] (dvb_usb_device_init+0x4f0/0x684 [dvb_usb]) [ 6.024311] r10:aeb9c038 r9:aeb9d7d0 r8:7f0e0b50 r7:024080c0 r6:aeb9c000 r5:aeb9c000 [ 6.024332] r4:aeb9ca28 [ 6.024358] [<7f0de4a8>] (dvb_usb_device_init [dvb_usb]) from [<7f0f050c>] (dw2102_probe+0x300/0x44c [dvb_usb_dw2102]) [ 6.024384] r10:7f0fa614 r9:adf3e600 r8:7f0f0c4c r7:adf3e600 r6:7f0f6c80 r5:7f0fab00 [ 6.024406] r4:adddd800 [ 6.024435] [<7f0f020c>] (dw2102_probe [dvb_usb_dw2102]) from [<8050c664>] (usb_probe_interface+0x10c/0x264) [ 6.024461] r8:7f0fa4dc r7:00000000 r6:ade46800 r5:ade46870 r4:adf3e620 [ 6.024482] [<8050c558>] (usb_probe_interface) from [<8048fe58>] (driver_probe_device+0x20c/0x2b8) [ 6.024508] r10:7f0fa980 r9:ad1f43a4 r8:00000013 r7:7f0fa4dc r6:00000000 r5:adf3e620 [ 6.024529] r4:80c6b3bc [ 6.024545] [<8048fc4c>] (driver_probe_device) from [<8048ffc4>] (__driver_attach+0xc0/0xc4) [ 6.024570] r9:ad1f43a4 r8:7f0fa980 r7:00000000 r6:adf3e654 r5:7f0fa4dc r4:adf3e620 [ 6.024596] [<8048ff04>] (__driver_attach) from [<8048e01c>] (bus_for_each_dev+0x70/0xa4) [ 6.024620] r7:00000000 r6:8048ff04 r5:7f0fa4dc r4:00000000 [ 6.024637] [<8048dfac>] (bus_for_each_dev) from [<8048f6d0>] (driver_attach+0x24/0x28) [ 6.024660] r6:80c268f0 r5:ae096180 r4:7f0fa4dc [ 6.024676] [<8048f6ac>] (driver_attach) from [<8048f214>] (bus_add_driver+0x108/0x214) [ 6.024701] [<8048f10c>] (bus_add_driver) from [<80490524>] (driver_register+0x80/0xfc) [ 6.024725] r7:7f0f5198 r6:7f0fa4dc r5:80c268f0 r4:7f0fa4dc [ 6.024743] [<804904a4>] (driver_register) from [<8050b1c8>] (usb_register_driver+0x78/0x13c) [ 6.024766] r5:80c268f0 r4:7f0fa4a8 [ 6.024792] [<8050b150>] (usb_register_driver) from [<7f0fd024>] (dw2102_driver_init+0x24/0x2c [dvb_usb_dw2102]) [ 6.024819] r9:ad1f43a4 r8:00000000 r7:ad1f4440 r6:ad1f4380 r5:ffffe000 r4:7f0fd000 [ 6.024855] [<7f0fd000>] (dw2102_driver_init [dvb_usb_dw2102]) from [<8010179c>] (do_one_initcall+0x4c/0x174) [ 6.024884] [<80101750>] (do_one_initcall) from [<8019ab50>] (do_init_module+0x68/0x3b0) [ 6.024909] r8:00000003 r7:ad1f4440 r6:ad1f4380 r5:00000001 r4:7f0fa980 [ 6.024929] [<8019aae8>] (do_init_module) from [<80185cbc>] (load_module+0x1b60/0x209c) [ 6.024953] r7:00000001 r6:ad1f4380 r5:00000001 r4:ae0d5f44 [ 6.024970] [<8018415c>] (load_module) from [<80186400>] (SyS_finit_module+0xb0/0xc0) [ 6.024995] r10:00000000 r9:ae0d4000 r8:80107ba4 r7:0000017b r6:76f3a773 r5:00000010 [ 6.025016] r4:00000000 [ 6.025033] [<80186350>] (SyS_finit_module) from [<801079e0>] (ret_fast_syscall+0x0/0x40) [ 6.025055] r6:00000000 r5:00000000 r4:76e31388 [ 6.025073] Code: bad PC value [ 6.025110] ---[ end trace 6ec555a7dcf6148e ]--- [ 6.064345] brcmfmac: Firmware version = wl0: Oct 23 2017 03:55:53 version 7.45.98.38 (r674442 CY) FWID 01-e58d219f [ 6.065254] brcmfmac: brcmf_c_preinit_dcmds: CLM version = API: 12.2 Data: 7.11.15 Compiler: 1.24.2 ClmImport: 1.24.1 Creation: 2014-05-26 10:53:55 Inc Data: 9.10.39 Inc Compiler: 1.29.4 Inc ClmImport: 1.36.3 Creation: 2017-10-23 03:47:14 [ 6.228605] uart-pl011 3f201000.serial: no DMA platform data [ 6.254896] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup [ 6.307276] 8021q: 802.1Q VLAN Support v1.8 [ 6.467134] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 6.467176] brcmfmac: power management disabled [ 7.171324] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 7.259596] ISOFS: changing to secondary root [ 7.350573] FAT-fs (sda1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck. [ 7.759648] VFS: busy inodes on changed media or resized disk sr0 [ 7.775395] VFS: busy inodes on changed media or resized disk sr0 [ 7.780150] sr 0:0:0:1: [sr0] GET_EVENT and TUR disagree continuously, suppress GET_EVENT events [ 7.783937] VFS: busy inodes on changed media or resized disk sr0 [ 7.786678] smsc95xx 1-1.1:1.0 eth0: link up, 100Mbps, full-duplex, lpa 0xC5E1 [ 8.387469] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 8.387534] ISOFS: changing to secondary root [ 9.291816] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 9.291855] ISOFS: changing to secondary root [ 10.196790] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 10.196863] ISOFS: changing to secondary root [ 10.643519] Bluetooth: Core ver 2.22 [ 10.643606] NET: Registered protocol family 31 [ 10.643630] Bluetooth: HCI device and connection manager initialized [ 10.643667] Bluetooth: HCI socket layer initialized [ 10.643697] Bluetooth: L2CAP socket layer initialized [ 10.643736] Bluetooth: SCO socket layer initialized [ 10.651742] Bluetooth: HCI UART driver ver 2.3 [ 10.651775] Bluetooth: HCI UART protocol H4 registered [ 10.651790] Bluetooth: HCI UART protocol Three-wire (H5) registered [ 10.651906] Bluetooth: HCI UART protocol Broadcom registered [ 11.140237] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 11.140275] ISOFS: changing to secondary root -
- Official Post
hmpf, driver is crashing
could you try an LE9 testbuild ? (for example Milhouse build)
-
I do not understand can you help me a little more?
-
-
- Official Post
Milhouse only publishes update .tar files so you need to install 8.2.5 and then manually update (copy the .tar to /storage/.update)
-
Hello I have already updated according to the indications and still does not detect the tuner. I send the results after the dmesg
Code
Display MoreLibreELEC (community): devel-20180605210901-#0605-g598f67c (RPi2.arm) LibreELEC:~ # dmesg [ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 4.14.44 ([email='[email protected]'][/email]) (gcc version 8.1.0 (GCC)) #1 SMP Tue Jun 5 21:13:31 BST 2018 [ 0.000000] CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt: Machine model: Raspberry Pi 3 Model B Rev 1.2 [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] cma: Reserved 8 MiB at 0x2f800000 [ 0.000000] On node 0 totalpages: 196608 [ 0.000000] free_area_init_node: node 0, pgdat 80e83080, node_mem_map af136000 [ 0.000000] Normal zone: 1728 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 196608 pages, LIFO batch:31 [ 0.000000] percpu: Embedded 17 pages/cpu @af0df000 s39948 r8192 d21492 u69632 [ 0.000000] pcpu-alloc: s39948 r8192 d21492 u69632 alloc=17*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 194880 [ 0.000000] Kernel command line: 8250.nr_uarts=0 bcm2708_fb.fbwidth=1824 bcm2708_fb.fbheight=984 bcm2708_fb.fbswap=1 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 boot=/dev/mmcblk0p1 disk=/dev/mmcblk0p2 quiet root=/dev/ram0 rdinit=/init usbcore.autosuspend=-1 [ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes) [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) [ 0.000000] Memory: 755744K/786432K available (8192K kernel code, 630K rwdata, 1896K rodata, 3072K init, 419K bss, 22496K reserved, 8192K cma-reserved) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB) [ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB) [ 0.000000] vmalloc : 0xb0800000 - 0xff800000 (1264 MB) [ 0.000000] lowmem : 0x80000000 - 0xb0000000 ( 768 MB) [ 0.000000] modules : 0x7f000000 - 0x80000000 ( 16 MB) [ 0.000000] .text : 0x80008000 - 0x80900000 (9184 kB) [ 0.000000] .init : 0x80b00000 - 0x80e00000 (3072 kB) [ 0.000000] .data : 0x80e00000 - 0x80e9da04 ( 631 kB) [ 0.000000] .bss : 0x80e9f000 - 0x80f07c54 ( 420 kB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] ftrace: allocating 28243 entries in 83 pages [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 [ 0.000000] arch_timer: cp15 timer(s) running at 19.20MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns [ 0.000007] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns [ 0.000017] Switching to timer-based delay loop, resolution 52ns [ 0.000248] Console: colour dummy device 80x30 [ 0.000263] console [tty0] enabled [ 0.000286] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.00 BogoMIPS (lpj=64000) [ 0.000300] pid_max: default: 32768 minimum: 301 [ 0.000474] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.000489] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.001345] Disabling memory control group subsystem [ 0.001387] CPU: Testing write buffer coherency: ok [ 0.001753] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 [ 0.002081] Setting up static identity map for 0x100000 - 0x10003c [ 0.002185] Hierarchical SRCU implementation. [ 0.004232] smp: Bringing up secondary CPUs ... [ 0.004858] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 [ 0.005540] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002 [ 0.006192] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003 [ 0.006288] smp: Brought up 1 node, 4 CPUs [ 0.006297] SMP: Total of 4 processors activated (153.00 BogoMIPS). [ 0.006302] CPU: All CPU(s) started in HYP mode. [ 0.006306] CPU: Virtualization extensions available. [ 0.006997] devtmpfs: initialized [ 0.016301] random: get_random_u32 called from bucket_table_alloc+0x108/0x23c with crng_init=0 [ 0.016829] VFP support v0.3: implementor 41 architecture 3 part 40 variant 3 rev 4 [ 0.017037] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns [ 0.017054] futex hash table entries: 1024 (order: 4, 65536 bytes) [ 0.017615] pinctrl core: initialized pinctrl subsystem [ 0.018350] NET: Registered protocol family 16 [ 0.020756] DMA: preallocated 1024 KiB pool for atomic coherent allocations [ 0.024733] cpuidle: using governor ladder [ 0.024756] cpuidle: using governor menu [ 0.025215] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. [ 0.025221] hw-breakpoint: maximum watchpoint size is 8 bytes. [ 0.025396] Serial: AMBA PL011 UART driver [ 0.026987] bcm2835-mbox 3f00b880.mailbox: mailbox enabled [ 0.027426] uart-pl011 3f201000.serial: could not find pctldev for node /soc/gpio@7e200000/uart0_pins, deferring probe [ 0.057952] bcm2835-dma 3f007000.dma: DMA legacy API manager at b0813000, dmachans=0x1 [ 0.059257] SCSI subsystem initialized [ 0.059474] usbcore: registered new interface driver usbfs [ 0.059523] usbcore: registered new interface driver hub [ 0.059598] usbcore: registered new device driver usb [ 0.060225] raspberrypi-firmware soc:firmware: Attached to firmware from 2018-06-03 10:02 [ 0.061343] clocksource: Switched to clocksource arch_sys_counter [ 0.138699] FS-Cache: Loaded [ 0.147131] NET: Registered protocol family 2 [ 0.147730] TCP established hash table entries: 8192 (order: 3, 32768 bytes) [ 0.147839] TCP bind hash table entries: 8192 (order: 4, 65536 bytes) [ 0.148048] TCP: Hash tables configured (established 8192 bind 8192) [ 0.148172] UDP hash table entries: 512 (order: 2, 16384 bytes) [ 0.148216] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes) [ 0.148434] NET: Registered protocol family 1 [ 0.148843] RPC: Registered named UNIX socket transport module. [ 0.148848] RPC: Registered udp transport module. [ 0.148853] RPC: Registered tcp transport module. [ 0.148858] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.298763] hw perfevents: enabled with armv7_cortex_a7 PMU driver, 7 counters available [ 0.300672] workingset: timestamp_bits=14 max_order=18 bucket_order=4 [ 0.307632] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.308373] FS-Cache: Netfs 'nfs' registered for caching [ 0.308943] NFS: Registering the id_resolver key type [ 0.308967] Key type id_resolver registered [ 0.308972] Key type id_legacy registered [ 0.308987] nfs4filelayout_init: NFSv4 File Layout Driver Registering... [ 0.309269] FS-Cache: Netfs 'cifs' registered for caching [ 0.314650] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.314658] io scheduler noop registered (default) [ 0.314693] io scheduler deadline registered [ 0.314956] io scheduler cfq registered [ 0.314962] io scheduler mq-deadline registered [ 0.314968] io scheduler kyber registered [ 0.315208] io scheduler bfq registered [ 0.317915] BCM2708FB: allocated DMA memory ef910000 [ 0.317938] BCM2708FB: allocated DMA channel 0 @ b0813000 [ 0.368012] Console: switching to colour frame buffer device 228x61 [ 0.400525] bcm2835-rng 3f104000.rng: hwrng registered [ 0.400648] vc-mem: phys_addr:0x00000000 mem_base=0x3ec00000 mem_size:0x40000000(1024 MiB) [ 0.401085] vc-sm: Videocore shared memory driver [ 0.410474] brd: module loaded [ 0.410592] loop: module loaded [ 0.427117] usbcore: registered new interface driver rtsx_usb [ 0.427129] Loading iSCSI transport class v2.0-870. [ 0.427536] iscsi: registered transport (tcp) [ 0.427932] libphy: Fixed MDIO Bus: probed [ 0.427968] tun: Universal TUN/TAP device driver, 1.6 [ 0.428234] usbcore: registered new interface driver lan78xx [ 0.428275] usbcore: registered new interface driver dm9601 [ 0.428333] usbcore: registered new interface driver smsc95xx [ 0.428375] dwc_otg: version 3.00a 10-AUG-2012 (platform bus) [ 0.656521] Core Release: 2.80a [ 0.656531] Setting default values for core params [ 0.656557] Finished setting default values for core params [ 0.856800] Using Buffer DMA mode [ 0.856806] Periodic Transfer Interrupt Enhancement - disabled [ 0.856811] Multiprocessor Interrupt Enhancement - disabled [ 0.856818] OTG VER PARAM: 0, OTG VER FLAG: 0 [ 0.856833] Dedicated Tx FIFOs mode [ 0.857224] WARN::dwc_otg_hcd_init:1046: FIQ DMA bounce buffers: virt = 0xaf904000 dma = 0xef904000 len=9024 [ 0.857250] FIQ FSM acceleration enabled for : [ 0.857250] Non-periodic Split Transactions [ 0.857250] Periodic Split Transactions [ 0.857250] High-Speed Isochronous Endpoints [ 0.857250] Interrupt/Control Split Transaction hack enabled [ 0.857257] dwc_otg: Microframe scheduler enabled [ 0.857304] WARN::hcd_init_fiq:459: FIQ on core 1 at 0x8069a2f0 [ 0.857314] WARN::hcd_init_fiq:460: FIQ ASM at 0x8069a654 length 36 [ 0.857325] WARN::hcd_init_fiq:486: MPHI regs_base at 0xb0f7a000 [ 0.857378] dwc_otg 3f980000.usb: DWC OTG Controller [ 0.857410] dwc_otg 3f980000.usb: new USB bus registered, assigned bus number 1 [ 0.857441] dwc_otg 3f980000.usb: irq 62, io mem 0x00000000 [ 0.857489] Init: Port Power? op_state=1 [ 0.857493] Init: Power Port (0) [ 0.857680] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002 [ 0.857690] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 0.857699] usb usb1: Product: DWC OTG Controller [ 0.857707] usb usb1: Manufacturer: Linux 4.14.44 dwc_otg_hcd [ 0.857715] usb usb1: SerialNumber: 3f980000.usb [ 0.858296] hub 1-0:1.0: USB hub found [ 0.858335] hub 1-0:1.0: 1 port detected [ 0.858826] dwc_otg: FIQ enabled [ 0.858831] dwc_otg: NAK holdoff enabled [ 0.858836] dwc_otg: FIQ split-transaction FSM enabled [ 0.858844] Module dwc_common_port init [ 0.859076] usbcore: registered new interface driver usb-storage [ 0.859228] mousedev: PS/2 mouse device common for all mice [ 0.859563] i2c /dev entries driver [ 0.860430] bcm2835-wdt 3f100000.watchdog: Broadcom BCM2835 watchdog timer [ 0.860685] bcm2835-cpufreq: min=600000 max=1200000 [ 0.861054] sdhci: Secure Digital Host Controller Interface driver [ 0.861059] sdhci: Copyright(c) Pierre Ossman [ 0.861515] mmc-bcm2835 3f300000.mmc: could not get clk, deferring probe [ 0.861840] sdhost-bcm2835 3f202000.mmc: could not get clk, deferring probe [ 0.861926] sdhci-pltfm: SDHCI platform and OF driver helper [ 0.863777] ledtrig-cpu: registered to indicate activity on CPUs [ 0.863864] hidraw: raw HID events driver (C) Jiri Kosina [ 0.864527] usbcore: registered new interface driver usbhid [ 0.864529] usbhid: USB HID core driver [ 0.864913] vchiq: vchiq_init_state: slot_zero = af980000, is_master = 0 [ 0.865954] [vc_sm_connected_init]: start [ 0.874401] [vc_sm_connected_init]: end - returning 0 [ 0.875394] NET: Registered protocol family 10 [ 0.876324] Segment Routing with IPv6 [ 0.876400] NET: Registered protocol family 17 [ 0.876494] Key type dns_resolver registered [ 0.876824] Registering SWP/SWPB emulation handler [ 0.882997] uart-pl011 3f201000.serial: cts_event_workaround enabled [ 0.883084] 3f201000.serial: ttyAMA0 at MMIO 0x3f201000 (irq = 87, base_baud = 0) is a PL011 rev2 [ 0.884889] mmc-bcm2835 3f300000.mmc: mmc_debug:0 mmc_debug2:0 [ 0.884899] mmc-bcm2835 3f300000.mmc: DMA channel allocated [ 0.918639] sdhost: log_buf @ af907000 (ef907000) [ 0.954492] mmc1: queuing unknown CIS tuple 0x80 (2 bytes) [ 0.955992] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.957543] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.960321] mmc1: queuing unknown CIS tuple 0x80 (7 bytes) [ 0.974700] mmc0: sdhost-bcm2835 loaded - DMA enabled (>1) [ 0.975777] console [netcon0] enabled [ 0.975781] netconsole: network logging started [ 0.975788] of_cfs_init [ 0.975915] of_cfs_init: OK [ 0.997775] Freeing unused kernel memory: 3072K [ 1.034018] random: fast init done [ 1.061171] mmc0: host does not support reading read-only switch, assuming write-enable [ 1.064339] mmc0: new high speed SDHC card at address e8fe [ 1.064790] Indeed it is in host mode hprt0 = 00021501 [ 1.124875] mmcblk0: mmc0:e8fe SU08G 7.40 GiB [ 1.127420] mmcblk0: p1 p2 [ 1.151975] mmc1: new high speed SDIO card at address 0001 [ 1.248020] usb 1-1: new high-speed USB device number 2 using dwc_otg [ 1.248105] Indeed it is in host mode hprt0 = 00001101 [ 1.448152] usb 1-1: New USB device found, idVendor=0424, idProduct=9514 [ 1.448157] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.448434] hub 1-1:1.0: USB hub found [ 1.448485] hub 1-1:1.0: 5 ports detected [ 1.728012] usb 1-1.1: new high-speed USB device number 3 using dwc_otg [ 1.818138] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00 [ 1.818143] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.820402] smsc95xx v1.0.6 [ 1.869910] smsc95xx 1-1.1:1.0 eth0: register 'smsc95xx' at usb-3f980000.usb-1.1, smsc95xx USB 2.0 Ethernet, b8:27:eb:cf:0f:d1 [ 1.958012] usb 1-1.4: new high-speed USB device number 4 using dwc_otg [ 2.048298] usb 1-1.4: New USB device found, idVendor=abcd, idProduct=1234 [ 2.048303] usb 1-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 2.048307] usb 1-1.4: Product: UDisk [ 2.048311] usb 1-1.4: Manufacturer: General [ 2.048315] usb 1-1.4: SerialNumber: 1408161613361714084314 [ 2.048595] usb-storage 1-1.4:1.0: USB Mass Storage device detected [ 2.048855] scsi host0: usb-storage 1-1.4:1.0 [ 2.254745] usb 1-1.2: new high-speed USB device number 5 using dwc_otg [ 2.345332] usb 1-1.2: New USB device found, idVendor=1f4d, idProduct=3000 [ 2.345345] usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 2.345350] usb 1-1.2: Product: USB Stick [ 2.345354] usb 1-1.2: Manufacturer: Max [ 2.345358] usb 1-1.2: SerialNumber: 080116 [ 2.346519] EXT4-fs (mmcblk0p2): couldn't mount as ext3 due to feature incompatibilities [ 2.347327] EXT4-fs (mmcblk0p2): couldn't mount as ext2 due to feature incompatibilities [ 3.065414] scsi 0:0:0:0: Direct-Access General UDisk 5.00 PQ: 0 ANSI: 2 [ 3.066211] sd 0:0:0:0: [sda] 6731704 512-byte logical blocks: (3.45 GB/3.21 GiB) [ 3.066332] scsi 0:0:0:1: CD-ROM General UDisk 5.00 PQ: 0 ANSI: 2 [ 3.066415] sd 0:0:0:0: [sda] Write Protect is off [ 3.066421] sd 0:0:0:0: [sda] Mode Sense: 0b 00 00 08 [ 3.066533] sd 0:0:0:0: [sda] No Caching mode page found [ 3.066538] sd 0:0:0:0: [sda] Assuming drive cache: write through [ 3.067033] sr 0:0:0:1: [sr0] scsi3-mmc drive: 0x/0x caddy [ 3.067038] cdrom: Uniform CD-ROM driver Revision: 3.20 [ 3.067258] sr 0:0:0:1: Attached scsi CD-ROM sr0 [ 3.068251] sda: sda1 [ 3.069012] sd 0:0:0:0: [sda] Attached SCSI removable disk [ 5.235209] EXT4-fs (mmcblk0p2): recovery complete [ 5.415871] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null) [ 5.802433] systemd[1]: System time before build time, advancing clock. [ 5.811070] systemd[1]: systemd 238 running in system mode. (-PAM -AUDIT -SELINUX -IMA -APPARMOR -SMACK +SYSVINIT -UTMP -LIBCRYPTSETUP -GCRYPT -GNUTLS -ACL -XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD -IDN2 -IDN -PCRE2 default-hierarchy=hybrid) [ 5.811431] systemd[1]: Detected architecture arm. [ 5.813057] systemd[1]: Set hostname to <LibreELEC>. [ 5.931824] random: systemd: uninitialized urandom read (16 bytes read) [ 5.932179] systemd[1]: Listening on Journal Socket (/dev/log). [ 5.932392] random: systemd: uninitialized urandom read (16 bytes read) [ 5.932557] systemd[1]: Listening on udev Control Socket. [ 5.932597] random: systemd: uninitialized urandom read (16 bytes read) [ 5.932753] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe. [ 5.932929] systemd[1]: Started Dispatch Password Requests to Console Directory Watch. [ 5.963667] systemd[1]: Listening on udev Kernel Socket. [ 5.966222] systemd[1]: Starting Show Version... [ 5.966773] systemd[1]: Listening on Journal Socket. [ 6.069471] kernel-overlays-setup: setup base modules [ 6.123058] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/base/lib/modules/4.14.44 [ 6.158906] kernel-overlays-setup: added firmware from /usr/lib/kernel-overlays/base/lib/firmware [ 6.159086] kernel-overlays-setup: adding overlays from /storage/.cache/kernel-overlays [ 6.159856] kernel-overlays-setup: done [ 6.487157] systemd-journald[211]: Received request to flush runtime journal from PID 1 [ 7.082540] random: crng init done [ 7.082551] random: 7 urandom warning(s) missed due to ratelimiting [ 7.717693] Console: switching to colour dummy device 80x30 [ 7.821658] gpiomem-bcm2835 3f200000.gpiomem: Initialised: Registers at 0x3f200000 [ 8.254508] dw2102: su3000_identify_state [ 8.254523] dvb-usb: found a 'SU3000HD DVB-S USB2.0' in warm state. [ 8.254540] dw2102: su3000_power_ctrl: 1, initialized 0 [ 8.256517] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer. [ 8.256789] dvbdev: DVB: registering new adapter (SU3000HD DVB-S USB2.0) [ 8.262356] dvb-usb: MAC address: 00:af:78:66:2e:d1 [ 8.372891] brcmfmac: F1 signature read @0x18000000=0x1541a9a6 [ 8.379791] brcmfmac: brcmf_fw_map_chip_to_name: using brcm/brcmfmac43430-sdio.bin for chip 0x00a9a6(43430) rev 0x000001 [ 8.380040] usbcore: registered new interface driver brcmfmac [ 8.583840] uart-pl011 3f201000.serial: no DMA platform data [ 8.610034] Invalid probe, probably not a DS3000 [ 8.610049] dvb-usb: no frontend was attached by 'SU3000HD DVB-S USB2.0' [ 8.636865] brcmfmac: brcmf_c_preinit_dcmds: Firmware version = wl0: Oct 23 2017 03:55:53 version 7.45.98.38 (r674442 CY) FWID 01-e58d219f [ 8.637512] brcmfmac: brcmf_c_preinit_dcmds: CLM version = API: 12.2 Data: 7.11.15 Compiler: 1.24.2 ClmImport: 1.24.1 Creation: 2014-05-26 10:53:55 Inc Data: 9.10.39 Inc Compiler: 1.29.4 Inc ClmImport: 1.36.3 Creation: 2017-10-23 03:47:14 [ 8.698199] Registered IR keymap rc-su3000 [ 8.698548] rc rc0: IR-receiver inside an USB DVB receiver as /devices/platform/soc/3f980000.usb/usb1/1-1/1-1.2/rc/rc0 [ 8.698682] input: IR-receiver inside an USB DVB receiver as /devices/platform/soc/3f980000.usb/usb1/1-1/1-1.2/rc/rc0/input0 [ 8.698909] dvb-usb: schedule remote query interval to 150 msecs. [ 8.698923] dw2102: su3000_power_ctrl: 0, initialized 1 [ 8.698930] dvb-usb: SU3000HD DVB-S USB2.0 successfully initialized and connected. [ 8.699054] usbcore: registered new interface driver dw2102 [ 8.833938] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup [ 8.884071] 8021q: 802.1Q VLAN Support v1.8 [ 9.025690] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 9.025704] brcmfmac: power management disabled [ 10.058530] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 10.059050] ISOFS: changing to secondary root [ 10.130229] FAT-fs (sda1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck. [ 10.146263] VFS: busy inodes on changed media or resized disk sr0 [ 10.159911] sr 0:0:0:1: [sr0] GET_EVENT and TUR disagree continuously, suppress GET_EVENT events [ 10.160040] VFS: busy inodes on changed media or resized disk sr0 [ 10.430286] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 10.430321] ISOFS: changing to secondary root [ 10.492660] smsc95xx 1-1.1:1.0 eth0: link up, 100Mbps, full-duplex, lpa 0xC5E1 [ 10.680158] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 10.680180] ISOFS: changing to secondary root [ 10.939422] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 10.939457] ISOFS: changing to secondary root [ 11.279776] ISO 9660 Extensions: Microsoft Joliet Level 3 [ 11.279794] ISOFS: changing to secondary root [ 13.371848] Bluetooth: Core ver 2.22 [ 13.371905] NET: Registered protocol family 31 [ 13.371908] Bluetooth: HCI device and connection manager initialized [ 13.371922] Bluetooth: HCI socket layer initialized [ 13.371928] Bluetooth: L2CAP socket layer initialized [ 13.371945] Bluetooth: SCO socket layer initialized [ 13.374334] Bluetooth: HCI UART driver ver 2.3 [ 13.374347] Bluetooth: HCI UART protocol H4 registered [ 13.374350] Bluetooth: HCI UART protocol Three-wire (H5) registered -
- Official Post
could ypu post the output of lsusb -v | paste pls c/p the command, it gave you an url for the log -> easier to look at
-
if I do not understand wrong I have to send the result of the command lsusb -v
-edit- removed log
-
- Official Post
pls just enter to your ssh lsusb -v | paste
the | paste is also necessary ! that outputs some url that you can post
-
-
- Official Post
urgs, wild guess - you have new version of that box (bought recently ? )
id don't know about your warranty, but are you able to open the box and take a pic where we could read the chip names ?
similar to
-
first of all THANKS
The sitonizer I bought it again last month

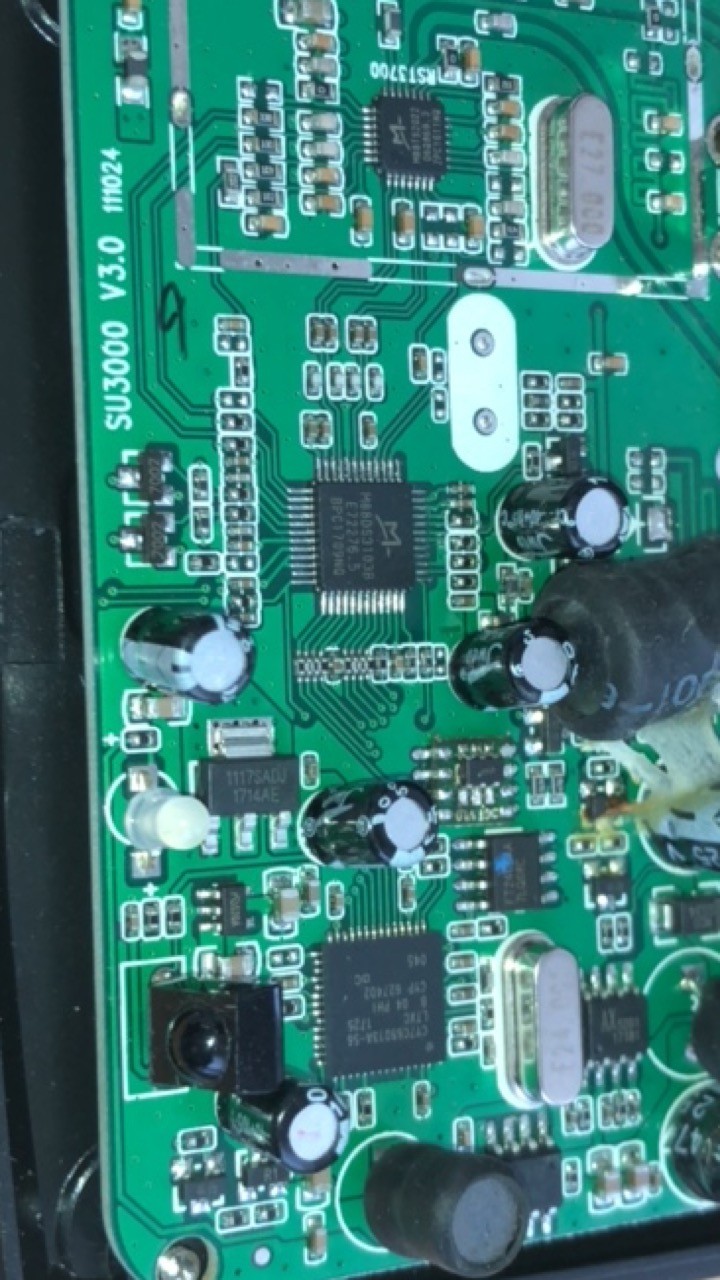

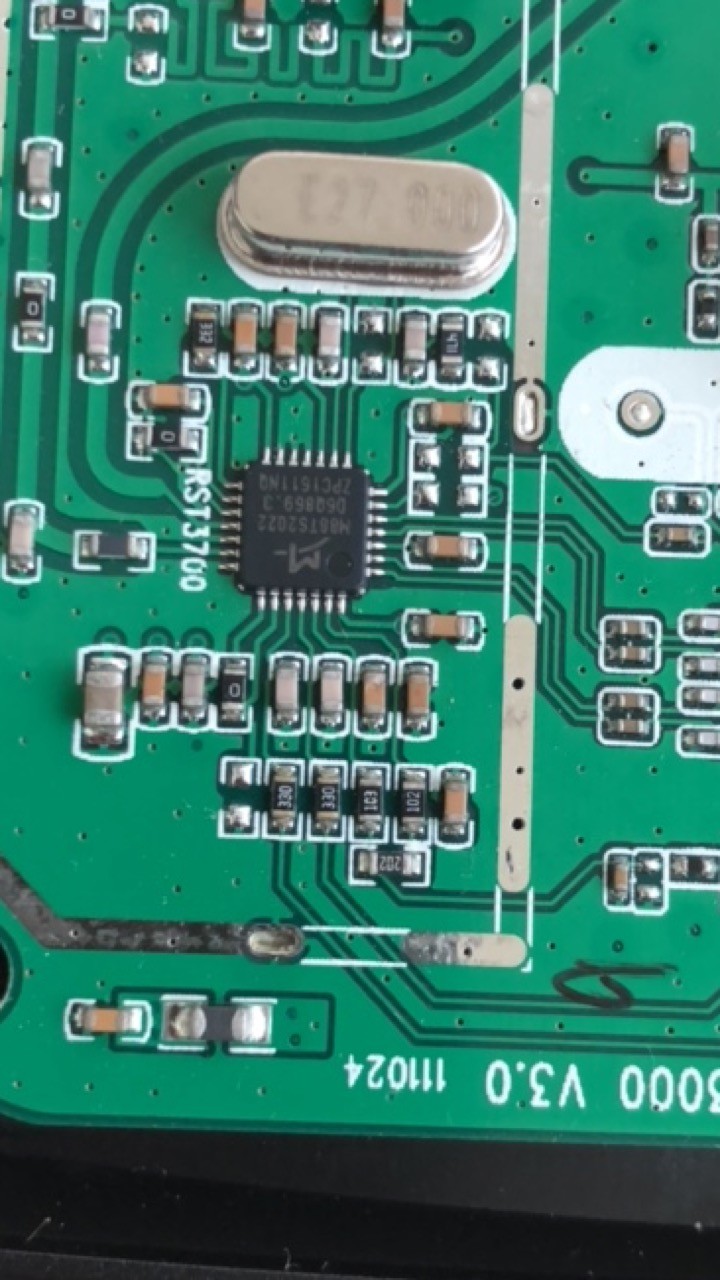

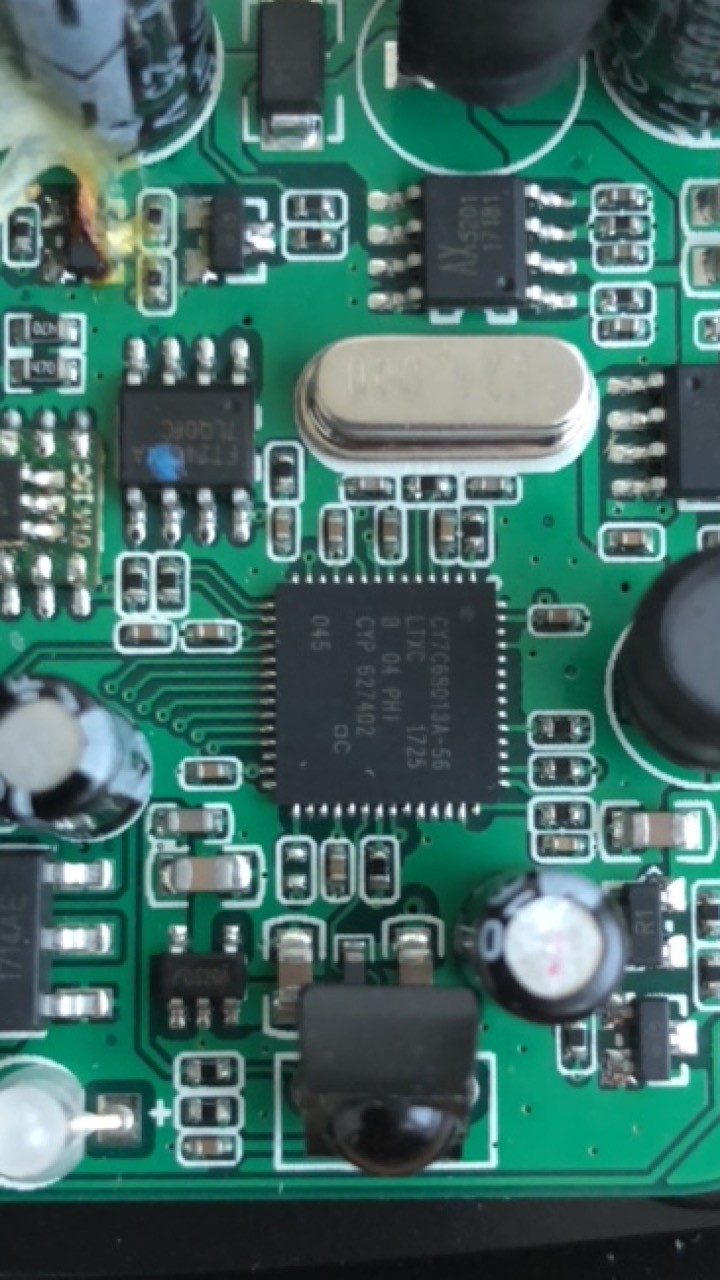

I attached the photos of the plate and the photos of the chip
-
- Official Post
damn it, same problem like other tuners

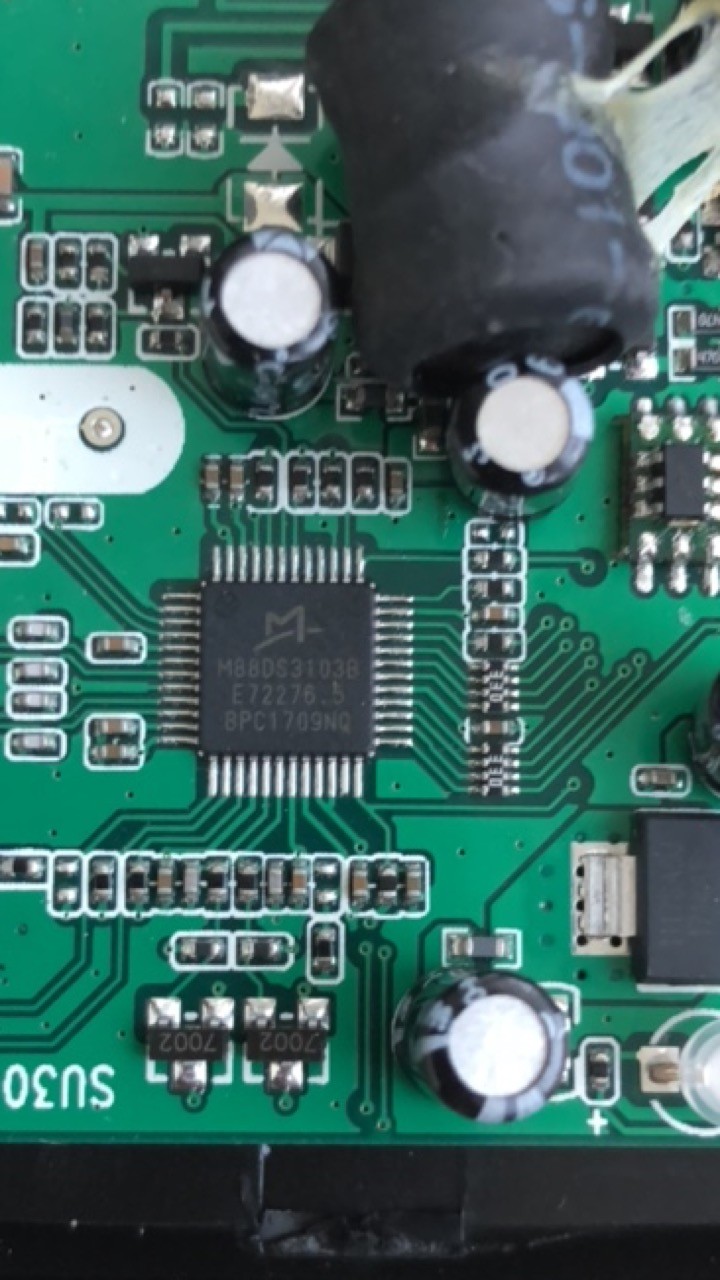

That tuner uses M88DS3103b - B is the new reversion that currently is not working at linux
currently no info yet, I already asked around
trsqr has already requested some model to write the driver but still no reaction
-
then the only option is to wait for what I see in the link since March there is no solution, is it normal so much?
What tuner does it work?
I appreciate your interest in helping me
-
- Official Post
I can't predict if anyone comes around and has some patch.
Could be tomorrow or next year. Sadly trsqr hasn't received anything : (
Sadly due that refresh of that chip a lot USB-DVB-S2 devices are affected (DVBSky 960 likely too, TT 4200 ...).
So basically I can't really tell you at the moment any good advice.
"Workaround" is for example an Digibit R1 Sat>IP Box or maybe an Digibit Twin Sat>IP Box - but if this is useful or not depends at your Sat hardware.
-
