Remote control

  • Hello all,

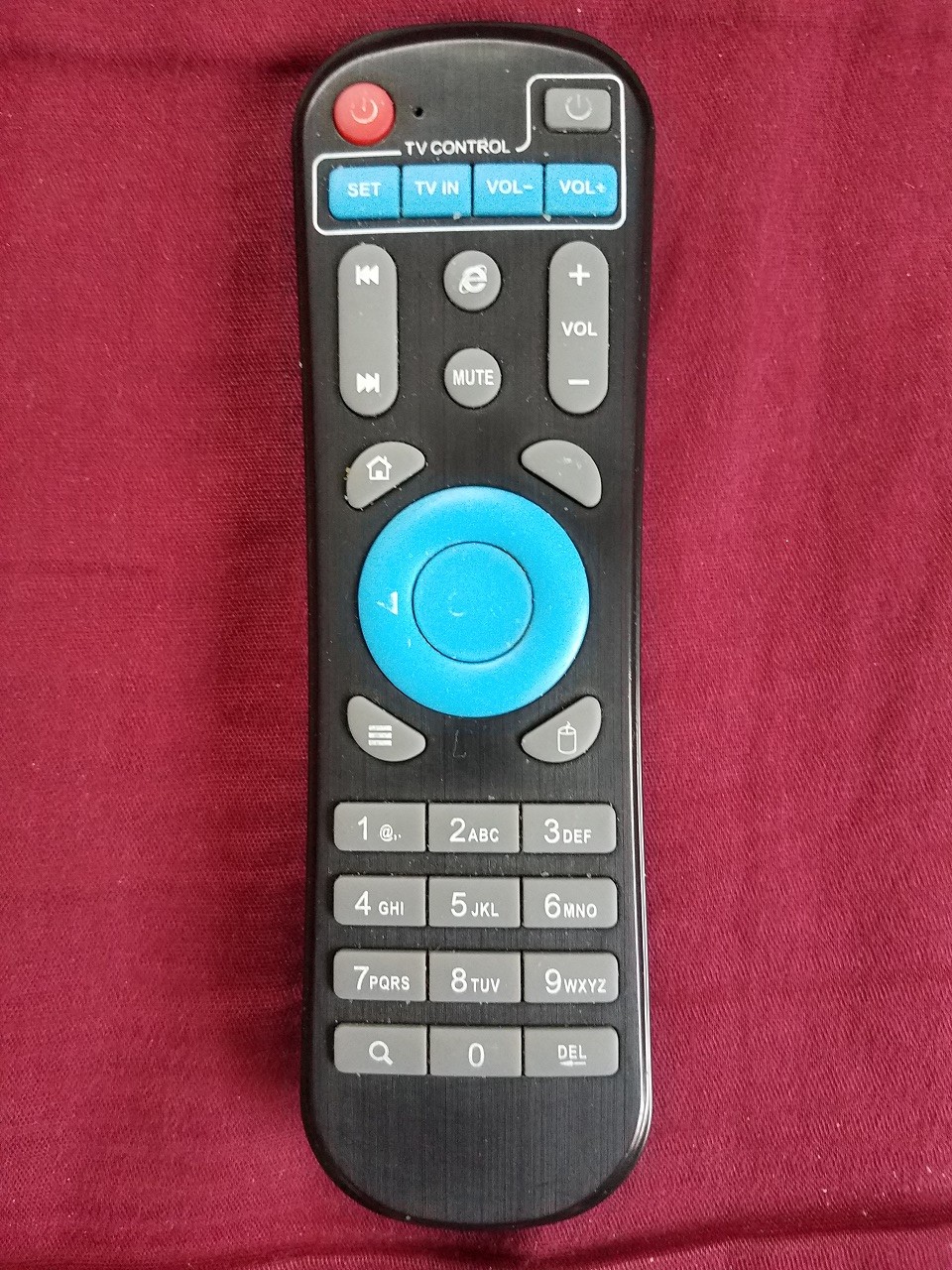

    I can not get my remote control to work, I extracted the remote.conf file from android and followed some modifications but none seems to enable the remote control, running version 8.2.2.3 on cpu S912 without any problem using a mini wireless keyboard with dongle, the remote control is the issue. any help please?

    Thank you

    Edited once, last by guil70 (April 20, 2018 at 6:27 PM).

  • Oef. Looks like some no-name exotic model.

    Look at the thread mentioned by bubblegum57 and try some of those, see which one works best. You could always remap with the keymap editor in Kodi afterwards

  • Yes and for mecool bb2 pro also, I downloaded that one and pasted it in Configfiles folder using windows sharing and nothing, still no work, and really the remotes are the identical, any suggestion?

  • Ok correct me, if something is wrong...

    1- I open usb partition by doing this from windows 7,

    \\XX.X.X.XX (device ip)

    2- Enter in folder Configfiles

    3- paste the copied file remote.conf

    4-reboot

    Remote does not work

    Here is the remote.config I got from android, I would like you to take a look, I am fully new on this, 48 hours ago I knew cero,

    I am using CoreELEC-S912.arm-8.9.0 build, I also tested LibreELEC 8.2.2.3 S912 and remote did not work either.


    #name of map table

    # custom_code: custom code for remote device

    # release_delay unit:ms.release will report from kernel to user layer after this period of time

    # from press or repeat triggered.

    ###PARAS FOR MOUSE MODE:

    # fn_key_scancode: scancode of fn key which used to swith mode

    # cursor_left_scancode: scancode of left key

    # cursor_right_scancode: scancode of right key

    # cursor_up_scancode: scancode of up key

    # cursor_down_scancode: scancode of down key

    # cursor_ok_scancode: scancode of ok key

    #*************************************************************************************************************

    custom_name = vs-cursor

    custom_code = 0xff00

    release_delay = 80

    fn_key_scancode = 0x12

    cursor_left_scancode = 0x5a

    cursor_right_scancode = 0x1b

    cursor_up_scancode = 0x06

    cursor_down_scancode = 0x16

    cursor_ok_scancode = 0x1a

    key_begin

    #video strong

    0x59 116 #power

    0x19 113 #mute

    0x0e 130 #info

    0x0d 102 #home

    0x51 14 #del

    0x12 134 #mouse

    0x4d 137 #epg //没找到

    0x11 237 #dtv

    0x45 125 #menu

    0x05 1 #exit

    0x06 103 #up

    0x5a 105 #left

    0x1a 97 #enter

    0x1b 106 #right

    0x16 108 #down

    0x55 104 #page+

    0x15 109 #page-

    0x52 2 #1

    0x50 3 #2 //没着到匹配的

    0x10 4 #3

    0x13 115 #vol+

    0x56 5 #4 //没着到匹配的

    0x54 6 #5

    0x14 7 #6

    0x17 114 #vol- //没着到匹配的

    0x4e 8 #7 //没着到匹配的

    0x4c 9 #8

    0x0c 10 #9

    0x0f 11 #0

    0x4a 121 #fr //没着到匹配的

    0x48 120 #ff

    0x08 122 #prev

    0x0b 123 #next

    0x46 119 #play/pause //没着到匹配的

    0x44 128 #stop

    0x04 56 #pvr

    0x07 132 #repeat

    0x42 134 #red

    0x40 133 #green //没着到匹配的

    0x00 131 #yellow //没着到匹配的

    0x03 140 #blue //没着到匹配的

    0x1f 212 #fav

    0x58 261 #app

    0x18 70 #browser //没着到匹配的

    0x0e 136 #audio //没着到匹配的

    0x09 135 #subtitle

    0x60 160 # red

    0x61 161 # green

    0x62 162 # yellow

    0x63 163 # blue

    0x02 130 #info

    0x01 136 #audio //没着到匹配的

    0x21 52 #.

    0x22 127 #search

    0x64 164 #pvr list

    key_end

    Any idea how to modify this one in order to be used in the build I am using?

  • Thank you, may you help me with coreftp lite setup?, I try to connect to ip adreess and it constantly says ,

    Connect socket #876 to xx.x.x.xx, port 21...

    Can't establish connection --> xx.x.x.xx:21 @ Sun Apr 22 02:11:52 2018 (0-5)

    Edited once, last by guil70 (April 22, 2018 at 7:14 AM).

  • Getting this with that setup..., any idea

    Resolving xx.xx.x.xx...

    xx.x.x.xx connecting...

    SSH-2.0-OpenSSH_7.7

    dh-group1-sha1 not specified

    crypto error, disconnecting...

    SFTP connection error
