Remote control

Hello all,

I can not get my remote control to work, I extracted the remote.conf file from android and followed some modifications but none seems to enable the remote control, running version 8.2.2.3 on cpu S912 without any problem using a mini wireless keyboard with dongle, the remote control is the issue. any help please?

Thank you

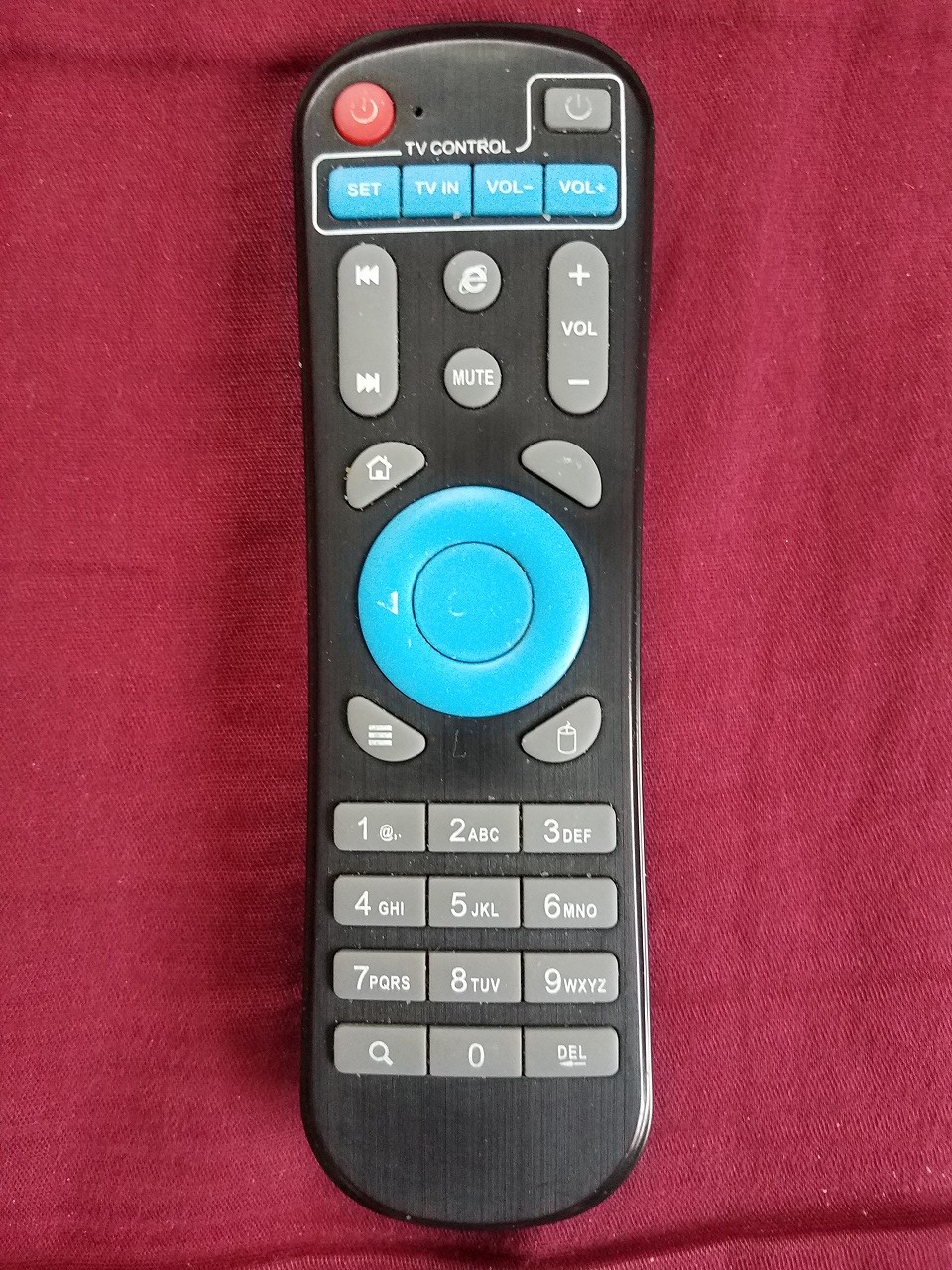

I don't know what is this remote model but I have uploaded the picture.

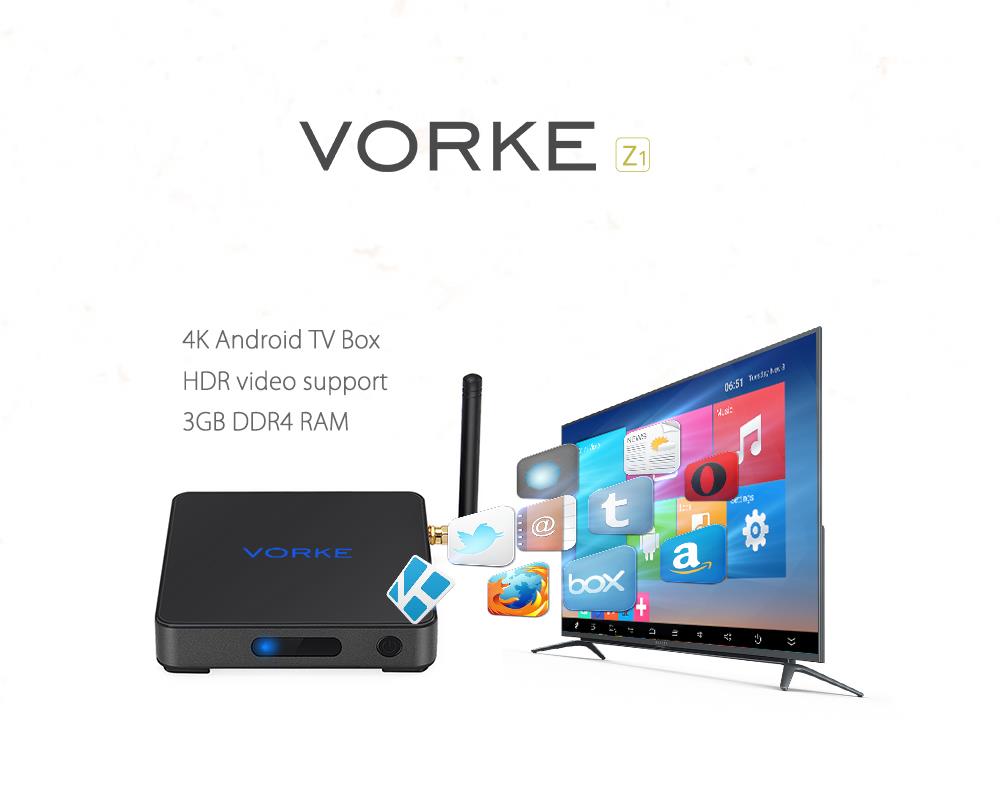

The device is Vorke Z1 cpu S912 3gb ram

Here is the picture

Yes and for mecool bb2 pro also, I downloaded that one and pasted it in Configfiles folder using windows sharing and nothing, still no work, and really the remotes are the identical, any suggestion?

II will do a try

Thank you

Quote from bubblegum57

Did you copy the remote file

to storage\config renaming your remote file to remote.conf

then reboot

Yes, several times, even the original from android, nothing works

Ok correct me, if something is wrong...

1- I open usb partition by doing this from windows 7,

\\XX.X.X.XX (device ip)

2- Enter in folder Configfiles

3- paste the copied file remote.conf

4-reboot

Remote does not work

Here is the remote.config I got from android, I would like you to take a look, I am fully new on this, 48 hours ago I knew cero,

I am using CoreELEC-S912.arm-8.9.0 build, I also tested LibreELEC 8.2.2.3 S912 and remote did not work either.

#name of map table

# custom_code: custom code for remote device

# release_delay unit:ms.release will report from kernel to user layer after this period of time

# from press or repeat triggered.

###PARAS FOR MOUSE MODE:

# fn_key_scancode: scancode of fn key which used to swith mode

# cursor_left_scancode: scancode of left key

# cursor_right_scancode: scancode of right key

# cursor_up_scancode: scancode of up key

# cursor_down_scancode: scancode of down key

# cursor_ok_scancode: scancode of ok key

#*************************************************************************************************************

custom_name = vs-cursor

custom_code = 0xff00

release_delay = 80

fn_key_scancode = 0x12

cursor_left_scancode = 0x5a

cursor_right_scancode = 0x1b

cursor_up_scancode = 0x06

cursor_down_scancode = 0x16

cursor_ok_scancode = 0x1a

key_begin

#video strong

0x59 116 #power

0x19 113 #mute

0x0e 130 #info

0x0d 102 #home

0x51 14 #del

0x12 134 #mouse

0x4d 137 #epg //没找到

0x11 237 #dtv

0x45 125 #menu

0x05 1 #exit

0x06 103 #up

0x5a 105 #left

0x1a 97 #enter

0x1b 106 #right

0x16 108 #down

0x55 104 #page+

0x15 109 #page-

0x52 2 #1

0x50 3 #2 //没着到匹配的

0x10 4 #3

0x13 115 #vol+

0x56 5 #4 //没着到匹配的

0x54 6 #5

0x14 7 #6

0x17 114 #vol- //没着到匹配的

0x4e 8 #7 //没着到匹配的

0x4c 9 #8

0x0c 10 #9

0x0f 11 #0

0x4a 121 #fr //没着到匹配的

0x48 120 #ff

0x08 122 #prev

0x0b 123 #next

0x46 119 #play/pause //没着到匹配的

0x44 128 #stop

0x04 56 #pvr

0x07 132 #repeat

0x42 134 #red

0x40 133 #green //没着到匹配的

0x00 131 #yellow //没着到匹配的

0x03 140 #blue //没着到匹配的

0x1f 212 #fav

0x58 261 #app

0x18 70 #browser //没着到匹配的

0x0e 136 #audio //没着到匹配的

0x09 135 #subtitle

0x60 160 # red

0x61 161 # green

0x62 162 # yellow

0x63 163 # blue

0x02 130 #info

0x01 136 #audio //没着到匹配的

0x21 52 #.

0x22 127 #search

0x64 164 #pvr list

key_end

Any idea how to modify this one in order to be used in the build I am using?

Thank you, may you help me with coreftp lite setup?, I try to connect to ip adreess and it constantly says ,

Connect socket #876 to xx.x.x.xx, port 21...

Can't establish connection --> xx.x.x.xx:21 @ Sun Apr 22 02:11:52 2018 (0-5)

Getting this with that setup..., any idea

Resolving xx.xx.x.xx...

xx.x.x.xx connecting...

SSH-2.0-OpenSSH_7.7

dh-group1-sha1 not specified

crypto error, disconnecting...

SFTP connection error
