Activating the LCD front panel in LibreELEC - is that possible?

  • Hi everyone,


    since my feeble attempts at asking this question in other contexts did not bring about any useful information and owing to kszaq 's mantra that separate threads for separate issues should be used, I open this one. Here is the problem:

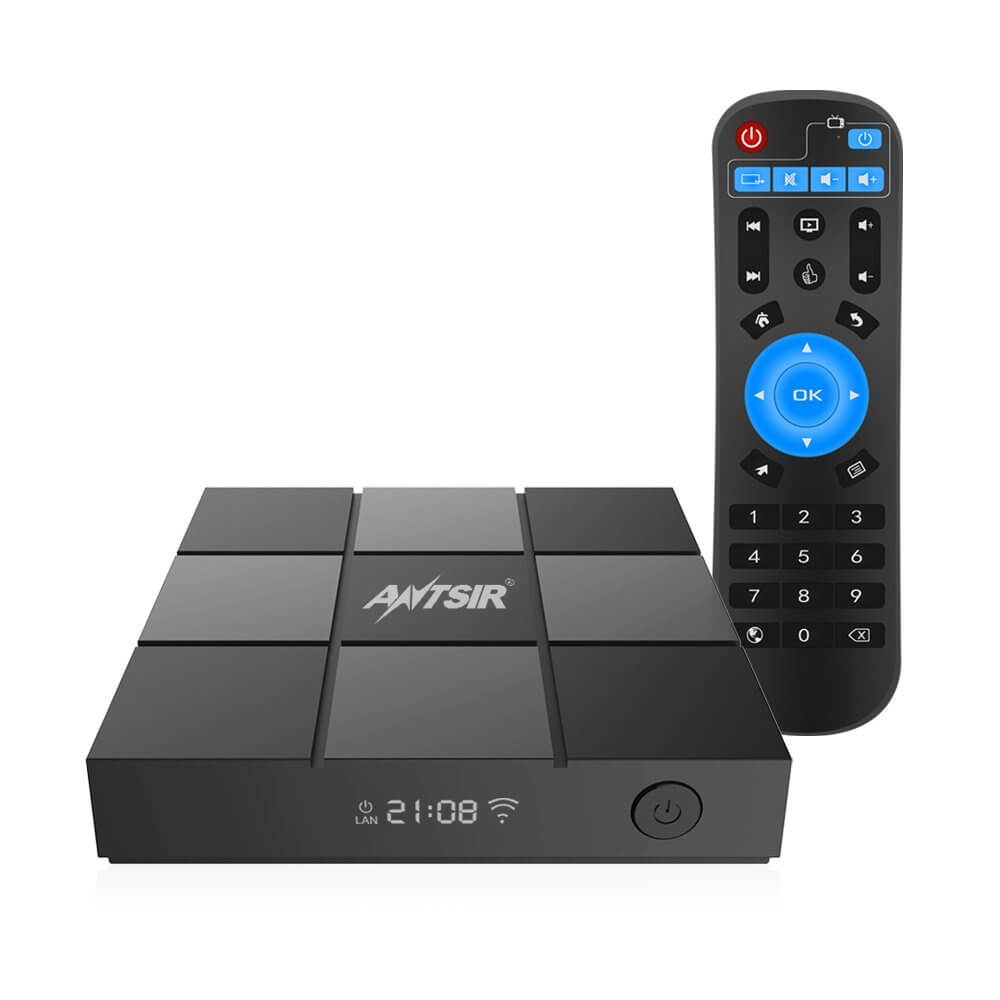

    I own the following box:


    As you can see, there is an LCD panel in front which can show the time and connection status in Android - and which is completely dark in LE. Now, while I do not really need the clock functionality, the power indicator would be really nice to have and maybe some other indicator when the box is in standby.


    For boxes that have just an led (blue/red), that works in LE as well and these can be triggered by echoing to whatever you find in /sys/class/leds. Does anyone have a clue whether anything similar is possible for the (elements of) the LCD panel? I believe that being able to access it would be quite an improvement.

    Cheers,


    chessplayer



    Formerly: Intel Atom, Dockstar/Pogoplug (headless PVR Server)

    Production: Wetek Play, RPi3, Cubietruck (headless PVR Server), Nvidia Shield client, XBOX ONE Tuner, Sundtek Media TV Sticks

    Experimental: Various AMLogic S905X (W) devices

  • might be able to use the LCDproc add-on if your lcd has a supported driver available.

  • chessplayer AFAIK GDPR-2 and alex are working on front panel clock support based on pre-built binaries from Amlogic. If they make it work, I can add it. Otherwise I have a box with the clock on the road, delivery due in 1-2 months.

  • ... delivery due in 1-2 months.

    :P I hear you .. Just ordered a S905W box for experimentation which I expect to see here in about two months time (triggered by your build for the HDMI handshake, since that was the only problem I had with the one I sent back ...)

    Cheers,


    chessplayer



    Formerly: Intel Atom, Dockstar/Pogoplug (headless PVR Server)

    Production: Wetek Play, RPi3, Cubietruck (headless PVR Server), Nvidia Shield client, XBOX ONE Tuner, Sundtek Media TV Sticks

    Experimental: Various AMLogic S905X (W) devices

  • I have it working fully with the prebuilt binary obtained from Oranth by Alex and with some modification to the DTB however there is the source code you pointed me to kszaq for an alternative driver but I haven't managed to make this fully work yet.

  • I forgot to mention the box I had it working on was a TX3 Mini, I don't know if that is the same LCD or not, which model is this?

  • Hi!


    I'm also looking for the LCD working in LE ;)I have a Vorke Z6. Will this feature be in the S912 builds as well?


    Are you planning to put some settings about it in the LE submenu in Kodi?


    Thanks for your work!


    BTW, do you need any log for my box? I can provide the dmesg of Android, for example. Could you tell me the name of the driver needed?


    Thanks!

    Edited once, last by darioml ().

  • I have a Vorke V6.

    I have a Vorke Z6 with lcd display.

    You know KISS ?

    Keep it simple, stupid

    A liitle piece dc-fix - solved.

    LCD display = useless gadget

    Just my 5 cent


  • I think it will be possible to support this box, logs will not help unfortunately with this issue, physical access to one of the devices on the other hand would, it's somewhat of a headache feature to support as it requires a lot of testing which isn't practical to do remotely.

    This is the driver I would like to use, the problem is the DTB, it will have to be custom made for each display which is different which is where the testing issue comes into play, it will be does it display as desired, if not try again, repeat, repeat, repeat.

    For the tanix box the manufacturer compiled the LCD driver against kszaq kernel specifically for us and provided us with the modification to the DTB so it didn't require too much work from our end.

  • I forgot to mention the box I had it working on was a TX3 Mini, I don't know if that is the same LCD or not, which model is this?

    The box in the picture is an ANTSIR D6 (also Dolamee D6) with 1GB/8GB S905X chipset.

    A liitle piece dc-fix - solved.

    LCD display = useless gadget

    Just my 5 cent

    What exactly do you mean by "a little piece dc-fix"? And while I agree that the LCD is not very useful, I did explain my "use case" in the first post ...

    Cheers,


    chessplayer



    Formerly: Intel Atom, Dockstar/Pogoplug (headless PVR Server)

    Production: Wetek Play, RPi3, Cubietruck (headless PVR Server), Nvidia Shield client, XBOX ONE Tuner, Sundtek Media TV Sticks

    Experimental: Various AMLogic S905X (W) devices

  • What exactly do you mean by "a little piece dc-fix"?

    dc-fix is adhesive foil - You can get it in many colours.

    I use a little piece black foil, put it on the LCD - that´s it.

    I don´t want to look at the "boot" message running LE and I don´t need to show the time running Android.


    I don´t want any driver in LE to support this useless gadget - may be there will be some other issues or side effects like hyperion problems ....

  • dc-fix is adhesive foil - You can get it in many colours.

    I use a little piece black foil, put it on the LCD - that´s it.

    I don´t want to look at the "boot" message running LE and I don´t need to show the time running Android.


    I don´t want any driver in LE to support this useless gadget - may be there will be some other issues or side effects like hyperion problems ....

    It's not useless when you have a countdown showing you the remaining time left on whatever you are watching :)

  • It's not useless when you have a countdown showing you the remaining time left on whatever you are watching :)

    Yes! That’s what I miss so much after moving to LE box from Dune HD.


  • I think it will be possible to support this box, logs will not help unfortunately with this issue, physical access to one of the devices on the other hand would, it's somewhat of a headache feature to support as it requires a lot of testing which isn't practical to do remotely.

    This is the driver I would like to use, the problem is the DTB, it will have to be custom made for each display which is different which is where the testing issue comes into play, it will be does it display as desired, if not try again, repeat, repeat, repeat.

    For the tanix box the manufacturer compiled the LCD driver against kszaq kernel specifically for us and provided us with the modification to the DTB so it didn't require too much work from our end.

    Hi, adamg.


    I'm attaching the Android dmesg from my Vorke Z6. It is seen that the FD628 driver is loaded as an "Out-of-tree module".


    Code
    1. [ [email protected]] Modules linked in: wlan(O+) cfg80211(O) compat(O) aml_fd628(O) ddr_window mali_kbase(O)


    I hope it finally works!


    I am sure that it would be very useful if it is flexible enough. For example, if you could choose, via a Settings Menu, what to show: the time, the playing time or the remaing one, the movie name, etc. Of course, the LAN, WiFi or Bluetooth symbols to show the current status of those connections are quite useful, as well. Everything would be better than the permanent "boot" message.


    Thanks!

  • Everything would be better than the permanent "boot" message.

    The "boot" message is easy to fix.

    Unwanted side effects due to a android driver would be better ?

  • The "boot" message is easy to fix.

    Unwanted side effects due to a android driver would be better ?

    What can be done with the "boot" message? Do you mean the duct tape? I would prefer a nicer solution, thanks...


    The driver adamg is referring is a Linux one.
