hey guys, I'm bit confused now. I upgraded to CoreElec recently because I thought that it's something new, LibreElec is transforming to or something but it looks like it's a new separate developing community... And I'm not sure who should I stick with to get the best for my minix neo u1? What are you guys suggesting? Sticking with LibreElec or move to CoreElec? Thanks
For daily use LE7 is the best, if you have another SD card and want to try something new use which is the best for you.
Disabling noise reduction is very useful for S905W and S912 boxes, no need to disable on S905 and S905X.
Hi, i have a problem with my m8s pro l.
Need to disable deinterlacing but under Android I don't know how, with new LibreELEC builds it can do that.
Display MoreEither I´m stupid or lucky.
Checked a few min ago.
Recorded TV 720p(SDR) - OK
Recorded TV 1080p(SDR) - OK
4k 10Bit HDR - OK
My combination box-AVR-TV is working well - TV switching from SDR to HDR and back to SDR, also 420/422/444 depending on video file
Maybe some combinations are not working (my TV is from 2017, my AVR from 2016)
422 and 444 are fix colorspaces which is selected in colorspace settings, The TV switches between 422/444 (depends on the setting) and 420, no switch automatically between 422 and 444.
I do nothing - colour space changes automatic to 444,10Bit playing video
422 8/10/12 aka. 24/30/36 bit are have been present for a long time, you can choose these colorspaces on all DVD players, Blu-ray players from last 10 years and doesn't switch automatically to these colorspaces. UHD players and of course these boxes too can switch to UHD 420 10 bit, but 422 8/10 bit or 444 8/10 bit works only manually. So, if you choose 444 10 bit is very good for gradients but if you watch a UHD 10 bit movie the player will be switch to 420 10 bit all other movies will be played on previously setup, ex. 444 10 bit.
Tested new LE 8.90.5, updated from LibreELEC-S905.arm-9.0-devel-20180223155029-r28201-gea3b1a985, the picture quality is better than in previous versions, (very) minimal vertical banding in blue (gradient is test image). Everything what I tested is excellent but I found a bug in Display settings.

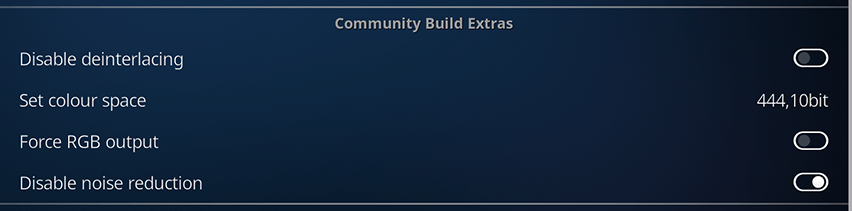

Display settings in devel version:
Display settings in 8.90.5:
Nice job,
Thank you.
But you loose audio passthrough when enabling "Sync playback to display:"...
And display refresh rate.
He asked about the TX3 Max, not TX3 Mini, now TX3 Mini with the new dtb and LE 8.90.3 is excellent, I don"t find any issues. Wifi works great, ethernet too.
adamg, did you see that post? Now everything is fine with new dtb for TX3 Mini and LE 8.90.3, LCD display OK, Wifi OK, ethernet OK, audio output OK, LPCM 7.1 too.
Thanks
If it stays on AML logo then you are using the wrong DTB image and it should be named dtb.img not img.dtb
You made it. Thanks, New dtb from here is great with Le 8.90.3, Multi CH PCM is good, all other formats are good, no hissing (yes Poida, maybe this is the best word ) LCD works also, every icons are good.
Thanks.
Just asked, what was wrong?
Post your exact steps of exactly what you are doing and upload a short sample of the video in question.
Thanks for going after things.
My setup:
New image on SD-card, LE 8.2.3.1
Amlogic boxes (Minix Neo U1 S905), Mecool M8S Pro+ (S905X), Tanix TX3 mini (S905W)) --- HDMI cable --- AVR --- HDMI cable --- TV
S905
Op. 1
Neo U1 (S905)
SD card in Minix with Minix dtb
System settings/Audio
Number of channels: 7.1
Output configuration: Best match
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (incl. LPCM 7.1 output is Multi CH LPCM 7.1)
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: OK
Op. 2
Neo U1 (S905)
SD card in Minix with Minix dtb
System settings/Audio
Number of channels: 2.0
Output configuration: Optimized
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
- Enable Dolby Digital (AC3) transcoding: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (LPCM 7.1 transcoded to DD 5.1)
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: DD output
--------------------------------------------------------------------------------------------------------------------------------------------------------------
S905X
Op. 1
M8S Pro+ (S905X)
SD card in M8S Pro+ with S905X dtb 2G
System settings/Audio
Number of channels: 7.1
Output configuration: Best match
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (incl. LPCM 7.1 output is Multi CH LPCM 7.1)
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: OK
Op. 2
M8S Pro+ (S905X)
SD card in M8S Pro+ with S905X dtb 2G
System settings/Audio
Number of channels: 2.0
Output configuration: Optimized
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
- Enable Dolby Digital (AC3) transcoding: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (LPCM 7.1 transcoded to DD 5.1)
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: DD output
--------------------------------------------------------------------------------------------------------------------------------------------------------------
S905W
Op. 1
TX3 Mini (S905W)
SD card in TX3 Mini with S905X dtb 2G
System settings/Audio
Number of channels: 7.1
Output configuration: Best match
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (incl. LPCM 7.1 output is Multi CH LPCM 7.1), "boot" on device display
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: OK
Op. 2
TX3 Mini (S905X)
SD card in TX3 Mini with S905X dtb 2G
System settings/Audio
Number of channels: 2.0
Output configuration: Optimized
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
- Enable Dolby Digital (AC3) transcoding: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (LPCM 7.1 transcoded to DD 5.1), "boot" on device display
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: DD output
Op. 3
TX3 Mini (S905W)
SD card in TX3 Mini with TX3mini dtb 2G
System settings/Audio
Number of channels: 7.1
Output configuration: Best match
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
Audio issue with LPCM 7.1, clock on device display
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: Not OK , sizzling sound under original
Op. 4
TX3 Mini (S905W)
SD card in TX3 Mini with TX3mini dtb 2G
System settings/Audio
Number of channels: 2.0
Output configuration: Optimized
-------------------------------------------------------------------------------
Allow passtrough: On
Dolby Digital (AC3) capable receiver: On
- Enable Dolby Digital (AC3) transcoding: On
Dolby Digital Plus (E-AC3) capable receiver: On
DTS capable receiver: On
TrueHD capable receiver: On
DTS-HD capable receiver: On
Any other settings in LibreELEC or Kodi are on default.
-------------------------------------------------------------------------------
Samples from Kodi site: Samples - Official Kodi Wiki
-------------------------------------------------------------------------------
All audio formats works great, no Audio issue (LPCM 7.1 transcoded to DD 5.1), clock on device display
Dolby Digital (AC3): OK
Dolby Digital Plus (E-AC3): OK
DTS: OK
TrueHD: OK
DTS-HD: OK
LPCM7.1: DD output
Thanks in advanced.
I don"t know what's wrong in my settings.
I was being sarcastic in reference to your box sizzling.
Your 100% doing something wrong then I own the TX3 Mini myself and I know for certain it works and multiple other people have confirmed it works also.
Okay, explain me, why is good LPCM 7.1 output with the dtb for S905X and wrong with dtb for TX3 Mini? Which dtb is good for TX3 mini? I have 4 Amlogic boxes, setup is the same, everything is same only what I change for optimal use is the device tree. My opinion is something wrong with that dtb from your releases page for TX3 mini.
You need to install fd628 service via add-ons for extra icons, it's only available in 8.90 builds
Sounds like your box is too hot if it is sizzling
Not too hot, 53°C and everything is fine except LPCM with that TX3Mini dtb is wrong, with dtb for S905X is good, no sizzling.
Doesn"t work for me extra icons on TX3 Mini with 8.90 builds. I posted my first impression with that on related topic.
Tested new build on all S905/X/W boxes, I have issue with Tanix TX3 Mini, regular S905X dtb with 2GB RAM works on Tanix, display shows only "boot" but no issue with LPCM 7.1, changed dtb to this: gxl_p212_2g_tx3mini.dtb, display shows the clock, after installing icon package from repository and rebooting, the display icons appeared strangely, all icons visible, last number was blinking and the LPCM 7.1 was wrong. I prefer Audio output set to 7.1 and passtrough for all audio formats. I"ve tried the other dtb from here: releases/dtb/9.0/ without luck, boot screen stays on TX3 mini. Which is the best dtb for TX3 mini?
On Neo U1 and M8S Pro+ everything was fine what I tested.
Thanks
Works ok, thanks!
What's the status with the extra icons (play, ethernet, wifi, etc)? Have you made them work yet? Do I need to install a service?
Doesn"t work a TX3 Mini so far. Tried 8.90.3 and 8.2.3.1, no luck, only the clock is visible (on 8.90.3 is something strange with installed icons) but Multi CH PCM with that dtb is sizzling under original sound, with normal dtb from S905X no issue with sound but display shows "boot".
dtb is not cause of this
Replaced with this dtb and no issue with Multi CH LPCM but on display is "boot". I've tried 8.90.3 with the same dtb for TX3 Mini from 8.2 folder similar issue like in 8.2.3.1, changed dtb to linked in this post and no issue. I'm not sure if the dtb isn't cause this.
Does this imply that the front lcd in tanix tx3 mini will show something instead of "boot"? Cause I just upgraded automatically but "boot" is still there...
Yes, use the dtb linked in this post, I've tried, and you can see the clock instead of "boot".
dtb is not cause of this
I forgot something, audio outout is set to 7.1, passtrough is on, every output sounds seems to be good only 7.1 LPCM output is wrong. All S905 devices tested with one SD card , but with different dtb, on Minix and Mecool everything was fine, LPCM 7.1 output is great, on Tanix is something wrong only with Multi CH LPCM, if audio output is set to 2.0 and AC3 transcoding is on, everything is fine, I got Dolby Digital 5.1 but this is not LPCM.
I will try the Leia build.
Thanks.
