No sound on Gigabyte Brix

1st Official Post

    I have been using Windows 10 on my gigabyte brix and just recently installed libreelec on a usb stick and it seems to run great so far but I am not getting any sound. I am able to use the +and- keys to turn sound up and down but get nothing. No system sounds either. Any ideas? Any help is greatly appreciated.

    • Official Post

    It's good to know that Gigabyte only manufactured a single Brix box, so we won't have to bother asking about any further details? Right? ;)

    I'm guessing there are now some 20+ different types of Brixes, so please send in a kodi.log file as well as a dmesg listing in order to find out what is going on inside your Brix box.

    here is the link to the log.

    cIbQ

    Here are the specs of my brix GB-XM14-1037. It has a 30gb ssd but I am using a flash drive for now and 8gb of ram. It is connected straight to a westinghouse tv via hdmi.
    Dimension29.9 mm x 107.9 mm x 114.6 mm (1.18" x 4.24" x 4.5")Motherboard Size100 x 105 mmCPU3rd generation Intel® Celeron® 1037U 1.8GHzChipsetIntel® NM70Memory2 x SO-DIMM DDR3 slots
    1333 / 1600 MHz
    Max. 16GB (8GB x 2)LANGigabit LAN (Realtek RTL8111E)GraphicsIntel® HD graphicsHDMI Resolution (Max.)1920 x 1080 @60HzMini DP Resolution (Max.)2560 x 1600 @60HzExpansion Slots1 x mSATA slot
    1 x Half-size mini-PCIe slot occupied by the WiFi cardFront I/O1 x USB 2.0Rear I/O1 x HDMI
    1 x Mini DisplayPort
    1 x USB 2.0
    1 x RJ45
    1 x DC-In
    1 x Kensington lock slotPower SupplyInput: AC 100-240V
    Output: DC 19V
    3.42AVESABracket included
    Supports 75 x 75 and 100 x 100 mmSupport OSWIN7 32/64bitEnvironmentSystem Environment Operating Temperature: 0°C to +35°C
    System Storage Temperature: -20°C to +60°C
    [hr]

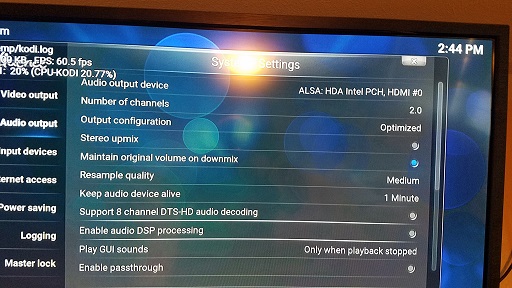

    Here is a pick of my sound settings. I have also tried passthrough with no luck.

    Edited once, last by gwilly7 (November 24, 2016 at 3:09 PM).

    Quote from fubix


    Hi, I have the same issue, but I only have HDMI #0 and HDMI #2 in the audio settings, what did you do to get it fixed, gwilly7?

    I am not sure exactly, I thought I had tried everything but when mlgae mentioned that audio and video were on different HDMI, I changed the audio to HDMI 1 and it worked. I am at work now or I would add a screenshot.
