Where in LibreElec 10.0 Beta on Raspberry pi 4 (LibreElec-RPi4.arm-9.95.1) you can switch the sound to analog output (3.5 mm jack). I have not found such an option anywhere. In previous versions it was possible.
LibreElec 10.0 B1 RPi4 switch audio to analog output (3.5mm jack)
-
taxmilibre -
April 16, 2021 at 1:51 PM -
Thread is Resolved
- Go to Best Answer
-
I think if you add:
dtparam=audio=on
to /flash/config.txt and reboot the analogue option should appear.
-
- Official Post
Read here about the new analog audio behavior: Click!
-
In LibreElec 9.2.6 it was done like this: settings-> System-> Audio -> Audio output device, and then you had to select -> Pi: HDMI and analogue. LibreElec-RPi4.arm-9.95.1 doesn't have that, which is a pity
Yeah this combination is not possible anymore as the audio drivers has changed.
-
If it was possible for the sound to be simultaneously in the 3.5 mm and HDMI socket, I would be very pleased.
That is not possible.
-
- Official Post
And audio would be out-of-sync by the way.
-
i have now spent 2 days trying to get analog audio for LibreElec 10 with no success. There are only 2 options, either go back to LibreElec 9 or throw my Sonos 5 (first edition) in the trash for about € 500,00.
Which "DAU" just thought of not offering the analog sound anymore, felt 95% of users still need analog sound, the remaining 5% don't use a Raspberry, it's way too cheap for the sheiks of this world.
-
i have now spent 2 days trying to get analog audio for LibreElec 10 with no success. There are only 2 options, either go back to LibreElec 9 or throw my Sonos 5 (first edition) in the trash for about € 500,00.
Which "DAU" just thought of not offering the analog sound anymore, felt 95% of users still need analog sound, the remaining 5% don't use a Raspberry, it's way too cheap for the sheiks of this world.
Did you read post #2 above ?
-
Post 2 does not work, an analog sound is not offered under System.
take everything back, it works, only stereo upmix would not go, but I also do not need.
-
Post 2 does not work, an analog sound is not offered under System.

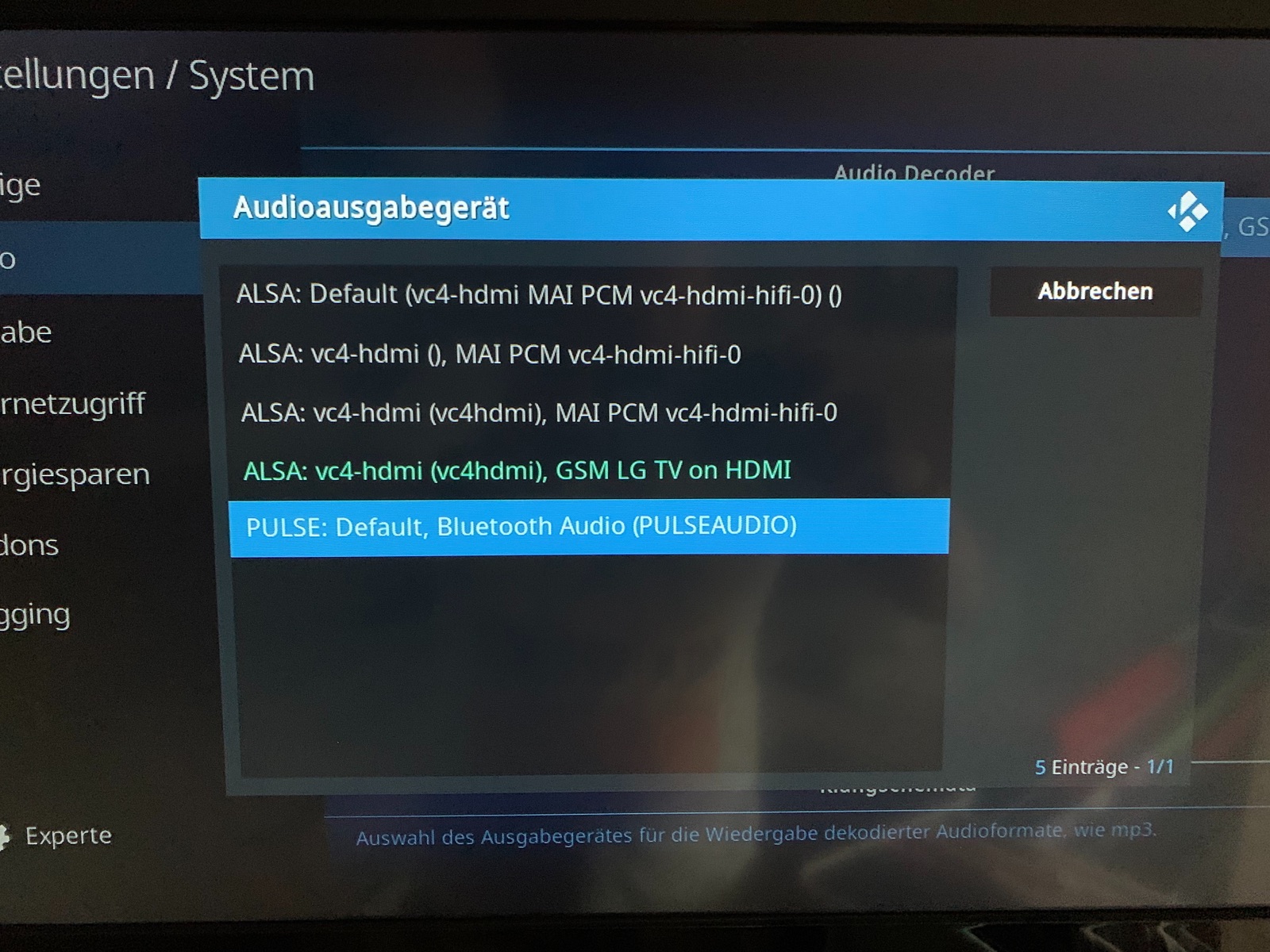

Of course it works in LE 10 (tested on latest Nightly build) if you edit the /flash/config.txt properly and set the Audio output device in Settings - System - Audio menu to ALSA:bcm2835 Headphones, bcm2835 Headphones
-
hey i have a pi3 with night 10 with me there is no way to activate it tried everything my hope is on popcorn that he still has a solution ...
I don't have that attitude
ALSA: bcm2835 headphones, bcm2835 headphones
unfortunately I need jack for my car
-
I dont used a PI but on both of my x86 Device i can used the analog audio normal and change simple over the settings (i testing an run without problems)
-
on x86 it works with me also have now tried it on 4 pi3 b + no changse with osmc it works and other builds also only with the 10 it doesn't work which is of no use to me but libreelec because of my touch it only works with it
-
That is not possible.
why?
In previous versions of LE it was possible
Is there some possibility how to reach it?
I need HDMI audio out to my AV receiver and analog to ZONE2 -
- Best Answer
In previous versions of LE it was possible
Previous kodi used a firmware side driver for audio. The firmware has the ability to split the audio and drive two sinks.
Now, we've moved to an open source arm side driver for hmdi audio (which is better in many respects, including supporting HBR passthrough on Pi4), but the firmware code for splitting audio is not involved.
It could be possible to implement this through other means external to kodi (like pulseaudio), but I don't know how to do that.
-
Previous kodi used a firmware side driver for audio. The firmware has the ability to split the audio and drive two sinks.
Now, we've moved to an open source arm side driver for hmdi audio (which is better in many respects, including supporting HBR passthrough on Pi4), but the firmware code for splitting audio is not involved.
It could be possible to implement this through other means external to kodi (like pulseaudio), but I don't know how to do that.
Thank you for fully explanation.
