DVB drivers for nightly build

crazycat and dvb-latest don't work with current linux kernel.

You can try to build an image with a kernel from TBS git. Or make a patch with a standalone driver for your particular TBS card.

I made this patch for my TBS 5520SE. Works with kernels 5.10, 5.11-rc.

The process is to find the relevant commits in tbs git and figure out what files need to be added and patched.

I used "git diff" command to generate the patch files, e.g. "git diff oldfile newfile > patchfile". Then I joined all the patches into 1 file.

The patch needs to be copied to projects/Generic/patches/linux or packages/linux/patches/default

Quote from smp

The process is to find the relevant commits in tbs git and figure out what files need to be added and patched.

I used "git diff" command to generate the patch files, e.g. "git diff oldfile newfile > patchfile". Then I joined all the patches into 1 file.

The patch needs to be copied to projects/Generic/patches/linux or packages/linux/patches/default

smp

Can you provide detailed instructions for me to use my tbs5520se?

In the chewitt buildings.

LibreELEC-AMLGX.arm-9.80.8-box.img.gz

Quote from erbas

Can you provide detailed instructions for me to use my tbs5520se?

If you want to build an image just follow this guide

Perfect the image I already have!

Thanks smp

git clone https://github.com/chewitt/LibreELEC.tv.git
cd LibreELEC.tv
git checkout amlogic
PROJECT=Amlogic DEVICE=AMLGX ARCH=arm UBOOT_SYSTEM=box make image

I just need to add the patches made available by you!

in projects / amlogic / patches / packages.

And finally build and build the image?

PROJECT=Amlogic DEVICE=AMLGX ARCH=arm UBOOT_SYSTEM=box make image

Quote from erbas

in projects / amlogic / patches / packages.

Copy it to projects/Amlogic/patches/linux

Quote from smp

Copy it to projects/Amlogic/patches/linux

Perfect friend!

I have already posted results, of great help to your knowledge!

Thanks for sharing!

Copy your patches to: projects/ Amlogic / patches/ linux/ linux-tbs5520se.patch

and build the image.

Does not work! tell me what i did wrong?

Thank you for your support, smp

Did you check if the modules were actually built?

Did you see the "Turbosight TBS5520SE DVB-T/T2/C/C2/S/S2/ISDB-T USB2.0 support" message during kernel compilation?

put if patches manually, correct?

Thank you friend for responding!

I didn't get this message!

Detail I used only these commands!

git clone https://github.com/chewitt/LibreELEC.tv.git
cd LibreELEC.tv
git checkout amlogic
PROJECT=Amlogic DEVICE=AMLGX ARCH=arm UBOOT_SYSTEM=box make image

Did you copy the patch to projects/Amlogic/patches/linux ?

Quote from smp

Did you copy the patch to projects/Amlogic/patches/linux ?

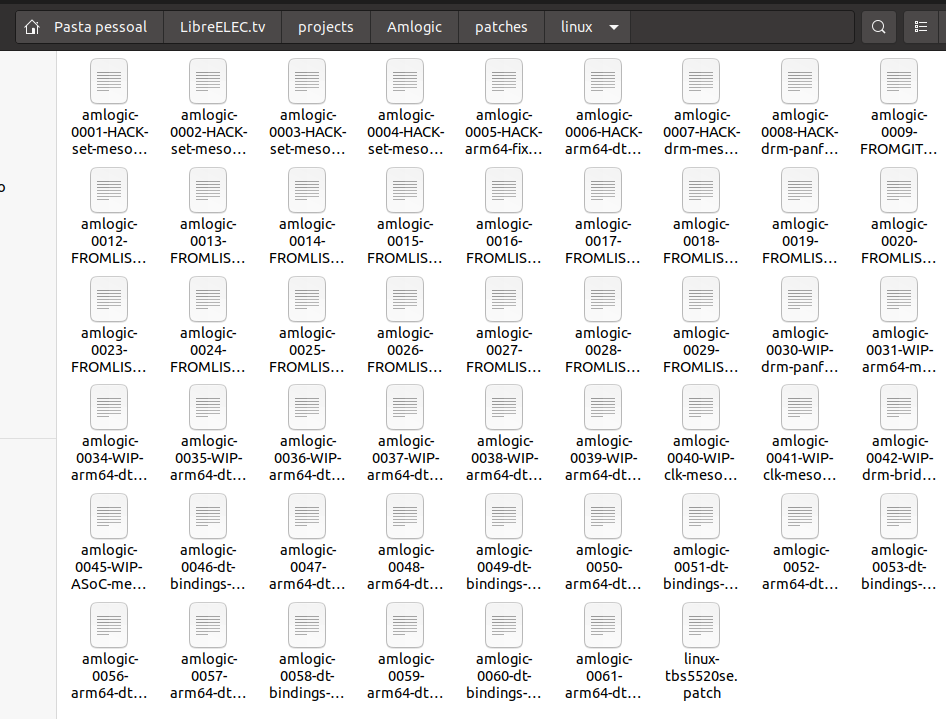

Correct friend! as you can see and the last one in the photo.

-

Right friend! I will give you news soon.

Thanks again.

Add CONFIG_DVB_USB_TBS5520SE=m to projects/Amlogic/linux/linux.aarch64.conf

It will look like this:

CONFIG_DVB_USB_TECHNISAT_USB2=m

CONFIG_DVB_USB_TBS5520SE=m

CONFIG_DVB_USB_V2=m

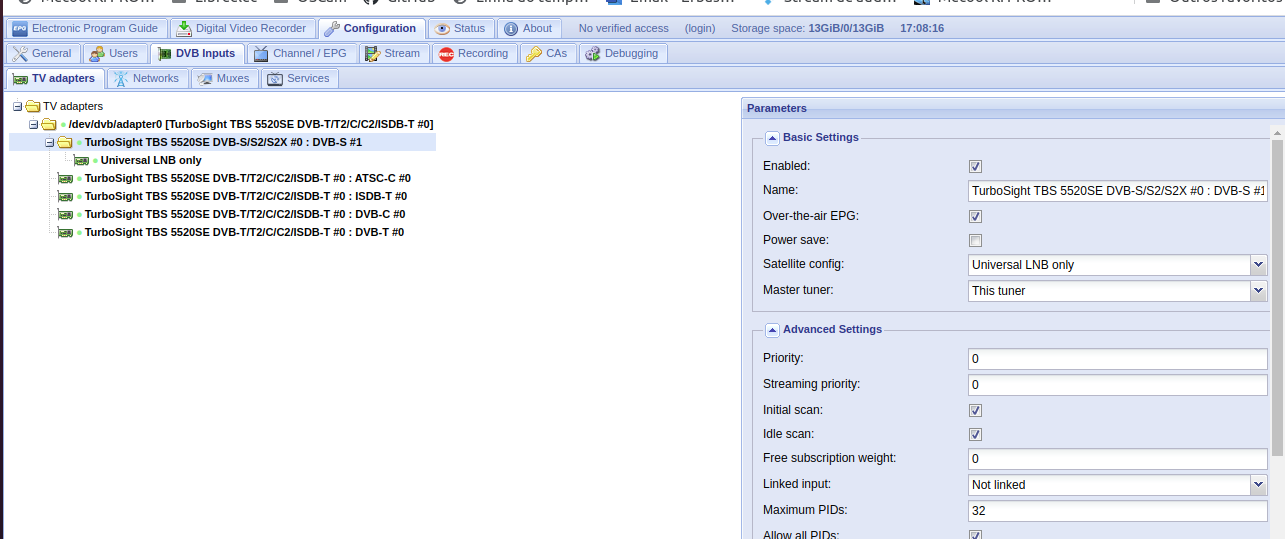

It took me a while to post results, because of the work!

for the first time the green light gives TBS is on

More results were perfect, direct aim with your help.

SD channels: I have a green screen!

HD channels: small flaws in the screen.

Detail my live and satellite tv.

smp you and a good person take the time to help! thanks.

chewitt If any developer needs a document or test I'm here to help!
