Posts by erbas

It is also possible to use the TBS5520 + Amlogic.

I am using the same with KI Plus, KI Pro, KIII Pro.

With CoreELEC, Using the TBS Drivers crazycat , Updated by afl1

With the tip of it, just use an externally powered usb hub, and everything works normally.

Thanks to those involved

For years and months people have dedicated themselves to testing and reporting help, giving, solving problems here, they have left their family obligations to support this forum when they needed it most.

chewitt

I am not going to deepen it,

because his apologetic vacancies are not objective without annex

and called incompetence

balbes150   chewitt Just one question!

is there a developer here to help and answer questions?

Thank God today there is a bridge called CoreELEC.

For here they only respond and help what is of interest to you.

More donation requests can be found throughout the forum.

If all is well they are all here.

As everything is wrong we will be hiding.

balbes150

20190506_test_dvb

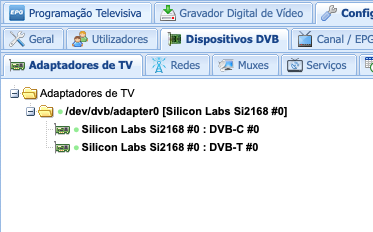

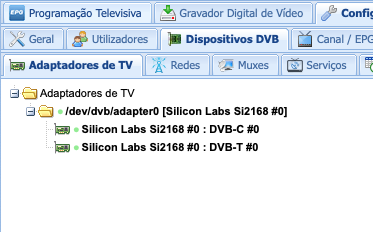

After installing Tvheadend and PVR clients is not possible to access Tvheadend by browser does not open! I tested all the versions found in the repository.

PVR service (not installed without service)

Previous version was ok with tvheadend just not found tuner. KI Pro.

afl1

I need help with script.

DEVICES = AMLGX or AMLG12 (I do not know these tools)

I do not know what the end result!

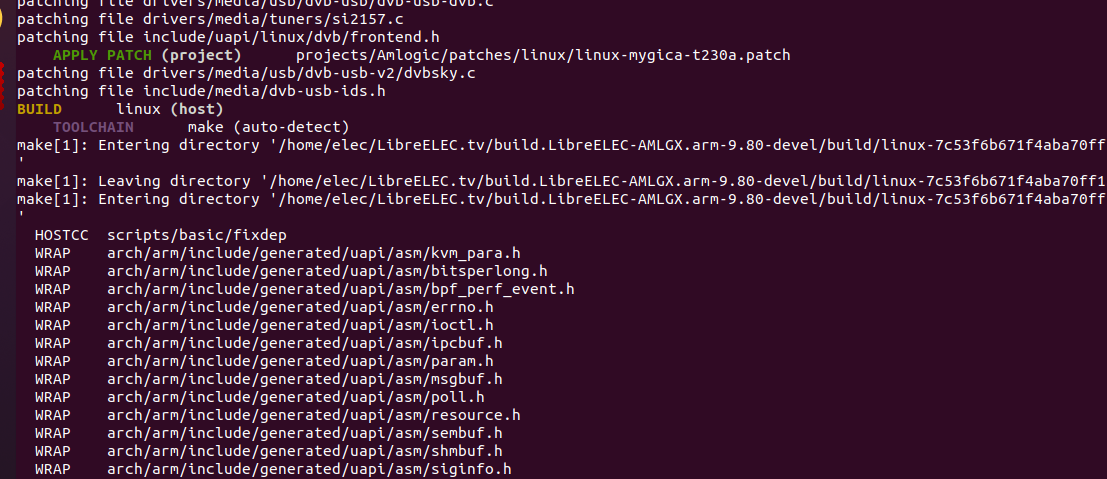

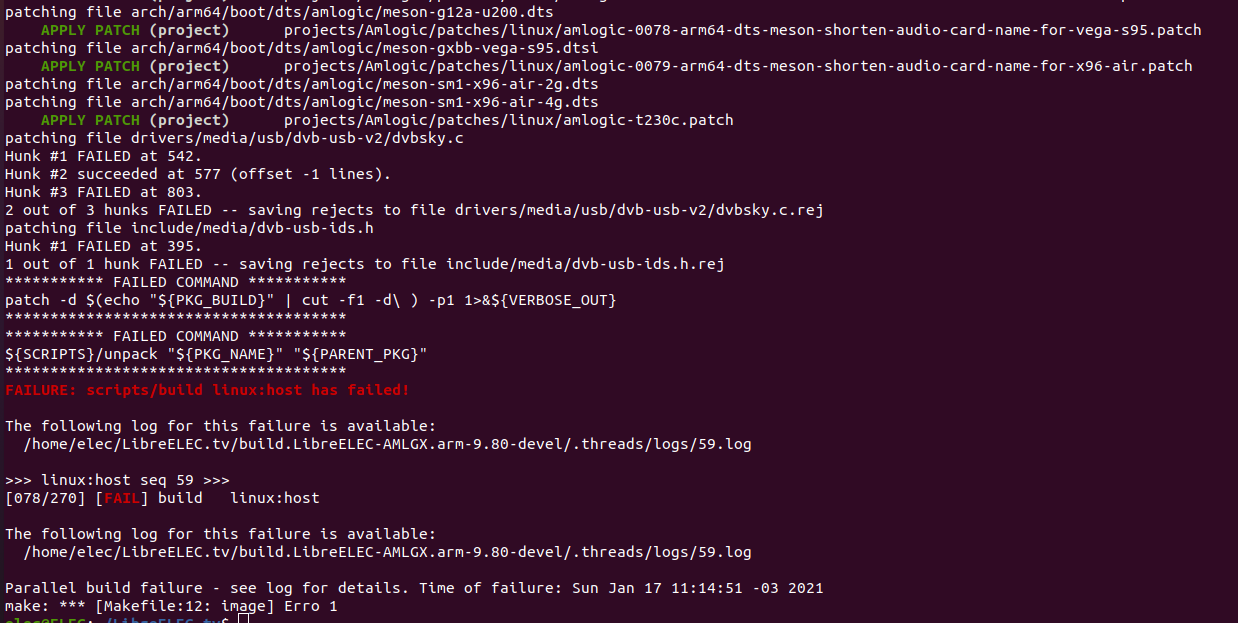

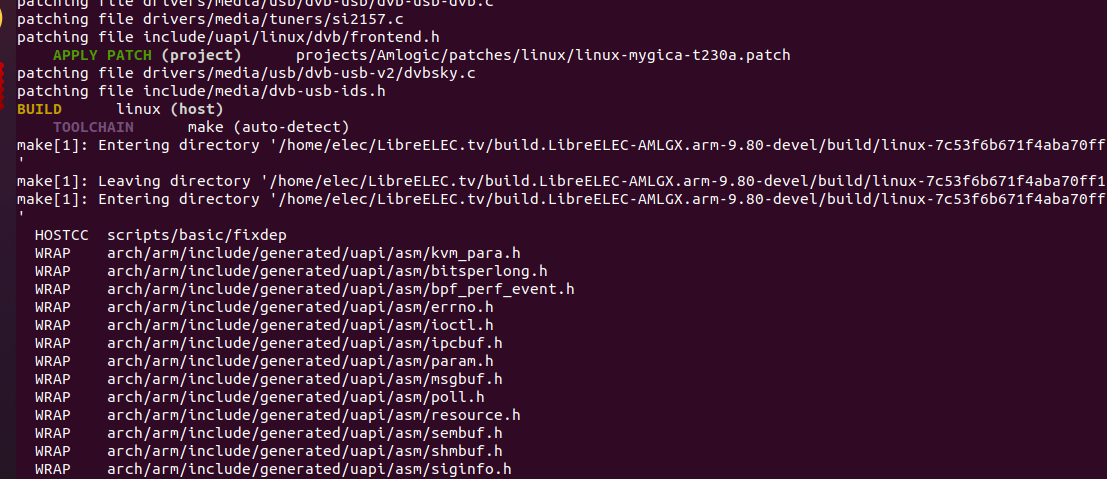

The correct method used would be this for dtv test.

# afl1 version: ##########################

git clone GitHub - afl1/LibreELEC.tv: 'Just enough OS' for Kodi

cd LibreELEC.tv

git checkout test-dvb

PROJECT=Amlogic DEVICE=AMLGX ARCH=arm make -j4 image

Sorry about my English.

I would like to test this version on my KI Pro.

Thank you.

Could someone make the addon crazycat

Updated for KI Pro.

crazycat

Quote from HiassofT

What box are you using?

On PCs power on by USB or CIR usually has to be enabled in the BIOS.

On AML boxes this is would be handled by u-boot, the vendor u-boot version might be tied to the remote that came with the box, not sure if power on by USB is supported. Not really my area

so long,

Hias

Display More

Good friend I'm using KI Pro mecool!

We did not need the usb, the controller picked up right without accessories

Well, thank you for clarifying.

HiassofT

Sorry for resurrecting this topic

I have a Philips SRM-5100 / MCE universal remote control

That was saved for a long time!

This one works with LibreELEC perfectly.

I do not need to do anything at all.

Plus the power button does not turn on the box, it just turns off.

My question, it is possible to edit any key if yes how to proceed.

Thank you,

Quote from olivluca

I tried to map all keys in the remote. Some of them don't do what I wold expect (e.g. KEY_TV doesn't show live tv but a list of tv shows) others don't do nothing, but at least it has all the keycodes.

This is my map:

change channel language audio on the audio button

and forwarded to kodi songs!

it's possible to fix thi

Good friends I've been following this topic since the beginning.

Always testing all the latest builds

A few days ago the compilations with DVB support

today was one more compilation 20190128_test_dvb

Where I gave my last attempt to upload this image in a KI Pro (S905D)

I asked for help in some forums, not very different from here!

If someone can let me know

Quote from vpeter

Do you really think that all such devices runs any ELEC system? There are lot of users who are using Android on it. Why? Because there are apps for different TV providers which are not possible to watch by ELEC

There is also the problem with some new "Certified Android" tv boxes coming with blocked bootloaders, again that's another problem! The good and wait to see if it will maintain LibreELEC support.

I was in the wetek forum in search of some information but what I see are members disappointed with the brand.

From what wetek say promised Netflix HD, did not fulfill the promise.

NEW WEOS for WP2 - WeTek Community Forum

I see more of a risk than a certainty!

balbes150 with this tool and your knowledge!

Is it possible to have your compilation run on the mecolo KI Pro (S905D)?

Amlogic Tools Open Source Amlogic Tools V5.5.0 New Version

[25/09/2018] AMlogic Tools [5.5.0][Funeral d… | Android Stick & Console Computers

Follow this excellent tutorial of the Khadas forum simple and practical

Instructions: Activating Multi-Boot - Khadas VIM - Khadas Community

This way Multi-Boot has been successfully installed

I burned the LibreELEC-S905.arm-9.1-devel-20190123095652-2f2cce8.img.gz image with rufus-3.1, I edited the uEnv.ini file with my existing dtb folder meson-gxl-s905d-ki-pro.dtb

Even so the image does not leave the screen mecool!

If I try to activate the Multi-Boot again using the files of the boxed SD card it shuts off and does not reboot!

balbes150

Quote from shippy

No problem 😃 Did you solve your boot issue though?

Also, it's preferable to use Rufus (not Etcher or Win32DiskImager) to burn your image. For a while I had a problem booting from USB sticks. Today I took CE Forum recommendation (which wasn't clearly explained earlier) and used Rufus- my USB stick now boots.

Even on a box with internally installed old CE version, the USB stick boots, eventually. It gave me problems ( alternate flashes of box and CE boot screens, then dark screen), but then it booted in Kodi safe mode !

Not possible with the balbes150 compilation

With Libreelec or coreelec perfectly!

I have always used Openelec successfully libreelec

My only problem is in the balbes150 version

Thanks friends for help shippy , turgus

(Not possible with the balbes150 compilation)

I use Coreelec + Libreelec perfectly!

All versions

I have tried all possible methods mentioned here.

(I'll try to initialize an armbian)

I also tried this maneuver quoted in the Coreelec forum.

I always use good quality SD card sandisk ultraHD 16GB

My box KI Pro (S905D)

Thank you all.

Quote from turgus

..to activate the multiboot via aml_autoscript.zip you need to boot android and use the "update&backup" app there. choose aml_autoscript.zip from the card(inserted after android boot) and the box should after some seconds try to boot from external media. All attempts to update via recovery directly seem not to work..

The same thing happens here

I waited up to 15 minutes.

Unsuccessfully!

friend balbes150 I repeat again the degree of difficulty and gigantic!

1- aml_autoscript.zip does not install the same unplugged, and does not reboot

2- I tried to install aml_autoscript.zip via pen driver reboot plus goes to debug screen with error.

3- I tried to install only the zip file aml_autoscript.zip via SD and pen driver error again!

4- I edited the uEnv.ini file: dtb_name = / dtb / meson-gxl-s905d-ki-pro.dtb

5 - I edited the extlinux file in the same way: dtb_name = / dtb / meson-gxl-s905d-ki-pro.dtb

6- rename the file: meson-gxl-s905d-ki-pro.dtb to dtb.img and put it in the root of the card!

but not boot at all.

All options without success!

balbes150 If you have any more ideas on how to solve this friend

I'm your beta test!

Thank you.

Error Photos aml_autoscript.zip

Quote from ozkaradag

Greetings,

Thank you so much for your answer, man.

Well, the device's eMMC CE installed and the base of Aarch64, the Kernel structure is 3.14.29.

If I install this image SDKarta plug-in does it work as a native?

Best regards...

Selamlar,

Cevabın için çok teşekkürler dostum.

Peki, cihazın eMMC'sinde CE kurulu ve tabanı Aarch64, Kernel yapısı da 3.14.29.

Bu imajı SDKarta kurup cihaza taksam çalışır mı native olarak?

Saygılarımla...

Display More

Download. Unpack. Write to external media. Edit " uEnv.ini", specify the desired option dtb (this item is executed if the system does not start with the default option, if it starts, you do not need to change). If the TV box has previously activated universal multi-boot, you can immediately try to start. If you have not previously activated universal multiboot, you need to activate it. For those who want to install LE in eMMC, it is necessary to update the multi-boot using the recorded image. Please note, if you do not know exactly which multi-boot option is used (activated it earlier from other media), I recommend to re-activate using this image. The new version of multi-boot is compatible with previous LE images. That is, after activating the new version, you will be able to run new and old versions of LE. For correct operation the remote control also requires its setting (description how to do it earlier in this thread).

The installation can be in SD card with dual boot in android

or nand or emmc using just one system excluding android.

First step and enable multi-boot

Now all images Armbian and LE have all the files to activate the multi-boot. Anything in addition to download and copy to media is not required.

1. Download the desired image
2. Unpack
3. Record an image on the medium
4. to run Android
5. open the app "Update & Backup"
6. Select local update and an archive on removable media (aml_update.zip)
7. Run update
8. System twice to reboot and start running the system from external media.
9. If after 7-10 minutes on the monitor not to receive any messages on system startup. Turn off TV box and add in manual in the first partition (FAT) the file "dtb.img". On the media there is a directory dtb from where you can take the files and copy them to the root of the renaming of "dtb.img".



Need to pick up the option for the file system will run. Pay attention, after you add \ change the dtb file, you need to try to run the system and waiting to run 7-10 minutes. If not, repeat with a different dtb file.

I correct balbes150 if you have forgotten any detail.
