LE9.0 remote configs ir-keytable Amlogic devices

kodiuser1 · August 24, 2018 at 6:59 AM

Does anyone have a remote file for MXQ Pro 4K please ??

bubblegum57 · August 24, 2018 at 8:22 AM

Quote from kodiuser1

Does anyone have a remote file for MXQ Pro 4K please ??

Not guaranteed to work LibreELEC 9.0.x Remote files - Remote Controllers - CoreELEC Forums

Koyo · September 17, 2018 at 11:46 AM

HiassofT could you tell us how to create udev rule for ir-keytable, please?

**HiassofT** · September 17, 2018 at 12:14 PM

To configure IR repeat settings you can use a udev rule like this - place it eg in .config/udev.rules.d/90-ir-repeat.rules

Code

ACTION=="add", SUBSYSTEMS=="rc", SUBSYSTEM=="input", KERNEL=="event[0-9]*", RUN+="/usr/bin/ir-keytable --delay=750 --period=200 --device=$devnode"

so long,

Hias

v0rtex · September 19, 2018 at 7:52 AM

Hello i have a problem with my ir-remote.

i have a airmouse an with this remote i can not turn the box on. Power off is ok.

i only can the box turn on with the original remote.

what can i do to slove the problem?

its a infomir mag 410 (S905x) box

Sukacek77 · November 6, 2018 at 7:13 PM

Does anyone have a remote file for Evolveo H8 please ??

darko888 · November 26, 2018 at 7:08 PM

Hi, As this is the only forum with remote control codes for android boxes I would ask a question. I have an android tv box MXV. On my mobile phone i have IR, but no apps on Google Play that ssupport it. Does anyone know a good app with search code function or something lile that ?

Thanks

bubblegum57 · November 26, 2018 at 7:27 PM

Quote from darko888

Hi, As this is the only forum with remote control codes for android boxes I would ask a question. I have an android tv box MXV. On my mobile phone i have IR, but no apps on Google Play that ssupport it. Does anyone know a good app with search code function or something lile that ?

Thanks

this is not an android forum, it's for libreelec.

darko888 · November 27, 2018 at 7:43 AM

Sorry, my mistake.

gujal · December 1, 2018 at 5:32 AM

Wechip Remote keymap

All 33 keys mapped.

The 4 blue keys on top are mapped as

Play/Pause, Mute, Rewind, Forward.

The X key next to 0 is mapped as STOP

Use Kodi community keymap editor to assign functions to other buttons such as TVPower, LED, KD, Mouse, and Globe

wechip.txt

ElBozz · December 5, 2018 at 9:14 AM

Hello, Guys im new at this community right now im learning to unbrick and update firmware from RK3229 Android TV Boxes.

but find out a problem after updating and thats the IR remote its not working, i read the whole forum looking for a remote.config for my Mini MX9 Android Box, without any luck

do you know where can i find or make my own remote.config to share it here?

i really need to make the box work.

regards.

Note: Also i have to tell you i have more Mini MX9 that are working well, i tried to extract (copy) the remote.config file from a mini mx9 box working, but didnt find it in etc folder, also wasnt able to find any file named remote.config, remote or controller, where do you think i may find this file to copy and paste it in the other one?

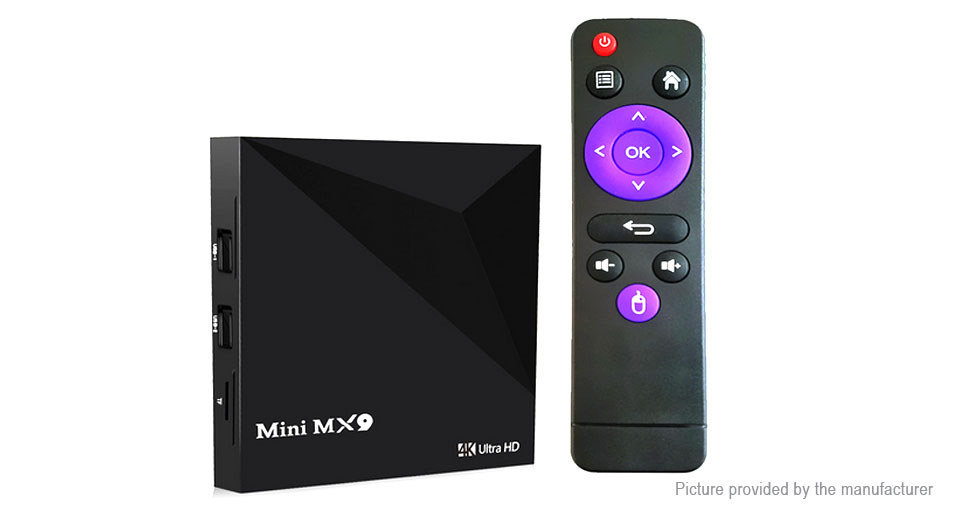

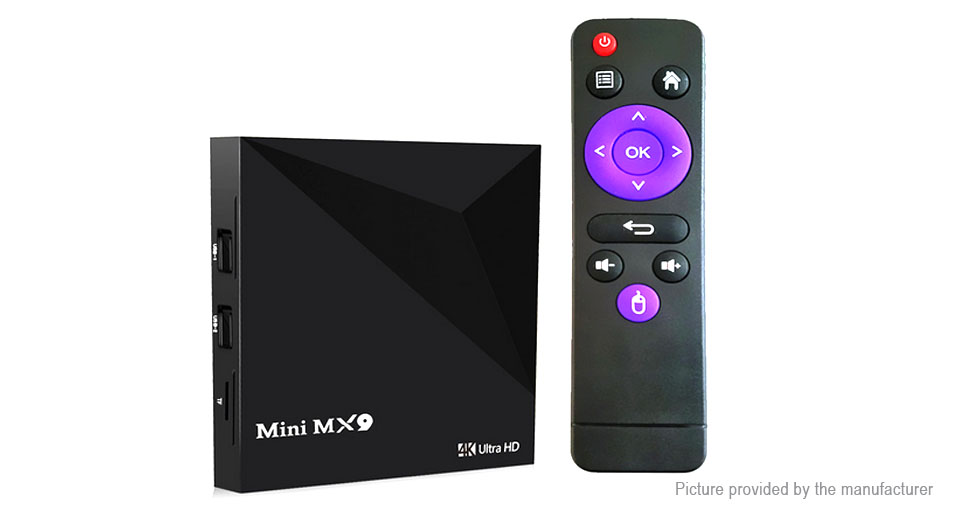

this is the android tv box and remote controller

blueveryday · December 27, 2018 at 12:47 AM

Sir , here you are .

These are remote control files of KI plus box. (libreelec 9.0 alpha system)

made by myself, perfect.

Hope to help someone.

config.zip

blueveryday · December 27, 2018 at 12:56 AM

Quote from skom

And what is the driver for the default remote control (K1 plus S905 see picture below) to connect to as a second remote control?

One more problem - how to map letters from remote control with keyboard in Lircmap.xml file?

In the file in the rc_keymaps directory I have eg

"0x72ddb0 KEY_Q"

and try to assign it to lirc in Lircmap.xml in various ways

<q>KEY_Q</ q>

<letter_q> .... unfortunately nothing works

How can I map a letters and special characters, e.g., space, comma, dot, at, slash, backslah, colon, etc.?

Display More

you should read my topic :

LE9.0 remote configs ir-keytable Amlogic devices

I have the same ki plus box as yours.

I made a config file of remote control . it's perfect.

Perhaps , it would answer your question.

hawk77 · December 27, 2018 at 4:28 AM

Hello Guys,

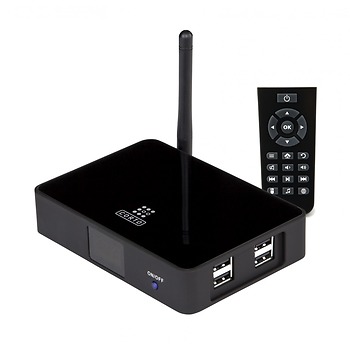

Can someone post remote config for Corto Amlogic box?

Thanx in advance.

blueveryday · December 27, 2018 at 7:41 AM

Quote from hawk77

Hello Guys,

Can someone post remote config for Corto Amlogic box?

Thanx in advance.

did you share the remote.conf file to me ？

you can find this file in your flash disk in libreelec sysytem.

I can help you to build the romote file .

hawk77 · December 27, 2018 at 4:50 PM

I didn't.The box was stuck on boot logo so I had to flash with CMX rom I found on net and I don't have original remote config file.I really appreciate your will to help me.If it can be build from CMX Rom remote config file it would be great.

I'll you file as soon as possible.Thanx a lot.

blueveryday · December 28, 2018 at 1:24 AM

Quote from hawk77

I didn't.The box was stuck on boot logo so I had to flash with CMX rom I found on net and I don't have original remote config file.I really appreciate your will to help me.If it can be build from CMX Rom remote config file it would be great.

I'll you file as soon as possible.Thanx a lot.

firstly , you have to use libreelec 8.2.3.1 edition or other 8.x systems.

and load your box .

setup it .

and then go into the flash disk , you will find the remote.conf file.

finally, send to me .

Data · December 28, 2018 at 1:50 AM

Would this be of any use? GitHub - probonopd/lirc-remotes: The lirc remotes database
