On the RPi 3 platform, I found a couple of keys which did not work correctly on my MCE remote (model RC-1). So I created a custom key table by copying '/usr/lib/udev/rc_keymaps/rc6_mce' to '/storage/.config/rc_keymaps'. My transceiver is detected as follows:
# ir-keytable
Found /sys/class/rc/rc0/ (/dev/input/event4) with:
Name: Media Center Ed. eHome Infrared Remote Transceiver (1784:0006)
Driver: mceusb, table: rc-rc6-mce
lirc device: /dev/lirc0
Supported protocols: lirc rc-5 rc-5-sz jvc sony nec sanyo mce_kbd rc-6 sharp xmp imon rc-mm
Enabled protocols: lirc nec rc-6
bus: 3, vendor/product: 1784:0006, version: 0x0100
Repeat delay = 500 ms, repeat period = 125 ms
For some reason I cant understand, on this remote the LibreELEC default WINDOWS key assignment:
0x800f040d KEY_MEDIA

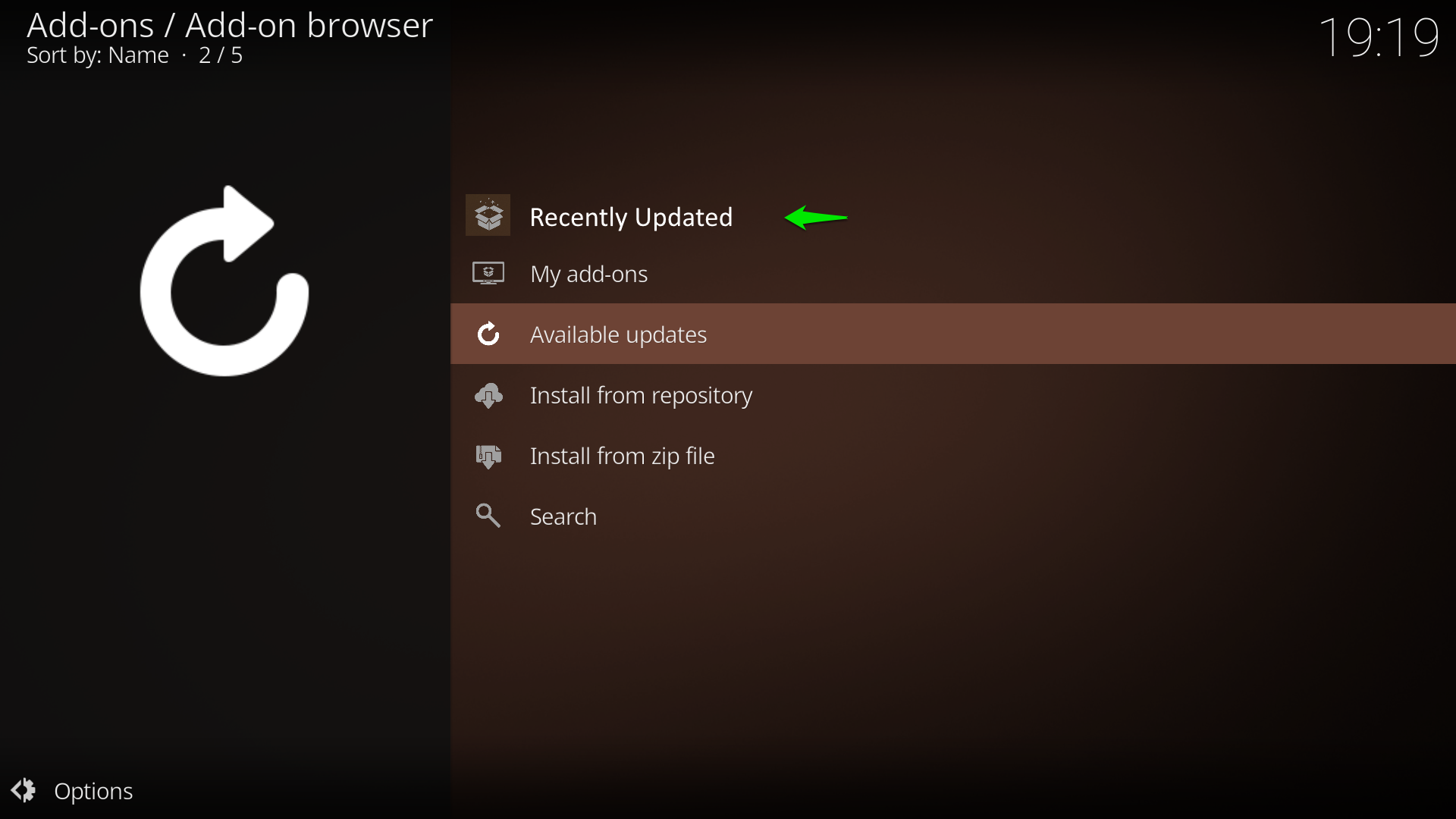

...performs the same function as the BACK button. For example, if I am in Kodi "Videos/Add-ons", the BACK key and WINDOWS key do the same thing. As MCE remotes already have dedicated keys for each type of media, and all of my RF remotes have a HOME key which invokes the main menu on LibreELEC, I believe the WINDOWS key should do the same on an MCE remote - so I assigned it like this:
0x800f040d KEY_HOME
However, it still behaves the same way -- as the back key. So I changed KEY_HOME to KEY_VOLUMEUP, and that works. I then assigned it to KEY_EPG, and this works too. But it appears that KEY_HOME and KEY_MEDIA do the same thing in LIRC (which is to navigate back). Looks like a bug to me.
The BACK key on this remote is assigned by default as follows:
0x800f0423 KEY_EXIT
And it does work - but just for the sake of clarity, I thought the key should be explicitly assigned to the back function, like this:
0x800f0423 KEY_BACK
So I tested it, and the key performs the back function with both. (Not that it matters in this case, since the key already does what it should - but its here for the sake of documentation.)
On my remote the MORE INFO key :
0x800f040f KEY_INFO
currently displays the add-on properties window, instead of displaying the context menu (meaning: there is no way to raise the context menu -- at least on my model). So I thought this key should be reassigned as follows:
0x800f040f KEY_MENU
I tested this, and it works correctly -- so I now have a working CONTEXT MENU button, just like my RF remotes that function correctly in LibreELEC. From reading the documentation here...
Infrared Remotes [LibreELEC.wiki]
...it appears to me that all of the MCE remotes are assigned the same default keytable on LibreELEC -- so if they all function the same way, with respect to the MORE INFO key, I believe this particular change should be published for everyone.
