Update.
Seems like it's an issue with the remote or the config I downloaded the MCE remote config and tried the HP remote I used in a different room and it works with a few button that aren't correct however I'm stumped I've definitely used the other remote before and the irrecord works fine.
Also the 100% is gone as well..
GOT it:
I compared a few files and it appears the 0x00000000 parts need to be removed from the config file even though they were added by the irrecord anyhow it works now
Hi Guys,
I hope someone can help I've been struggling to get my IR remote to work in Kodi the ir receiver is connected to GPIO 18 and the dt overlay entry is added to my config.
I was able to record the remote and have put the resulting lircd.conf into /storage/.config/lircd.conf
The only issue I have is kodi and irw aren't reacting to it also the lircd process is using 100% CPU
347 root 20 0 3264 1864 1688 R 100.0 0.2 4:13.84 lircdWhen running lirc manually it complains about a missing file "options.conf" in /etc/lirc/
Any help appreciated.
That's my lircd file
# Please take the time to finish this file as described in
# https://sourceforge.net/p/lirc-remotes/wiki/Checklist/
# and make it available to others by sending it to
# <lirc@bartelmus.de>
#
# This config file was automatically generated
# using lirc-0.9.4(default) on Sat Nov 19 01:13:23 2016
# Command line used: /storage/.config/lircd.conf
# Kernel version (uname -r): 4.8.4
#
# Remote name (as of config file): rest
# Brand of remote device, the thing you hold in your hand:
# Remote device model nr:
# Remote device info url:
# Does remote device has a bundled capture device e. g., a
# usb dongle? :
# For bundled USB devices: usb vendor id, product id
# and device string (use dmesg or lsusb):
# Type of device controlled
# (TV, VCR, Audio, DVD, Satellite, Cable, HTPC, ...) :
# Device(s) controlled by this remote:
begin remote
name remote
bits 32
flags SPACE_ENC|CONST_LENGTH
eps 30
aeps 100
header 8996 4433
one 622 1623
zero 622 493
ptrail 622
repeat 8998 2187
gap 107545
toggle_bit_mask 0x0
frequency 38000
begin codes
KEY_EXIT 0x01FECB34 0x00000000
KEY_GREEN 0x01FE47B8 0x00000000
KEY_LEFT 0x01FE43BC 0x00000000
KEY_LIST 0x01FEAB54 0x00000000
KEY_MENU 0x01FE6D92 0x00000000
KEY_MUTE 0x01FE8D72 0x00000000
KEY_OK 0x01FEC33C 0x00000000
KEY_POWER 0x01FE4DB2 0x00000000
KEY_RED 0x01FE8778 0x00000000
KEY_SUBTITLE 0x01FECD32 0x00000000
KEY_TEXT 0x01FE8B74 0x00000000
KEY_UP 0x01FE837C 0x00000000
KEY_VOLUMEDOWN 0x01FEEB14 0x00000000
KEY_VOLUMEUP 0x01FE2BD4 0x00000000
KEY_YELLOW 0x01FEC738 0x00000000
KEY_AUDIO 0x01FE8F70 0x00000000
KEY_INFO 0x01FE9D62 0x00000000
KEY_RECORD 0x01FE1BE4 0x00000000
KEY_ZOOM 0x01FEAD52 0x00000000
end codes
end remotecat /proc/bus/input/devices
cat /proc/bus/input/devicesI: Bus=0000 Vendor=0000 Product=0000 Version=0000N: Name="lircd"P: Phys=S: Sysfs=/devices/virtual/input/input0U: Uniq=H: Handlers=sysrq kbd event0 B: PROP=0B: EV=100003B: KEY=3ffff 7fe001f ffff000f 7ffffff ffffffff ffffffff 0 0 0 ffffff ffffff07 ffffffff ffffffff ffffffff ffefffff ffffffff fffffffedmesg | grep -e lirc -e LIRC[ 10.467591] lirc_dev: IR Remote Control driver registered, major 244[ 10.512428] lirc_rpi: module is from the staging directory, the quality is unknown, you have been warned.[ 11.465045] lirc_rpi: auto-detected active low receiver on GPIO pin 18[ 11.465224] lirc_rpi lirc_rpi: lirc_dev: driver lirc_rpi registered at minor = 0[ 11.465228] lirc_rpi: driver registered![ 11.930368] input: lircd as /devices/virtual/input/input0Hi Freezli,
Thanks for the feedback, I will look into this probably on the weekend and post here once I have an update I've also notice some icons aren't showing properly.
Try getting DVB tools and do a scan with that to see if you get anything so we can say it's a TVH problem or hardware.
Just google DVB tools on google not sure if I'm allowed to link to other forums here but there are plenty of tutorials showing how to run a manual scan.
Hope this helps.
Run this command on your terminal and see if your pc recognised the adapter likely it's missing the firmware.
dmesg | grep dvbEDIT:
Quick search told me the tuner should work with the em28xx driver.
Hi Merl,
Yes had exactly the same thing happening.... I'd recommend you to have a look at the WebGrab ++ add-on works just brilliant for me
Also what EPG source do you use? I had the same issue and realised the provider I was using did not provide any updates anymore hence the XML file was outdated and pretty much disregarded by TVH.
Just adding to my previous post I've now created my first ever plugin for kodi which uses the mobile layout from polini.
Few things to mention for now:
1. Make sure it's on the same kodi install as your TVH server
2. You might need to set the "HTTP CORS origin" via Settings -> General -> Base (e.g. 192.168.1.5:8080)
3. I've disabled authentication for some machines on my local network so authentication is not implemented yet.
To be done:
My aim is to add a configuration option to the add-on so IP, port, user and password can be entered however I'm yet to find a suitable solution for this.
Please note this add-on is a very early stage I was mostly interested in the EPG and mag layout which both work fine.
Any issues suggestions etc please do post them.
The interface will be reachable via:
http://{Kodi-IP}:{Kodi-Port}/addons//addons/webinterface.NiceTVH/
I will add a better description to github once I find some free time for it.

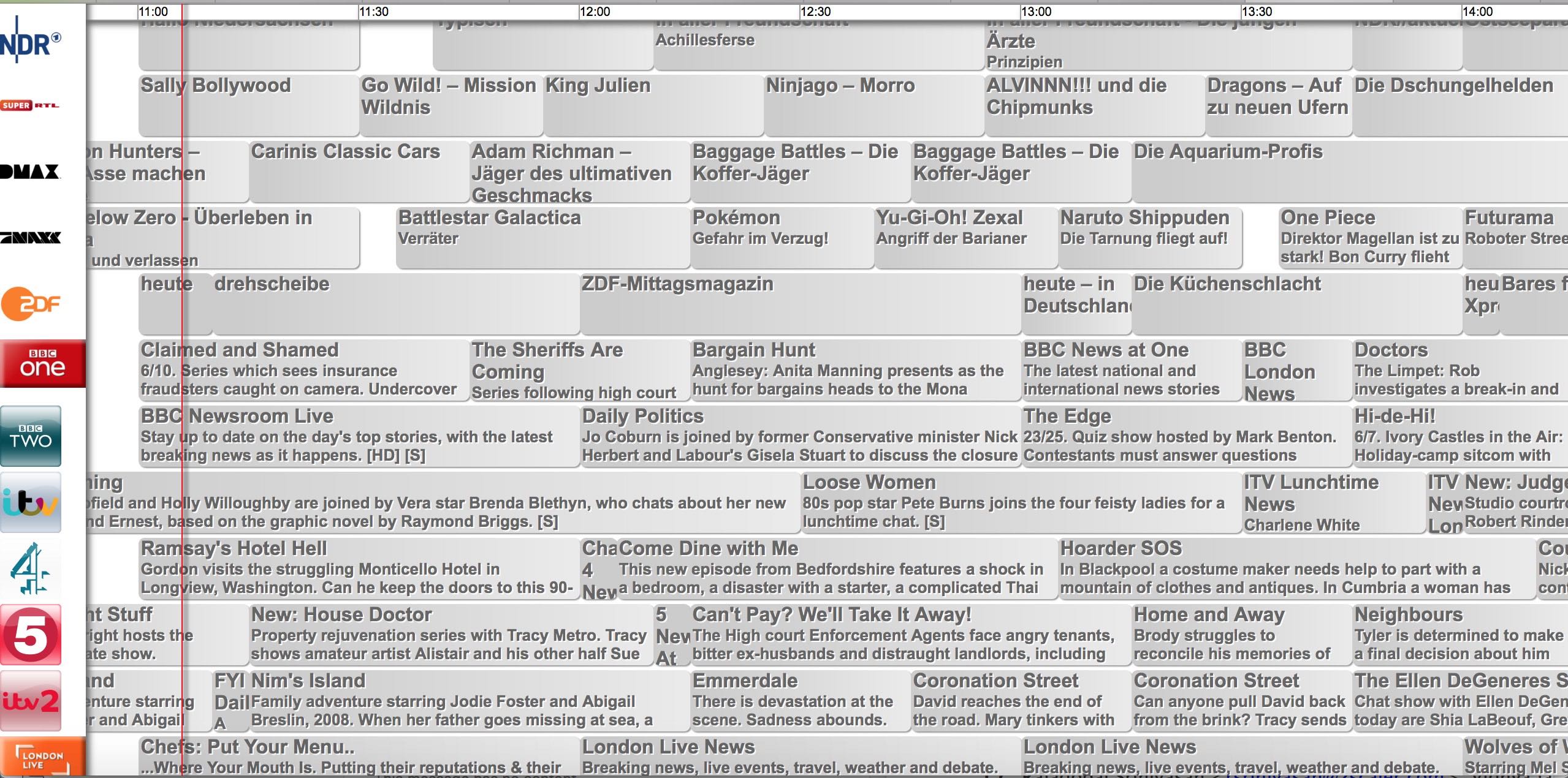

Screenshots:
I've tried to achieve the same my TV does support CEC however I'm yet to find a way to identify if the TV is on or off.
Any suggestions welcome
Right now my set-up look like this.
I've got a RPi 2 in my living room which runs Kodi and TVH connected to a DVB-T and a DVB-T2 USB as well as a custom Zattoo IPTV script to get foreign channels into TVH. Storage for recordings goes to my Mac OS Server via SMB. I do use the same storage for records and time shift though I haven't used time shift much. EPG for the Zattoo IPTV solution is fetched via XMTLTV and for DVB-T via the antenna over the air.
All powered by one USB hub and haven't had any issues so far. Usually there are two clients connected + occasional recordings.
Hi guys,

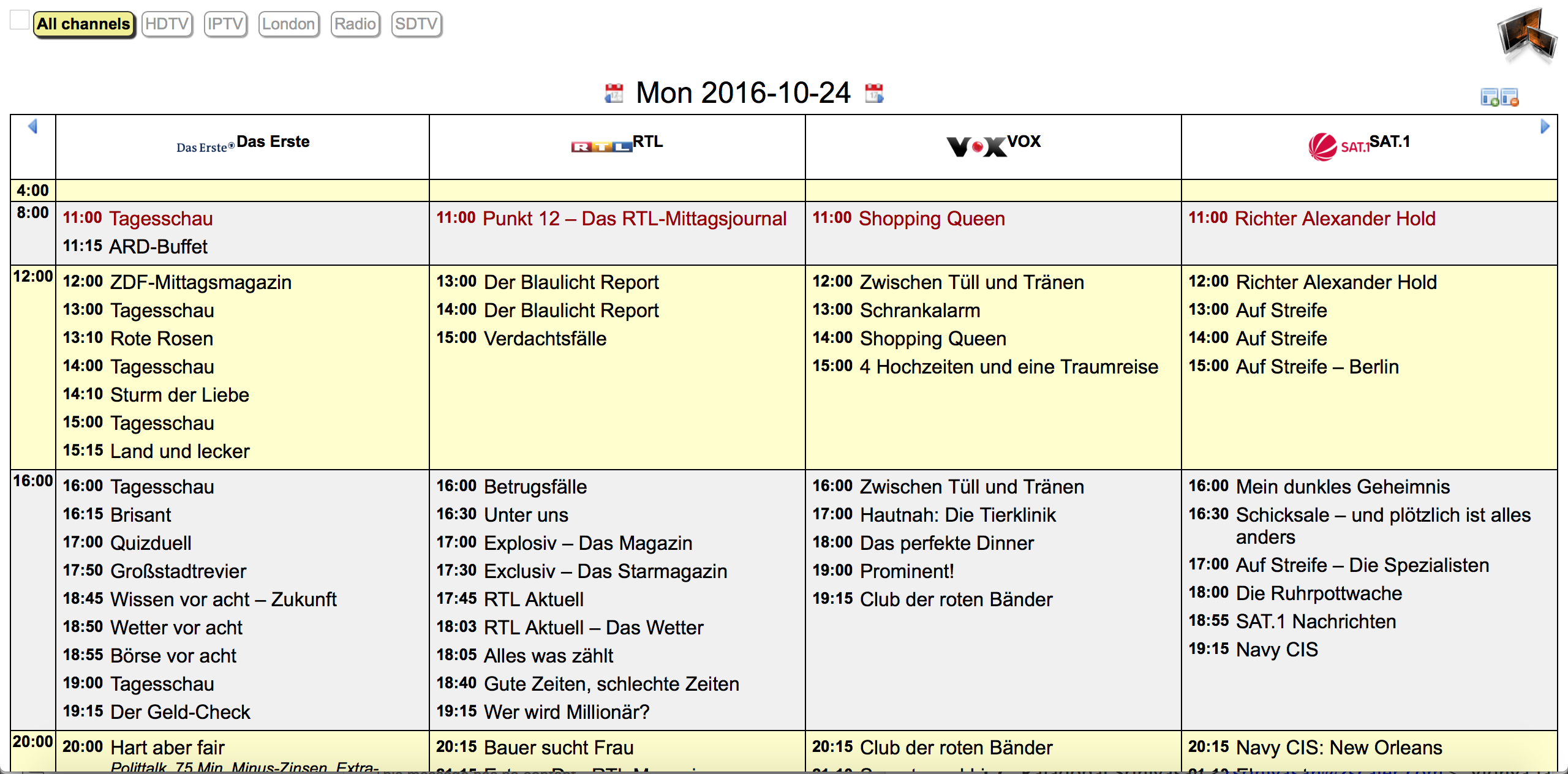

I was wondering if there is any possibility to integrate a better EPG like this one into the Tvheadend binary of the kodi addon?
GitHub - polini/TvheadendMobileUI: Tvheadend mobile web interface
However I do not know how to build the addon myself hence I'm asking here.
Thanks
I've got the August T210 DVBT2 stick works out of the box and I got a used one for under £20
Tried this build and it works pretty well considering this early stage however I cannot get the Amazon Prime add-on to work I'm getting error like the ones below any suggestions welcome everything else seems to work well however I do have my tvh backend on a raspberry pi
3:42:15 T:2540696480 NOTICE: [Amazon VOD] searching fanart for BREAKING THE CODES at tmdb.com 23:42:22 T:2553279392 ERROR: EXCEPTION Thrown (PythonToCppException) : -->Python callback/script returned the following error<-- - NOTE: IGNORING THIS CAN LEAD TO MEMORY LEAKS! Error Type: <class 'sqlite3.OperationalError'> Error Contents: database is locked Traceback (most recent call last): File "/storage/.kodi/addons/plugin.video.amazon-test/default.py", line 1612, in <module> createDB() File "/storage/.kodi/addons/plugin.video.amazon-test/default.py", line 1377, in createDB );''') OperationalError: database is locked -->End of Python script error report<-- 23:42:23 T:3037241344 ERROR: Playlist Player: skipping unplayable item: 0, path [plugin://plugin.video.amazon-test/?asin=B00U9SAVCK&mode=PlayVideo&name=The+Imitation+Game&adult=0&trailer=0&selbitrat$ 23:42:25 T:2540696480 NOTICE: [Amazon VOD] Finished Fanart Update 23:42:32 T:2540696480 NOTICE: [Amazon VOD] [('asin', 'B00U9SAVCK'), ('mode', 'PlayVideo'), ('name', 'The Imitation Game'), ('adult', '0'), ('trailer', '0'), ('selbitrate', '0')] 23:42:33 T:2540696480 NOTICE: [Amazon VOD] getURL: https://www.amazon.co.uk/gp/deal/ajax/getNotifierResources.html 23:42:33 T:2540696480 NOTICE: [Amazon VOD] getURL: https://www.amazon.co.uk/gp/video/streaming/player-token.json?callback=onWebToken_208 23:42:34 T:2540696480 NOTICE: [Amazon VOD] getURL: https://atv-eu.amazon.com/cdp/catalog/GetPlaybackResources?asin=B00U9SAVCK&deviceTypeID=AOAGZA014O5RE&firmware=1&customerID=AFAATUDABXF3V&deviceID=1$ 23:42:34 T:2540696480 NOTICE: [Amazon VOD] Convert English Subtitle 23:42:34 T:2540696480 NOTICE: [Amazon VOD] getURL: http://dmqdd6hw24ucf.cloudfront.net/e/f/3/ef380b30-7e20-4444-b34d-56bf5ccb5f74/studiocanal-OPTi2752-Full-Caption2398DF-en-GB-3Play.dfxp 23:42:40 T:2540696480 NOTICE: [Amazon VOD] http://d1l0nb3g075aoz.cloudfront.net/dm/1$AOAGZA014O5RE,51AE880C/videoquality$1080p/d606/9d76/08f3/4d5c-8d9e-e8b90b203840/0a43130d-8ec0-4bd0-a350-a52a15cd63$ 23:42:40 T:3037241344 NOTICE: VideoPlayer: Opening: http://d1l0nb3g075aoz.cloudfront.net/dm/1$AOAGZA014O5RE,51AE880C/videoquality$1080p/d606/9d76/08f3/4d5c-8d9e-e8b90b203840/0a43130d-8ec0-4bd0-a350-a$ 23:42:40 T:3037241344 WARNING: CDVDMessageQueue(player)::Put MSGQ_NOT_INITIALIZED 23:42:40 T:2637165472 NOTICE: Creating InputStream 23:42:41 T:2637165472 ERROR: AddOnLog: InputStream MPEG DASH: Could not open / parse mpdURL (http://d1l0nb3g075aoz.cloudfront.net/dm/1$AOAGZA014O5RE,51AE880C/videoquality$1080p/d606/9d76/08f3/4d5c-8$ Connection to 192.168.20.41 closed by remote host.nputStream - error opening [http://d1l0nb3g075aoz.cloudfront.net/dm/1$AOAGZA014O5RE,51AE880C/videoquality$1080p/d606/9d76/08f3/4d5c-8d9e-e8b90b203840/$ Connection to 192.168.20.41 closed.eoPlayer::OnExit() Nilss-MacBook-Air:~ Nils$ ROR: Playlist Player: skipping unplayable item: 0, path [plugin://plugin.video.amazon-test/?asin=B00U9SAVCK&mode=PlayVideo&name=The+Imitation+Game&adult=0&trailer=0&selbitrat$ 23:42:41 T:3037241344 NOTICE: CVideoPlayer::CloseFile() 23:42:41 T:3037241344 NOTICE: VideoPlayer: waiting for threads to exit 23:42:41 T:3037241344 NOTICE: VideoPlayer: finished waiting 23:42:41 T:3037241344 NOTICE: CVideoPlayer::CloseFile()
