I upgraded my NUC from a Haswell (NUC5) to the new Kaby Lake (NUC7), mostly to get hardware 10bit HEVC at some point in the future. I restored my backup from the NUC5 to the NUC7 and validated all my settings. Unfortunately, I'm no longer able to bitstream lossless audio. Standard DD and DTS work fine, but TrueHD and DTS-HD generate no sound at all. My receiver acts as if no sound is being sent. If I disable the lossless options in settings, TrueHD seems to output as LPCM and DTS-HD downgrades to core, as expected.
The only oddity I see that's obvious is that X seems to think it's on DP1 rather than HDMI1, but it looks like it considers them clones so maybe that's normal here. Also my xrandr output shows an incorrect "Broadcast RGB" setting, it should be forced to "Full" by autostart.sh. This was a previous Kodi best-practice for proper black levels (TV set to limited, X output set to full, Kodi set to limited), but perhaps 17+newer GPU has created some synergy here that I'm unaware of and "Video 16:235 pass-through" is expected now. I only mention it in case it's further indicative of some problem with the output device, the audio problem is the only thing I'm intending to report here.
System Details:
- NUC7i3BNK (i3-7100U, Intel HD Graphics 620)
- Using the HDMI output
- LibreELEC 7.95.2
Logs and whatnot:
- Debug log for attempted playback (DTS-HD, I can do TrueHD as well if you like): anKbafCM

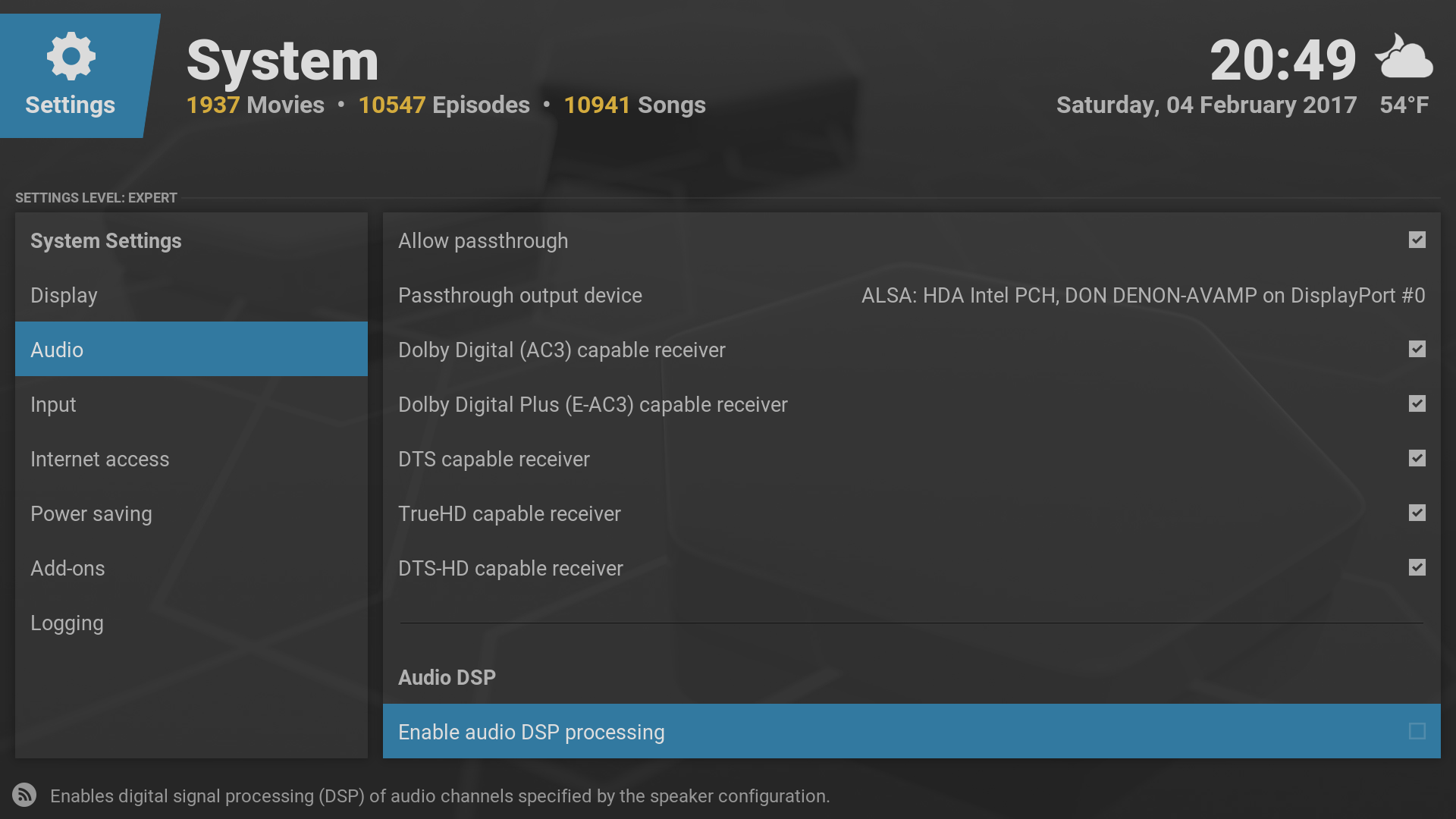

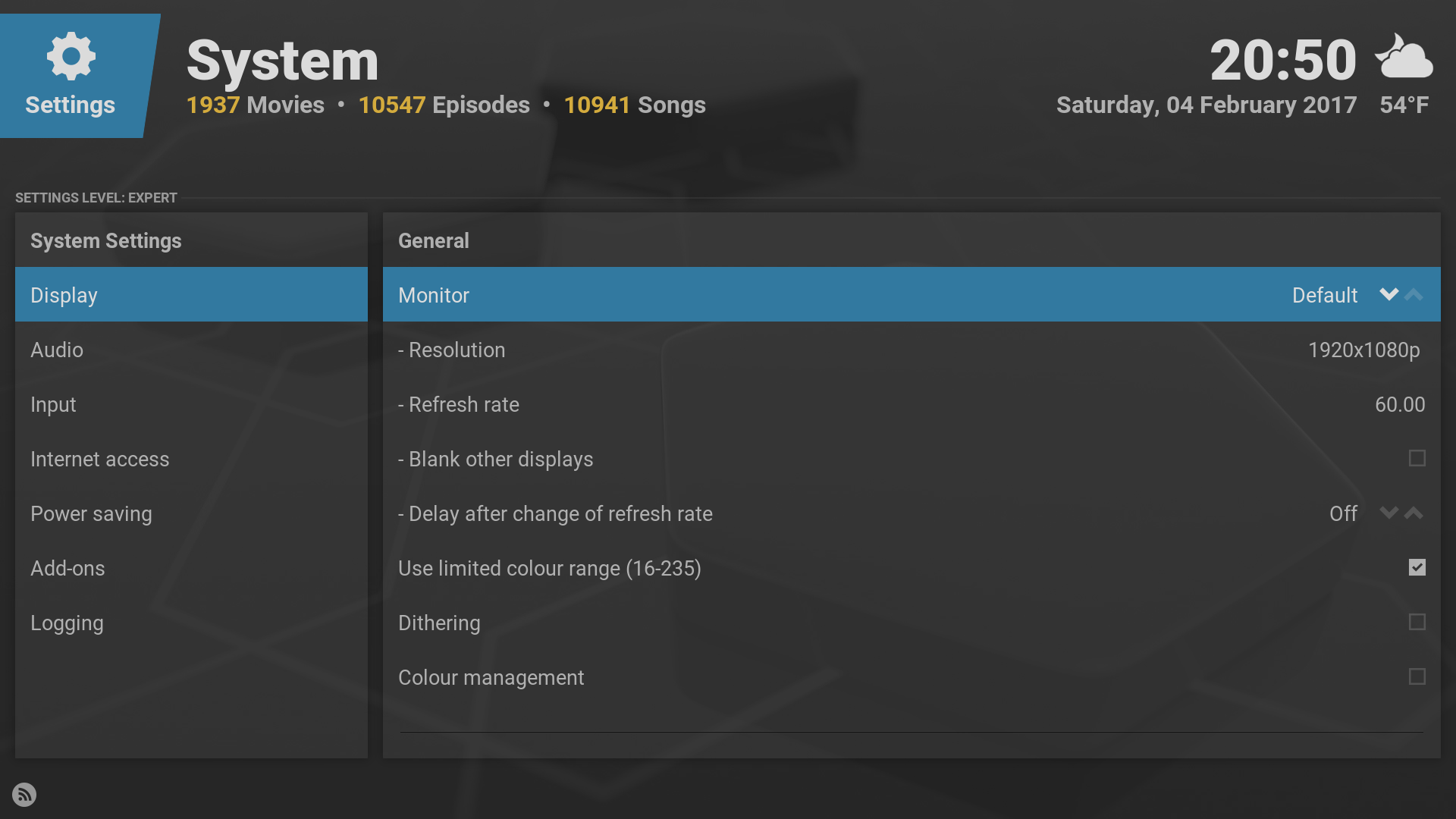

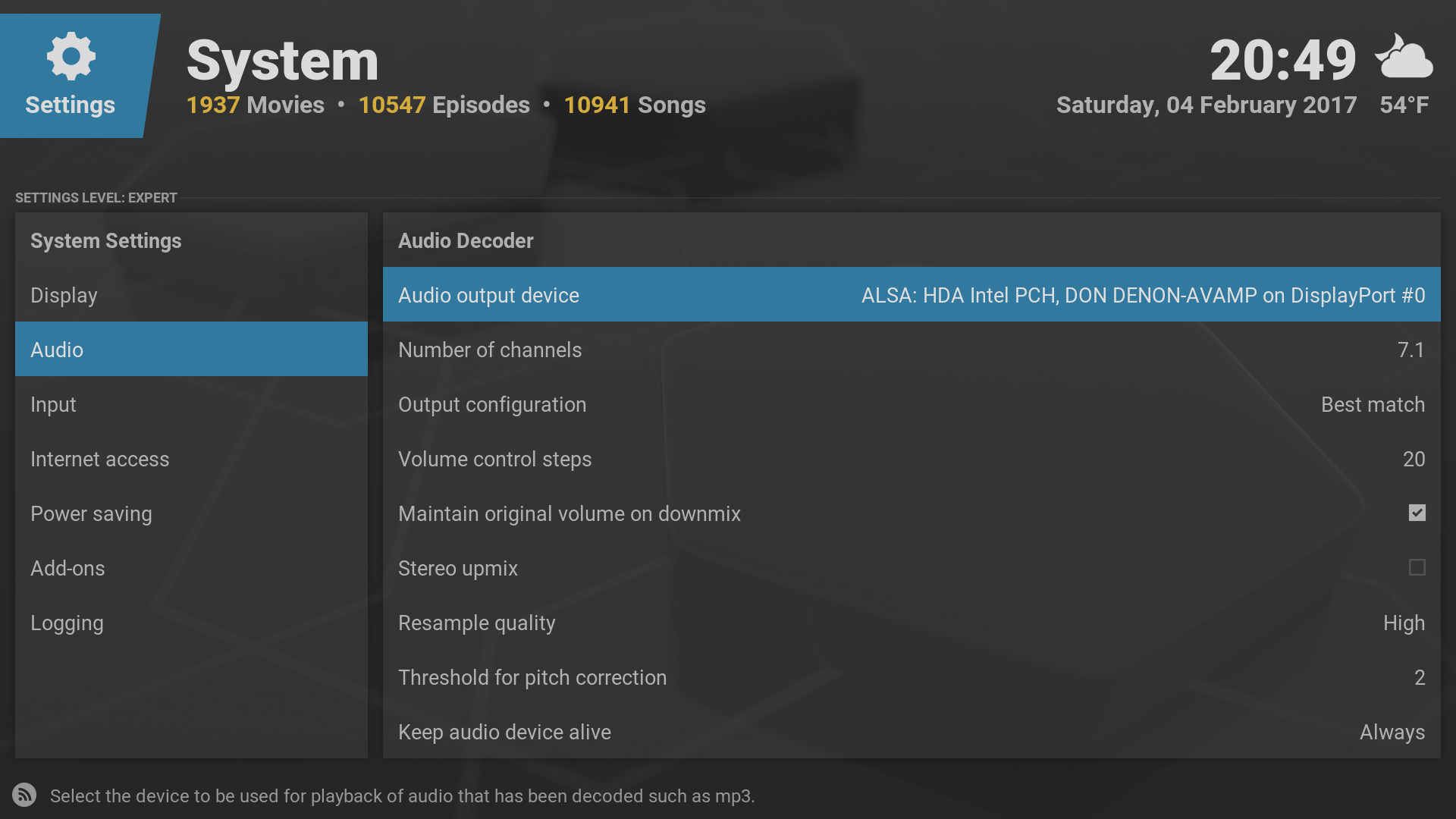

- Audio/Video settings screenshots attached
- Mediainfo for file used on test: WkZKwXA5
- dmesg: ipAmGTqT
- lspci: quY8Fwy3
- lsusb: 8uCq4Qbv
- xrandr: xrandr - Pastebin.com
Let me know if there's anything else I can provide that would be helpful.
Thanks!
