S905x support, what is needed?

not sure what I'm doing wrong but when I try to flash twrp I get a E: footer error or something like that and something not signed, nexbox a5 s905x... I was link a to a post to install libre on my device and said to install twrp, is it needed

Quote from qpman

Hi
this image is compatible only with 2 gb ram devices ?or it works also with 1gb ram devices ?
thanks

Just for the 2GB models. But you can download this file and rename it to dtb.img, then unzip LibreELEC-S905X-gxl_p212_2g.zip and replace the dtb.img with the one you just downloaded, then zip it back up.

The dtb.img is the device tree file.
[hr]

Quote from droidkill3r

not sure what I'm doing wrong but when I try to flash twrp I get a E: footer error or something like that and something not signed, nexbox a5 s905x... I was link a to a post to install libre on my device and said to install twrp, is it needed

This is the TWRP recovery for the Nexbox A5. To install, rename the file recovery.img and place it onto a sd card then put it into the box. Hold the reset button while powering on the device and it will boot into TWRP. You can install TWRP to the Nexbox A5's recovery by going to install, selecting "image" instead of zip, and flashing it to "recovery".

Quote from nickr

Confirming the Scishion V88 Pro (S905X, SCISHION V88 PRO TV Box Powered by Amlogic S905X SoC Sells for $22 (Promo)) boots from SD card with that build. Thanks.

I not see any hardware button on Scishion V88 Pro, I can't use toothpick method. How can I get into recovery, or flash/backup my current ROM to avoid some brick?

Quote from sebg

Is there anything more to do than raw-writing the image on a SD for the V88 Pro to boot on it ? Mine always boots to Android OS

best regards

Place any zip file on the SD card and use the Backup & Restore tool to force the reset into recovery mode.

See some screenshot there, but remember that you only need a dummy zip

After 2 reboots the system is working, except for the remote control.

I have followed the instructions to update the config without success.

I see some errors in my dmesg but I don't know how fix it.

[   22.095206@0] remote: Wrong custom code is 0xbb441dcc
[   22.435852@0] remote: Wrong custom code is 0xbb441dcc
[   22.891726@0] remote: Wrong custom code is 0xed121dcc
[   23.183017@0] remote: Wrong custom code is 0xed121dcc
[   23.441370@0] remote: Wrong custom code is 0xed121dcc
[   23.732678@0] remote: Wrong custom code is 0xed121dcc
[   24.353422@0] remote: Wrong custom code is 0xbb441dcc

Quote from CGarces

Place any zip file on the SD card and use the Backup & Restore tool to force the reset into recovery mode.

See some screenshot there, but remember that you only need a dummy zip

After 2 reboots the system is working, except for the remote control.

I have followed the instructions to update the config without success.

I see some errors in my dmesg but I don't know how fix it.

Code

[   22.095206@0] remote: Wrong custom code is 0xbb441dcc
[   22.435852@0] remote: Wrong custom code is 0xbb441dcc
[   22.891726@0] remote: Wrong custom code is 0xed121dcc
[   23.183017@0] remote: Wrong custom code is 0xed121dcc
[   23.441370@0] remote: Wrong custom code is 0xed121dcc
[   23.732678@0] remote: Wrong custom code is 0xed121dcc
[   24.353422@0] remote: Wrong custom code is 0xbb441dcc

Can you try this. Rename this file to remote.conf and place it in /storage/.config and reboot or run remotecfg /storage/.config/remote.conf. your remote factory code seems to be 1dcc and have accordingly attached the file. Best of luck(hope it works, fingers crossed)

Quote from TNS

Can you try this. Rename this file to remote.conf and place it in /storage/.config and reboot or run remotecfg /storage/.config/remote.conf. your remote factory code seems to be 1dcc and have accordingly attached the file. Best of luck(hope it works, fingers crossed)

With you file some keys works... but the mapping is wrong.
For example OK key mute the volume or key "6" is vol+

[ 455.584586@0] remote: scancode is 0x0043,invalid key is 0x0000.
[ 455.763490@0] remote: press ircode = 0x4f,
[ 455.763536@0] remote: scancode = 0x0099,maptable = 1,code:0xb04f1dcc
[ 455.763589@0]
[ 456.004698@0] remote: release ircode = 0x4f,
[ 456.004820@0] remote: scancode = 0x0099, maptable = 1,code:0x00000000
[ 456.004888@0]
[ 462.112748@0] remote: press ircode = 0x11,
[ 462.112838@0] remote: scancode = 0x0098,maptable = 1,code:0xee111dcc
[ 462.112952@0]
[ 462.354595@0] remote: release ircode = 0x11,
[ 462.354600@0] remote: scancode = 0x0098, maptable = 1,code:0x00000000
[ 462.354600@0]

What means "your remote factory code seems to be 1dcc"? can I get some information from my current android firmware?

Quote from CGarces

With you file some keys works... but the mapping is wrong.
For example OK key mute the volume or key "6" is vol+

Code

[ 455.584586@0] remote: scancode is 0x0043,invalid key is 0x0000.
[ 455.763490@0] remote: press ircode = 0x4f,
[ 455.763536@0] remote: scancode = 0x0099,maptable = 1,code:0xb04f1dcc
[ 455.763589@0]
[ 456.004698@0] remote: release ircode = 0x4f,
[ 456.004820@0] remote: scancode = 0x0099, maptable = 1,code:0x00000000
[ 456.004888@0]
[ 462.112748@0] remote: press ircode = 0x11,
[ 462.112838@0] remote: scancode = 0x0098,maptable = 1,code:0xee111dcc
[ 462.112952@0]
[ 462.354595@0] remote: release ircode = 0x11,
[ 462.354600@0] remote: scancode = 0x0098, maptable = 1,code:0x00000000
[ 462.354600@0]

Display More

What means "your remote factory code seems to be 1dcc"? can I get some information from my current android firmware?

could you try installing the keymap editor addon and try to remap the keys according to your preference. it is very simple to use. hope this helps. I had similar problem with mini M8S-II and the following post on the wetek forum helped me in creating a custom remote.conf for my box.

Press any key in your ir control and directly ssh (dmesg -c) in the ssh terminal
You will get something like this (wrong custom code is 0xXXYYZZZZ)
If you didn't get this message ,that's mean that your remote control don't support NEC ir protocol try another one
Write down this code because you will use it later

now open the remote.conf of ur android firmware

1- Change the factory code with this 0xZZZZ0001 (ZZZZ is the factory code)
(ZZZZ is the digits you have got from the ssh above)
For example if you get in the dmesg
wrong custom code is 0x14fg76ad
So your code should be 0x76ad0001

2- Delete all the lines between Key_begin and key_end
Don't delete key_begin and key_end lines

3- now the hard work time
In this step you have to lead each key in your remote (or you can program only the major function keys) to be understood from wetek
Wetek cross the commands with dictionary
Usually each command have a number
You can find the command number in this file:
https://github.com/torvalds/linux/bl.../linux/input.h

For example volume up command number is 115

Now press the key you want to program it and directly ssh dmesg -c you will find something like this 0xXXYYZZZZ

Now between key_begin and key_end lines write this
0xYY 115 ;volumeup

(The YY is the 5th and 6th digits)
And only space between 0xYY and the command number

You should write like the last command line for each key in your ir remote)
and it should be between Key_begin and key_end lines

At last save the file (which exist in ./config folder)
And reboot your wetek and it sould be working

you can test the file without rebooting with this command

remotecfg /storage/.config/remote.conf

Quote from TNS

Can you try this. Rename this file to remote.conf and place it in /storage/.config and reboot or run remotecfg /storage/.config/remote.conf. your remote factory code seems to be 1dcc and have accordingly attached the file. Best of luck(hope it works, fingers crossed)

Ok fixed, thanks for your file that I have used as reference to do a merge.

remote.conf.txt is the one that I'm using right now and remote.stock.txt the original one from Android firmware.

The key mapping was inside a custom_begin structure... I have removed also the second custom_begin part.

Note that I don't know exactly the meaning of that structure but it just works for me.

Fell free to improve my merge with any comment about the second custom_begin

Any chance of getting "Docker" integrated in this build?
ODROID Forum • View topic - Experimental docker support

Quote from pingu

Any chance of getting "Docker" integrated in this build?
ODROID Forum • View topic - Experimental docker support

Please search: LibreELEC

Quote from kszaq

Please search: LibreELEC

If you take a look at the link I posted It explains how to get "Docker" working with LibreELEC 7.0.2 on Odroid C2.

As a huge part of this build has been ported over from Odroid C2 (aarch64 platform) that guide does show you what needs to be done to get Docker working.

Quote

AuFS support has been enabled which is an alternative to the overlay storage driver and is much faster than vfs.

The faster overlay storage driver requires kernel version 3.18 or higher. But it can be replaced with AuFS so it works with older kernels.

This was more a request to keep discussion in relevant thread.

My builds have not been ported from Odroid C2. The fact that it is the same platform only means that I was able to get Kodi working easier thanks to C2 build. Other then that I spend countless sleepless nights on hardware enablement, I don't consider my builds a port.

That said I have no immediate plans to make Docker work, there are more important things to do - like Krypton builds.

Quote from CGarces

Place any zip file on the SD card and use the Backup & Restore tool to force the reset into recovery mode.

See some screenshot there, but remember that you only need a dummy zip

After 2 reboots the system is working, except for the remote control.

thanks for the tip.

but what do you mean by "after 2 reboots the system is working" ? Once in recovery mode, you swap SD with an LE-written one ?

Quote from sebg

thanks for the tip.

but what do you mean by "after 2 reboots the system is working" ? Once in recovery mode, you swap SD with an LE-written one ?

You don't need to swap the SD. The SD that contains the dummy ZIP must be the same that contains LibreELEC.
After enter in the recovery you don't need to touch anything. "after 2 reboots" means that LibreELEC installer will reboot again to do some operations.

Quote from CGarces

You don't need to swap the SD. The SD that contains the dummy ZIP must be the same that contains LibreELEC.
After enter in the recovery you don't need to touch anything. "after 2 reboots" means that LibreELEC installer will reboot again to do some operations.

thanks for the clarification, i'm going to test at the end of the week

Hi,

Is there any reason my Riitek mini keyboard cant wake my M8S Mini II from standby after pressing the power button? I have the same issue in both Android and LibreELEC, I have a feeling using the power button on the keyboard actually powers down the device, the LED goes out rather than red...

The other boxes I have wake up when pressing the power button on the keyboard....

Not the worst issue but an annoying one none the less, any ideas ?

TIA,
Me.

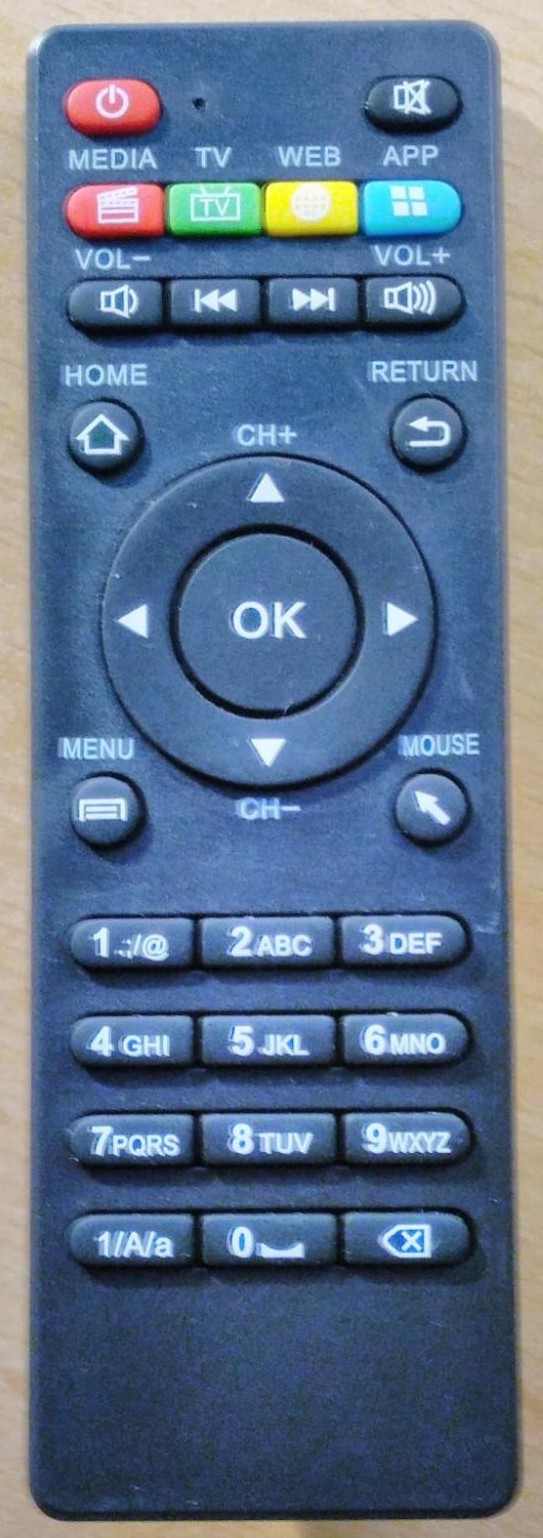

Thanks to the nice work of kszaq, I was able to run LibreElec on my SCISHION V88 PRO which was delivered today. I use LibreELEC-S905.aarch64-7.0-devel-20161003204518-r23361-gb5788b7.img with gxl_p212_1g.dtb as dtb.img and get it on the box with the 2nd recovery method. There are two issues i can figure out until know. The front LED don't get hight on bootup and the remote don't work. For a working remote, I write the attached remote.cfg. I hope this help someone.

#amlogic NEC remote
factory_code    = 0x1dcc0001
work_mode          = 0
repeat_enable = 1
repeat_delay = 130
repeat_peroid = 120
release_delay   = 20
debug_enable     = 0

left_key_scancode  = 0x10
right_key_scancode = 0x12
up_key_scancode    = 0x07
down_key_scancode  = 0x44
ok_key_scancode    = 0x11

mouse_begin
        0 0x10
        1 0x12
        2 0x07
        3 0x44
mouse_end

key_begin
    0x00 116 # KEY_POWER

    0x01 0x18e # KEY_RED
    0x05 0x18f # KEY_GREEN
    0x09 0x190 # KEY_YELLOW
    0x0d 0x191 # KEY_BLUE

    0x0c 113 # KEY_MUTE
    0x02 114 # KEY_VOLUMEDOWN
    0x0e 115 # KEY_VOLUMEUP

    0x06 242 # KEY_VIDEO_PREV
    0x0a 241 # KEY_VIDEO_NEXT

    0x10 105 # KEY_LEFT
    0x12 106 # KEY_RIGHT
    0x07 103 # KEY_UP
    0x44 108 # KEY_DOWN
    0x11 28  # KEY_ENTER

    0x03 102 # KEY_HOME
    0x0f 1   # KEY_ESC
    0x40 139 # KEY_MENU
    0x4c 0x110 # BTN_MOUSE

    0x41 2   # KEY_1
    0x45 3   # KEY_2
    0x4d 4   # KEY_3
    0x42 5   # KEY_4
    0x46 6   # KEY_5
    0x4e 7   # KEY_6
    0x43 8   # KEY_7
    0x47 9   # KEY_8
    0x4f 10  # KEY_9
    0x49 11  # KEY_0

    0x4a 14  # KEY_BACKSPACE
    0x48 42  # KEY_LEFTSHIFT
key_end
repeat_key_begin
    0x00 116 # KEY_POWER

    0x01 0x18e # KEY_RED
    0x05 0x18f # KEY_GREEN
    0x09 0x190 # KEY_YELLOW
    0x0d 0x191 # KEY_BLUE

    0x0c 113 # KEY_MUTE
    0x02 114 # KEY_VOLUMEDOWN
    0x0e 115 # KEY_VOLUMEUP

    0x06 242 # KEY_VIDEO_PREV
    0x0a 241 # KEY_VIDEO_NEXT

    0x10 105 # KEY_LEFT
    0x12 106 # KEY_RIGHT
    0x07 103 # KEY_UP
    0x44 108 # KEY_DOWN
    0x11 28  # KEY_ENTER

    0x03 102 # KEY_HOME
    0x0f 1   # KEY_ESC
    0x40 139 # KEY_MENU
    0x4c 0x110 # BTN_MOUSE

    0x41 2   # KEY_1
    0x45 3   # KEY_2
    0x4d 4   # KEY_3
    0x42 5   # KEY_4
    0x46 6   # KEY_5
    0x4e 7   # KEY_6
    0x43 8   # KEY_7
    0x47 9   # KEY_8
    0x4f 10  # KEY_9
    0x49 11  # KEY_0

    0x4a 14  # KEY_BACKSPACE
    0x48 42  # KEY_LEFTSHIFT
repeat_key_end

Maybe some buttons should get better commands but every button is listed.
To make this work, copy the code in /storage/.config/remote.conf and run remotecfg /storage/.config/remote.conf.

Greets

Quote from fastriker

Thanks to the nice work of kszaq, I was able to run LibreElec on my SCISHION V88 PRO which was delivered today. I use LibreELEC-S905.aarch64-7.0-devel-20161003204518-r23361-gb5788b7.img with gxl_p212_1g.dtb as dtb.img and get it on the box with the 2nd recovery method. There are two issues i can figure out until know. The front LED don't get hight on bootup and the remote don't work. For a working remote, I write the attached remote.cfg.

On S905x you don't need to change the dtb.img

S905X only: Keep dtb.img that is provided on SD card.

BTW looks like you miss some previous posts.

Looks like SCISHION V88 PRO will be very popular on the forum.

Maybe we must open a specific thread for this device and leave this thread for issues related to S905x build & development.
