Posts by ashrafhumax

Not a dongle but DVBSKy S960 DVB-S/S2 USB is highly recommended

DVBSKY S960 usb with S905x Libreelec video UHD Channels

Dear chewitt

Thank you for the great explanation and advice, I think network SAT>IP is the way to go

Hi all

I have a s905x box working with usb DVB S2 ( DVBSKY S960) link and tvheadend

everything is stable enough but I am looking for more responsive libreelec interface especially big channel list

My question is does using S905D box with built in tuner improves the overall interface speed? for example the channel list and transition speed? I read that passing the dvb stream through the usb cases some load on the processor but I cannot make sure of this information

Also do you think that external tuner is more sensitive to weak signals than the internal one?

I hope someone can help me with the answers

Thanks

You can have osmc skin working perfectly from here

GitHub - osmc/skin.osmc

@Hathor Take a look here

Tanix TX3 Mini with Amlogic S905W CPU - Libreelec

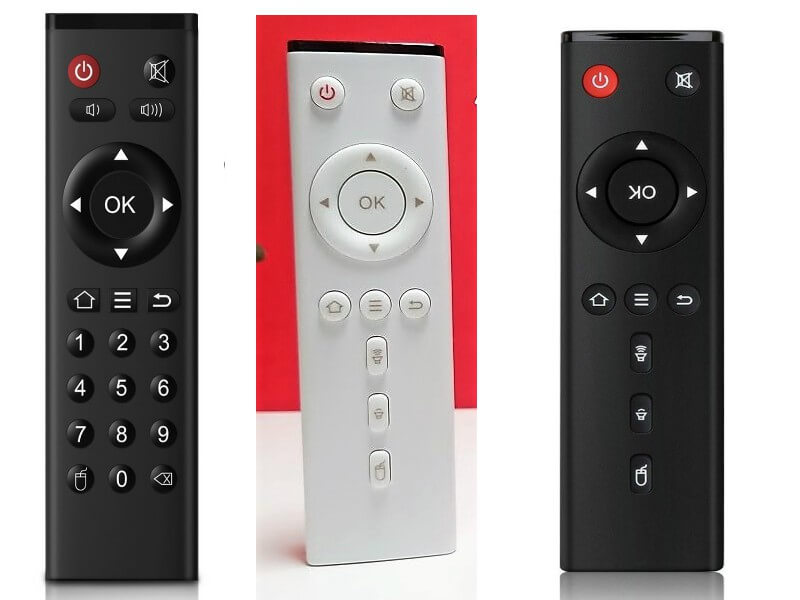

If anyone needs remote.conf for

K12 Pro

Tanix TX8

Tanix TX8 MAX

Vorke Z6 and others

Both remote are interchangeable and the numbers are working in all devices
Hope that will help someone.

Thank you very much, Brilliant work.

Waow

What a great thinking, you opened the door for hardware modification

If you have time can you add an image for the original WiFi module?

Thanks

scropion86 can you try vdr in your existing setup ?

also you can try 7.0.3.012 Jarvis clean install, vdr and tvheadend

Does this card works well with libreelec Generic x86 (64-bit), you can write the libreelec image on a usb drive and cheak the scan result on any laptop.

Please keep us updated

thanks

Yes Its is DVB-S2 HEVC/UHD so it should work if you have the right decoder

DVB-S2 HEVC/UHD channels - Astra 2E/2F/2G at 28.2°E

My tv is only 1080p however the channels are working perfectly without any stuttering or lag and I think it will work on 4K tv

I recorded a short video for you

Youtube video

I am using DVBSKy S960 DVB-S/S2 USB with latest kszaq build on amlogic s905x Beelink MINI MXIII II

Every thing is working properly thanks to kszaq, I highly recommend it rather than the geniatech v3.

You can find it on ebay, little bit expensive but fully supported in linux and libreelec.

Product page

linuxtv.org

I hope this will help

Thanks

Thank you for your contribution to the community edit4ever

Can we expect DVB-S compatible version soon ?

Thank you all for your help, I ordered Xiaomi remote clone and paired it successfully with my s905x Libreelec box and every thing is OK

The build quality is not that good however it connects as a remote control not as game pad and working the price is half the original one

MOD EDIT: Solution found in this POST

Hi

I hope someone can help me

I ordered Xiaomi bluetooth remote control to be used with my amlogic s905x box libreelec 8.0.2b (2017-06-12) , when I pair it it appears as gamepad icon and no key is working .

I used it with libreelec on a pc and it can be paired and all keys are working out of the box

Is there anything I can do ?

any help will be appreciated and thank you for your time

Regards

Yes unfortunately no luck.

Thanks kszaq

Regards

Thank you very much kszaq, I am very impressed and thankful for your support and passion in libreelec development .

I am afraid Iam still with the same problem even with your advice to use :

systemctl disable qca9377-firmware-aml.service

Please, is there any other method ? Can I choose which bluetooth device to be used with my bluetooth remote control?

Hi everyone

Is there any method to disable the internal bluetooth chip so I can use my external usb bluetooth dongle ?

Device Beelink mini mx iii ii with libreelec krypton installed on nand. It has dual band QCA9377 chip.

The reason for that request is to pair my new bluetooth keyboard ( xiaomi ) with the external bluetooth dongle, remote is paired with internal bluetooth but there is no response when I press the buttons.

I tried the same remote with generic libreelec on pc connected with external usb dongle and it paired and worked perfectly .

Is that a kernel limitation in amlogic?

Regards and thank you for your time and help

Hi everyone

Firstly thank you for your time and efforts for maintaining this forum and helping other members.

My device is mxiii ii with 2/16 gb and running latest kszaq build 8.0.1b from nand and using the normal ir remote control that came with the device.

It is working reasonably well as my main libreelec device, I have dvbsky 960 connected directly to the usb port and using vdr as backend for freesat UK.

I wonder if someone can help me with my request, I want to use keymap editor to assign 4 remote buttons to work as the 4 coloured buttons for vdr clinet specific settings.

I tried to search but couldn't find any coloured buttons to remap within the addon .

Also is there any recommended advanced settings xml files for pvr that is good for amlogic 905x.

Kind regards and thanks again for your help

Ash
