But what CPUs? Only Gemini Lake and newer or older like Celeron too? Thx!
Posts by Origin
-
-
Sorry!
Generic (Beebox-S U7100)
-
I mean my UHD player UDP-203.
The player sends DVDs to my TV at 4:3 and 16:9 720x576p50.
On the Vero 4K+ (Linux OSMC) I'll have to look later.
I don't want to say anything wrong.
-
Yes I understand.
My UHD player sends DVDs to my TV at 4:3 and 16:9 720x576p50.
Why doesn't Linux and LE11 do the same?
-
I think that's the problem, because 576p/50fps is the only CEA supported HDMI mode.
But the standard for DVD in 50Hz land is 576p/25fps.
What the CEA does wrong, Linux doesn't have to do wrong too?
Windows still supports 576p/25fps.
-
Yes, so it works. But it's not optimal, it scales twice. First from Kodi to 1080p and then from TV to 8K dispaly.
The TV scales better than Kodi from 576p to 8K.
-
Hi
LE11 don't recognize all possible monitor (TV) resolutions ans see attachment Kodi log files.
An example, these resolutions are important for DVD, 720x576p with 25fps:
The following Monitor (TV) resolutions are possible:
Additional mode: Generic PnP Monitor #1: 720x576 @ 50.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 23.98Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 24.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 25.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 29.97Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 30.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 59.94Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 60.00Hz
But only following resolution is recognized:
Additional mode: Generic PnP Monitor #1: 720x576 @ 50.00Hz
These resolutions are not recognized by LE11:
Additional mode: Generic PnP Monitor #1: 720x576 @ 23.98Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 24.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 25.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 29.97Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 30.00Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 59.94Hz
Additional mode: Generic PnP Monitor #1: 720x576 @ 60.00Hz
But from Kodi 20 on Windows 10 64bit all 8 possible resolutions are recognized.
-
Have only I the problem with audio dropouts with HD audio formats?
The same Beebos-S U7100, but with Windows 10 and Kodi Nexus 20 or Matrix 19.5 has no audio dropouts.
Only LE11 still has the audio dropouts with HD audio formats.
Have I set something wrong in LE11?
Anyone have any ideas?
-
By Nightlys e.g. (nightly-20230115-f4f7d8e)
When playing a movie, if the Beebox-S was disconnected from the mains, then LibreElec must be restarted twice.
However, the Kodi sounds are always audible and the AVR displays PCM 2-channel.
The first time the AVR shows the audio status "Decoder off".
Only always after the second restart the AVR receives the audio bitstream e.g. "DTS-HDMA".
Audio dropouts are still audible at short intervals always in HD audio.
The power on sequence is TV -> CEC -> AVR -> Beebox-S
-
I rejoiced too soon.
There are no audio dropouts only with Dolby Digital audio format.
With all HD audio formats, audio dropouts continue.
Depending on the audio settings "Keep audio device alive", when set to "off" constantly, every few seconds.
AVR also shows "Decoder off" and speaker icons disappear for 1 second.
When set to "Always", the AVR does not show any error indication in the display, but it takes the longest time to hear audio dropouts.
When set to "1 minute", the AVR does not show any errors in the display either, but audio dropouts can be heard after about 1 minute.
If I switch the "Send low volume noise" setting to "Off", then DTS-HDMA is played back as PCM 2 channel by the AVR, Dolby TrueHD is detected as analog by the AVR and no audio is heard.
Only after a reboot DTS-HDMA is recognized as DTS-HDMA by the AVR again and played back with audio dropouts.
Only if you select "On" again, then Dolby TrueHD is played again. But all HD audio formats with audio dropouts.
In my opinion, this is the same error as here.
LE10/LE11 TrueHD + ATMOS audio drops
[BUG]LE10/LE11 HBR Audio PT Audio issue with [email protected] with J4105 #6237
I also have a Yamaha RX-A1080.
There are no audio problems with the Vero 4K+ with OMSC.
Also sending Kodi logs is not possible before a reboot, it always shows a copy error.
After a restart, you can send the Kodi logs again.
What can be the reason for this?
-
Hi
No audio is output from DTS-HD High Resolution (DTS-HD HR) with Passthrough.
LibreELEC-Generic.x86_64-11.0-nightly-20230110-b827992.img.gz
Log file link: http://ix.io/4kQm
-
I hope I am not mistaken.
But with "LibreELEC-Generic.x86_64-11.0-nightly-20230109-c0b809e.img.gz (sha256)" the audio dropouts have disappeared.
I hope it stays like this.
-
Hello,
I have installed LE11 Generic.x86_64-11.0-nightly-20230104-21c204a on my Beebox U7100 with 8GB RAM, 500 GB SSD, the installation process went smooth.
But I am having issues with the HD audios when playing a video. I have my TV connect it to Yamaha receiver HDMI (eARC) output and my Beebox to Yamaha receiver HDMI input.
I have passthrough enable on kodi. When I play a video are every few second audio dropous/glitches. Is there anyway to fix this with nightlys?
I have a Vero 4K+ with OMSC connected on the other Yamaha HDMI input port and both Kodi audio passthrough work great without dropouts/glitches.
What is needed for troubleshooting, log files?
-
Hi chewitt
The problem with the 4K movies was caused by a setting in Kodi Player.

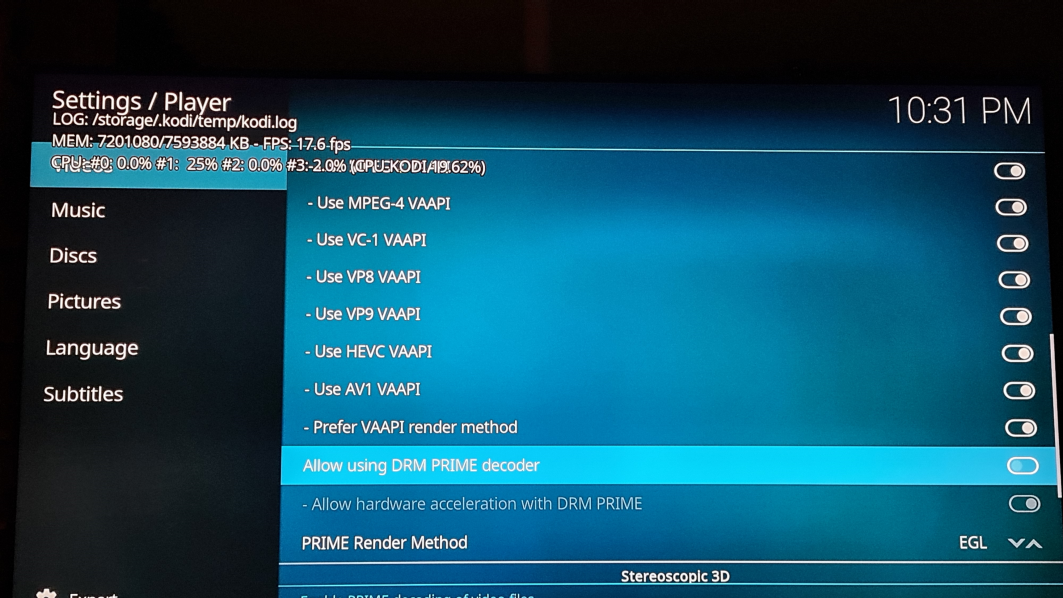

I had enabled the Setting / Player / Videos / Allow using DRM Prime decoder.
Deactivated this setting again and voilà - also the 4K movies are displayed.
-
Hi chewitt
That is strange.
It is an ISO file.
Kodi with Windows can play such ISO files without errors.
With OSMC (Linux, ARM) the ISO file is also played correctly.
The TV (Samsung) can also not play Dolbv Vision.
The Stream: #0 must be played without Dolby Vision, only with HDR.
In many streams, HDR and Dolby Vsion are included together.
Attached are the BDInfo and Mediainfo of the ISO file.
Videos with HDR only (no Dolby Vision stream) are also not displayed.
Also audio DTSHD-HRA are not played as passthrough.
Attached is an example-2 of ISO file with HDR and DTSHD-HRA only.
Log files uploaded to: http://ix.io/4jWu
So long
Origin
-
Hi chewitt
Thanks a lot!
OK, the HD audio is played with the DP... Samsung... driver.
Because of the name of the driver, I would never have selected this driver, because the player is connected to HDMI 2.0 port and not to Display port.

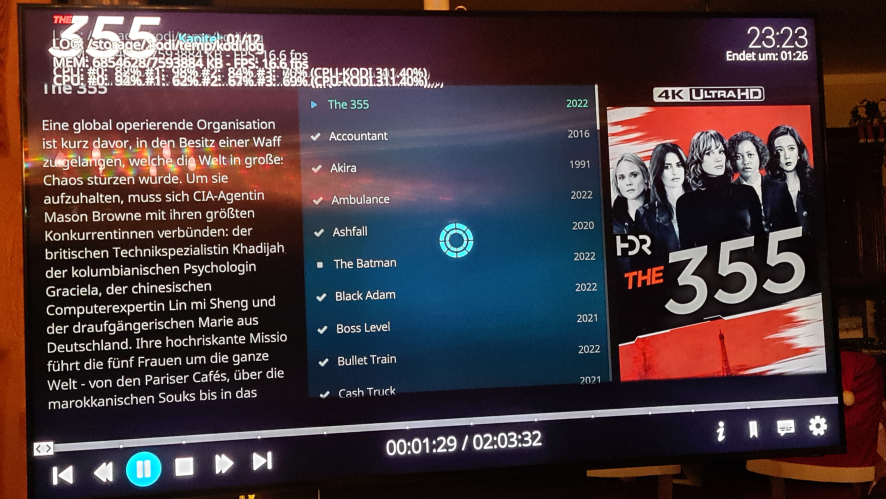

Unfortunately, no 4k movie is displayed. The player just shows a rotating circle and the HD audio plays correctly.
What could be the cause of this?
Log files uploaded to http://ix.io/4jUN
So long
Origin
-
Thanks for the quick reply.
The HDMI connection sequence is: Beebox-AVR-eARC-TV and also tested Beebox-TV-eARC-AVR.

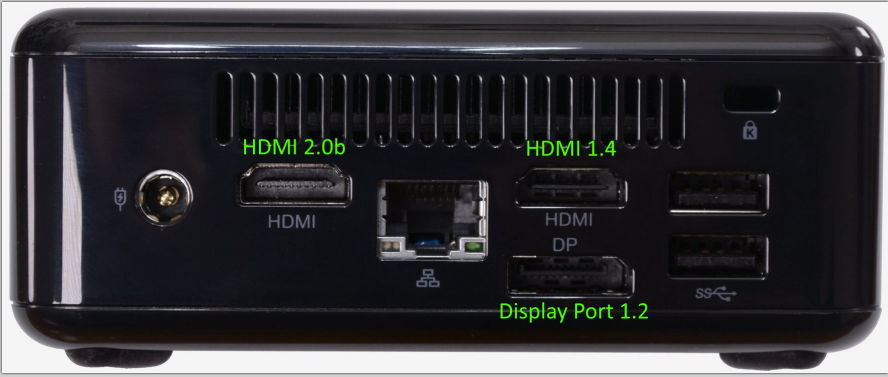

I had the Beebox connected to the TV (Samsung) and then to the AVR, on HDMI port 2.0.
I have three drivers to choose from: 1st DP port DEV=0; 2nd HDMI DEV=1; 3rd HDMI DEV=2.
The drivers 2nd HDMI DEV=1 and 3rd HDMI DEV=2. have no audio.
Although I have connected the AVR to HDMI port 2.0b I should select 1st DP port DEV=0, really?
-
Log file from today: http://ix.io/4jRG
AVR always shows Analog with 2-channel, although "audio Passthrough" is activated.
and Screenshot (Ctrl + S) not working with Generic LibreELEC-Generic.x86_64-11.0-nightly-20221228-3d590bf.img.gz (sha256), the folder (\\LIBREELEC\Screenshots) is empty.
So long
Origin
