Posts by Vadim_0632

I disconnected the 15 and 16 pin of the HDMI connector.

these are SDA and SCL signals

I2C bus via which EDID is transmitted

Now the board does not know which display, and it uses standard resolutions of 640x480 800x600 1024x768.

Now the image is from the beginning of the download, the picture is normal. I change resolution, all avalable(standart) resolutions good work.

But there is no sound.

As far as I understand, the board thinks that it is connected to a simple monitor, without speakers and the sound is not transmitted to HDMI.

Now it’s clear why the image appeared on the screen when I replaced the dbd file. I think the i2c bus stopped working .. and the board started up in standard resolution ...

all this is very sad...

is it possible to override the resolution in the config?

as for xfce ...

all the devices on which I checked are TV.

logs that I sent, with TV LG 32LV3700-ZC (EDID info: Digital display Maximum image size: 16 cm x 9 cm - lol! ;)) )

i checked another tv .... a very old tv LG 32LC51 works fine! (resolution 1366x768)

Roger!

clk_summary.txt

dmsg.txt

edid.txt

modetest.txt

Quote from jernej

Can you try on another TV or monitor?

I tried on 4 different TVs (at the same time checked 3 different HDMI cables)

There seems to be a problem with the wrong EDID

On the first TV, i can see only the boot, the start of services, until the start of the graphical shell.

The second one is visible only from the moment the graphics start.

On the third, nothing at all ... no sound, no image.

On the fourth - I experimented all the time, the sound cracs on it .. and no picture.

I took the sun50i-h6-orangepi-one-plus.dtb file from the libreelec distribution and put it into the armbian distribution.

there is no image at the time of initial loading.

when the x-server and xfce start, a picture and good sound (via HDMI) appear

screen resolution 1024x768

it can be changed to 640x480 sound and picture are good.

Other resolutions result in a blank screen and no sound (or crackle on the sound)

EDID is present in the xorg log ... look please. Maybe something is wrong there?

In my opinion, everything is within the expected range.

Xorg.0.log.zip

ssh and serial works!

i m ready

Tell me, what screen resolution does LibreElec start up ??

Orange PI One Plus works fine ONLY at 1024x768.

Even in the Debian desktop distribution, when trying to change the resolution to any other than 1024x768, there is no picture, the sound is crackling.

Thanks, I think I’ve already tried it.

I don’t remember what and how many times I tried to change ... comparing files .. but nothing works.

where there is image output to HDMI, there is always no sound.

here is another dtb. there is also an image with it, but there is no sound and the LAN does not work (error: cable is not connected)

sun50i-h6-pine-h64.zip

Quote from Unoqueva

I have a small problem with an opi pc plus

ohhhh!

one more))

Quote from Unoqueva

stopped at the same point

with this file there will be an image on tv ))

sun50i-h6-orangepi-one-plus.zip

but without sound... ))

extlinux.conf

LABEL LibreELEC
  LINUX /KERNEL
  FDT /sun50i-h6-orangepi-one-plus.dtb
  APPEND boot=UUID=3003-3707 disk=UUID=68e1229c-c73b-45cc-9c58-e3c705d490e3 console=ttyS0,115200 ssh systemd.debug-shell=1

Quote from jernej

What version do you have? v2.0 or v2.1? Should be printed on board.

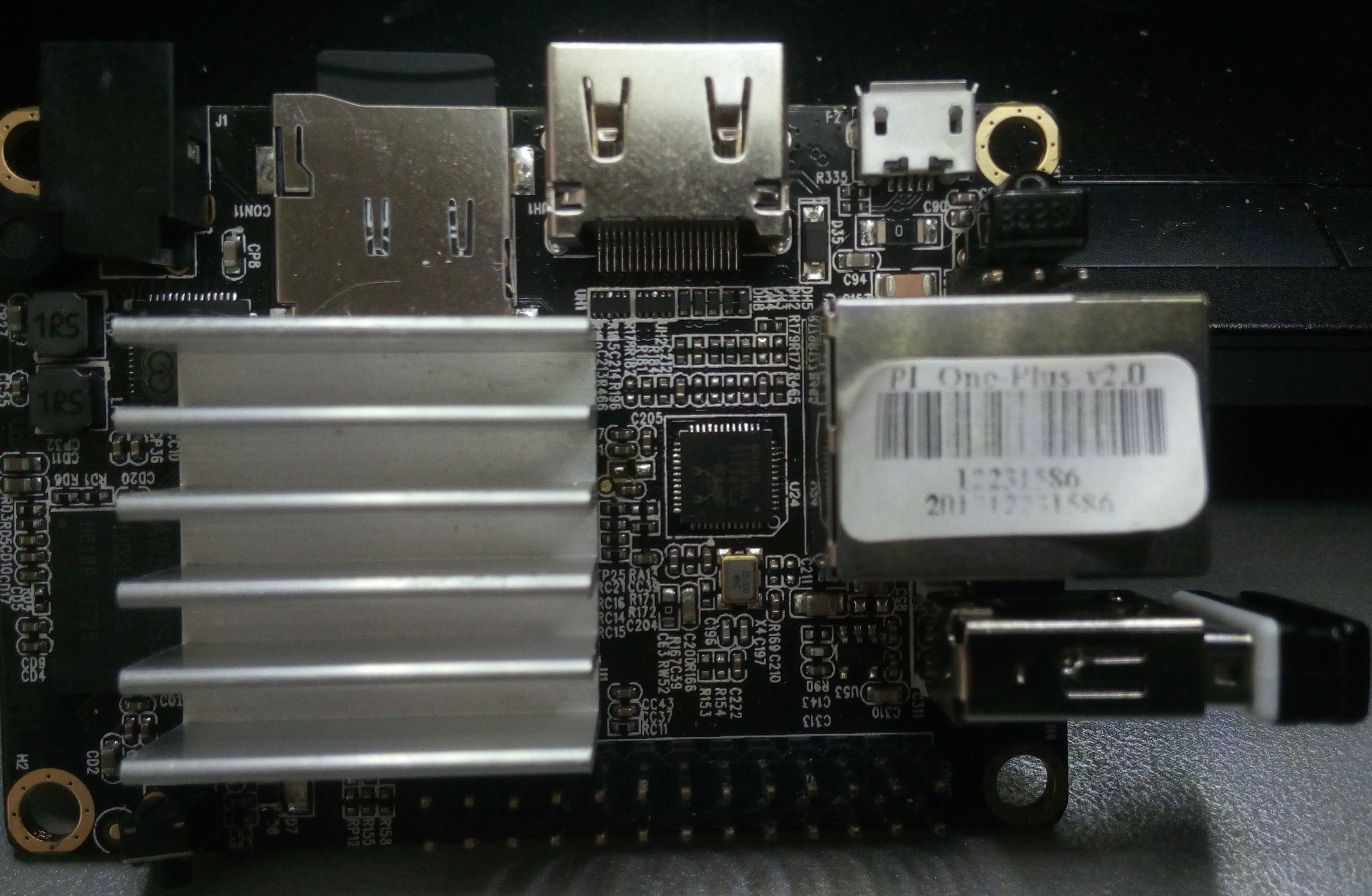

it is 2.0 board

but it looks exactly the same .. absolutely identical.

A radiator is installed on my board and you will not see anything....


if i boot sun50i-h6-pine-h64.dtb

there is no sound...

video exelent...

Now I (you, all)need to take a video from sun50i-h6-pine64.dtb

and put it in sun50i-h6-orangepi-one-plus.dtb

and universal happiness will come ...

may be.. ))

One Plus image does not work on the board Orange pi one-plus

no video...

Can you build the correct dtb for one-plus? ;))

without sound, watching a movie is not interesting ...

and ... listening movie without an image is boring ...))

Hi guys

I continue to experiment with Prange PI One-plus.

I got a normal image with sun50i-h6-pine-h64.dtb file

But now there is no sound, no network ...

I remind,

There is no image with the sun50i-h6-orangepi-one-plus.dtb file, the sound is crackling.

I need to edit the dtb file ... but the distribution does not have the "dts" utility and apt-get is disabled))

how to edit?

I tried the image for pi pc2, it works ... unlike H6.

Let's debug the build for H6 cpu.

I want to get media player on the H6 board!
