That's because nand's patition layout in kernel is different on your box.

can you use sdcard only without usb?

Take either a usb stick or a sdcard. But do not mix. after the first boot, the storage partition is adjusted, as with any libreelec.

Sounds to me like there is something wrong with your sdcard. Could you try an other one? Or you also can use an usb-stick on usb-port 1.

@patientx You first have to setup tvheadend. log in web interface and you can see if your addaper is recognised.

Setting up an easy Linux Kodi with Live TV (LibreELEC)

or see:

@amelendez no I haven't made bootargs for nand boot. But high class sdcard is very cheep.

latest img:

libreelec-amlogic_g02ref.arm-9.0-devel-20190307225115-0e98e15.img.gz

dvb-s2: You need to install tvheadend + hts addon

Yes thank you. I noticed that, all addons are there. The box works perfectly. There's nothing left to do ...

Then I have to wait now on dreambox one s922 (aml SoC) ...

Now I'm a bit confused, I thought there is no release for LibreELEC-WeTek_Play.arm-9.0.1.img.gz anymore, but it's being offered. I built LE for my aml8726 box and there are no binary addons anymore. Or is it?

Question: Do you have a script to generate the addons.xml for a server feed to share?

*-mr not master?

Edit: I built all new as libreelec-9.0 branch, works fine now.

Update + Addon VFD Display (Prima PM-6001, VS-IP166 ) locale: en/de

Have fun

Not that easy, first I had to found out ext4 boot is corrupt in amlogic-3.10.108. So I've build rootfs as ext3.

After 2 hard month, I've got the driver running...

without aml-codec (deactivated in kodi) it is on the tv but too slow. So probably the tuner, but the codec does not start properly.

Nomal video works well (addons, video playback...)

I would be so grateful for a tip...

Now, the avl6211 finally works,

but there is a huge problem. If I open the ts stream with VLC in the web interface of tvheadend, this works great. But when I zap in tvheadend addon on a channel, I get either only a still picture or the playback ends after a few seconds. Funny thing is that if I deactivate the frontend in the web interface and then activate the frontend again, the stream on the screen runs great. If I want to change the channel with the remote control now, the stream hangs again. As soon as I switch to a channel, the downstream of the tuner goes to zero. (Webif tvheadend).

Sorry message for my little M6.

Thanks for the information.

Buying a usb tuner makes no sense in my case.

I just do it just out of boredom and to pimp my AML knowledge.

I have a lot of stb's lying around here, as I've been developing dreamboxes for years and the upcoming dreambox is no longer based on broadcom SoC's but gets an aml.

For a dreambox with FFMPEG a LibreElec would make sense.

Although I build a "kodi18 plugin + gstreamer player" for the broadcom based dreamboxes that works well, but that makes no sense with LibreElec, because it needs enigma2 as frontend. On the other hand, there is no hbbtv without enigma2.

So am waiting for the new dreambox. Rumors that it will get an aml quadcore.

see video kodi18 using enigma2 and hbbtv

kodi for dreamboxes

bye

I'm just trying to build kernel 3.14.X dvb drivers for meson6 (3.10.X).

I have patched two versions trying to customize, but I always get the same result. (no data, DMX hangs with "too many filters" after a while. That issue is the same on both drivers, that wetekdvb based and my own try avl6211 dvb-avl based)

The tuner goes, but no data comes back when scanning.

I need the help of someone who knows better about it.

I attached the source codes and the logs.

I do not think it's that much anymore, but I have not been able to do it for a month now.

tvheadend log:

2019-01-14 01:10:58.026 mpegts: 11362H in astra - tuning on Availink AVL6211+AV2011 DVB-S/S2 #0 : DVB-S #0
2019-01-14 01:10:58.469 subscription: 0001: "scan" subscribing to mux "11362H", wight: 6, adapter: "Availink AVL6211+AV2011 DVB-S/S2 #0 : DVB-S #0", network: "astra", service: "Raw PID Subscription"
2019-01-14 01:10:59.867 linuxdvb: Availink AVL6211+AV2011 DVB-S/S2 #0 : DVB-S #0 - poll TIMEOUT
2019-01-14 01:11:00.470 linuxdvb: Availink AVL6211+AV2011 DVB-S/S2 #0 : DVB-S #0 - retune nodata
2019-01-14 01:11:07.528 linuxdvb: Availink AVL6211+AV2011 DVB-S/S2 #0 : DVB-S #0 - poll TIMEOUT
2019-01-14 01:11:08.111 linuxdvb: Availink AVL6211+AV2011 DVB-S/S2 #0 : DVB-S #0 - retune nodata
2019-01-14 01:11:08.730 mpegts: 11362H in astra - scan no data, failed

see device and source code (LE) here (single tuner)

see driver and logs

Thank you in advance for a look.

there it is:

and for all others got freeze problems on MX builds (g18/g02 boards)

[9.X-devel] LibreELEC builds for G02ref (Prima PM-6001, VS-IP166, VS-IP015, ...)

easy update via ssh:

emanuel@xanadu:~$ ssh [email protected]
[email protected]'s password:
##############################################
#                 LibreELEC                  #
#            https://libreelec.tv            #
##############################################

LibreELEC (community): devel-20190106124554-df9076a (Amlogic_G02REF.arm)
LibreELEC:~ # cd .update
LibreELEC:~/.update # wget -O update.tar http://download.blue-panel.com/krogoth/kodi-18/developer/aml8726_MX/LibreELEC-Amlogic_G02REF.arm-9.0-devel-20190106221300-df9076a.tar
Connecting to download.blue-panel.com (31.47.234.114:80)
update.tar           100% |***************************************************************************|  118M  0:00:00 ETA
LibreELEC:~/.update # reboot
LibreELEC:~/.update #

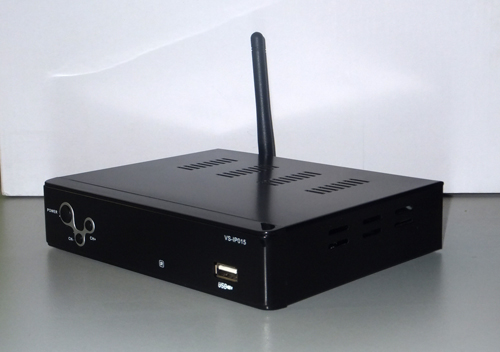

This is a LibreELEC build for g02ref/g18ref_th2 devices (Prima PM-6001, VS-IP166, VS-IP015, or other similar MX boxes)

with Amlogic AML8726-MX/M6 SoC (Amlogic Meson6).

It is based on current LibreELEC WeTek Play build and my code port for g02ref.

It is using the WeTek Play LibreELEC Addons repository so you should be able to install binary addons from the official repository.

Known issues:

- no build-in dvb-S2 tunner support yet.

- enable bootscreen text (tty0)

Update:

- dvb-S2

- vfd driver

Installation instructions:

It is a sdcard boot image, so you can just use the LibreELEC usb-sd creator to flash your card.

so old bricked boxes can also be used for it

Download (updated 03 04 2019):

LibreELEC-Amlogic_G02REF.arm-9.0-devel-20190106124554-df9076a.img.gz

LibreELEC-Amlogic_G02REF.arm-9.0-devel-20190106221300-df9076a.img.gz

LibreELEC-Amlogic_G02REF.arm-9.0-devel-20190106221300-df9076a.tar

Release img

LibreELEC-Amlogic_G02REF.arm-9.0-devel-20190307225115-0e98e15.img.gz

Addon VFD (Prima PM-6001, VS-IP166)

service.vfd-1.0.0.100.zip

special thanks for providing kernel & examples to:

codesnake

KOPRajs

LibreELEC Device build source:

Amlogic_G02REF_20180106.tar.gz

Amlogic_G02REF_20190304.tar.gz

+ patch mkimage script to use ext3 for storage build/ old kernel package

Supported devices:

It is tested on VS-IP166 (videostrong)/Prima PM-6001. If your device has different remote try connecting USB keyboard.

usbboot:

flash the image on a usb stick/hdd and copy the aml_autoscript from the first usb partition (FAT) to a sdcard (FAT) using common winpc.

Plug in usb (port 1, rigth one on in my case) and sdcard, box will now load the image from usb port 1.

Have fun
