    Posting in a 4-your old forum thread is not recommended.

    I just realized that the post is 4 years old.

    BTW, could I contact you? I have a couple questions about a post I would like to make in regards to a repository for remote configuration files.

    P.S. is there a remote files depository somewhere for these rockchip boxes I can upload it to ?

    I know the coreelec forum has something like that for the AMlogic boxes they use.

    I am the maintainer of the Repository for AmRemotes & Meson IR Remote Controllers. At the CoreELEC discourse forum I go by Betatester. The remote configuration you have created is a Meson_IR one and has been added to the Repository under Meson_IR/M/MXR. Thank you for your contribution.

    Anyone is welcome to download the configuration files. The repository is unrestricted.

    Repository for Amlogic & Meson Infrared Remote Controllers


    Our goal is to centralize access to original Remote Control Unit (RCU) configuration files for use with LibreELEC, CoreELEC, and other forks of OpenELEC (Open Embedded Linux Entertainment Center).


    To achieve this goal, a repository with alphabetical index was created, and made available here:


    Amlogic & Meson IR Repository


    Quick installation guide:


    Amlogic:


    copy remote.conf to /storage/.config


    Meson-IR:


    copy KEYFILE to /storage/.config/rc_keymaps

    copy rc_maps.cfg to /storage/.config


    Detailed guides are available in the Library section of the repository.

    #

    # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

    #

    # This file can be used with Open/LibreElec for the configuration of a factory

    # remote control for: T95x, QBOX, NEXBOX and possible other brands of

    # Smart Android Tv Boxes using the Amlogic U2C remote controller

    #

    # Location of remote.conf: root of the Open/LibreElec startup disk (USB, MC, NaND)

    #

    # factory_code each device has it's unique factory code.

    # pattern: custom_code(16bit) + index_code(16bit)

    # examble: 0xff000001 = 0xff00(custom_code) + 0001(index_code)

    #

    # work_mode

    # 0 : software mode

    # 1 : hardware mode

    #

    # repeat_enable

    # 0 : disable repeat

    # 1 : enable repeat

    #

    # release_delay unit: ms

    # release will report from kernel to user layer after this period

    # of time from press or repeat triggered.

    #

    # debug_enable
    # 0 : debug disable

    # 1 : debug enable

    #

    # SW MODE:

    #

    # bit_count how many bits in each frame

    # tw_leader_act time window for leader active

    # tw_bit0 time window for bit0 time.

    # tw_bit1 time window for bit1 time

    # tw_repeat_leader time window for repeat leader

    #

    # REG:

    #

    # reg_base_gen set value for PREG_IR_DEC_BASE_GEN

    # reg_control set value for PREG_IR_DEC_CONTROL

    # reg_leader_act set value for PREG_IR_DEC_LEADER_ACTIVE

    # reg_leader_idle set value for PREG_IR_DEC_LEADER_IDLE

    # reg_repeat_leader set value for PREG_IR_DEC_REPEAT_IDLE

    # reg_bit0_time set value for PREG_IR_DEC_BIT0_TIME

    #

    # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

    #

    # KEY ASSIGNMENT FORMAT:

    #

    # KEY ACTION #COMMENT

    #

    # 0x00 000 #EXAMPLE

    #

    # ORIGINAL:

    #

    # 0x5f 45 #X-STOP (K-SQUARE)

    #

    # ADJUSTED:

    #

    # 0x5f 113 #MUTE (K-SQUARE)

    #

    # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

    #

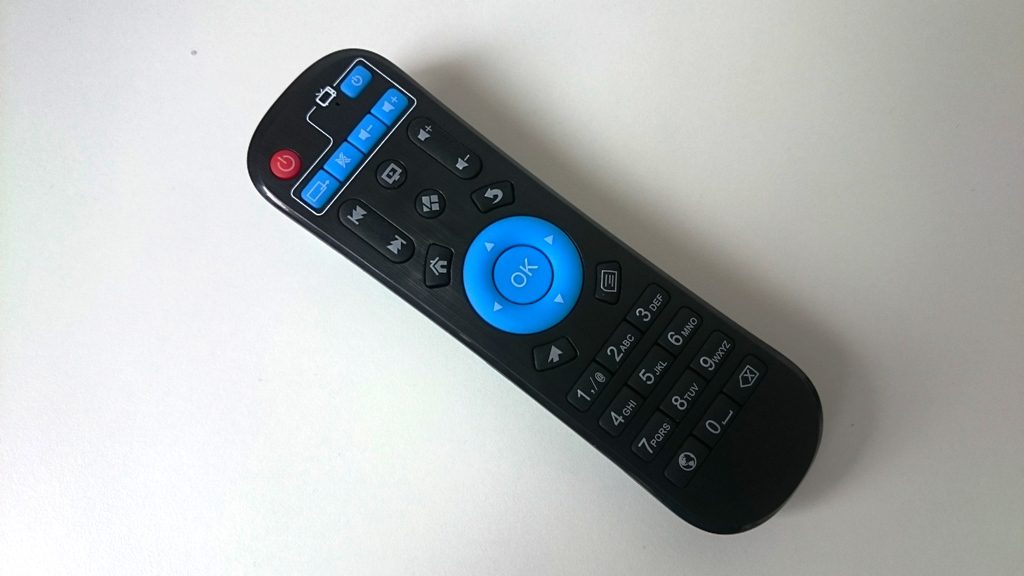

    # Amlogic U2C remote (Blue OK button and TV controls, red power button).

    #

    factory_code = 0xdf000001

    work_mode = 0

    repeat_enable = 1

    repeat_delay = 40

    repeat_peroid = 39

    release_delay = 121

    debug_enable = 1

    #

    fn_key_scancode = 0x03 #MOUSE

    left_key_scancode = 0x47 #LEFT

    right_key_scancode = 0x07 #RIGHT

    up_key_scancode = 0x1a #UP

    down_key_scancode = 0x48 #DOWN

    ok_key_scancode = 0x06 #OK

    #

    mouse_begin

    #

    0 0x47 #LEFT

    1 0x07 #RIGHT

    2 0x1a #UP

    3 0x48 #DOWN3

    #

    mouse_end

    #

    key_begin

    #

    0x1c 31 #S-POWERMENU (POWER)

    0x01 164 #PLAYPAUSE (TV)

    0x5f 113 #MUTE (KBUTTON)

    0x4b 168 #REWIND (|<<)

    0x4f 208 #FASTFORWARD (>>|)

    #

    0x47 105 #LEFT

    0x07 106 #RIGHT

    0x1a 103 #UP

    0x48 108 #DOWN

    0x06 28 #ENTER (OK)

    #

    0x42 102 #HOME (HOUSE)

    0x0a 14 #BACKSPACE (BACK ARROW)

    0x18 46 #CONTEXTMENU (DOCUMENT)

    #

    0x0c 11 #KEY No.0

    0x54 2 #KEY No.1

    0x16 3 #KEY No.2

    0x15 4 #KEY No.3

    0x50 5 #KEY No.4

    0x12 6 #KEY No.5

    0x11 7 #KEY No.6

    0x4c 8 #KEY No.7

    0x0e 9 #KEY No.8

    0x0d 10 #KEY No.9

    #

    0x10 24 #O-CODEC INFO (BACKSPACE)

    0x41 23 #INFO (GLOBE)

    #

    0x5c 114 #VOLUMEDOWN (VOL-)

    0x5d 115 #VOLUMEUP (VOL+)

    #

    repeat_key_begin

    #

    0x47 105 #LEFT

    0x07 106 #RIGHT

    0x1a 103 #UP

    0x48 108 #DOWN

    0x5d 104 #PAGEUP (VOL+)

    0x5c 109 #PAGEDOWN (VOL-)

    #

    repeat_key_end

    #

    # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

    # #

    ## ##

    ### 0x52 nn #MOUSE (!!! NEVER !!! use this line, this key is mapped in fn_key_scancode) ###

    ## ##

    # #

    # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

    #

    # UNASSIGNED

    #

    # 0x5f 45 #X-STOP (THUMBS UP)

    #

    # 0x4d 113 #MUTE

    # 0x09 364 #FAVORITES

    # 0x42 102 #HOME

    # 0x0a 14 #BACK

    # 0x4f 171 #CONFIG

    #

    # 0x09 398 #RED

    # 0x11 399 #GREEN

    # 0x54 400 #YELLOW

    # 0x4f 401 #BLUE

    #

    # 0x5d 104 #PAGEUP

    # 0x5c 109 #PAGEDOWN

    #

    key_end

    #

    # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

    #




    A95X_Remote_Blue.zip
