oh! I realized that the new service uploaded in this post thread-3769-post-43004.html#pid43004 causes to restart my rpi sometimes.
[hr]
the driver uploaded in this post thread-1930-post-42979.html#pid42979 has the same problem
Posts by kavehebadi
-
-
The driver is attached to the post. What's the other problem. I have replaced my HD44780.so and everything is fine. I run a raspberry pi 3 using the lcd from the GPIO pins. I can post my LCDd.conf. I initially had a 7.x system running fine, update to 8.0 and got the not a raspberry pi, the patch has fixed that and my lcd is running.it finally worked. thank you.
-
Any idea? Do I have to return to the previous versions?
-
Hi
with special thanks to LibreELEC team for their continuous efforts to produce ver 8
unfortunately still in this ver my LCD (hd44780) does not work again.
I have RPi3 and LCD hd44780 connected together through GPIO. I have done all wiring according LCD-Display HD44780 20×4 under Openelec and Kodi(XBMC) at the Raspberry Pi – Michael Diesterhöft
everything worked great until v7.90.006. but after v7.90.007 till now I could not run the LCD.
I installed sevices.xbmc lcdproc 2.6.0 and sevices.LCDproc 8.1.102 and set driver to hd44780.
I also modified LCDd.conf inside directories:
~/.kodi/addons/http://service.lcdd/config
and
~/.kodi/userdata/addon_data/service.lcdd
here is my LCDd.conf:## Server section with all kinds of settings for the LCDd server ##
[server]
DriverPath=/storage/.kodi/addons/http://service.lcdd/lib/lcdproc/
Driver=hd44780
Bind=127.0.0.1
Port=13666
ReportLevel=3
User=nobody
Foreground=no
Hello=" "
Hello=" KODI"
Hello=" Boot up ..."
Hello=" "
GoodBye=" "
GoodBye=" KODI"
GoodBye=" Shutting Down "
GoodBye=" "
WaitTime=5
ServerScreen=blank
Backlight=open
Heartbeat=open
TitleSpeed=10
ToggleRotateKey=Enter
PrevScreenKey=Left
NextScreenKey=Right## The menu section. The menu is an internal LCDproc client. ##
[menu]
MenuKey=Escape
EnterKey=Enter
UpKey=Up
DownKey=Down### Driver sections are below this line, in alphabetical order ###
## Hitachi HD44780 driver ##
[hd44780]
pin_D7=18
pin_D6=23
pin_D5=24
pin_D4=25
pin_RS=7
pin_EN=8
ConnectionType=raspberrypi
Port=0x378
Device=/dev/ttyS0
Speed=0
Keypad=no
Contrast=0
Backlight=no
OutputPort=no
Size=16x4
CharMap=hd44780_default
DelayBus=true
KeyMatrix_4_1=Enter
KeyMatrix_4_2=Up
KeyMatrix_4_3=Down
KeyMatrix_4_4=Escapewhen i wanted to run LCD i got this :
LCDd 0.5dev, LCDproc Protocol 0.3
Part of the LCDproc suite
Copyright (C) 1998-2016 William Ferrell, Selene Scriven
and many other contributorsThis program is free software; you can redistribute it and/or
modify it under the terms of the GNU General Public License
as published by the Free Software Foundation; either version 2
of the License, or (at your option) any later version.This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.You should have received a copy of the GNU General Public License
along with this program; if not, write to the Free Software Foundation,
Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.check_board_rev: This board is not recognized as a Raspberry Pi!
Driver [hd44780] init failed, return code -1
Could not load driver hd44780
There is no output driver
Critical error while initializing, abort.I replaced the driver with my old one but i got same error except the line (check_board_rev:....)
LCDd 0.5dev, LCDproc Protocol 0.3
Part of the LCDproc suite
Copyright (C) 1998-2016 William Ferrell, Selene Scriven
and many other contributorsThis program is free software; you can redistribute it and/or
modify it under the terms of the GNU General Public License
as published by the Free Software Foundation; either version 2
of the License, or (at your option) any later version.This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.You should have received a copy of the GNU General Public License
along with this program; if not, write to the Free Software Foundation,
Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.Driver [hd44780] init failed, return code -1
Could not load driver hd44780
There is no output driver
Critical error while initializing, abort. -
You are running on RPi (not on RPi2/3), right? If so, try ConnectionType=rpi, as suggested here LCD-Display HD44780 20×4 unter Openelec und Kodi(XBMC) an der Raspberry Pi – Michael Diesterhöft
No actually I have RPi3 and as I said my LCD was working perfect until ver 006.
-
Hi
my config file is:## Server section with all kinds of settings for the LCDd server ##
[server]
DriverPath=/storage/.kodi/addons/http://service.lcdd/lib/lcdproc/
Driver=hd44780
Bind=127.0.0.1
Port=13666
ReportLevel=3
User=nobody
Foreground=no
Hello=" "
Hello=" KODI"
Hello=" Boot up ..."
Hello=" "
GoodBye=" "
GoodBye=" KODI"
GoodBye=" Shutting Down "
GoodBye=" "
WaitTime=5
ServerScreen=blank
Backlight=open
Heartbeat=open
TitleSpeed=10
ToggleRotateKey=Enter
PrevScreenKey=Left
NextScreenKey=Right
## The menu section. The menu is an internal LCDproc client. ##
[menu]
MenuKey=Escape
EnterKey=Enter
UpKey=Up
DownKey=Down
### Driver sections are below this line, in alphabetical order ###
## Hitachi HD44780 driver ##
[hd44780]
pin_D7=18
pin_D6=23
pin_D5=24
pin_D4=25
pin_RS=7
pin_EN=8
ConnectionType=raspberrypi
Port=0x378
Device=/dev/ttyS0
Speed=0
Keypad=no
Contrast=0
Backlight=no
OutputPort=no
Size=16x4
CharMap=hd44780_default
DelayBus=true
KeyMatrix_4_1=Enter
KeyMatrix_4_2=Up
KeyMatrix_4_3=Down
KeyMatrix_4_4=Escapeand my log is:
-- Logs begin at Sat 2016-12-03 17:41:42 IRST, end at Thu 2016-12-15 15:20:09 IRST. --
Dec 03 17:41:44 LibreELEC systemd[1]: Started LCDProc.
Dec 03 17:41:44 LibreELEC sh[529]: LCDd version 0.5dev starting
Dec 03 17:41:44 LibreELEC sh[529]: Using Configuration File: /storage/.kodi/userdata/addon_data/http://service.lcdd/LCDd.conf
Dec 03 17:41:44 LibreELEC sh[529]: LCDd 0.5dev, LCDproc Protocol 0.3
Dec 03 17:41:44 LibreELEC sh[529]: Part of the LCDproc suite
Dec 03 17:41:44 LibreELEC sh[529]: Copyright (C) 1998-2014 William Ferrell, Selene Scriven
Dec 03 17:41:44 LibreELEC sh[529]: and many other contributors
Dec 03 17:41:44 LibreELEC sh[529]: This program is free software; you can redistribute it and/or
Dec 03 17:41:44 LibreELEC sh[529]: modify it under the terms of the GNU General Public License
Dec 03 17:41:44 LibreELEC sh[529]: as published by the Free Software Foundation; either version 2
Dec 03 17:41:44 LibreELEC sh[529]: of the License, or (at your option) any later version.
Dec 03 17:41:44 LibreELEC sh[529]: This program is distributed in the hope that it will be useful,
Dec 03 17:41:44 LibreELEC sh[529]: but WITHOUT ANY WARRANTY; without even the implied warranty of
Dec 03 17:41:44 LibreELEC sh[529]: MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
Dec 03 17:41:44 LibreELEC sh[529]: GNU General Public License for more details.
Dec 03 17:41:44 LibreELEC sh[529]: You should have received a copy of the GNU General Public License
Dec 03 17:41:44 LibreELEC sh[529]: along with this program; if not, write to the Free Software Foundation,
Dec 03 17:41:44 LibreELEC sh[529]: Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.
Dec 03 17:41:44 LibreELEC sh[529]: Listening for queries on 127.0.0.1:13666
Dec 03 17:41:44 LibreELEC sh[529]: check_board_rev: This board is not recognized as a Raspberry Pi! Found:BCM2835
Dec 03 17:41:44 LibreELEC sh[529]: Driver [hd44780] init failed, return code -1
Dec 03 17:41:44 LibreELEC sh[529]: Could not load driver hd44780
Dec 03 17:41:44 LibreELEC sh[529]: There is no output driver
Dec 03 17:41:44 LibreELEC sh[529]: Critical error while initializing, abort.
Dec 03 17:41:44 LibreELEC systemd[1]: [[0;1;39mservice.lcdd.service: Main process exited, code=exited, status=1/FAILURE[[0m
Dec 03 17:41:44 LibreELEC systemd[1]: [[0;1;39mservice.lcdd.service: Unit entered failed state.[[0m
Dec 03 17:41:44 LibreELEC systemd[1]: [[0;1;39mservice.lcdd.service: Failed with result 'exit-code'.[[0m
Dec 15 15:19:27 LibreELEC systemd[1]: service.lcdd.service: Service hold-off time over, scheduling restart.
Dec 15 15:19:27 LibreELEC systemd[1]: Stopped LCDProc.
Dec 15 15:19:27 LibreELEC systemd[1]: Started LCDProc.and as it looks it does not work!
-
Hi, I updated my RPi3 from LibreELEC 006 to 009. My LCD stopped working. Maybe I have to do something with my config files. Is here someone to guide me step by step what I should do to solve the problem? (I have installed LCDproc from LibreELEC repo and set Driver correctly)
-
Kavehebadi,You still didn't say whether you are using a USB DAC ...
My problem is audio glitches only when playing music through a USB DAC, but I have a suspicion that it is limited to Amlogic devices, specifically the Wetek Hub. But until there is some confirmation from one of the devs I don't really know what's going on. Apparently there are not many people using a USB DAC - or listening to music - which I find odd since it's the only way to get audio out of a device like the Hub that has no other outputs aside from HDMI ...
Cheers
IanSorry Ion, my fault. Actually no, I dont use USB DAC. I have raspberry Pi.
-
bluefuzz when I updated to 7.90.008 they all gone! but because of LCD problem I had to get back to 7.90.006 again. Surprisingly there are no glitches anymore! I had those glitches every 5 sec when I played music.
-
you mean I have to get over it?
-

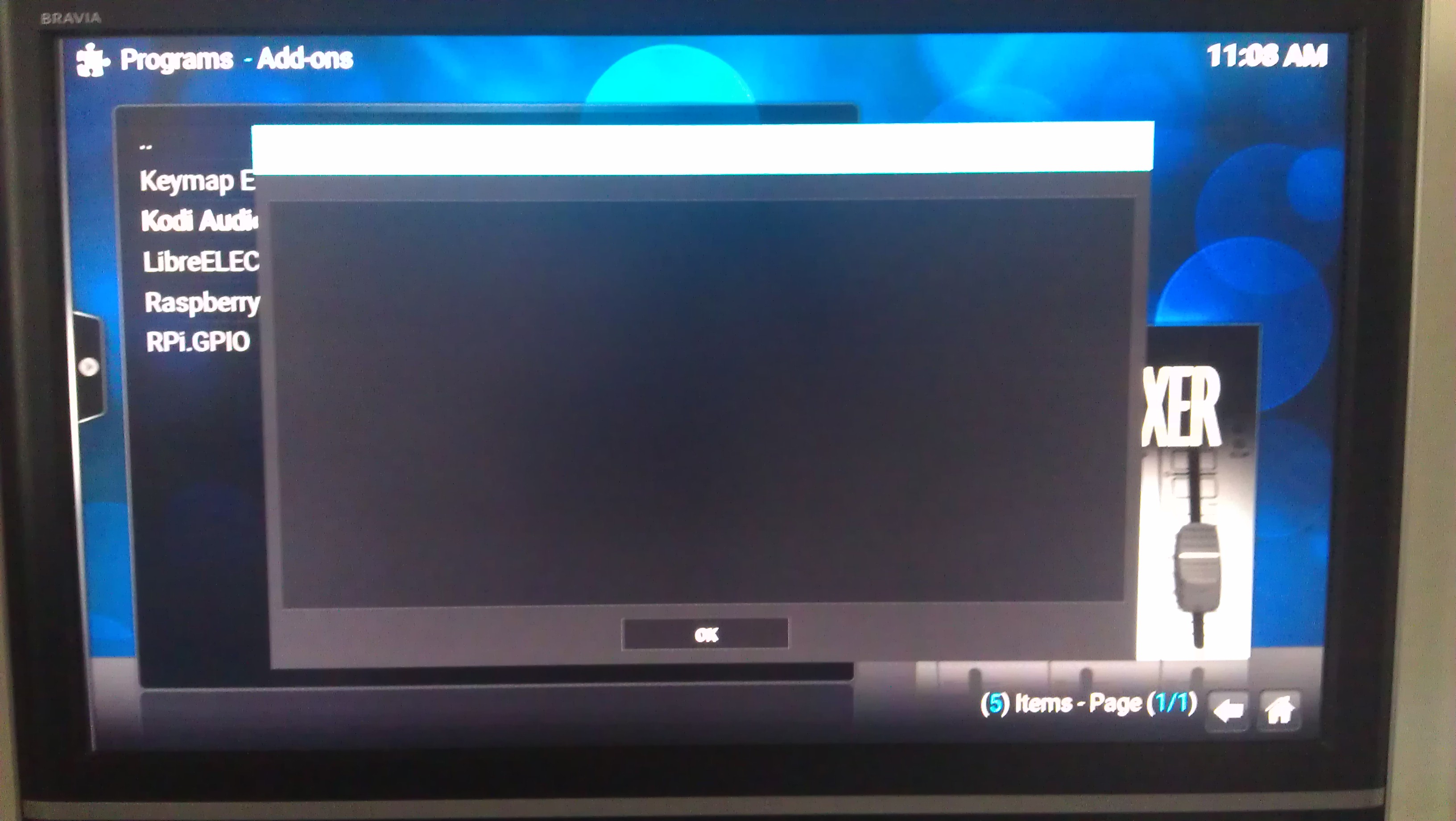

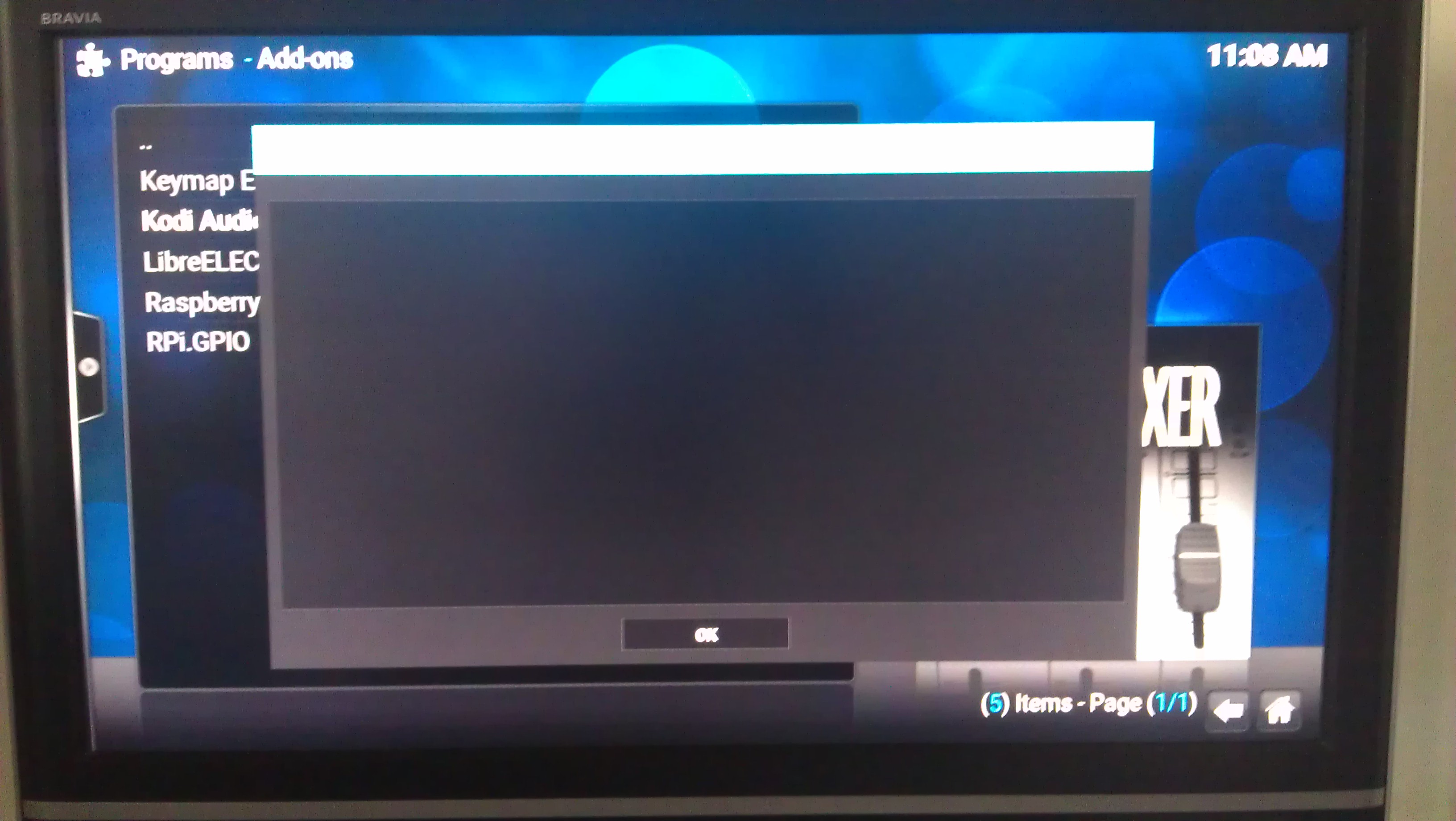

Hi, I have LibreELEC 7.90.008 installed on RPi3, and also I have installed Kodi Audio Mixer to control bass and treble amounts but there is nothing to change in its window! the mixer 's window is flat and empty (without any options). There is just "OK" button.
-
Hi, I updated my LibreELEC to 008 but LCD does not work yet.
I installed LCDproc from LibreELEC repo and set the driver to hd44780 but nothing happened.
Does anyone know how to fix it?
Back to 006 for now! -
5 days without any answer! here is my post No signal bar in codec info view at the beginning of opening a live TV stream
I added another thread here No signal bar in codec info view at the beginning of opening a live TV stream and yet nothing!
maybe its only my problem. -
Oh thank god!
I thought I m the only one with those glitches when music is on.
RPi3 is my hardware BTW. -
OK. Let see what they do!
-
Hi, I run LibreELEC on RPi3. Everything works great.But when I open a live TV stream I cannot see the amount of the signal and SNR bars in codec info view for about 10 or 15 min.Then suddenly it fixes the problem automatically. Why? Would it be possible to display Signal and SNR from the beginning?
-
Hi awiouy.
I know LCDproc is an Addon for Kodi and also I know how to install it from repo and as I said it was working until v7.90.006
BTW I will report you if service.lcdd-8.0.100.zip works.
Thanks. -
Hi, I updated LibreELEC to v7.90.007 on my RPi3 device but suddenly LCDproc stopped working! In LibreELEC settings Service panel there is no LCD drivers names in the dropdown list.
