Raspberry PI Green Storage LED Blinking

BlueLiquidCell · March 2, 2017 at 5:03 PM

Hey,

i was just wondering about the Green Storage LED on the Rasperry PI.
With my Setup its constantly blinkling (about 1Hz). It all works perfect, so its just a cosmetic issue.
Normally this means write acess to the SD card, which would not be good all the time.
Or does the LED have some kind of other Function on LibreELEC?
Could find any Information about this in the Forum or Internet.

My Setup:
Raspberry PI 3
Samsung 32Gb Evo Plus
LibreELEC-RPi2.arm-8.0.0

I found a way to disable the LEDs, but I'm more curious about the function/purpose of the LED.

Thanks
Chris

**Klojum** · March 2, 2017 at 5:23 PM Official Post

If it's a slow SD card, writes to the SD will take time.
Also, the thumbnail caching process writes to the SD card.
This may be more frequent in the the beginning.

BlueLiquidCell · March 2, 2017 at 5:40 PM

Hi Klojum,

thanks for the quick supply.

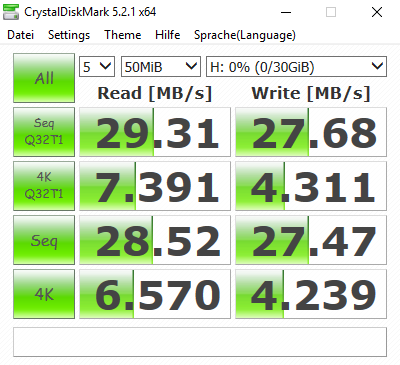

I'm using a Samsung 32Gb Evo Plus, its one of the fastest cards available. See attached stats from CrystalDiskMark. (I will add this to the first post)
I only added about 100 Movies for testing and it was still blinking after 2-3 hours. So I doubt that it was still doing some caching.

Chris

**Iridium** · March 2, 2017 at 6:39 PM Official Post

Adding movies for the first time can take a long time, even after scanning has completed as it has to extract codec information from each file.
Your best bet is to install LE addon System-tools and use nmon from ssh to see what is actually happening - cpu, disk I/O etc.

Have you checked /storage/,kodi/temp/kodi.log? for any clues. Post log file if you cannot see anything obvious.

BlueLiquidCell · March 2, 2017 at 6:44 PM

Thanks for the comment.

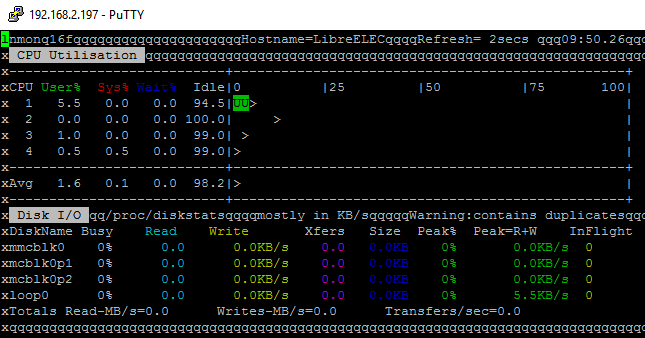

I installed system-tools and looked at some values. (c and D, see screenshot)
It shows no traffic on the Disks, but the green LED is still blinking?! Any other values I should look at?

Here is kodi.log

Code

12:46:44.378 T:1961873408  NOTICE: special://profile/ is mapped to: special://masterprofile/
12:46:44.378 T:1961873408  NOTICE: -----------------------------------------------------------------------
12:46:44.378 T:1961873408  NOTICE: Starting Kodi (17.0 Git:a10c504). Platform: Linux ARM 32-bit
12:46:44.378 T:1961873408  NOTICE: Using Release Kodi x32 build (version for Raspberry Pi)
12:46:44.378 T:1961873408  NOTICE: Kodi compiled Feb 17 2017 by GCC 6.2.0 for Linux ARM 32-bit version 4.9.8 (264456)
12:46:44.379 T:1961873408  NOTICE: Running on LibreELEC (official) - Version: 8.0.0, kernel: Linux ARM 32-bit version 4.9.8
12:46:44.379 T:1961873408  NOTICE: FFmpeg version/source: ffmpeg-3.1-kodi
12:46:44.379 T:1961873408  NOTICE: Host CPU: ARMv7 Processor rev 4 (v7l), 4 cores available
12:46:44.379 T:1961873408  NOTICE: ARM Features: Neon enabled
12:46:44.379 T:1961873408  NOTICE: special://xbmc/ is mapped to: /usr/share/kodi/
12:46:44.379 T:1961873408  NOTICE: special://xbmcbin/ is mapped to: /usr/lib/kodi
12:46:44.379 T:1961873408  NOTICE: special://xbmcbinaddons/ is mapped to: /usr/lib/kodi/addons
12:46:44.379 T:1961873408  NOTICE: special://masterprofile/ is mapped to: /storage/.kodi/userdata
12:46:44.379 T:1961873408  NOTICE: special://envhome/ is mapped to: /storage
12:46:44.379 T:1961873408  NOTICE: special://home/ is mapped to: /storage/.kodi
12:46:44.379 T:1961873408  NOTICE: special://temp/ is mapped to: /storage/.kodi/temp
12:46:44.379 T:1961873408  NOTICE: special://logpath/ is mapped to: /storage/.kodi/temp
12:46:44.379 T:1961873408  NOTICE: The executable running is: /usr/lib/kodi/kodi.bin
12:46:44.379 T:1961873408  NOTICE: Local hostname: LibreELEC
12:46:44.379 T:1961873408  NOTICE: Log File is located: /storage/.kodi/temp//kodi.log
12:46:44.379 T:1961873408  NOTICE: -----------------------------------------------------------------------
12:46:44.510 T:1961873408   ERROR: DBus: Error org.freedesktop.DBus.Error.ServiceUnknown - The name org.freedesktop.UPower was not provided by any .service files
12:46:44.518 T:1961873408  NOTICE: load settings...
12:46:44.628 T:1961873408   ERROR: PulseAudio: Failed to connect context
12:46:44.628 T:1961873408  NOTICE: PulseAudio might not be running. Context was not created.
12:46:44.628 T:1961873408  NOTICE: Found 1 Lists of Devices
12:46:44.628 T:1961873408  NOTICE: Enumerated PI devices:
12:46:44.628 T:1961873408  NOTICE:     Device 1
12:46:44.628 T:1961873408  NOTICE:         m_deviceName      : HDMI
12:46:44.628 T:1961873408  NOTICE:         m_displayName     : HDMI
12:46:44.628 T:1961873408  NOTICE:         m_displayNameExtra:
12:46:44.628 T:1961873408  NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
12:46:44.629 T:1961873408  NOTICE:         m_channels        : FL,FR
12:46:44.629 T:1961873408  NOTICE:         m_sampleRates     : 8000,11025,16000,22050,24000,32000,44100,48000,88200,96000,176400,192000
12:46:44.629 T:1961873408  NOTICE:         m_dataFormats     : AE_FMT_FLOAT,AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S32LE,AE_FMT_S16LE,AE_FMT_FLOATP,AE_FMT_S32NEP,AE_FMT_S16NEP,AE_FMT_RAW
12:46:44.629 T:1961873408  NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_EAC3,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_512
12:46:44.629 T:1961873408  NOTICE:     Device 2
12:46:44.629 T:1961873408  NOTICE:         m_deviceName      : Analogue
12:46:44.629 T:1961873408  NOTICE:         m_displayName     : Analogue
12:46:44.629 T:1961873408  NOTICE:         m_displayNameExtra:
12:46:44.629 T:1961873408  NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
12:46:44.629 T:1961873408  NOTICE:         m_channels        : FL,FR
12:46:44.629 T:1961873408  NOTICE:         m_sampleRates     : 48000
12:46:44.629 T:1961873408  NOTICE:         m_dataFormats     : AE_FMT_FLOAT,AE_FMT_S32LE,AE_FMT_S16LE,AE_FMT_FLOATP,AE_FMT_S32NEP,AE_FMT_S16NEP
12:46:44.629 T:1961873408  NOTICE:         m_streamTypes     : No passthrough capabilities
12:46:44.629 T:1961873408  NOTICE:     Device 3
12:46:44.629 T:1961873408  NOTICE:         m_deviceName      : Both
12:46:44.629 T:1961873408  NOTICE:         m_displayName     : HDMI and Analogue
12:46:44.629 T:1961873408  NOTICE:         m_displayNameExtra:
12:46:44.629 T:1961873408  NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
12:46:44.629 T:1961873408  NOTICE:         m_channels        : FL,FR
12:46:44.629 T:1961873408  NOTICE:         m_sampleRates     : 48000
12:46:44.629 T:1961873408  NOTICE:         m_dataFormats     : AE_FMT_FLOAT,AE_FMT_S32LE,AE_FMT_S16LE,AE_FMT_FLOATP,AE_FMT_S32NEP,AE_FMT_S16NEP
12:46:44.629 T:1961873408  NOTICE:         m_streamTypes     : No passthrough capabilities
12:46:44.652 T:1961873408  NOTICE: Loaded settings file from special://xbmc/system/advancedsettings.xml
12:46:44.652 T:1961873408  NOTICE: Contents of special://xbmc/system/advancedsettings.xml are...
                                            <?xml version="1.0" encoding="UTF-8" ?>
                                            <advancedsettings>
                                              <showexitbutton>false</showexitbutton>
                                              <remotedelay>1</remotedelay>
                                              <fanartres>720</fanartres>
                                              <imageres>540</imageres>
                                              <samba>
                                                <clienttimeout>30</clienttimeout>
                                              </samba>
                                            </advancedsettings>
12:46:44.654 T:1961873408  NOTICE: No settings file to load (special://masterprofile/advancedsettings.xml)
12:46:44.654 T:1961873408  NOTICE: Default Video Player: VideoPlayer
12:46:44.654 T:1961873408  NOTICE: Default Audio Player: paplayer
12:46:44.654 T:1961873408  NOTICE: Disabled debug logging due to GUI setting. Level 0.
12:46:44.654 T:1961873408  NOTICE: Log level changed to "LOG_LEVEL_NORMAL"
12:46:44.654 T:1961873408  NOTICE: CMediaSourceSettings: loading media sources from special://masterprofile/sources.xml
12:46:44.656 T:1961873408  NOTICE: Loading player core factory settings from special://xbmc/system/playercorefactory.xml.
12:46:44.657 T:1961873408  NOTICE: Loaded playercorefactory configuration
12:46:44.657 T:1961873408  NOTICE: Loading player core factory settings from special://masterprofile/playercorefactory.xml.
12:46:44.657 T:1961873408  NOTICE: special://masterprofile/playercorefactory.xml does not exist. Skipping.
12:46:44.784 T:1961873408  NOTICE: Running database version Addons27
09:42:17.926 T:1961873408  NOTICE: ADDONS: Using repository repository.kodi.game
09:42:17.926 T:1961873408  NOTICE: ADDONS: Using repository repository.libreelec.tv
09:42:17.927 T:1961873408  NOTICE: ADDONS: Using repository repository.xbmc.org
09:42:18.008 T:1961873408  NOTICE: Raspberry PI firmware version: Jan 31 2017 17:44:07
                                            Copyright (c) 2012 Broadcom
                                            version 8d94fbc3bbdde25c29b18a2572a5c60ee75c56f3 (clean) (release)
09:42:18.008 T:1961873408  NOTICE: ARM mem: 752MB GPU mem: 256MB MPG2:0 WVC1:0
09:42:18.008 T:1961873408  NOTICE: cache.memorysize: 20MB libass.cache: 0MB
09:42:18.008 T:1961873408  NOTICE: Config:
                                            arm_freq=1200
                                            audio_pwm_mode=1
                                            config_hdmi_boost=5
                                            core_freq=400
                                            desired_osc_freq=0x36ee80
                                            disable_commandline_tags=2
                                            disable_l2cache=1
                                            force_eeprom_read=1
                                            force_pwm_open=1
                                            framebuffer_ignore_alpha=1
                                            framebuffer_swap=1
                                            gpu_freq=300
                                            hdmi_channel_map=8
                                            hdmi_force_cec_address=65535
                                            hdmi_ignore_cec_init=1
                                            init_uart_clock=0x2dc6c00
                                            lcd_framerate=60
                                            over_voltage_avs=0x186a0
                                            over_voltage_avs_boost=0x186a0
                                            pause_burst_frames=1
                                            program_serial_random=1
                                            sdram_freq=450
                                            temp_limit=85
09:42:18.008 T:1961873408  NOTICE: Config:
                                            device_tree=-
09:42:18.008 T:1961873408  NOTICE: InitWindowSystem: Using EGL Implementation: raspberrypi
09:42:18.011 T:1961873408  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 72.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 71.928070 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 75.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 72.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 71.928070 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 75.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1024 x 768 for display 0 with 1024 x 768 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1024 x 768 for display 0 with 1024 x 768 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1024 x 768 for display 0 with 1024 x 768 @ 70.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1024 x 768 for display 0 with 1024 x 768 @ 75.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1152 x 864 for display 0 with 1152 x 864 @ 75.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1280 x 1024 for display 0 with 1280 x 1024 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1280 x 1024 for display 0 with 1280 x 1024 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1280 x 1024 for display 0 with 1280 x 1024 @ 75.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1440 x 900 for display 0 with 1440 x 900 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1440 x 900 for display 0 with 1440 x 900 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1440 x 900 for display 0 with 1440 x 900 @ 75.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1440 x 1080 for display 0 with 1600 x 1200 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1440 x 1080 for display 0 with 1600 x 1200 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1680 x 1050 for display 0 with 1680 x 1050 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1680 x 1050 for display 0 with 1680 x 1050 @ 59.940063 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1728 x 1080 for display 0 with 1920 x 1200 @ 60.000000 Hz
09:42:18.011 T:1961873408  NOTICE: Found resolution 1728 x 1080 for display 0 with 1920 x 1200 @ 59.940063 Hz
09:42:18.012 T:1961873408  NOTICE: Found resolution 720 x 480 for display 0 with 720 x 480 @ 60.000000 Hz
09:42:18.012 T:1961873408  NOTICE: Found resolution 720 x 480 for display 0 with 720 x 480 @ 59.940063 Hz
09:42:18.012 T:1961873408  NOTICE: Found resolution 1280 x 720 for display 0 with 1280 x 720 @ 60.000000 Hz
09:42:18.012 T:1961873408  NOTICE: Found resolution 1280 x 720 for display 0 with 1280 x 720 @ 59.940063 Hz
09:42:18.012 T:1961873408  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 60.000000 Hz
09:42:18.012 T:1961873408  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 59.940063 Hz
09:42:18.012 T:1961873408  NOTICE: Found ([email protected]) at 41, setting to RES_DESKTOP at 16
09:42:18.012 T:1961873408  NOTICE: Checking resolution 47
09:42:18.324 T:1961873408  NOTICE: GL_VENDOR = Broadcom
09:42:18.324 T:1961873408  NOTICE: GL_RENDERER = VideoCore IV HW
09:42:18.324 T:1961873408  NOTICE: GL_VERSION = OpenGL ES 2.0
09:42:18.324 T:1961873408  NOTICE: GL_SHADING_LANGUAGE_VERSION = OpenGL ES GLSL ES 1.00
09:42:18.324 T:1961873408  NOTICE: GL_EXTENSIONS = GL_OES_compressed_ETC1_RGB8_texture GL_OES_compressed_paletted_texture GL_OES_texture_npot GL_OES_depth24 GL_OES_vertex_half_float GL_OES_EGL_image GL_OES_EGL_image_external GL_EXT_discard_framebuffer GL_OES_rgb8_rgba8 GL_OES_depth32 GL_OES_mapbuffer GL_EXT_texture_format_BGRA8888 GL_APPLE_rgb_422 GL_EXT_debug_marker
09:42:19.192 T:1872520096  NOTICE: Running database version Addons27
09:42:19.196 T:1872520096  NOTICE: Running database version ViewModes6
09:42:19.210 T:1872520096  NOTICE: Running database version Textures13
09:42:19.227 T:1872520096  NOTICE: Running database version MyMusic60
09:42:19.321 T:1765798816  NOTICE: Register - new cec device registered on cec->RPI: CEC Adapter (2708:1001)
09:42:19.327 T:1872520096  NOTICE: Running database version MyVideos107
09:42:19.332 T:1872520096  NOTICE: Running database version TV29
09:42:19.336 T:1872520096  NOTICE: Running database version Epg11
09:42:19.340 T:1961873408  NOTICE: start dvd mediatype detection
09:42:20.030 T:1961873408 WARNING: JSONRPC: Could not parse type "Setting.Details.SettingList"
09:42:20.456 T:1709175712  NOTICE: script.grab.fanart: Grab Fanart Service Started
09:42:20.495 T:1961873408  NOTICE: initialize done
09:42:20.495 T:1961873408  NOTICE: Running the application...
09:42:20.533 T:1961873408  NOTICE: starting zeroconf publishing
09:42:20.535 T:1961873408  NOTICE: CWebServer[8080]: Started
09:42:20.536 T:1961873408  NOTICE: starting upnp client
09:42:20.543 T:1581396896  NOTICE: ES: Starting UDP Event server on port 9777
09:42:20.548 T:1581396896  NOTICE: UDP: Listening on port 9777 (ipv6 : false)
09:42:21.068 T:1658954656 WARNING: CSkinInfo: failed to load skin settings
09:43:52.383 T:1961873408  NOTICE: Samba is idle. Closing the remaining connections

Display More

Couldn't see anything obviously wrong here either?

Could a be something special with the Raspberry PI 3 in contrast to PI 2?
The LED is blinking very constantly (not like write acess to the SD Card). Just like someone programmed it to blink once a second...
