[UNOFFICIAL][LE12][RK3228/RK3229][box] LibreELEC builds


    Hi. Your RAM is fine; you have 1GB of RAM in total. You might want to try the LE9.2 versions by knaerzche. If they manage to get the 2.4 GHz SV6051P Wi-Fi working, which works in LE12, it's causing problems. It's not the LE12 distribution itself, it's the motherboard that has just enough. If the knaerzche version works well for you, you can try zram with only 100MB, which might give you an extra 512MB. No more than that. Good luck, regards

    • Your RAM:
      SEC K4B2G0446C (x4)
      This code corresponds to Samsung DDR3 with this specification:
    • K4B2G0446C
    • 2G = 2 Gbit per chip
    • Typical organization: 2Gbit x16
    • Actual calculation
    • 2 Gbit = 256 MB
    • x4 chips → 256 MB × 4 = 1024 MB

    Hi to all.

    This is an amazing work, all works for my board. IR remote and Kodi works fine...but for my purpose i'd like the Wi-Fi to work. I've reused an old SD card and that doesn't bother me, but if I have to invest in a Wi-Fi flash drive... it needs to be cheap to buy (let me know if any cheap wifi usb working for this is available)

    I already read that SV6256P only works with linux 4.4 kernel. https://github.com/paolosabatino/ssv6x5x/tree/master

    I try build it from your code ilmich changing linux kernel version on my own pc (Windows with Docker) but guess too complex for me and no 'step by step' oficial documentation :/

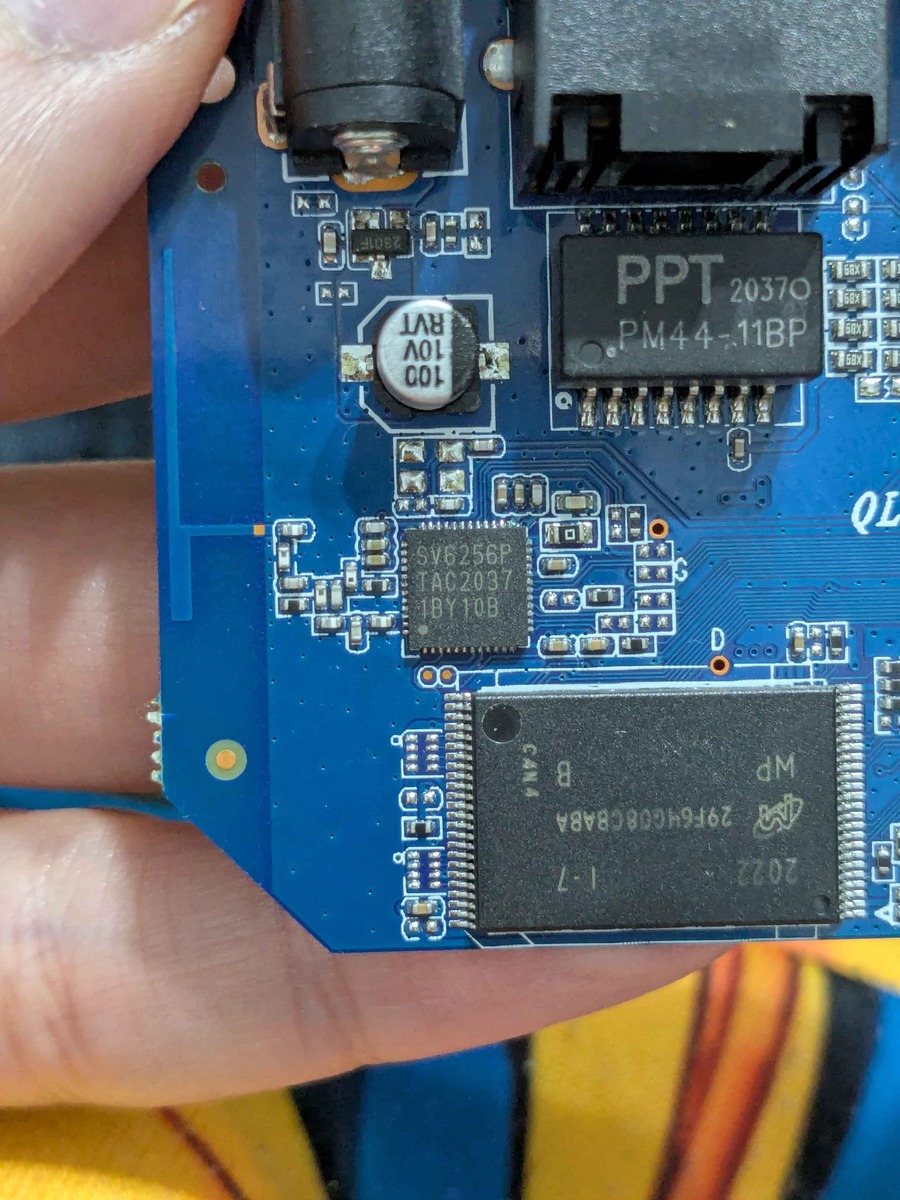

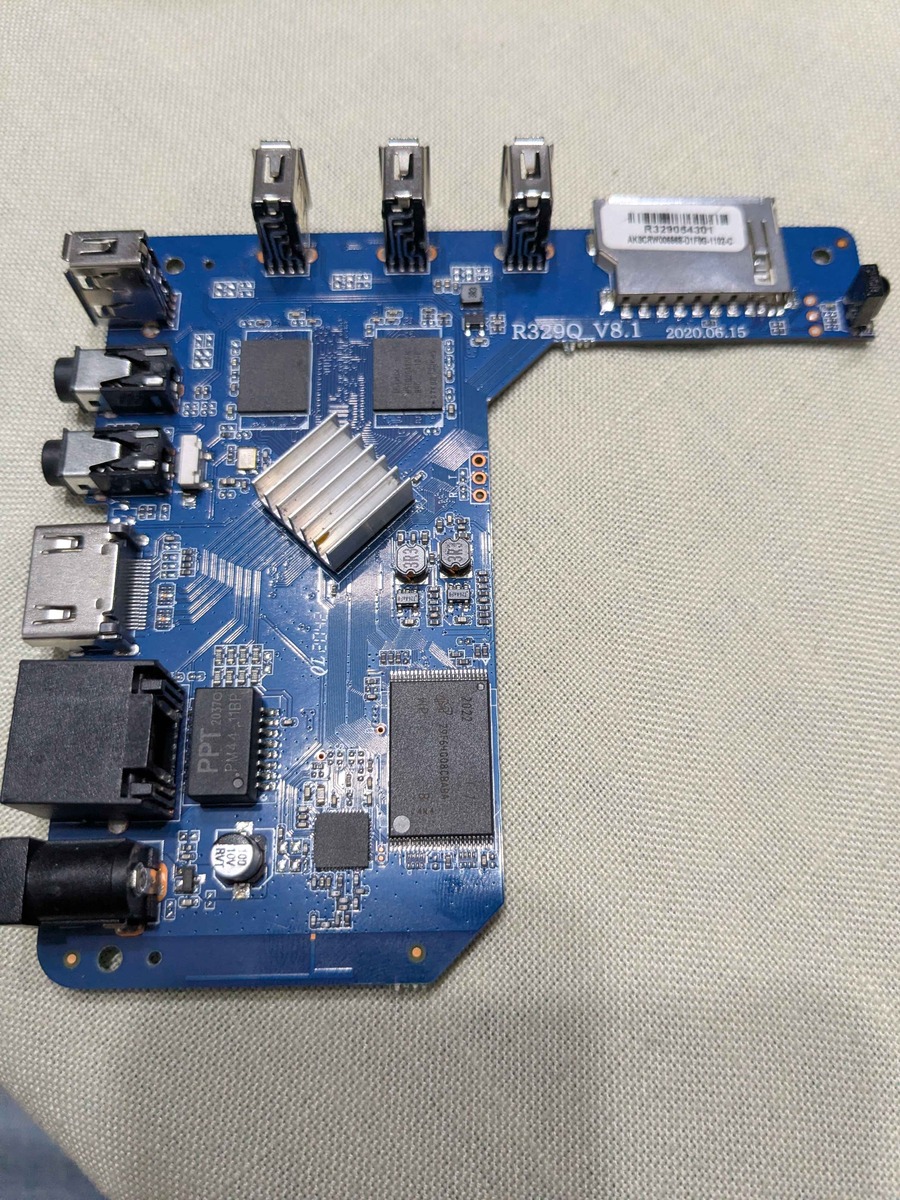

    I also attach photos of my board.

    • Best Answer

    sergio.damian.galvan analog video output isn't implemented at the moment, and I don't know if it ever will be. The driver isn't difficult to make, but I'm personally short on free time.

    finotti It's strange, the 6051p driver is the most tested and widely used (almost all my boards have it). I need a complete log (I haven't opened it, but I think you only attached the Kodi one). You can find the information on how to do this in the first post.

    Varo95 unfortunately, you're unlucky; that chip isn't well-supported. Introducing the 4.4 kernel into my builds requires a lot of work, and it's unlikely to work because Kodi uses the mainline kernel's hardware decoding support, which is different from the 4.4 kernel's. As for USB Wi-Fi devices, I've never encountered one that didn't work (almost all work with new kernels, or at least there's a driver I could include). They also work better than integrated Wi-Fi because:

    - integrated chip drivers are often soft-mac, meaning the CPU handles channel encryption, which overloads the board.
    - antennas are practically non-existent, so reception is poor.

    Quote from ilmich

    sergio.damian.galvan analog video output isn't implemented at the moment, and I don't know if it ever will be. The driver isn't difficult to make, but I'm personally short on free time.

    finotti It's strange, the 6051p driver is the most tested and widely used (almost all my boards have it). I need a complete log (I haven't opened it, but I think you only attached the Kodi one). You can find the information on how to do this in the first post.


    Thanks for the reply. It's true, for some reason TVE@20053E00 wasn't implemented for the RK3228, but it was for the RK3288, 3328, etc. I discovered this the hard way: compiling the driver and DRM rejected me, even killing the video, because VoP@ doesn't accept it as a port for TVE@. I had to downgrade to kernel 4.4, where I'll have to recompile my applications. I had everything working in 6.6, but TVE@ was non-negotiable with my superiors. Thanks

    Starting from the official LE-12.2 (latest today), I was able to port ilmich 's le12-rk322x-wip on the latest. Had to remove a couple of the RTL81xx drivers as they were not easy to compile on latest kernel, but re-enabled 8723CS so my T95d box has wifi again!

    There's probably more to tidy up, but I've aimed at maintaining all RK3xxx there (not tested).

    Attached: git diff official/libreelec-12.2 HEAD

    Quote from sydra

    Starting from the official LE-12.2 (latest today), I was able to port ilmich 's le12-rk322x-wip on the latest. Had to remove a couple of the RTL81xx drivers as they were not easy to compile on latest kernel, but re-enabled 8723CS so my T95d box has wifi again!

    There's probably more to tidy up, but I've aimed at maintaining all RK3xxx there (not tested).

    Attached: git diff official/libreelec-12.2 HEAD

    sydra Thanks a lot. Do you think you could make a pull request on my github repository? I've started upgrading, but it's a bit of a hassle because the kernel suddenly changed, and I had to revise a few things (with Libreelec 13 I'll have to revise a few things, because it's becoming difficult to maintain everything). Maybe we can join forces.
