N2 kernel issue

rellla · June 17, 2024 at 11:32 AM

Hi,

i also have boot problems from SD, but with Odroid N2+:

Quote

G12B:BL:6e7c85:2a3b91;FEAT:E0F83180:402000;POC:F;RCY:0;EMMC:800;NAND:81;SD?:0;SD:0;READ:0;0.
bl2_stage_init 0x01
bl2_stage_init 0x81
hw id: 0x0000 - pwm id 0x01
bl2_stage_init 0xc1
bl2_stage_init 0x02
no sdio debug board detected
L0:00000000
L1:00000703
L2:0000c067
L3:14000020
B2:00402000
B1:e0f83180
TE: 353614
BL2 Built : 06:17:13, Jun 28 2019. g12b gf0505d7-dirty - qi.duan@droid13
Board ID = 5
Set A53 clk to 24M
Set A73 clk to 24M
Set clk81 to 24M
A53 clk: 1200 MHz
A73 clk: 1200 MHz
CLK81: 166.6M
smccc: 0005ad81
DDR driver_vesion: LPDDR4_PHY_V_0_1_14 build time: Jun 28 2019 06:17:09
board id: 5
Load FIP HDR from SD, src: 0x00010200, des: 0xfffd0000, size: 0x00004000, part: 0
fw parse done
Load ddrfw from SD, src: 0x00060200, des: 0xfffd0000, size: 0x0000c000, part: 0
Load ddrfw from SD, src: 0x00038200, des: 0xfffd0000, size: 0x00004000, part: 0
PIEI prepare done
fastboot data load
fastboot data verify
verify result: 255
Cfg max: 2, cur: 1. Board id: 255. Force loop cfg
DDR4 probe
ddr clk to 1320MHz
Load ddrfw from SD, src: 0x00014200, des: 0xfffd0000, size: 0x0000c000, part: 0
Check phy result
INFO : End of initialization
INFO : End of read enable trainin*
INFO : End of fine write leveling
INFO : End of read dq deskew trainin*
INFO : End of MPR read delay center optimization
INFO : End of Write leveling coarse delay
INFO : End of write delay center optimization
INFO : End of read delay center optimization
INFO : End of max read latency trainin*
INFO : Trainin* has run successfully!
1D trainin* succeed
Load ddrfw from SD, src: 0x00020200, des: 0xfffd0000, size: 0x0000c000, part: 0
Check phy result
INFO : End of initialization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : Trainin* has run successfully!
R0_RxClkDly_Margin==82 ps 7
R0_TxDqDly_Margi==118 ps 10

R1_RxClkDly_Margin==0 ps 0
R1_TxDqDly_Margi==0 ps 0
dwc_ddrphy_apb_wr((0<<20)|(2<<16)|(0<<12)|(0xb0):0001
2D trainin* succeed
auto size-- 65535DDR cs0 size: 2048MB
DDR cs1 size: 2048MB
DMC_DDR_CTRL: 00600024DDR size: 3928MB
cs0 DataBus test pass
cs1 DataBus test pass
cs0 AddrBus test pass
cs1 AddrBus test pass
pre test bdlr_100_average==407 bdlr_100_min==407 bdlr_100_max==407 bdlr_100_cur==407
aft test bdlr_100_average==407 bdlr_100_min==407 bdlr_100_max==407 bdlr_100_cur==407
non-sec scramble use zero key
ddr scramble enabled
100bdlr_step_size ps== 407
result report
boot times 0Enable ddr reg access
Load FIP HDR from SD, src: 0x00010200, des: 0x01700000, size: 0x00004000, part: 0
Load BL3X from SD, src: 0x0006c200, des: 0x0175c000, size: 0x000f3800, part: 0
0.0;M3 CHK:0;cm4_sp_mode 0
E30HDR
MVN_1=0x00000000
MVN_2=0x00000000
[Image: g12b_v1.1.3375-8f9c8a7 2019-01-24 10:44:46 guotai.shen@droid11-sz]
OPS=0x40
ring efuse init
chipver efuse init
29 0c 40 00 01 1d 0a 00 00 0c 31 32 32 50 30 50
[0.019859 Inits done]
secure task start!
high task start!
low task start!
run into bl31
NOTICE: BL31: v1.3(release):ab8811b
NOTICE: BL31: Built : 15:03:31, Feb 12 2019
NOTICE: BL31: G12A normal boot!
ERROR: Error initializing runtime service opteed_fast
<debug_uart>

U-Boot 2024.04 (Jun 12 2024 - 11:18:03 +0200) odroid-n2/n2-plus
Model: Hardkernel ODROID-N2
SoC: Amlogic Meson G12B (S922X) Revision 29:c (40:2)
DRAM: 1 GiB (effective 3.8 GiB)
Core: 400 devices, 30 uclasses, devicetree: separate
MMC: sd@ffe05000: 0, mmc@ffe07000: 1
Loading Environment from nowhere... OK
In: usbkbd,serial
Out: serial
Err: serial
Board variant: n2-plus
Net: eth0: ethernet@ff3f0000
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
1: LibreELEC
Retrieving file: /KERNEL
append: boot=LABEL=LIBREELEC disk=LABEL=STORAGE quiet systemd.debug_shell=ttyAML0 console=ttyAML0,115200n8 console=tty0
Retrieving file: /amlogic/amlogic/meson-g12b-odroid-n2-plus.dtb
Skipping fdtdir /amlogic/ for failure retrieving dts
## Booting kernel from Legacy Image at 08080000 ...
Image Name:
Image Type: AArch64 Linux Kernel Image (lzo compressed)
Data Size: 12864965 Bytes = 12.3 MiB
Load Address: 01d80000
Entry Point: 01d80000
Verifying Checksum ... OK
## Flattened Device Tree blob at f0f3ca50
Booting using the fdt blob at 0xf0f3ca50
Working FDT set to f0f3ca50
Uncompressing Kernel Image to 1d80000
Moving Image from 0x1d80000 to 0x1e00000, end=3e50000
Loading Device Tree to 000000003ffe9000, end 000000003ffff34f ... OK
Working FDT set to 3ffe9000
Starting kernel ...
[ 0.327681] debugfs: Directory 'ff800280.cec' with parent 'regmap' already present!
[ 0.505853] Unable to handle kernel NULL pointer dereference at virtual address 00000000000000c8
[ 0.509060] Mem abort info:
[ 0.511763] ESR = 0x0000000096000004
[ 0.515547] EC = 0x25: DABT (current EL), IL = 32 bits
[ 0.520753] SET = 0, FnV = 0
[ 0.523752] EA = 0, S1PTW = 0
[ 0.526888] FSC = 0x04: level 0 translation fault
[ 0.531703] Data abort info:
[ 0.534541] ISV = 0, ISS = 0x00000004, ISS2 = 0x00000000
[ 0.539998] CM = 0, WnR = 0, TnD = 0, TagAccess = 0
[ 0.545051] GCS = 0, Overlay = 0, DirtyBit = 0, Xs = 0
[ 0.550257] [00000000000000c8] user address but active_mm is swapper
[ 0.556551] Internal error: Oops: 0000000096000004 [#1] PREEMPT SMP
[ 0.562736] Modules linked in:
[ 0.565755] CPU: 3 PID: 47 Comm: kworker/u24:1 Tainted: G W 6.9.3 #1
[ 0.573430] Hardware name: Hardkernel ODROID-N2 (DT)
[ 0.578347] Workqueue: events_unbound deferred_probe_work_func
[ 0.584126] pstate: 60000005 (nZCv daif -PAN -UAO -TCO -DIT -SSBS BTYPE=--)
[ 0.591025] pc : meson_dw_hdmi_unbind+0x10/0x30
[ 0.595510] lr : component_unbind+0x38/0x60
[ 0.599650] sp : ffff8000822139d0
[ 0.602928] x29: ffff8000822139d0 x28: ffff0000008adf00 x27: ffff000004b42140
[ 0.610000] x26: 0000000000000001 x25: ffff800080d295d0 x24: ffff000000f0f000
[ 0.617073] x23: 0000000000000001 x22: ffff00000034b810 x21: ffff000000f0f000
[ 0.624145] x20: ffff0000008adf40 x19: ffff000004b42140 x18: 0000000000000002
[ 0.631218] x17: 0000000000000068 x16: 0000000000000000 x15: ffff0000004020b8
[ 0.638290] x14: 0000000000000000 x13: ffff800081a98258 x12: ffff000000401ff0
[ 0.645363] x11: 0000000000000000 x10: ffffffffffffffff x9 : 0000000000000001
[ 0.652435] x8 : ffff0000e47a0050 x7 : 0000000000000250 x6 : ffff8000802425b4
[ 0.659508] x5 : ffff800081bc7710 x4 : 0000000000000000 x3 : ffff8000806eeb10
[ 0.666580] x2 : ffff000000f0f000 x1 : ffff00000034b810 x0 : 0000000000000000
[ 0.673653] Call trace:
[ 0.676068] meson_dw_hdmi_unbind+0x10/0x30
[ 0.680208] component_unbind+0x38/0x60
[ 0.684003] component_unbind_all+0xb8/0xc4
[ 0.688143] meson_drv_bind_master+0x200/0x578
[ 0.692542] meson_drv_bind+0x14/0x20
[ 0.696164] try_to_bring_up_aggregate_device+0x218/0x2dc
[ 0.701512] __component_add+0xa8/0x194
[ 0.705307] component_add+0x14/0x20
[ 0.708843] meson_dw_hdmi_probe+0x1c/0x28
[ 0.712897] platform_probe+0x68/0xd8
[ 0.716519] really_probe+0xc0/0x39c
[ 0.720055] __driver_probe_device+0x7c/0x14c
[ 0.724368] driver_probe_device+0x3c/0x120
[ 0.728508] __device_attach_driver+0xbc/0x158
[ 0.732907] bus_for_each_drv+0x84/0xe4
[ 0.736702] __device_attach+0xa0/0x1c0
[ 0.740497] device_initial_probe+0x14/0x20
[ 0.744637] bus_probe_device+0xb0/0xbc
[ 0.748432] deferred_probe_work_func+0xa0/0x100
[ 0.753003] process_one_work+0x1e4/0x43c
[ 0.756970] worker_thread+0x1ac/0x380
[ 0.760679] kthread+0xfc/0x108
[ 0.763784] ret_from_fork+0x10/0x20
[ 0.767322] Code: d503233f a9bf7bfd 910003fd f9403c00 (f9406400)
[ 0.773360] ---[ end trace 0000000000000000 ]---

Display More

This is with a manual built with LE13/VDRSternELEC. But the problem is the same with a downloadable LE12 from the SD Creator.

I will test with an older LE image and a most recent again. Not sure, what went wrong here.

**chewitt** · June 17, 2024 at 12:46 PM

I've moved the post into its own thread as the UART log shared shows the system boot from SD card without any errors (and thus whatever the issue is, it's not the same thing the C2 thread is about). Something goes wrong when it boots the kernel. The splat suggests something with the HDMI driver (so something in the display chain).

Can you successfully boot from an eMMC module to prove it really is SD related (which it almost certainly isn't)?

Can you successfully boot this image? https://chewitt.libreelec.tv/testing/LibreE…droid-n2.img.gz

rellla · June 17, 2024 at 1:07 PM

Thanks for moving the post.

I do not own an eMMC module, so i need to try SD. For a long time i used an arm-ARCH image which worked and yesterday i tried to boot the aarch64 one. I will try the linked image and give feedback. I have seen, there was some activity on drm/meson in the kernel, maybe it's one of those....

**chewitt** · June 17, 2024 at 4:34 PM

There's a drip-feed of bindings changes and other unimportant things to DRM code; nothing of any real meaning was changed in aeons. I also have an N2+ running here for boot testing LE changes and I'd notice kernel splats (none seen).

rellla · June 20, 2024 at 5:49 PM

Ok, https://releases.libreelec.tv/LibreELEC-AMLG…droid-n2.img.gz is booting

https://releases.libreelec.tv/LibreELEC-AMLGX.aarch64-12.0.0-odroid-n2.img.gz

and https://chewitt.libreelec.tv/testing/LibreE…droid-n2.img.gz aren't booting with the above error.

Could this be an aarch64 thing?

https://test.libreelec.tv/13.0/Amlogic/o…droid-n2.img.gz also doen't

Maybe i should build an LE13 arm image?

-> yeah, wtf https://test.libreelec.tv/12.0/Amlogic/o…droid-n2.img.gz is working.

Why does my odroid don't like 64bit?

rellla · June 23, 2024 at 1:37 PM

So, i did a manual bisect with the nightly builds and this is the result:

Code

LibreELEC-AMLGX.aarch64-12.0-nightly-20231210-e521363-odroid-n2.img.gz (sha256) ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240228-c542431-odroid-n2.img.gz (sha256) ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240321-1972ad8-odroid-n2.img.gz (sha256) ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240322-5d8c60d-odroid-n2.img.gz (sha256) ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240323-353213e-odroid-n2.img.gz (sha256) ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240326-968e285-odroid-n2.img.gz (sha256) not ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240403-90a58fa-odroid-n2.img.gz (sha256) not ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240416-8b61557-odroid-n2.img.gz (sha256) not ok
LibreELEC-AMLGX.aarch64-12.0-nightly-20240617-6b04385-odroid-n2.img.gz (sha256) not ok

The issue was introduced somewhere between 353213e and 968e285. I didn't have a look into the commit history but will do so.

I'm still wondering, why it seems to be me the only one having this issue...

**chewitt** · June 23, 2024 at 3:11 PM

Code

for i in $(git rev-list --ancestry-path 353213e..968e285); do git show $i; done

That ^ diffed the commits between the good/bad change and I don't see anything major in the list, but there are a load of u-boot and boot config changes. I know the bulk of them are good and really the single difference between N2 and other boards is the use of FDTDIR instead of normal FDT in extlinux.conf. So on a hunch, if you remove the trailing / from the FDTDIR line so it reads "FDTDIR /amlogic" not "FDTDIR /amlogic/" does it boot properly now?

rellla · June 23, 2024 at 4:53 PM

It wasn't the slash. I will go bisecting the commits ...

rellla · June 24, 2024 at 8:26 PM

chewitt https://github.com/LibreELEC/Libr…0bfec22f5cce5ce is the first bad commit

rellla · June 24, 2024 at 9:09 PM

There it is:

https://github.com/LibreELEC/Libr…53ae73750d240c5 is my showstopper!

Confirmed. If i readd that patch to a LE13, the odroid boots the kernel again.

**chewitt** · June 25, 2024 at 2:52 AM

That makes no sense to me because the default u-boot behaviour (without the patch) is to search for dtb files in /amlogic/ and that's where the files exist (image below shows the layout on the SD card). In older LE images the files are placed in the root folder, hence needing the patch.

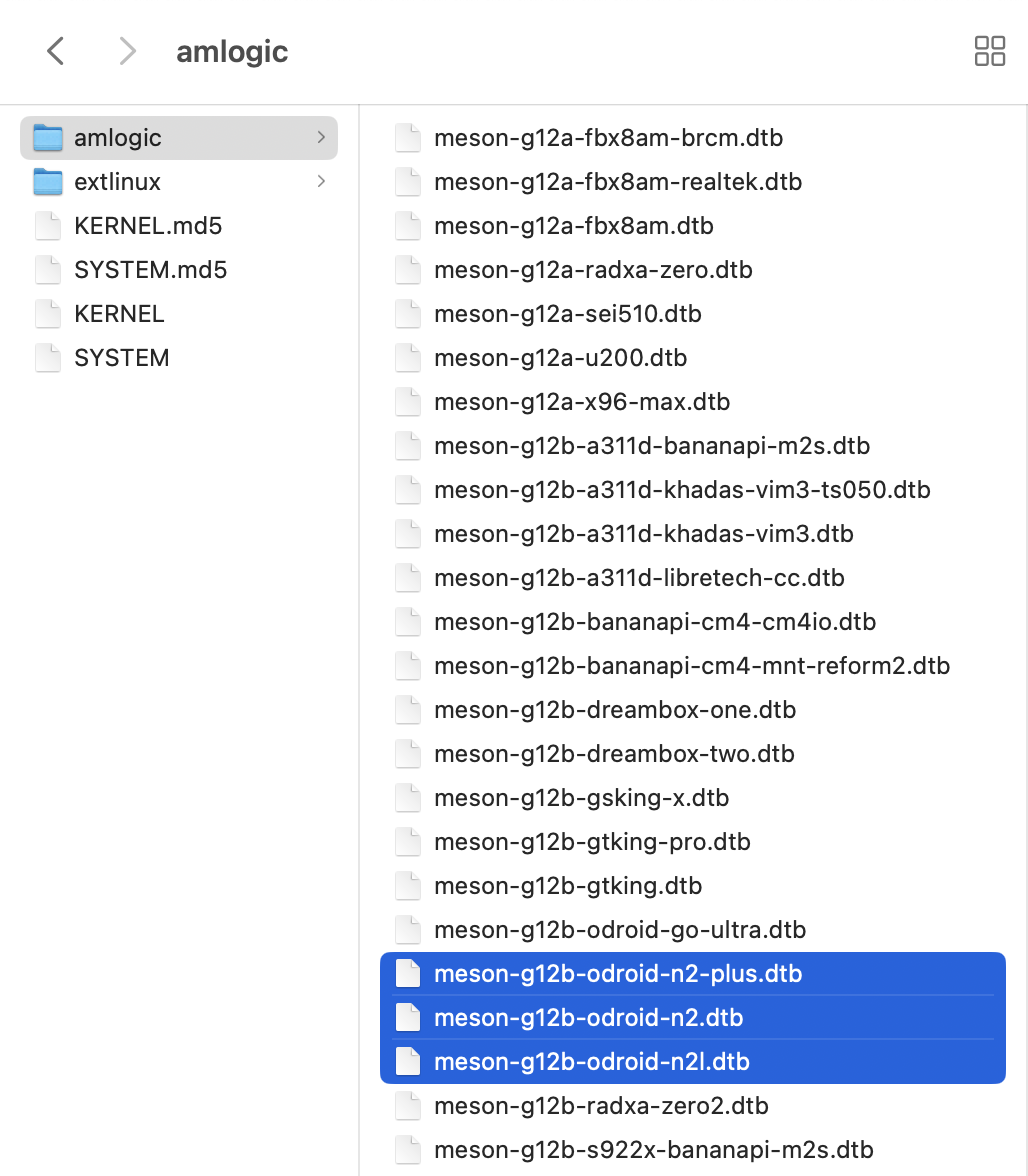

I'm wondering if the paths are being appended. If you create /amlogic/amlogic/meson-g12b-odroid-n2-plus.dtb on the default image (without the patch) does the board boot?

rellla · June 25, 2024 at 9:04 AM

Not tested, but I think the issue is definitely dtb-path-related, see my log above:

Quote

Retrieving file: /amlogic/amlogic/meson-g12b-odroid-n2-plus.dtb
Skipping fdtdir /amlogic/ for failure retrieving dts

I'm confused atm and did not dig into that too much, but i found this one https://github.com/u-boot/u-boot/…4064724c35c9a36 which seems to adress this problem?

**chewitt** · June 25, 2024 at 10:30 AM

Urgh.. I didn't see that the first time (need new eyeballs). So my guess about needing /amlogic/amlogic/*.dtb is correct. That patch fixes another variant of the issue but is only relevant for u-boot 2024.07 (we are on 2024.04).

rellla · June 25, 2024 at 10:52 AM

Quote from chewitt

Urgh.. I didn't see that the first time (need new eyeballs).

Me too

Afaics label_boot() in pxe_utils.c composes a new fdtfile from ftdir and ftdfile, so if fdtdir is "amlogic" and fdtfile has the "amlogic" prepend, we get a doubled amlogic in the end.

**chewitt** · June 26, 2024 at 3:16 AM

rellla please try this image: https://chewitt.libreelec.tv/testing/LibreE…droid-n2.img.gz

rellla · June 26, 2024 at 6:43 AM

Can do later. Is https://github.com/chewitt/LibreE…fc05a23839d53c5 the one which should solve it?

I already took that one for a self built LE13 and can confirm that it works.

rellla · June 26, 2024 at 8:26 PM

Hi chewitt , short answer: Works.

**chewitt** · June 27, 2024 at 7:18 AM

Thanks for confirming. I'll push some changes out.

EDIT, fix merged to master now. Separate fix will go to LE12 in a couple of days I'd guess.
