Some questions about package.mk structure

nuive · July 13, 2021 at 2:20 AM

Hi there,

I'm working on a customized image of LibreELEC 9.2.6 (for x86 and Raspberry Pi 3) and I need to add an application to the system which can't be added through Kodi Addons, so I'm creating a package.mk in order to get the App added on buildtime.

However, I have some questions regarding package.mk and dependencies, and I didn't find answers anywhere.

using the glib package.mk as an example, we have:

...

PKG_DEPENDS_HOST="libffi:host Python3:host meson:host"

PKG_DEPENDS_TARGET="toolchain pcre zlib libffi Python3:host util-linux"

...

I do not fully understand what are all this PKG_DEPENDS_* for. Looking at the build script, I've seen that you can specify to build a package like:

PROJECT=RPi DEVICE=RPi2 ARCH=arm scripts/build glib

Or

PROJECT=RPi DEVICE=RPi2 ARCH=arm scripts/build glib:host

I supose for the glib:host it uses as dependencies the PKG_DEPENDS_HOST variable, if I build glib:target it uses PKG_DEPENDS_TARGET... but my question is, what is this argument (:[host|bootstrap|init|target]) for? If I only make a normal build (without this argument) what libraries variable from the package.mk will it use?

And another question:

PKG_DEPENDS_TARGET="toolchain pcre zlib libffi Python3:host util-linux"

Here is a list of libraries needed to build glib. Why in the python3 one it says Python3:host and not Python3? What is the meaning of ":host" in this case?

Cheers!

**heitbaum** · July 13, 2021 at 8:53 AM

Hi nuive - probably not the best example to start with. glib is a package that builds for both the host that does the build and the target (your RPi3)

In the case of your xxxx:host question - python:host is built “for the host” to be able to build glib.

In your glib example - lib would be a dependency (on the RPi3 for your app)

What application are you trying to package, might be able to give you some pointers on a package.mk to start with.

nuive · July 13, 2021 at 11:18 AM

Hi,

I'm trying to add Speech Dispatcher (Speech Dispatcher - Free(B)Soft), module for TexToSpeech.

I know that it won't be an easy module to add (it depends on some libraries, for building and for running). At the momment I have this:

--------------------

Code

PKG_NAME="speech-dispatcher"
PKG_VERSION="0.10.2"
PKG_SHA256="b06319f201e15e56c6296653af5bcfc300cb348e972d517df8b06eac77eae2dc"
PKG_LICENSE="LGPL"
PKG_SITE="https://freebsoft.org/speechd"
PKG_URL="https://github.com/brailcom/speechd/releases/download/$PKG_VERSION/$PKG_NAME-$PKG_VERSION.tar.gz"
PKG_DEPENDS_TARGET="toolchain glib (dotconf) libsndfile libpthread-stubs"
PKG_LONGDESC="Common high-level interface to TTS"

--------------------

The dotconf dependency is between () because it is not present on libreELEC, so I will have to add that package too.

Basically what I don't understand is what libraries I should add on PKG_DEPENDS_TARGET, PKG_DEPENDS_HOST... and which of them (if any) should be followed with the :[host|target|...] argument.

**heitbaum** · July 13, 2021 at 1:18 PM

Suggest you start with the below.

Diff

git diff HEAD
diff --git a/packages/audio/speech-dispatcher/package.mk b/packages/audio/speech-dispatcher/package.mk
new file mode 100644
index 0000000000..b1f786ea96
--- /dev/null
+++ b/packages/audio/speech-dispatcher/package.mk
@@ -0,0 +1,8 @@
+PKG_NAME="speech-dispatcher"
+PKG_VERSION="0.10.2"
+PKG_SHA256="b06319f201e15e56c6296653af5bcfc300cb348e972d517df8b06eac77eae2dc"
+PKG_LICENSE="LGPL"
+PKG_SITE="https://freebsoft.org/speechd"
+PKG_URL="https://github.com/brailcom/speechd/releases/download/${PKG_VERSION}/${PKG_NAME}-${PKG_VERSION}.tar.gz"+PKG_DEPENDS_TARGET="toolchain libsndfile libpthread-stubs"
+PKG_LONGDESC="Common high-level interface to TTS"

docker@d0b5f6c68aed:/var/media/DATA/home-rudi/LibreELEC.tv$ scripts/build speech-dispatcher

Display More

which will error with the following. Only add dependancies to packages that you error on or you want the package compiled against. E.g. if you don’t want to use the h264 codec in a video app, then don’t include it … etc.

Code

checking pkg-config is at least version 0.9.0... yes
checking for glib-2.0 >= 2.36... yes
checking for gthread-2.0... yes
checking for gmodule-2.0... yes
checking for dotconf >= 1.3... no
configure: error: Package requirements (dotconf >= 1.3) were not met:

No package 'dotconf' found

Consider adjusting the PKG_CONFIG_PATH environment variable if you
installed software in a non-standard prefix.

Alternatively, you may set the environment variables DOTCONF_CFLAGS
and DOTCONF_LIBS to avoid the need to call pkg-config.
See the pkg-config man page for more details.
FAILURE: scripts/build speech-dispatcher during configure_target (default)
*********** FAILED COMMAND ***********
${PKG_CONFIGURE_SCRIPT} ${TARGET_CONFIGURE_OPTS} ${PKG_CONFIGURE_OPTS_TARGET}
**************************************

Display More

As you are not developing a package that you need during the build process, all of your packages should be targets. And that is the default. So no need to use :host or :target for your development.

If for example you needed to use the “mkimg” program to build a package “mkimg” because onnof the steps in building “mkimg” properly is to creat some images, and that uses the newly compiled “mkimg” program. You will need to compile both a host and target “mkimg”. Host to create you images, and target to run on your RPi.

If you don’t need the mkimg program on your RPi, then you would only build mkimg:host.

Hope that helps.

Examples are cmake is a host only build.

nuive · July 14, 2021 at 1:46 AM

Thank you very much!

Yes, it helped a lot.

Now I'm having another problem... I'm adding the needed dotconf library. At the momment I have this package.mk (it is not completed)

Code

PKG_NAME="dotconf"
PKG_VERSION="1.3"
PKG_SHA256="f992c289ef4c56d3995f887e6e33f94a25153b630af4ae2e5ed505afb5790d0e"
PKG_LICENSE="LGPL"
PKG_SITE="https://github.com/williamh/dotconf"
PKG_URL="https://github.com/williamh/dotconf/archive/refs/tags/v$PKG_VERSION.zip"
PKG_DEPENDS_TARGET="toolchain"
PKG_LONGDESC="dot.conf configuration file parser"
PKG_TOOLCHAIN="manual"

pre_make_target() {
autoreconf -i
./configure
}

Display More

--------------------

When trying to build it for the Raspberry Pi with the command:

PROJECT=RPi ARCH=arm DEVICE=RPi2 scripts/build dotconf

I get (on the ./configure step):

configure: error: cannot run C compiled programs.

If you meant to cross compile, use `--host'.

See `config.log' for more details

How can I add the host variable to package.mk? What am I missing?

**heitbaum** · July 14, 2021 at 8:26 AM

You will want to remove the manual TOOLCHAIN and the pre_make

Try with:

Code

PKG_TOOLCHAIN="autotools"

The build system does most of the hard work (most of the time)

nuive · July 15, 2021 at 1:56 AM

Thanks, it worked. Finally I could add the dotconf library to LibreELEC.

Now I'm having another problem with the main package (Speech dispatcher).

--------------------

Code

PKG_NAME="speech-dispatcher"
PKG_VERSION="0.10.2"
PKG_SHA256="b06319f201e15e56c6296653af5bcfc300cb348e972d517df8b06eac77eae2dc"
PKG_LICENSE="LGPL"
PKG_SITE="https://freebsoft.org/speechd"
PKG_URL="https://github.com/brailcom/speechd/releases/download/$PKG_VERSION/$PKG_NAME-$PKG_VERSION.tar.gz"
PKG_DEPENDS_TARGET="toolchain glib dotconf libsndfile libpthread-stubs libtool"
PKG_LONGDESC="Common high-level interface to tts"
PKG_TOOLCHAIN="autotools"

--------------------

The autoreconf and ./configure stages work flawlessly, but when building it gives the following error:

speech_dispatcher-symbols.o:symbols.c:function insert_symbols: error: undefined reference to 'rpl_malloc'

Looking on google I've found that it is a problem with the ./configure script, which replaces the malloc function with rpl_malloc when it doesn't find the malloc function. But unless I'm mistaken, the malloc function is a system one. However, in configure.log I have:

configure:15893: checking for GNU libc compatible malloc

configure:15927: result: no

...

| #define HAVE_MALLOC 0

| #define malloc rpl_malloc

Am I missing something in order to access the rpl_malloc function, or to make the configure script be able to detect the malloc function propperly?

**mglae** · July 15, 2021 at 6:27 PM

This is an autotools issue use ac_cv_func_malloc_0_nonnull=yes like here.

nuive · July 16, 2021 at 8:27 PM

Thanks, it worked. I'd read about that on google, but I though there was a better solution to fix this problem... Finally I was able to build Speech Dispatcher into LibreELEC.

**heitbaum** · July 17, 2021 at 1:50 PM

Glad you got it all going 👍

nuive · July 20, 2021 at 9:52 PM

Hi again,

I'm having a new problem related to the addition of Speech Dispatcher.

When building it, it checks for additional Voice TTSs and if it finds them, it adds the respective modules.

I'm trying to generate the eSpeak Module, but it needs the espeak library for the process, so I added espeak:host as a dependency.

The eSpeak package wasn't able to generate host builds, so I edited it and could add the eSpeak libraries and include headers to the toolchain. However, when trying to build Speech Dispatcher with espeak support it says that file <espeak/speak_lib.h> does not exist, but the file speak_lib.h is inside $TOOLCHAIN/include/espeak.

It seems that the build process is ignoring the toolchain paths, even if toolchain is in the package.mk as a target dependency.

My current package.mk:

--------------------

Code

PKG_NAME="speech-dispatcher"
PKG_VERSION="0.10.2"
PKG_SHA256="b06319f201e15e56c6296653af5bcfc300cb348e972d517df8b06eac77eae2dc"
PKG_LICENSE="LGPL"
PKG_SITE="https://freebsoft.org/speechd"
PKG_URL="https://github.com/brailcom/speechd/releases/download/$PKG_VERSION/$PKG_NAME-$PKG_VERSION.tar.gz"
PKG_DEPENDS_TARGET="toolchain glib dotconf libsndfile libpthread-stubs libtool alsa-lib pulseaudio espeak:host"
PKG_LONGDESC="Common high-level interface to TTS"
PKG_TOOLCHAIN="autotools"


PKG_CONFIGURE_OPTS_TARGET="$PKG_CONFIGURE_OPTS_TARGET \
ac_cv_func_realloc_0_nonnull=yes \
ac_cv_func_malloc_0_nonnull=yes"

Display More

--------------------

**CvH** · July 21, 2021 at 11:10 AM Official Post

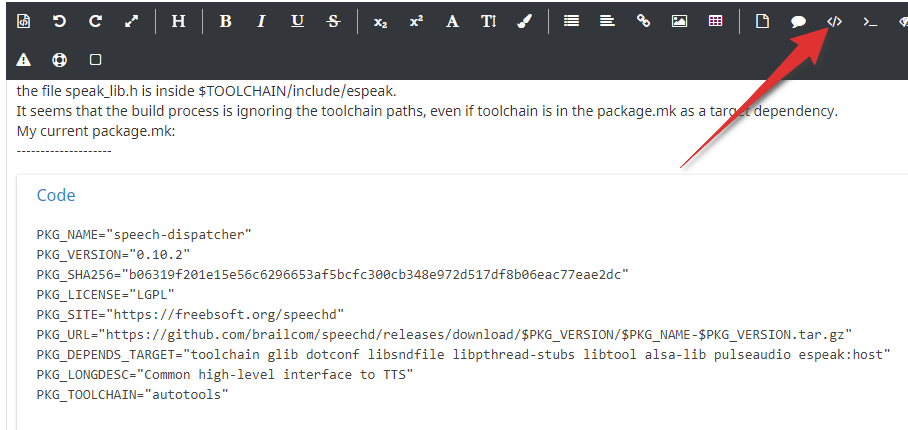

nuive pls use the code tag if you post "code", easier to read for us

**heitbaum** · July 21, 2021 at 12:38 PM

Quote from nuive
Hi again,
I'm having a new problem related to the addition of Speech Dispatcher.
When building it, it checks for additional Voice TTSs and if it finds them, it adds the respective modules.
I'm trying to generate the eSpeak Module, but it needs the espeak library for the process, so I added espeak:host as a dependency.
The eSpeak package wasn't able to generate host builds, so I edited it and could add the eSpeak libraries and include headers to the toolchain. However, when trying to build Speech Dispatcher with espeak support it says that file <espeak/speak_lib.h> does not exist, but the file speak_lib.h is inside $TOOLCHAIN/include/espeak.
It seems that the build process is ignoring the toolchain paths, even if toolchain is in the package.mk as a target dependency.
My current package.mk:
--------------------
Code
PKG_NAME="speech-dispatcher"
PKG_VERSION="0.10.2"
PKG_SHA256="b06319f201e15e56c6296653af5bcfc300cb348e972d517df8b06eac77eae2dc"
PKG_LICENSE="LGPL"
PKG_SITE="https://freebsoft.org/speechd"
PKG_URL="https://github.com/brailcom/speechd/releases/download/$PKG_VERSION/$PKG_NAME-$PKG_VERSION.tar.gz"
PKG_DEPENDS_TARGET="toolchain glib dotconf libsndfile libpthread-stubs libtool alsa-lib pulseaudio espeak:host"
PKG_LONGDESC="Common high-level interface to TTS"
PKG_TOOLCHAIN="autotools"


PKG_CONFIGURE_OPTS_TARGET="$PKG_CONFIGURE_OPTS_TARGET \
ac_cv_func_realloc_0_nonnull=yes \
ac_cv_func_malloc_0_nonnull=yes"
Display More
Can you share espeak/package.mk
Target depends on target generally.
…
Hypothetically…
Bob is a program that builds a file called bill.txt.
We want to use bill.txt as part of our build process for james.
E.g. cc -o james bill.txt James.c
Then bob:host makes sense… as “bob.exe” needs to run on you build host as a program to create bill.txt.
One of our examples would be cmake:host
cmake:target does not make sense - as when you are running LE10 on your RPi4 - you don’t want to run cmake. You only want to run cmake on the build host.
So if “espeak:host” is a program that generates abc.tts, bcd.tts - then espeak:host makes sense - on the build host.
If espeak:host builds a library called espeak.lib that is being used by speech-distpacher… e.g. cc -o speech-dispatcher speech-dispatcher.c -lespeak - this is INCORRECT using espeak:host … It should be espeak:target (which is the same as espeak.)
Ping me back on how you go.
--------------------
Display More

nuive · July 21, 2021 at 2:41 PM

Actually, eSpeak builds a library (libespeak.so) used by Speech Dispatcher, but it builds a static library too (.a file) and a header (speak_lib.h) which are needed to build the eSpeak module into Speech Dispatcher.

Here is the package.mk for eSpeak:

--------------------

Code

PKG_NAME="espeak"
PKG_VERSION="1.48.04-source"
PKG_SHA256="bf9a17673adffcc28ff7ea18764f06136547e97bbd9edf2ec612f09b207f0659"
PKG_LICENSE="GPL"
PKG_SITE="http://espeak.sourceforge.net/"
PKG_URL="http://sourceforge.net/projects/espeak/files/espeak/espeak-1.48/$PKG_NAME-$PKG_VERSION.zip"
PKG_DEPENDS_HOST="gcc:host"
PKG_DEPENDS_TARGET="toolchain"
PKG_LONGDESC="Text to Speech engine for English, with support for other languages"
PKG_TOOLCHAIN="manual"


pre_build_host() {
mkdir -p $PKG_BUILD/.$HOST_NAME
cp -RP $PKG_BUILD/* $PKG_BUILD/.$HOST_NAME
}


pre_make_host() {
cd .$HOST_NAME
cp src/portaudio19.h src/portaudio.h
}


make_host() {
make -C src \
CXXFLAGS="$CXXFLAGS" \
LDFLAGS="$LDFLAGS" \
AUDIO=""
}


makeinstall_host() {
make -C src \
CXXFLAGS="$CXXFLAGS" \
LDFLAGS="$LDFLAGS" \
AUDIO="" \
PREFIX="" \
DESTDIR=$TOOLCHAIN install
}


pre_build_target() {
mkdir -p $PKG_BUILD/.$TARGET_NAME
cp -RP $PKG_BUILD/* $PKG_BUILD/.$TARGET_NAME
}


pre_make_target() {
cd .$TARGET_NAME
cp src/portaudio19.h src/portaudio.h
}


make_target() {
make -C src \
CXXFLAGS="$CXXFLAGS" \
LDFLAGS="$LDFLAGS" \
AUDIO=""
}


makeinstall_target() {
make -C src \
CXXFLAGS="$CXXFLAGS" \
LDFLAGS="$LDFLAGS" \
AUDIO="" \
DESTDIR=$INSTALL install
}

Display More

--------------------

I've tried with espeak:host and with espeak, but in any case it throws the same error.

**CvH** · July 22, 2021 at 11:32 AM Official Post

nuive pls use the code tag if you post "code", easier to read for us

nuive · July 25, 2021 at 3:38 PM

Hi,

I'm having new questions regarding all of this. I don't know if I should create a new thread, so sorry if I should.

Speech Dispatcher needs to have a defined locale (if it hasn't it throws an exception of 'setlocale: no such file or directory') so I did the following:

1. In the Speech Dispatcher package directory I added a folder called locale, with files for an en_GB.UTF-8 locale.

2. I edited the package.mk so on the post_makeinstall step it copies the locale folder into /usr/lib.

3. I created as well another folder inside the package, profile.d, and inside this folder I added the file 10-locale.conf with the following content:

Code

export $LANG="en_GB.UTF-8"

I built the image and it worked flawlessly, Speech Dispatcher included.

However, I found that my 10-locale.conf would override any change made to the $LANG variable if, for example, the service.locale addon was installed, because the profile.d sets the addon profile variables before any other.

So I edited the 10-locale.conf file and added a check:

Code

if [ -z "$LANG" ] ; then
export LANG="en_GB.UTF-8"
fi

But now, even if the LANG variable returns "en_GB.UTF-8" when you do "echo $LANG" and the 'locale' command returns the correct values, Speech Dispatcher is giving me again the 'setlocale' error.

Does anyone know why is this happening?

nuive · July 28, 2021 at 9:09 PM

Quote from heitbaum

Finally I solved this.

As you say, espeak:host was wrong. The problem was in the makeinstall_target step, the command to install the library to the sysroot folder was missing, and that step was innecesary.

If someone has a similar problem, here is the definitive package.mk for espeak:

Code

PKG_NAME="espeak"
PKG_VERSION="1.48.04-source"
PKG_SHA256="bf9a17673adffcc28ff7ea18764f06136547e97bbd9edf2ec612f09b207f0659"
PKG_LICENSE="GPL"
PKG_SITE="http://espeak.sourceforge.net/"
PKG_URL="http://sourceforge.net/projects/espeak/files/espeak/espeak-1.48/$PKG_NAME-$PKG_VERSION.zip"
PKG_DEPENDS_TARGET="toolchain"
PKG_LONGDESC="Text to Speech engine for English, with support for other languages"
PKG_TOOLCHAIN="make"


PKG_MAKE_OPTS_TARGET="CXXFLAGS=$CXXFLAGS LDFLAGS=$LDFLAGS AUDIO="""


pre_make_target() {
cd src
cp portaudio19.h portaudio.h
}

Display More

Cheers

**heitbaum** · July 29, 2021 at 11:48 AM

Excellent. Glad you have got it working 👍

Some questions about package.mk structure

Similar Threads

Librespot Add-on

Need some information on RK3399 Minix x39

need help for extending libreElec
