Dreambox/Dreambox2 S922X device-tree experiments

  • @chewitt

    LibreELEC-AMLGX.arm-9.95.1-box.img.gz and also *10.0-nigthly* do not boot, they only freezes Box.


    I've tested nigthly with chainload: Image booting, only sound works, screen is black.

    I've build uboot for chainload from 2021.04

    I've got no idea how to patch u-boot.bin to enable screen.


    Other u-boot.ext from balbes150 could not handle lzo compressed Imgs.


    AMLGX.arm-9.95.1-box.log

    nightly.txt

  • I've built mainline-u-boot 2020.10 (config lzo). It boots chainloaded the Image with screen :-)

    I've also built kernel module dreambox rc-keymaps (patch), and a dtb (patch).

    rc works, but system-RGB-LED (gpio-leds) is ignorimg DTB's configs.


    Very nice running Image!!

  • I moved the posts. Please share a URL to a GitHub repo with the dtb or patches (or share the patches) and I will see what changes might be needed for the LEDs and buttons. It should be simple to add.

  • I tried several settings from several dtbs, not even:



    turns the LED off.


    The keymaps function so far with the original assignment (got only the two new one, i could add more later)


    But now I'll test the Image: LibreELEC-AMLGX.arm-9.95.1-box.img.gz


    and give feedback later.


    By the way (my nigthly build), I've notice one issue: while updating via update tar, it extracts all the dtbs to the LIBREELEC's root (mmc 0), not in the dtb folder, where they are stored normaly?

  • still on, no changes at all.

  • linux,rc-map-name = "rc-dreambox-one";


    I would only use:


    linux,rc-map-name = "rc-dreambox";


    they are using the same ones.

    Edited once, last by _emanuel_ ().

  • Suddenly the Exit menu started without turning on, starting on and off going in a loop, see log attached.

    I also had this in my build when I gave the DTB the


    Files

    • kodi.zip

      (226.74 kB, downloaded 16 times, last: )
  • This is all build in a chain of drivers hanging on the "fp-dev" driver,

    the Led is not listed in /sys/devices/platform/leds/ like in mainline.


    The main task of this fp-dev driver is the communication with the manufacturer boot loader: shutdown / reboot / standby / wakeup / ... The boot loader always gets the reboot result = boot loader (0x8), regardless of whether I have Android, LibreElec, ... Enter "shutdown -h now" always arrives reboot bootloader. Unless I'm using the original kernel with the fp-dev. That's why I built the Android and the CE with the original kernel in order to be able to use the drivers. I suspect that the original boot loader omitted the reboot result somewhere else.



    Here I looked for the GPIOs with an on-off hack driver and multimeter. :D


    Will flash the update

  • The build in remotes work great. :)


    LED - still fishing...

  • The fp-dev component sounds like an MCU so it's probably attached via i2c, but is also probably a custom part so you would need infos or sources from the manufacturer (or proper reverse-engineering skills) to figure it out.


    Do you have any high-resolution PCB photos? - is there an RTC chip and power cell attached? - I would expect yes (to support timed wake and record) but there is no mention of this in the vendor kernel device-tree or sources.

  • So I took a couple of nude photos, thank God the girl is still playing with me :saint:


    https://photos.app.goo.gl/7mGqKxuFeikQSaKBA



    By the way: I've also tested the Img on "dreamtv" (s905x2, u212) same manufacture, other vendor, android streaming box.

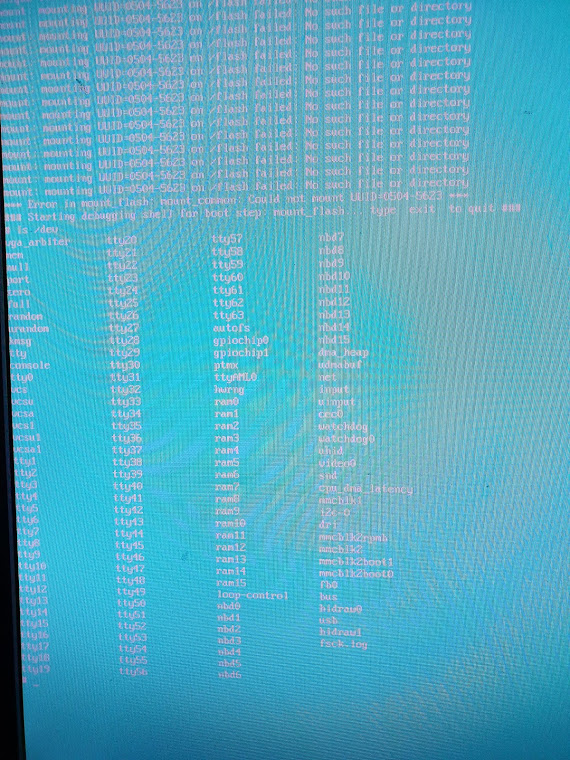

    it has a real problem with mmc 0, it can load kernel form it, but the later mount fails and the /dev/mmcblk0 does not exists only mmc 1 (emmc).

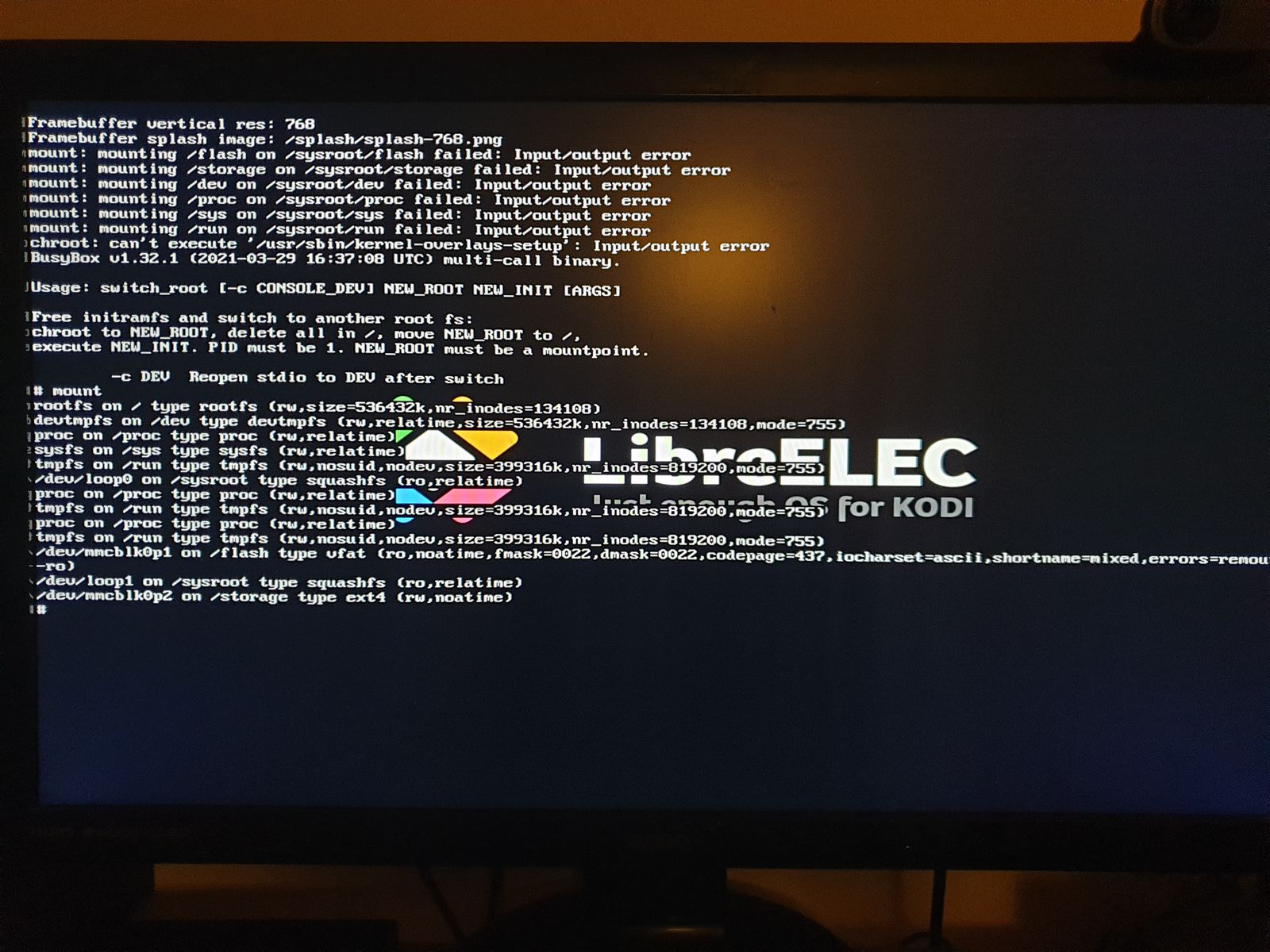

  • [ 2.298762] Run /init as init process


    ^ the boot log stops here because of the console ordering you've defined in boot params (the order matters):


    systemd.debug_shell=ttyAML0 console=ttyAML0,115200n8 console=tty0 <= correct ordering

    console=ttyAML0,115200n8 console=tty0 no_console_suspend systemd.debug_shell=ttyAML0 <= yours


    I also use boot=LABEL=LIBREELEC, disk=LABEL=STORAGE instead of UUIDs, so see if that makes a difference?
