TVHeadend Htsp client no signal

  • Hello,

    I'm running Tvheadend in Coreelec 9.0.2 and suddenly the error "HTSP Cliente no Signal" has been poping up in my tvBox.

    I've TVheadend Server 4.2 (9.0.117) and Tvheadend Htsp Client 4.4.18.1

    I'm getting following error. Could you please advice what should I do? I've review all configuration (muxes, network, users, ....) and appears to be ok

    2020-01-20 01:36:05.704 [ NOTICE] START: HTS Tvheadend version 4.2.7-34 ~ CoreELEC Tvh-addon v9.0.117 started, running as PID:2955 UID:0 GID:39, CWD:/ CNF:/storage/.kodi/userdata/addon_data/service.tvheadend42

    2020-01-20 01:36:05.708 [ INFO] htsp: Got connection from 127.0.0.1

    2020-01-20 01:36:05.708 [ INFO] htsp: 127.0.0.1: Welcomed client software: Kodi Media Center (HTSPv34)

    2020-01-20 01:36:05.710 [ INFO] htsp: 127.0.0.1 [ Kodi Media Center ]: Identified as user ''

    2020-01-20 01:36:05.728 [ INFO] avahi: Service 'Tvheadend' successfully established.

    2020-01-20 01:37:43.453 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71606 -- 404

    2020-01-20 01:37:43.453 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/72209 -- 404

    2020-01-20 01:37:43.455 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/72665 -- 404

    2020-01-20 01:37:43.458 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71593 -- 404

    2020-01-20 01:37:43.460 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71987 -- 404

    2020-01-20 01:37:43.462 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71735 -- 404

    2020-01-20 01:37:43.463 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71919 -- 404

    2020-01-20 01:37:47.265 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71606 -- 404

    2020-01-20 01:37:47.269 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/72209 -- 404

    2020-01-20 01:37:47.895 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/72665 -- 404

    2020-01-20 01:37:48.218 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71593 -- 404

    2020-01-20 01:37:48.524 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71987 -- 404

    2020-01-20 01:37:48.818 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71735 -- 404

    2020-01-20 01:37:49.110 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/71919 -- 404

    2020-01-20 01:37:50.014 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/72443 -- 404

    2020-01-20 01:37:53.677 [ ERROR] http: 127.0.0.1: HTTP/1.1 HEAD /imagecache/72443 -- 404

    2020-01-20 01:37:57.138 [ INFO] mpegts: 11126.5V in satelite - tuning on Availink avl6862 #0 : DVB-S #0

    2020-01-20 01:37:57.156 [ INFO] capmt: tvheadend: Starting CAPMT server for service "#0 HD" on adapter 0

    2020-01-20 01:37:57.156 [ INFO] subscription: 0001: "127.0.0.1 [ | Kodi Media Center ]" subscribing on channel "#0 HD", weigh t: 150, adapter: "Availink avl6862 #0 : DVB-S #0", network: "satelite", mux: "11126.5V", provider: "CANAL+", service: "#0 HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"

    2020-01-20 01:37:57.459 [ ERROR] http: 127.0.0.1: HTTP/1.1 GET /imagecache/71919 -- 404

    2020-01-20 01:37:57.968 [ ERROR] http: 127.0.0.1: HTTP/1.1 GET /imagecache/71919 -- 404

    2020-01-20 01:37:58.476 [ ERROR] http: 127.0.0.1: HTTP/1.1 GET /imagecache/71919 -- 404

    2020-01-20 01:38:01.000 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: grab /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala

    2020-01-20 01:38:01.013 [ INFO] spawn: Executing "/storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala"

    2020-01-20 01:38:04.401 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: grab took 3 seconds

    2020-01-20 01:38:07.554 [WARNING] subscription: 0001: service instance is bad, reason: No input detected

    2020-01-20 01:38:09.589 [ NOTICE] subscription: 0001: No input source available for subscription "127.0.0.1 [ | Kodi Media Center ]" to channel "#0 HD"

    2020-01-20 01:38:11.766 [ NOTICE] subscription: 0001: No input source available for subscription "127.0.0.1 [ | Kodi Media Center ]" to channel "#0 HD"

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: parse took 7 seconds

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: channels tot= 241 new= 0 mod= 0

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: brands tot= 0 new= 0 mod= 0

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: seasons tot= 0 new= 0 mod= 0

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: episodes tot=39069 new= 2 mod= 2042

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: broadcasts tot=39069 new= 2 mod= 2

    2020-01-20 01:38:12.142 [ INFO] xmltv: /storage/.kodi/addons/service.tvheadend42/bin/tv_grab_koala: scheduling save epg timer

    2020-01-20 01:38:13.767 [ NOTICE] subscription: 0001: No input source available for subscription "127.0.0.1 [ | Kodi Media Center ]" to channel "#0 HD"

    This error happens with all channels and yesterday tvheadend was working properly.

    Thanks in advance for your help

  • In order to help to find the issue, here are a few steps:

    Looks like you are pointing to dish of 11126.5V CANAL+.

    1. Can you share the satellite name? We can verify that TP indepently. It is better to confirm that satellite TP 1126.5V hasn't changed it. Most likely it wouldn't change but just want to make sure.

    2. Make sure your dish setup is also working. If you have another box or that same box running known good software, please confirm you have signal there.

    Based on above, feedback, we can think about what the next step is to debug.

    Richard (work for Availink and has product of AVL6221/AVL6862/AVL6882)

  • Thanks for your response....

    I'm not sure if information provided by me is the one asked :(

    Satellite: ASTRA 1 --> 19.2E : Astra 1KR/1L/1M/1N

    I've turned on debug in TVHeadend and get this

    2020-01-21 21:49:14.555 [ NOTICE]:subscription: 0017: No input source available for subscription "127.0.0.1 [ | Kodi Media Center ]" to channel "#0 HD"

    2020-01-21 21:49:15.391 [ INFO]:subscription: 0017: "127.0.0.1 [ | Kodi Media Center ]" unsubscribing from "#0 HD", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"

    2020-01-21 21:49:15.397 [ INFO]:mpegts: 10906V in satelite - tuning on Availink avl6862 #0 : DVB-S #0

    2020-01-21 21:49:15.398 [ INFO]:capmt: tvheadend: Starting CAPMT server for service "ANTENA 3 HD" on adapter 0

    2020-01-21 21:49:15.398 [ INFO]:subscription: 0019: "127.0.0.1 [ | Kodi Media Center ]" subscribing on channel "ANTENA 3 HD", w eight: 150, adapter: "Availink avl6862 #0 : DVB-S #0", network: "satelite", mux: "10906V", provider: "CANAL+", service: "ANTENA 3 HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"

    2020-01-21 21:49:25.397 [ INFO]:mpegts: 10906V in satelite - scan no data, failed

    2020-01-21 21:49:25.400 [WARNING]:subscription: 0019: service instance is bad, reason: No input detected

    2020-01-21 21:49:27.397 [ NOTICE]:subscription: 0019: No input source available for subscription "127.0.0.1 [ | Kodi Media Center ]" to channel "ANTENA 3 HD"

    Unfortunately I don't have other box to test the TV Signal

    Please, let me know if I have to provide any other log or configuration screenshot or whatelse.

    Thanks for your help

  • the satellite name you provided is Astra 1KR/1L/1M/1N, the TP is 10906V, which is marked as P. It is not free to air. It is normal you can't watch this TP.

    "2020-01-21 21:49:25.397 [ INFO]:mpegts: 10906V in satelite - scan no data, failed"

    10906 V

    tp 62

    Europe

    0
    movistar_es_plus.png Movistar+ p.gif

    DVB-S2 22000-2/3

    8PSK

    One solution I can think is to check the other free to air TP on the same satellite. Please add mux 10847 V and test it again.

    10847 V

    tp 58

    Europe

    0
    movistar_es_plus.png Movistar+ p.gif

    DVB-S 22000-5/6

    1-1058

    6.5

    T Viererbe

    190915


    .

    [Movistar+ test card]

    30102 163 256 Spa

    Canal Portada f.gif

    30150 171 124 Spa

    Cadena Dial f.gifs.gif

    30104 256 Spa

    M 80 Radio f.gifs.gif

    30104 257 Spa

    Radiolé f.gifs.gif

    30104 258 Spa

    Los 40 Dances f.gifs.gif

    30104 259 Spa

    Los 40 f.gifs.gif

    30104 260 Spa

    Cadena SER f.gifs.gif

    30104 262 Spa

    10862 H

    tp 59

    Europe

    0








  • Thanks, I'll do the test you say

    I've been watching those channels in Astra for months with TvHeadend and OSCAM with CCLines. In fact, those lines today appear as working

    My status is:

    OSCAM: CCLines working

    TvHeadend: Status working

    CoreElec: Connected to TvHeadend Server but with error "Htsp client no signal"

    With this situation, is it posible that the antenna or cable or any physical part of the installation has broke?

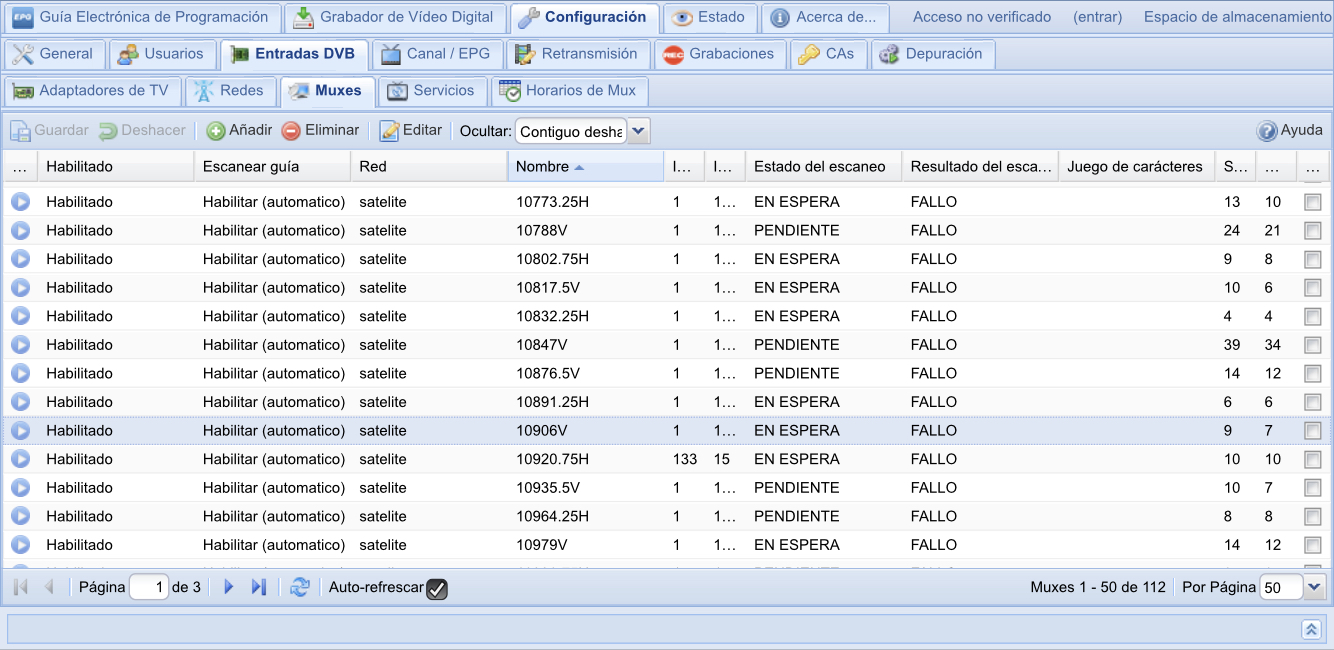

    This is my config. All muxes say

    Scan State PENDING OR WAITING

    Scan Result FAILED

    As I said before, could be the error due to a fail in sat antena ?

    Regards

    Edited once, last by sserna (January 22, 2020 at 8:51 PM).

  • Hello,

    I have similar issue
    I am running TVheadend server on the Android TV box without DVB. I load the server and my channels list, I see them there, I see the channels even in the TV under TVheadend HTSP Client. BUT when I try to open a channel I am getting the following message " No free adapter available"

    I try to create an user in the server ad add user pass on the TVheadend Client but still having the same issue " No free adapter available"

    Any kind of help to resolve the issue ?
