USB Audio - Creative Soundblaster X-FI 5.1 - no 5.1 surround sound, only stereo

  • Hi,

    I have the last development version of Libreelec right now (20190906173149-60568a1 9.80) for s905, but the issue is the same even for the stable one (i have tried stable coreelec and it is the same as well).

    When USB Sound card is connected, i could not see all the options related to the audio card, only default (@) and surround21, although when I tried aplay -L I got surround51 as well:

    LibreELEC:~ # aplay -L

    null

    Discard all samples (playback) or generate zero samples (capture)

    sysdefault:CARD=AMLGX

    AMLGX,

    Default Audio Device

    hdmi:CARD=AMLGX,DEV=0

    AMLGX,

    HDMI Audio Output

    sysdefault:CARD=Pro

    SB X-Fi Surround 5.1 Pro, USB Audio

    Default Audio Device

    front:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    Front speakers

    surround21:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    2.1 Surround output to Front and Subwoofer speakers

    surround40:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    4.0 Surround output to Front and Rear speakers

    surround41:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    4.1 Surround output to Front, Rear and Subwoofer speakers

    surround50:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    5.0 Surround output to Front, Center and Rear speakers

    surround51:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    5.1 Surround output to Front, Center, Rear and Subwoofer speakers

    surround71:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    7.1 Surround output to Front, Center, Side, Rear and Woofer speakers

    iec958:CARD=Pro,DEV=0

    SB X-Fi Surround 5.1 Pro, USB Audio

    IEC958 (S/PDIF) Digital Audio Output

    surround sound is working when testing using speaker-test:

    LibreELEC:~ # speaker-test -c 5 -d surround51:Pro


    speaker-test 1.1.9


    Playback device is default

    Stream parameters are 48000Hz, S16_LE, 5 channels

    Using 16 octaves of pink noise

    Rate set to 48000Hz (requested 48000Hz)

    Buffer size range from 96 to 87381

    Period size range from 48 to 43690

    Using max buffer size 87380

    Periods = 4

    was set period_size = 21845

    was set buffer_size = 87380

    Plug PCM: Route conversion PCM

    Transformation table:

    0 <- 0

    1 <- 1

    2 <- 4

    3 <- 5

    4 <- 2

    5 <- 3

    Its setup is:

    stream : PLAYBACK

    access : RW_INTERLEAVED

    format : S16_LE

    subformat : STD

    channels : 5

    rate : 48000

    exact rate : 48000 (48000/1)

    msbits : 16

    buffer_size : 87380

    period_size : 21845

    period_time : 455104

    tstamp_mode : NONE

    tstamp_type : MONOTONIC

    period_step : 1

    avail_min : 21845

    period_event : 0

    start_threshold : 87380

    stop_threshold : 87380

    silence_threshold: 0

    silence_size : 0

    boundary : 1431633920

    Slave: Hardware PCM card 1 'SB X-Fi Surround 5.1 Pro' device 0 subdevice 0

    Its setup is:

    stream : PLAYBACK

    access : MMAP_INTERLEAVED

    format : S16_LE

    subformat : STD

    channels : 6

    rate : 48000

    exact rate : 48000 (48000/1)

    msbits : 16

    buffer_size : 87380

    period_size : 21845

    period_time : 455104

    tstamp_mode : NONE

    tstamp_type : MONOTONIC

    period_step : 1

    avail_min : 21845

    period_event : 0

    start_threshold : 87380

    stop_threshold : 87380

    silence_threshold: 0

    silence_size : 0

    boundary : 1431633920

    appl_ptr : 0

    hw_ptr : 0

    0 - Front Left

    1 - Front Right

    2 - Unknown

    3 - Unknown

    4 - Unknown

    Time per period = 11.868019

    0 - Front Left

    1 - Front Right

    2 - Unknown

    3 - Unknown

    4 - Unknown

    Time per period = 13.657329

    0 - Front Left

    ...

    althoug there is missing label for 2nd,3rd and 4th speaker (dont know why)

    I have tried to add default ALSA card as surround51:Pro to the asound.conf:

    LibreELEC:~ # more /storage/.config/asound.conf

    pcm.!default {

    type plug

    slave.pcm {

    @func getenv

    vars [ ALSAPCM ]

    default "surround51:Pro"

    channels 6

    }

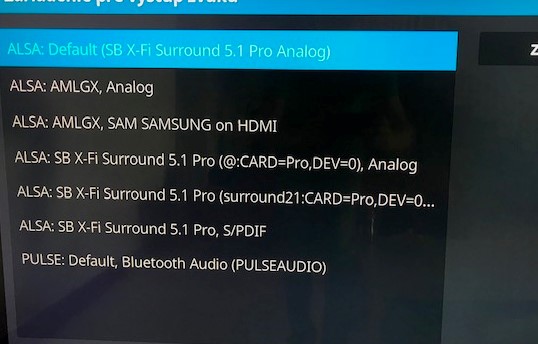

    After that I can see one more default ALSA card in the Libreelec Audio options, but still no 5.1 surround sound, only left and right speaker plays the music:

    When i speaker-test-ed default card, the test is successful as well and all 5 speakers works as expected:

    LibreELEC:~ # speaker-test -c 5 -d default


    speaker-test 1.1.9


    Playback device is default

    Stream parameters are 48000Hz, S16_LE, 5 channels

    Using 16 octaves of pink noise

    Rate set to 48000Hz (requested 48000Hz)

    ...

    boundary : 1431633920

    appl_ptr : 0

    hw_ptr : 0

    0 - Front Left

    1 - Front Right

    2 - Unknown

    3 - Unknown

    4 - Unknown

    Time per period = 11.863601

    0 - Front Left

    1 - Front Right

    2 - Unknown

    3 - Unknown

    ...

    I have tried fixed 5.1 speakers config in Libreelec Audio options and upmixing stereo switch as well. Nothing helped.

    Is there anything else I can try? How can I achieve to have surround51 option in the Libreelec audio selection box as there is surroun21 option right now.

    The card is definitely capable of 5.1 and system, because of successful speaker-test.

    Why there is no surround51:CARD=Pro item in the audio options in Librelec (and several other options as well)?

    Thanks for any hints.

    Edited 2 times, last by fcela (September 9, 2019 at 11:31 AM).

  • Is there any advise how to map channels explicitly to the speakers positions in asound.conf?

    Something like:

    pcm.mychannels51 {
    @args.0 SLAVE
    @args.SLAVE {
    type string
    default "surround51"
    }
    type route
    slave {
    pcm $SLAVE
    channels 6
    }
    ttable {
    0.0= 1
    1.4= 1
    2.5= 1
    3.2= 1
    4.1= 1
    5.3= 1
    }
    } thanks.

  • Hi!

    If anyone is still looking for a solution in 2023, I have the same USB sound card and i had a similar issue on Libreelec 10.0.3 on a Raspberry Pi 4. I traced it back to the erroneous detection of the sound card channels and i was able to fix it by creating a custom channel mapping.

    Just create a file named asound.conf in /storage/.config/ with the following content:

    pcm.myoutput {

    type hw

    card "Pro"

    chmap [ "FL,FR,FC,LFE,SL,SR" ]

    channels 6

    hint.description "my output with fixed chmap"

    }

    Then select the output in Kodi in Settings -> System -> Audio. It will be the one with the strange incomplete name.

    I haven't tested it too much but it seems to work.
