Display bug when switching output from hdmi to dvi or dvi to hdmi

1st Official Post

    Summary :

    When I used OpenElec with an older version, I was able to switch from DVI to HDMI and HDMI to DVI, without any display issue.

    Now, I am still able to switch, but the display becomes horrible. I have to apply a work around to make it usable.

    If initial openelec version is needed please let me know. I would need to restore it to have its version.

    Full hardware specs (GPU is most important) :

    ============================================

    Giada Cube N3 HDMI ION Atom 33

    CPU

    - Intel Atom N330 - 1.6GHz

    - Chipset NVIDIA ION Graphics

    Connecteurs :

    - USB2.0 : x 5

    - DVI : x 1

    - VGA : Adaptateur DVI / VGA

    - HDMI : x 1

    - E-SATA : x 1

    - Lecteur de cartes : 3 en 1

    - Audio In/Out : x 1

    - 100/1000M Lan : x 1


    The LibreELEC version you are running :

    =================================

    8.2.2

    In most cases a full debuglog

    ========================

    Please Find it attached : kodi.log

    Tell us the complete steps how to face the issue, so we can try to reproduce

    ==============================================================

    Initial state : display on DVI

    Go to System/Settings/Display

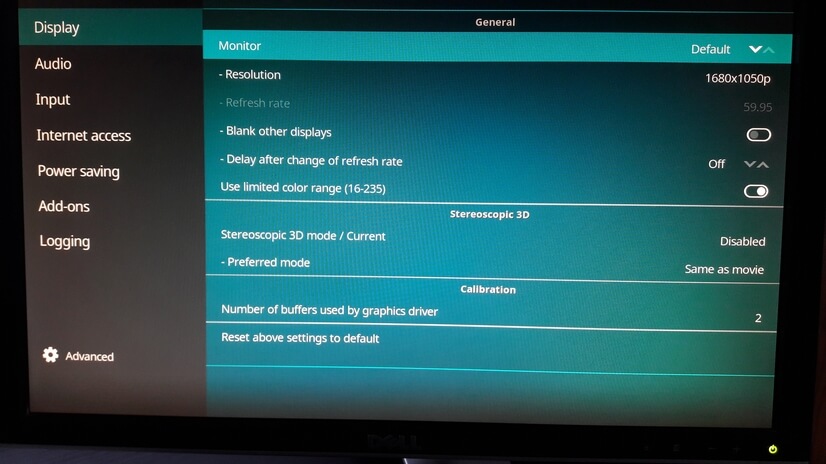

    You will get output : BeforeSwitching.jpg

    Click on "Monitor" to switch (switch to hdmi then switch back to dvi )

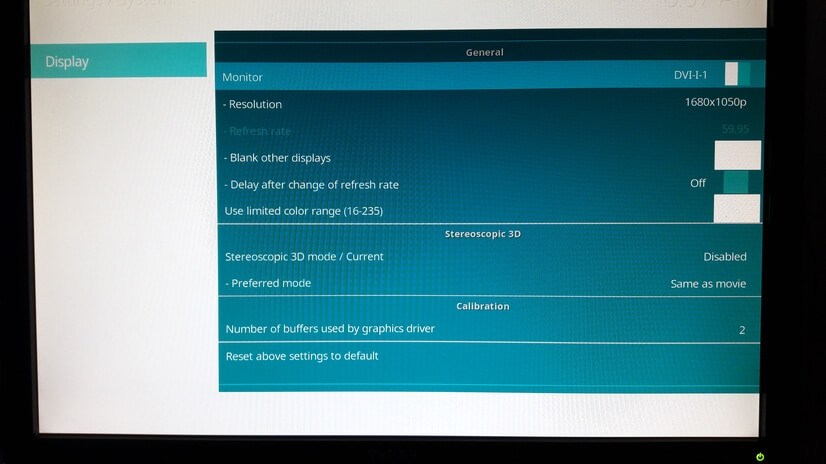

    It work, but you will get output : AfterSwitching.jpg (horrible, can't read most of label)

    WorkAround :

    ===========

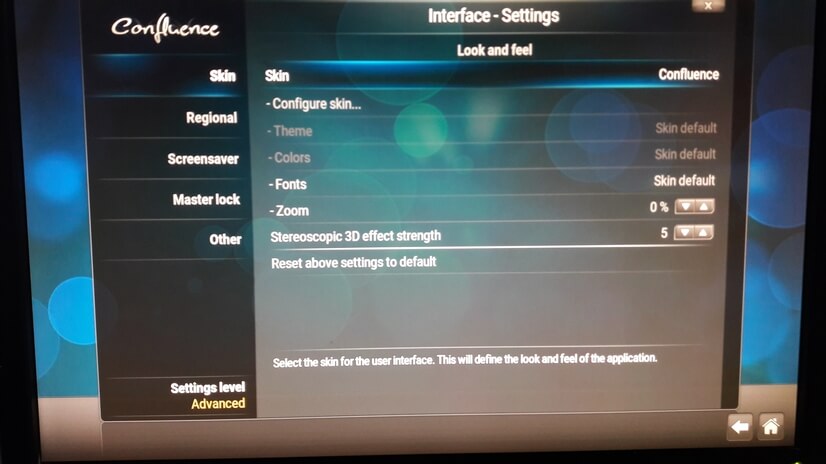

    Go to Interface / Settings / Skin

    Switch to another skin (confluence in the example)

    Display is fixed : AfterChangingSkin.jpg

    I can then change back to the intial skin, and it is still ok

    Maybe if skin was automatically reinitialized after switching from an output to another it would work?

    • Official Post

    LE 8.2 has newer drivers than OE, but with Intel newer doesn't necessarily mean better. Have a play with a current Milhouse release to see if things resolve under a newer (again) kernel and drivers.

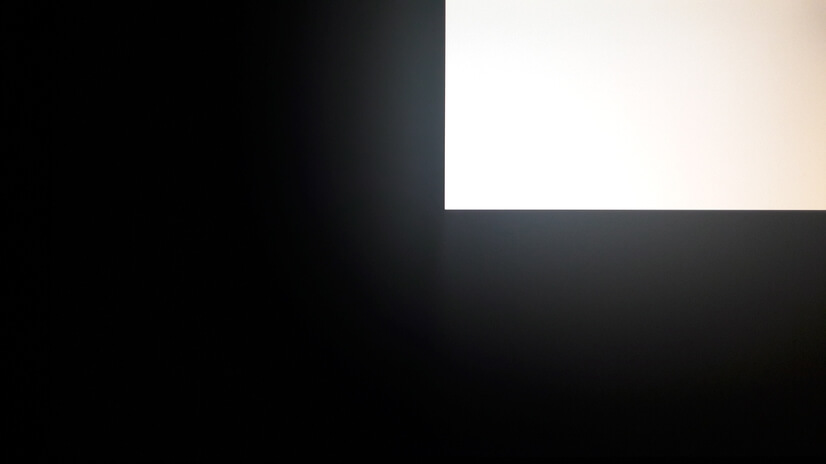

    I did try with "LibreELEC-Generic.x86_64-9.0-Milhouse-20171228214630". It's worst, I get a black screen with a white square on top right. It is then Impossible to apply the work around described previously

    Attached the output after changing output : AfterSwitch_Milhouse-20171228214630.jpg

    The only way to get kodi working again is to restart it : systemctl restart kodi

    Unfortunately, I don't know how to launch such a command from kodi ( I did try

    xbmc.executebuiltin('System.Exec(systemctl restart kodi)') but it does not work).

    Conclusion : I revert back to 8.2. I will create another topic to enhance scripting of switching output + applying workaround
