Astrometa DVB-T/T2/C+FM+DAB - TV Tuner MN88473 ( DVB-C can't scan) x86_64

psycmos · November 14, 2017 at 12:35 PM

I'm using the LibreELEC-Generic.x86_64-8.2.0, and i can get the Tuner MN88473 listed in tvheadend correct ( DVB-C and T /T2).
I can scan channels in DVB-T/T2 but in DVB-C scan channels option ,not appear in list.

Somebody have any solution for this?
Best Regards, Nuno

**CvH** · November 14, 2017 at 2:14 PM Official Post

could you install the dvb-tools addon, reboot

stop/deactivate tvheadend, connect via ssh and start an search with w_scan then it should show somehting

psycmos · November 14, 2017 at 3:03 PM

Ok i will test in some hours. Thanks a lot CvH for your reply and i will buy you one beer i like too!

psycmos · November 14, 2017 at 8:54 PM

With just w_scan i can T/T2 results.

Code

LibreELEC:~ # w_scan

w_scan

w_scan version 20170107 (compiled for DVB API 5.10)

WARNING: could not guess your country. Falling back to 'DE'

guessing country 'DE', use -c <country> to override

using settings for GERMANY

DVB aerial

DVB-T Europe

scan type TERRESTRIAL, channellist 4

output format vdr-2.0

WARNING: could not guess your codepage. Falling back to 'UTF-8'

output charset 'UTF-8', use -C <charset> to override

Info: using DVB adapter auto detection.

/dev/dvb/adapter0/frontend0 -> TERRESTRIAL "Realtek RTL2832 (DVB-T)": go od :-)

/dev/dvb/adapter0/frontend1 -> TERRESTRIAL "Panasonic MN88473": very goo d :-))


Using TERRESTRIAL frontend (adapter /dev/dvb/adapter0/frontend1)

-_-_-_-_ Getting frontend capabilities-_-_-_-_

Using DVB API 5.10

frontend 'Panasonic MN88473' supports

DVB-T2

INVERSION_AUTO

QAM_AUTO

TRANSMISSION_MODE_AUTO

GUARD_INTERVAL_AUTO

HIERARCHY_AUTO

FEC_AUTO

BANDWIDTH_AUTO not supported, trying 6/7/8 MHz.

FREQ (42.00MHz ... 1002.00MHz)

-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_

Scanning DVB-T...

Scanning 8MHz frequencies...

474000: (time: 00:05.420)

482000: (time: 00:07.683)

490000: (time: 00:09.843)

.
etc
.

Scanning DVB-T2...

474000: (time: 02:06.587)

482000: (time: 02:08.854)

490000: (time: 02:10.991)

.
etc
.

ERROR: Sorry - i couldn't get any working frequency/transponder

Nothing to scan!!

LibreELEC:~ #

Display More

With this

Code

w_scan -f c -c PT

i can get DVB-C results OK.

Code

Info: using DVB adapter auto detection.
        /dev/dvb/adapter0/frontend0 -> "Realtek RTL2832 (DVB-T)" doesnt support CABLE -> SEARCH NEXT ONE.
        /dev/dvb/adapter0/frontend1 -> CABLE "Panasonic MN88473": very good :-))

Using CABLE frontend (adapter /dev/dvb/adapter0/frontend1)
-_-_-_-_ Getting frontend capabilities-_-_-_-_
Using DVB API 5.10
frontend 'Panasonic MN88473' supports
INVERSION_AUTO
QAM_AUTO
FEC_AUTO
FREQ (42.00MHz ... 1002.00MHz)
SRATE (1.000MSym/s ... 7.200MSym/s)
-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_
474000: sr6900 (time: 00:00.700)         signal ok:     QAM_AUTO f = 474000 kHz S6900C999
.
.
etc
.
.
service = Cartoon Network (Cartoon Network)
service = CNBC (CNBC)
.
etc

Display More

Appear ok!! the DVB-C results. So there are any way to get this in TVH ?
Best Regards

**CvH** · November 14, 2017 at 9:50 PM Official Post

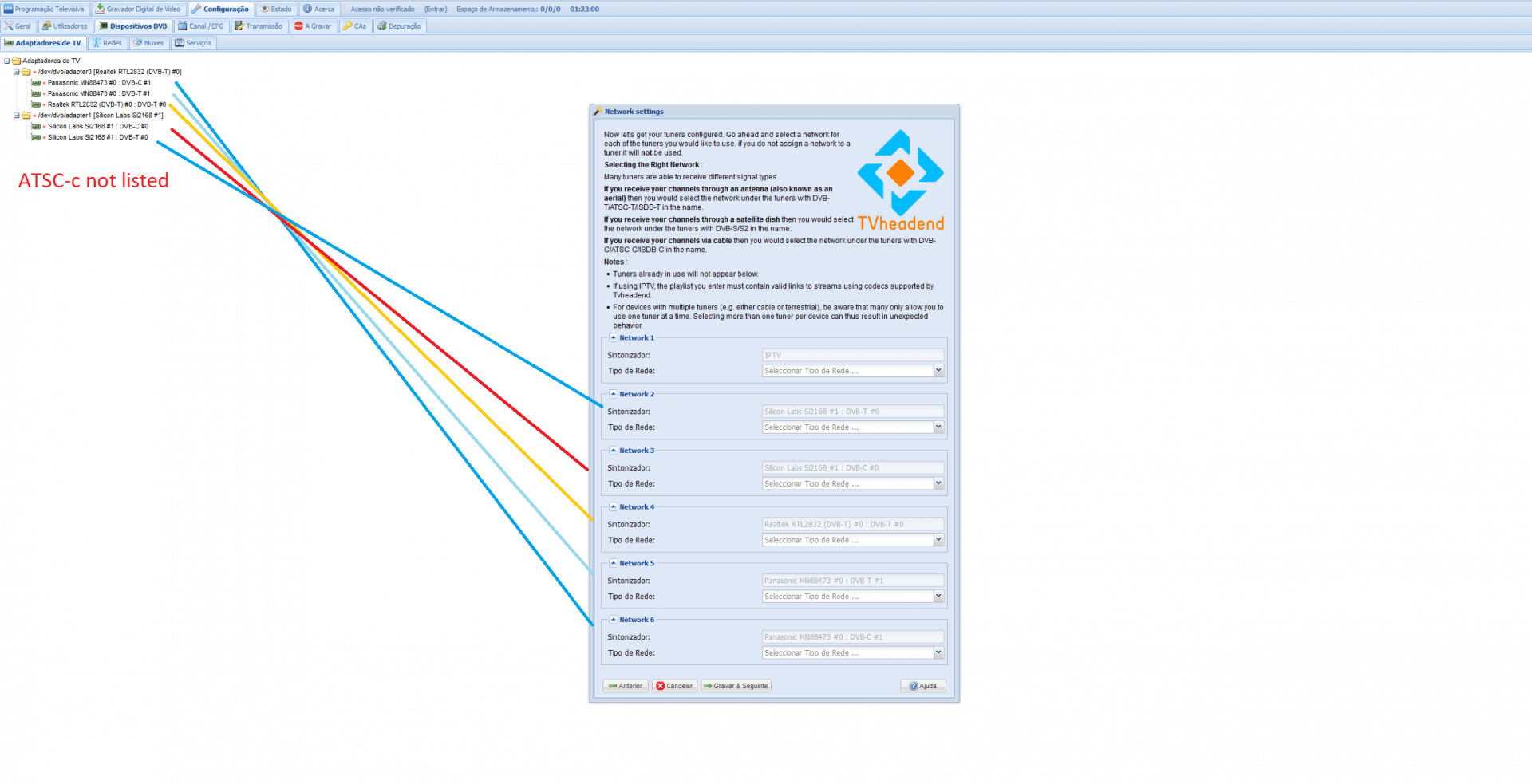

then it might be some Tvh setting at scan, could you make some pics of the Tvh -> configuration -> dvb inputs -> networks -> your network

psycmos · November 16, 2017 at 1:02 AM

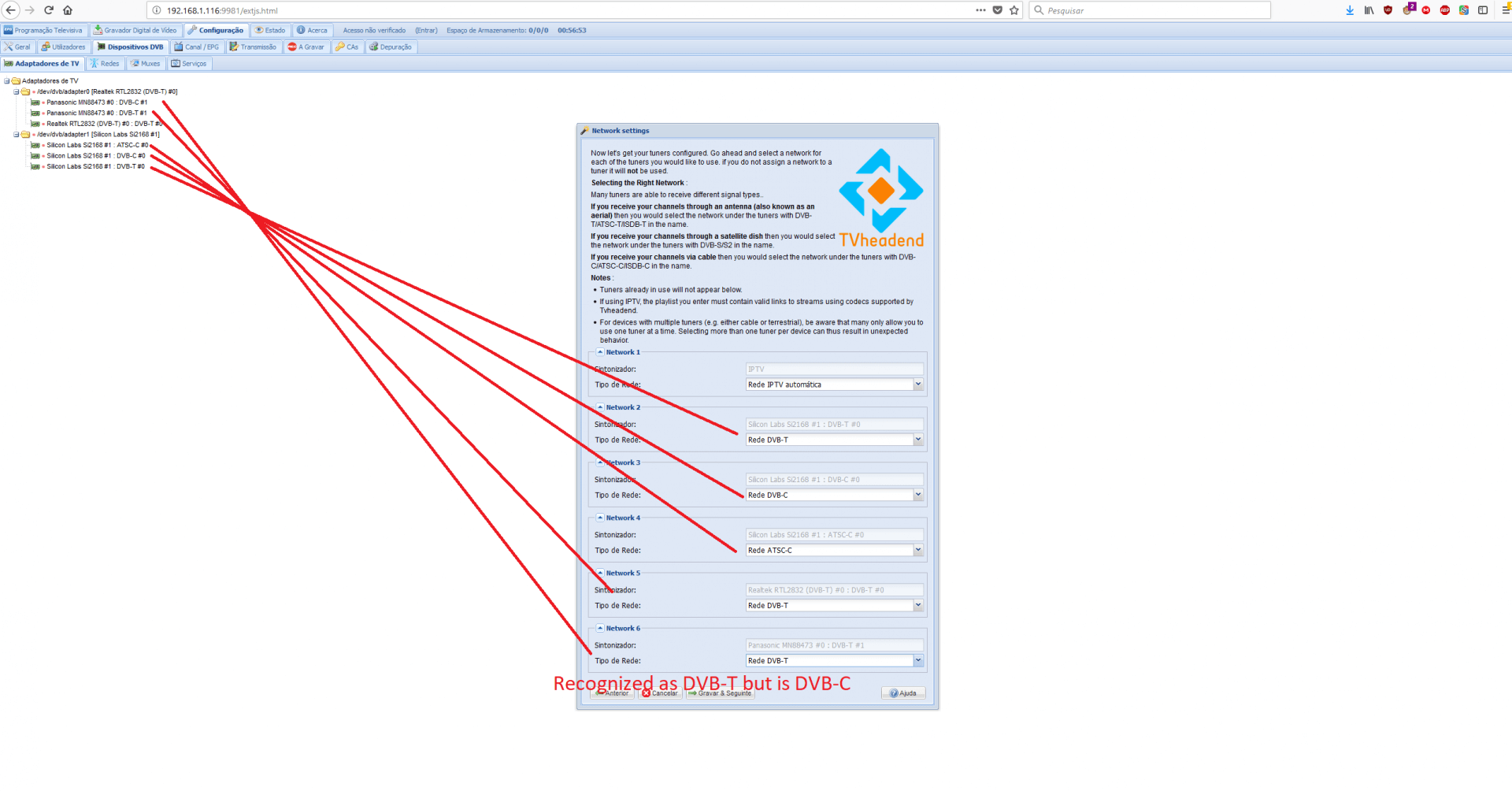

Take a look in photo. I tested it with LibreELEC-Generic.x86_64-8.2.0-dvb-1.1.img and the order changed it it are reconized right. i reinstall LibreELEC-Generic.x86_64-8.2.0-dvb-1.1.img to take a photo too... DVB-C of MN88473 is listed ok and search for channels good... in official release not works. Thanks for this version CvH !!! i'm testing it now...
