Have u tried bypassing the Yamaha and going straight into TV. Just to see if u get dropouts. Also I’m assuming u have Kodi set to 1080p and match frame rate turned on.

It’s interesting that it happens in windows too.

May I ask what is the complete setup? What amplifier / receiver, TV etc.

What version of Libreelec are you using?

I narrowed it down in LE11. The issue starts in the build dated 2022-12-01. It does not occur in any previous builds of LE11.

I’m not sure what was changed.

Has there been any discussion on the current graphic corruption on AMD APU/GPU in the current nightly builds?

I have the 5600G and Radeon 6400. Both get graphic corruption in the menus and playing video.

Try swapping hdmi cables. Also are you running the latest nightly? V11

Yeah over on GitHub they’ve identified that they need to add the additional video codec flags into mesa. Hopefully soon so amd users can have HW acceleration

I just ran VAINFO from the console and it returned this

LibreELEC:~ # vainfo

Trying display: drm

libva info: VA-API version 1.16.0

libva info: Trying to open /usr/lib/dri/radeonsi_drv_video.so

libva info: Found init function __vaDriverInit_1_16

libva info: va_openDriver() returns 0

vainfo: VA-API version: 1.16 (libva 2.16.0)

vainfo: Driver version: Mesa Gallium driver 22.2.2 for AMD Radeon Graphics (renoir, LLVM 15.0.4, DRM 3.48, 6.0.6)

vainfo: Supported profile and entrypoints

VAProfileMPEG2Simple : VAEntrypointVLD

VAProfileMPEG2Main : VAEntrypointVLD

VAProfileJPEGBaseline : VAEntrypointVLD

VAProfileVP9Profile0 : VAEntrypointVLD

VAProfileVP9Profile2 : VAEntrypointVLD

VAProfileNone : VAEntrypointVideoProc

LibreELEC:~

It looks like it is missing the profiles for HEVC etc.

Quote from petediscrete

Have you got hardware acceleration checked in LE in the Player section in Settings. Try enabling/disabling it and see what results you get.

Yeah i do, i checked all that. I just ran VAINFO from the console and it returned this

LibreELEC:~ # vainfo
Trying display: drm
libva info: VA-API version 1.16.0
libva info: Trying to open /usr/lib/dri/radeonsi_drv_video.so
libva info: Found init function __vaDriverInit_1_16
libva info: va_openDriver() returns 0
vainfo: VA-API version: 1.16 (libva 2.16.0)
vainfo: Driver version: Mesa Gallium driver 22.2.2 for AMD Radeon Graphics (renoir, LLVM 15.0.4, DRM 3.48, 6.0.6)
vainfo: Supported profile and entrypoints
VAProfileMPEG2Simple : VAEntrypointVLD
VAProfileMPEG2Main : VAEntrypointVLD
VAProfileJPEGBaseline : VAEntrypointVLD
VAProfileVP9Profile0 : VAEntrypointVLD
VAProfileVP9Profile2 : VAEntrypointVLD
VAProfileNone : VAEntrypointVideoProc

LibreELEC:~

Looks like its missing some profiles.

I also noticed, when attempting to play a 4K HDR video it will output colors incorrectly. However while playing if i press "\" on the keyboard the video seems to switch resolution / refresh rate and it will prompt to keep the setting. I press no, it then switched resolution / refresh rate back and the video is now outputting correctly in the right colourspace.

However it still says ff-hevc(sw) is this correct? i thought it would have said ff-hevc (hw)

So I just built a Ryzen 5600g system. It’s doing the same thing. It will not output HDR correctly unless while playing a video I press “\” and then the system switches resolution it appears and it asks me to keep the setting. I go no and then it switched back and HDR is outputting correctly.

I also noticed even though I disabled mouse control in the Kodi settings. When I play a video I can see the mouse until I press the “\” and once outputting correctly I don’t see it.

Also should it be saying ff-hevc (sw) ?

I've also uploaded the Log

http://ix.io/4jcl

Hi,

I built a new Ryzen 5600g system with the Asus B550i ITX motherboard.

When I play any file it appears to be using software decoding. Also HDR is not triggering. I’ve pasted a log and was wondering if someone could have a look?

Log

Quote from Hakuren

My chain looks like this: Asus PN51 running LE -> Denon x1700h -> LG C1. The same issue is present if I cut out the AVR.

The file is streamed from my emby library. I've attached the media info for one of the files that exhibit this issue.

Really should paste a log to see what’s happening.

Do you have match frame rate turned on in the Kodi player settings?

Quote from Hakuren

The screen does not switch to HDR when it first loads the stream. So the procedure I mentioned is the only way for me to force HDR, otherwise it will keep playing in SDR. So when I do switch from a playing video to the home screen it will recognize the HDR and switch the display.

What’s the source your playing from?

Quote from Hakuren

I am running the 20221101 generic nightly with an AMD Ryzen 3 5300U.

I am able to get HDR working but only if I start a video with hdr, press the menu button to get back to the kodi main menu, then back to the playing video. Is there a known workaround for this?

That’s how it should work? The main menu shouldn’t be in HDR and really you shouldn’t set the resolution to 4K for the menu.

So it should be in SDR 1080p for menu. Then when u play a video switch to 4K HDR etc.

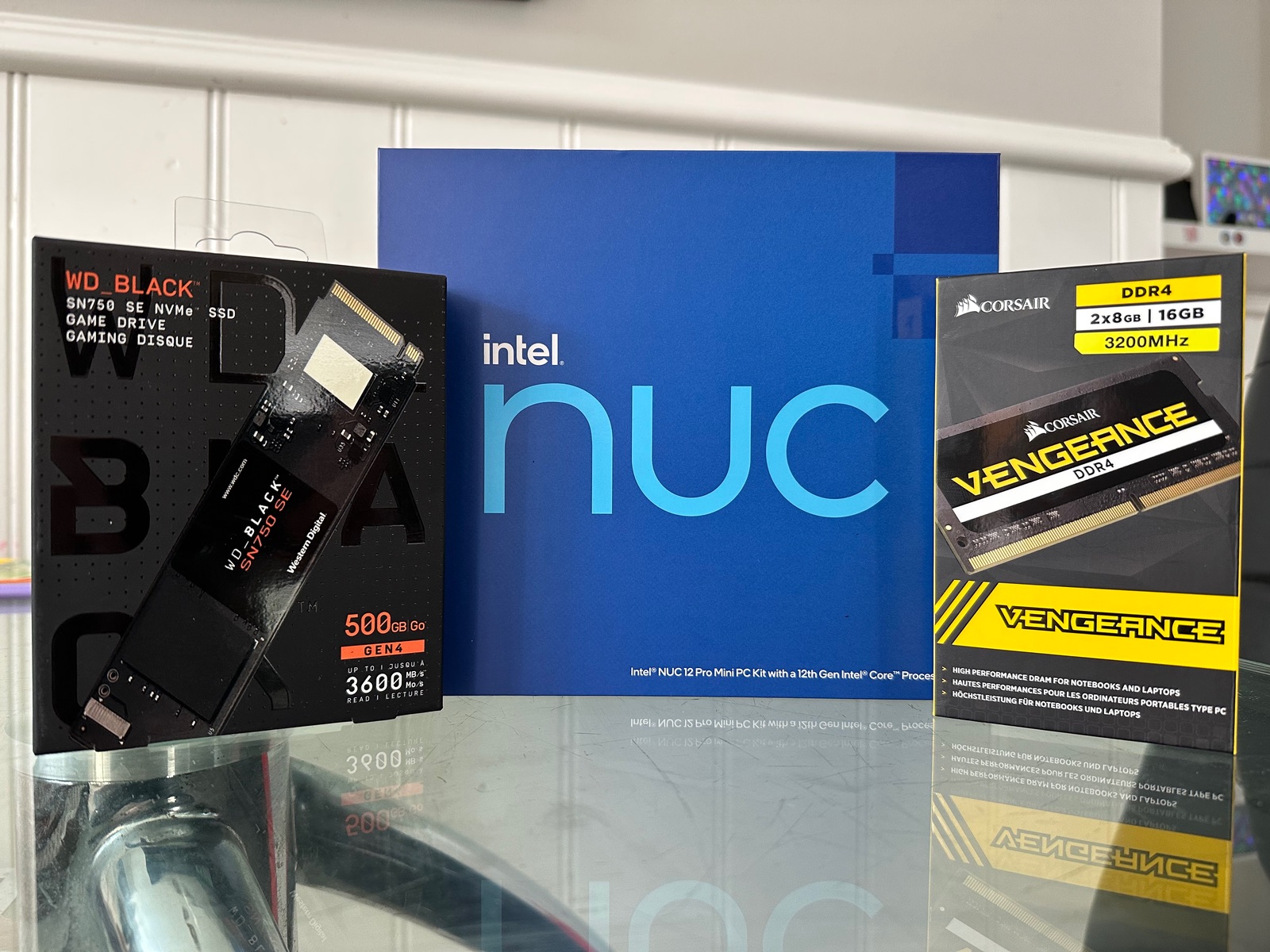

I haven’t used a RPI4. However I have a JVC projector and a lumagen. The intel Nuc 12 works fine with HDR. However will not correctly output HDR10+ files. Also will not output 4k60 HDR content at the moment either.

I’m currently building a Ryzen system to compare.

Hi,

Does anyone know if this motherboard is supported?

ASUS ROG Strix B550-I Gaming ITX Motherboard

Essentially the 2.5gb intel lan?

Hahaha sounds like something I would do lol
