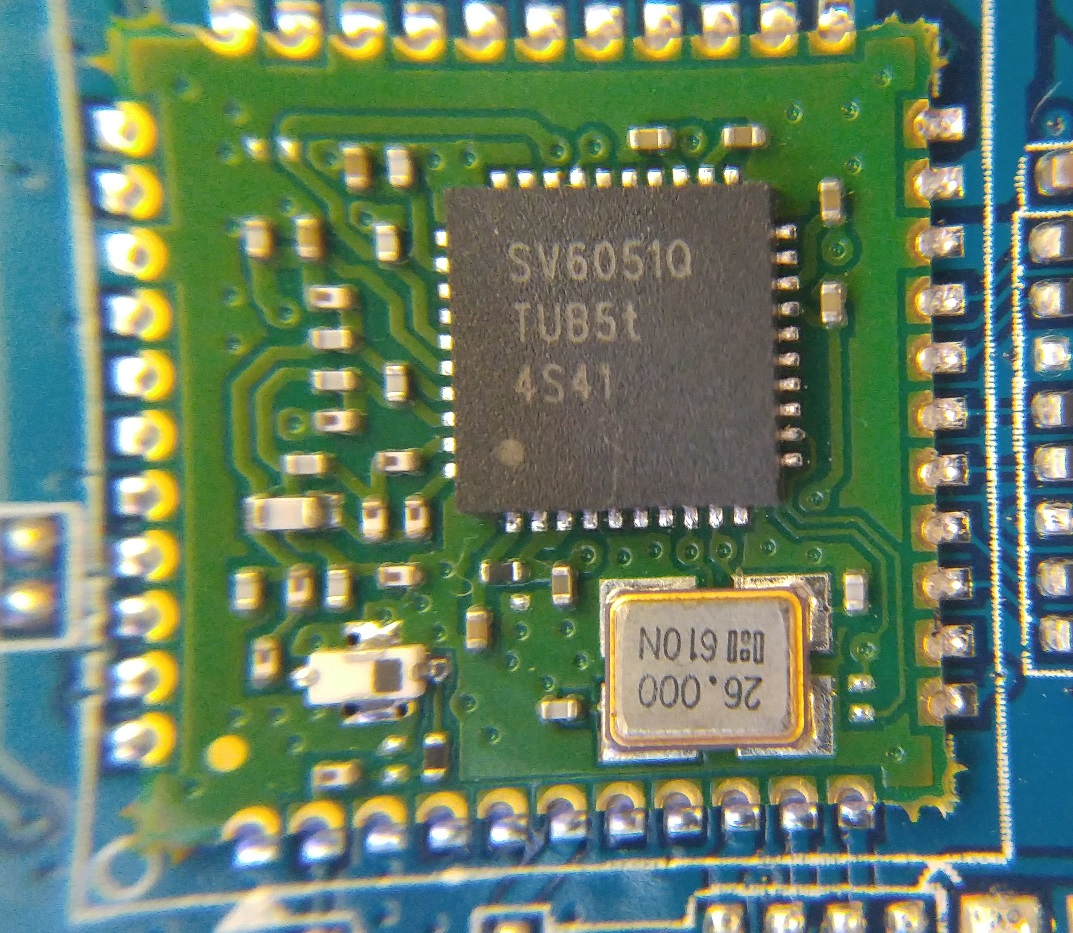

Probably you have SSV6051Q WiFi. Until I get a working driver source it's not going to work. Both box and chip manufacturer have not responded to my multiple e-mail requests.
I appreciate your efforts and help on this, hoping they get back to you... if you think it will help those of us that have them PM your address and Ill send you a box to play with...
Frank
Kszaq, I tried 7.0.1.2-4 and still a no go on the WiFi, here is the log file from 7.0.1.4 for review.
Frank
OpenElecCrazy Have you had a chance to test 7.0.1.2 build with SSV6051Q WiFi? There is a small difference between the last test build I made for you and 7.0.1.2 release, it might work this time.
Hey Kszaq, sorry Ive been out of town for work. Ill give it a try tonight and get back to you. Thank you!
Frank
kszaq, yes the last log. ok no worries, im out of town this week anyway maybe they will get back to you, i really appreciate your help. Maybe ill just send you a box... LOL
Frank
Don't worry about CPU2 and 4 stuck at some value, this is a bug in how CPU load is reported with hotplug governor - when the reading is stuck, it means that CPU core is turned off to save power. It'll power back on when necessary.
We're getting a little bit closer to making your WiFi chip work, please try this build: LibreELEC-S805.m201d.arm-7.0-devel-20160522205800-r22955-gce3a3fa.tar
Ok its booting faster but still has no signal on WiFi. Log files are attached, Thank You.
Frank
OpenElecCrazy Here's another test build for you, I hope you haven't got fed up with testing: LibreELEC-S805.m201d.arm-7.0-devel-20160522020409-r22955-gce3a3fa.tar
Kszaq, nope thats the fun part. Thank you for not getting fed up and being so supportive to everyone. All you guys that spend the time to develop fixes and make OpeneElec/LibreElec happen for these boxes are awsome!
Ill give it a try and report back!
Frank
[hr]
Kszaq, I loaded the new firmware and now the box reboots without red led and dosent require power reset. Also I noticed that CPU core 2 and 4 were frozen and were not cycling as 1 and 3. The wifi is the same as before, just an empty screen for connections until I plug in the hardwire. Log file for review attached...
Frank
Thank you for the log. Can you please go to Kodi settings, turn off CEC, reboot and collect the log once again? Your TV seems to not support CEC and kernel log is cluttered with CEC error messages.
In the meantime I will e-mail the box manufacturer with request for the driver. Let's hope they answer.
Ok, thank you. Log file attached...
Frank
Thank you for reporting. It's a bit hard to make the driver work when I have some third-party source with no guarantee that it works and no box to check it.
From your log I can see that the driver has not been loaded correctly. I have changed the driver configuration a bit. Can you please try this build: LibreELEC-S805.m201d.arm-7.0-devel-20160521013322-r22955-gce3a3fa.tar
Thank you for the very quick responce.
I copied the tar over to the update folder via SSH and rebooted and I had the same results. Here is the log file after reboot.
Frank
I managed to find a firmware with ssv6051q drivers and I no longer need you to post these files. Please test this build - you need to boot from your existing SD card intall and upgrade using this file: LibreELEC-S805.m201d.arm-7.0-devel-20160520133017-r22954-gde0005c.tar
I copied the tar over to the update folder via SSH and rebooted. I had no indication of a wireless signal iunder LibreElec/Connections menu. I reset LibreElec to defaults and rebooted going through the startup setup and again had no WiFi signal. I connected my wired line, connected and downloaded a log file for your review. Thank you for your continued efforts!
Frank
kszaq, I'm booted/running LE from SD with Android on nand. After LE booted I SSH'd the box and tried the last code and it gave me the following? Am I supposed to insert the filename somewhere in this string?
LibreELEC:~ # find /tmp/system -name ssv\* -exec cp {} ~/downloads/ssv
find: -exec requires an argument
This means that CEC driver works well and there is a bug in libcec-daemon... not really my field of expertise. Unless there's some updated version of libcec-daemon available, I won't be able to make it work with your TV.
[hr]OpenElecCrazy: I need to get ssv6051-sw.bin and ssv6051-wifi.cfg from your Android firmware.
You can extract them to Downloads samba share by booting to LE and executing the following commands:
Codemkdir -p ~/downloads mkdir -p ~/downloads/ssv mkdir /tmp/system mount /dev/system /tmp/system find /tmp/system -name ssv\* -exec cp {} ~/downloads/ssv/ umount /tmp/system
Will do but it will be on friday as Im out of town. Dont think I could talk my wife into trying that...LOL
Thanks,
Frank
Very nice photos! I have bad news and good news: bad news is that this is a very new WiFi chip with no official drivers from Amlogic. Good news is that I was able to find a driver on GitHub and I might be able to compile it. You need to give me a few days.
Thank you!
kszaq, here you go, I hope it helps...
LibreELEC:~ # cat /sys/bus/sdio/devices/*/device
0x3030
LibreELEC:~ # cat /sys/bus/sdio/devices/*/vendor
0x3030
Thank you, Frank
Thank you for the logs. You seem to have an unknown SDIO WiFi chip that doesn't even show in the logs. Can you tell me what is the Realtek chip you have on your board? And can you also give me a result for cat /sys/bus/sdio/devices/*/device && cat /sys/bus/sdio/devices/*/vendor? I think you may have 8189FTV chip and there's no driver for it in my builds (yet).

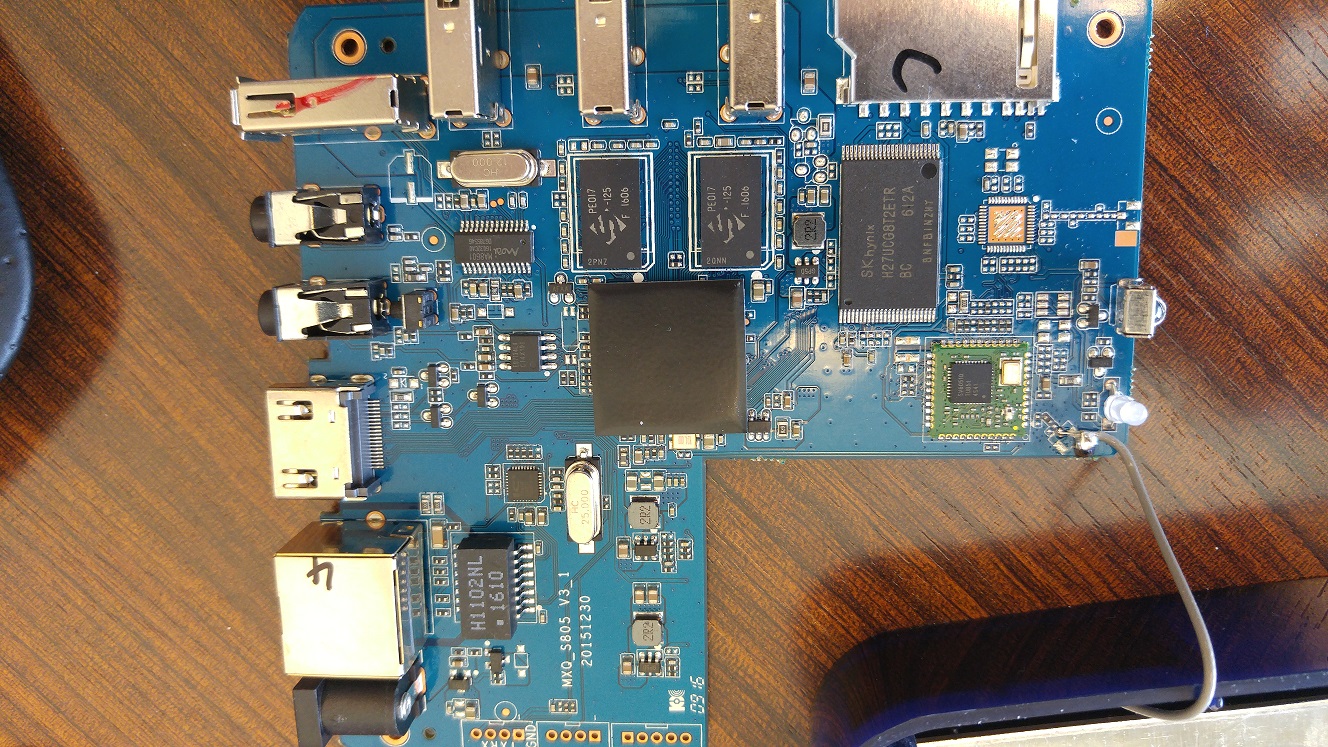

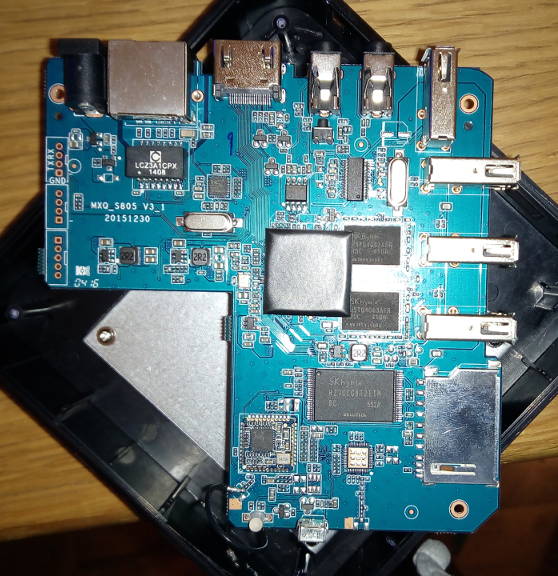

Ok here are some photos. Ill get the other files next...
Thank You!
Sorry, it's my mistake: I thought that LibreELEC Wiki instructs to provide all the logs, not only Kodi log... Here's what you need to do:
- reboot your box or turn off the power completely and power the box
- if you can access Samba shares (Windows shared folders), go to \\box_IP\Logfiles - there will be a log file that you need to give me
- if you're unable to access the share, you can also SSH to the box, execute createlog and download zip file with logs over SFTP from /storage/logfiles
I'll update the first post accordignly. Thank you for your cooperation.
Ok cool I think I have what you need, I have added all the logs that were in the folder. I have "Blue" MXQ_S805_V3_1_20151230 and the box is currently running M201D SD 7.0.0.2 IMG. I do not see any wireless connection in the connections tab under LibreElec. Looking at my board my WiFi chip is labeled SV60510_TUB5T_4S41, eMMC chip SKhynix_H27UCG8T2ETR_BC_612A. Please let me know if you need anyhting else.
Kodi log has no information on WiFi. Please collect the logs according to instruction in the first post.
kszaq, Ive tried again following the instructions on first post but each time it only captures this info. I turn the box on, connect it to my routers LAN port so I can SSH with Putty. I capture the log file by teminal "pastebinit /storage/.kodi/temp/kodi.log" then copy from explorer and Its the same capture each time? I get no WiFi signal with OE or LE but it works fine with Android. Do I need to get some info with it running on Android first? Is LE not reconizing my WiFi chip?
Please let me know if Im missing a step...
Thank you, Frank
kszaq, I was able to boot all versions of your last 7.0.0.2 but I do not have working WiFi. When LE boots I have no WiFi signals during the setup phase. Wired LAN works great. I have MXQ_S805_V3_1_20151230 blue board and I have included a logfile for your review and help. The box is currently running MXQ SD 7.0.0.2
The box runs very well and movies play smooth. Thank you for your hard work getting LE to run on our boxes...
Frank
00:44:02 T:3037475392 NOTICE: special://profile/ is mapped to: special://masterprofile/
00:44:02 T:3037475392 NOTICE: -----------------------------------------------------------------------
00:44:02 T:3037475392 NOTICE: Starting Kodi (16.1 Git:c327c53). Platform: Linux ARM 32-bit
00:44:02 T:3037475392 NOTICE: Using Release Kodi x32 build
00:44:02 T:3037475392 NOTICE: Kodi compiled May 9 2016 by GCC 5.3.0 for Linux ARM 32-bit version 3.10.99 (199267)
00:44:02 T:3037475392 NOTICE: Running on LibreELEC (community) - Version: 7.0.0.2, kernel: Linux ARM 32-bit version 3.10.99
00:44:02 T:3037475392 NOTICE: FFmpeg version: 2.8.6
00:44:02 T:3037475392 NOTICE: WARNING: unsupported ffmpeg version detected
00:44:02 T:3037475392 NOTICE: Host CPU: ARMv7 Processor rev 1 (v7l), 4 cores available
00:44:02 T:3037475392 NOTICE: ARM Features: Neon enabled
00:44:02 T:3037475392 NOTICE: special://xbmc/ is mapped to: /usr/share/kodi
00:44:02 T:3037475392 NOTICE: special://xbmcbin/ is mapped to: /usr/lib/kodi
00:44:02 T:3037475392 NOTICE: special://masterprofile/ is mapped to: /storage/.kodi/userdata
00:44:02 T:3037475392 NOTICE: special://home/ is mapped to: /storage/.kodi
00:44:02 T:3037475392 NOTICE: special://temp/ is mapped to: /storage/.kodi/temp
00:44:02 T:3037475392 NOTICE: The executable running is: /usr/lib/kodi/kodi.bin
00:44:02 T:3037475392 NOTICE: Local hostname: LibreELEC
00:44:02 T:3037475392 NOTICE: Log File is located: /storage/.kodi/temp/kodi.log
00:44:02 T:3037475392 NOTICE: -----------------------------------------------------------------------
00:44:02 T:3037475392 ERROR: DBus: Error org.freedesktop.DBus.Error.ServiceUnknown - The name org.freedesktop.UPower was not provided by any .service files
00:44:02 T:3037475392 NOTICE: load settings...
00:44:02 T:3037475392 NOTICE: AML device detected
00:44:02 T:3037475392 NOTICE: Found 2 Lists of Devices
00:44:02 T:3037475392 NOTICE: Enumerated ALSA devices:
00:44:02 T:3037475392 NOTICE: Device 1
00:44:02 T:3037475392 NOTICE: m_deviceName : @:CARD=AMLM8AUDIO,DEV=0
00:44:02 T:3037475392 NOTICE: m_displayName : AML-M8AUDIO
00:44:02 T:3037475392 NOTICE: m_displayNameExtra: Analog
00:44:02 T:3037475392 NOTICE: m_deviceType : AE_DEVTYPE_PCM
00:44:02 T:3037475392 NOTICE: m_channels : FL,FR,BL,BR,FC,LFE,SL,SR
00:44:02 T:3037475392 NOTICE: m_sampleRates : 44100
00:44:02 T:3037475392 NOTICE: m_dataFormats : AE_FMT_S16NE,AE_FMT_S16LE
00:44:02 T:3037475392 NOTICE: Device 2
00:44:02 T:3037475392 NOTICE: m_deviceName : iec958:CARD=AMLM8AUDIO,DEV=0
00:44:02 T:3037475392 NOTICE: m_displayName : AML-M8AUDIO
00:44:02 T:3037475392 NOTICE: m_displayNameExtra: S/PDIF
00:44:02 T:3037475392 NOTICE: m_deviceType : AE_DEVTYPE_IEC958
00:44:02 T:3037475392 NOTICE: m_channels : FL,FR
00:44:02 T:3037475392 NOTICE: m_sampleRates : 44100,48000,88200,96000,176400,192000
00:44:02 T:3037475392 NOTICE: m_dataFormats : AE_FMT_AC3,AE_FMT_DTS,AE_FMT_S16NE,AE_FMT_S16LE
00:44:02 T:3037475392 NOTICE: Enumerated PULSE devices:
00:44:02 T:3037475392 NOTICE: Device 1
00:44:02 T:3037475392 NOTICE: m_deviceName : Default
00:44:02 T:3037475392 NOTICE: m_displayName : Default
00:44:02 T:3037475392 NOTICE: m_displayNameExtra: Bluetooth Audio (PULSEAUDIO)
00:44:02 T:3037475392 NOTICE: m_deviceType : AE_DEVTYPE_PCM
00:44:02 T:3037475392 NOTICE: m_channels : FL,FR
00:44:02 T:3037475392 NOTICE: m_sampleRates : 5512,8000,11025,16000,22050,32000,44100,48000,64000,88200,96000,176400,192000,384000
00:44:02 T:3037475392 NOTICE: m_dataFormats : AE_FMT_U8,AE_FMT_S16NE,AE_FMT_S24NE3,AE_FMT_S24NE4,AE_FMT_S32NE,AE_FMT_FLOAT
00:44:02 T:3037475392 NOTICE: Loaded settings file from special://xbmc/system/advancedsettings.xml
00:44:02 T:3037475392 NOTICE: Contents of special://xbmc/system/advancedsettings.xml are...
<?xml version="1.0" encoding="UTF-8" ?>
<advancedsettings>
<showexitbutton>false</showexitbutton>
<samba>
<clienttimeout>30</clienttimeout>
</samba>
<network>
<readbufferfactor>4.0</readbufferfactor>
</network>
<pvr>
<minvideocachelevel>5</minvideocachelevel>
<minaudiocachelevel>20</minaudiocachelevel>
</pvr>
</advancedsettings>
00:44:02 T:3037475392 NOTICE: No settings file to load (special://masterprofile/advancedsettings.xml)
00:44:02 T:3037475392 NOTICE: Default DVD Player: dvdplayer
00:44:02 T:3037475392 NOTICE: Default Video Player: dvdplayer
00:44:02 T:3037475392 NOTICE: Default Audio Player: paplayer
00:44:02 T:3037475392 NOTICE: Disabled debug logging due to GUI setting. Level 0.
00:44:02 T:3037475392 NOTICE: Log level changed to "LOG_LEVEL_NORMAL"
00:44:02 T:3037475392 NOTICE: CMediaSourceSettings: loading media sources from special://masterprofile/sources.xml
00:44:02 T:3037475392 NOTICE: Loading player core factory settings from special://xbmc/system/playercorefactory.xml.
00:44:02 T:3037475392 NOTICE: Loaded playercorefactory configuration
00:44:02 T:3037475392 NOTICE: Loading player core factory settings from special://masterprofile/playercorefactory.xml.
00:44:02 T:3037475392 NOTICE: special://masterprofile/playercorefactory.xml does not exist. Skipping.
00:44:03 T:3037475392 NOTICE: Running database version Addons20
00:44:03 T:3037475392 NOTICE: ADDONS: Using repository repository.xbmc.org
00:44:03 T:3037475392 NOTICE: ADDONS: Using repository repository.libreelec.tv
00:44:03 T:3037475392 NOTICE: InitWindowSystem: Using EGL Implementation: amlogic
00:44:03 T:3037475392 NOTICE: Found resolution 720 x 480 for display 0 with 720 x 480 @ 60.000000 Hz
00:44:03 T:3037475392 NOTICE: Found resolution 1280 x 720 for display 0 with 1280 x 720 @ 60.000000 Hz
00:44:03 T:3037475392 NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080i @ 60.000000 Hz
00:44:03 T:3037475392 NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 60.000000 Hz
00:44:03 T:3037475392 NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 24.000000 Hz
00:44:03 T:3037475392 NOTICE: Found (1280x720@60.000000) at 17, setting to RES_DESKTOP at 16
00:44:03 T:3037475392 NOTICE: Checking resolution 16
00:44:03 T:3037475392 NOTICE: GL_VENDOR = ARM
00:44:03 T:3037475392 NOTICE: GL_RENDERER = Mali-450 MP
00:44:03 T:3037475392 NOTICE: GL_VERSION = OpenGL ES 2.0
00:44:03 T:3037475392 NOTICE: GL_SHADING_LANGUAGE_VERSION = OpenGL ES GLSL ES 1.00
00:44:03 T:3037475392 NOTICE: GL_EXTENSIONS = GL_OES_texture_npot GL_OES_vertex_array_object GL_OES_compressed_ETC1_RGB8_texture GL_EXT_compressed_ETC1_RGB8_sub_texture GL_OES_standard_derivatives GL_OES_EGL_image GL_OES_depth24 GL_ARM_rgba8 GL_ARM_mali_shader_binary GL_OES_depth_texture GL_OES_packed_depth_stencil GL_EXT_texture_format_BGRA8888 GL_OES_vertex_half_float GL_EXT_blend_minmax GL_OES_EGL_image_external GL_OES_EGL_sync GL_OES_rgb8_rgba8 GL_EXT_multisampled_render_to_texture GL_EXT_discard_framebuffer GL_OES_get_program_binary GL_ARM_mali_program_binary GL_EXT_shader_texture_lod GL_EXT_robustness GL_OES_depth_texture_cube_map GL_KHR_debug GL_ARM_shader_framebuffer_fetch GL_ARM_shader_framebuffer_fetch_depth_stencil GL_OES_mapbuffer
00:44:04 T:3037475392 NOTICE: Register - new cec device registered on cec->Amlogic: CEC Adapter (0000:0000)
00:44:04 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:44:04 T:3037475392 NOTICE: Running database version Addons20
00:44:04 T:3037475392 NOTICE: Running database version ViewModes6
00:44:04 T:3037475392 NOTICE: Running database version Textures13
00:44:04 T:3037475392 NOTICE: Running database version MyMusic56
00:44:04 T:3037475392 NOTICE: Running database version MyVideos99
00:44:04 T:3037475392 NOTICE: Running database version TV29
00:44:04 T:3037475392 NOTICE: Running database version Epg11
00:44:04 T:3037475392 NOTICE: start dvd mediatype detection
00:44:04 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:44:04 T:3037475392 WARNING: CSkinInfo: failed to load skin settings
00:44:04 T:2949641120 WARNING: Previous line repeats 1 times.
00:44:04 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:44:05 T:3037475392 ERROR: Previous line repeats 3 times.
00:44:05 T:3037475392 WARNING: JSONRPC: Could not parse type "Setting.Details.SettingList"
00:44:05 T:3037475392 NOTICE: ActiveAE DSP - starting
00:44:05 T:3037475392 NOTICE: initialize done
00:44:05 T:3037475392 NOTICE: Running the application...
00:44:05 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:44:06 T:3037475392 ERROR: Previous line repeats 2 times.
00:44:06 T:3037475392 NOTICE: starting zeroconf publishing
00:44:06 T:3037475392 NOTICE: WebServer: Started the webserver
00:44:06 T:3037475392 NOTICE: starting upnp client
00:44:06 T:2764075936 NOTICE: ES: Starting UDP Event server on 127.0.0.1:9777
00:44:06 T:2764075936 NOTICE: UDP: Listening on port 9777
00:44:06 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:44:06 T:2969564064 NOTICE: ## LibreELEC Addon ## 0.7.3
00:44:06 T:2969564064 WARNING: CSkinInfo: failed to load skin settings
00:44:06 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:45:01 T:3037475392 ERROR: Previous line repeats 83 times.
00:45:01 T:3037475392 ERROR: Unable to activate the previous window
00:45:02 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:45:04 T:2670982048 ERROR: Previous line repeats 4 times.
00:45:04 T:2670982048 WARNING: CSkinInfo: failed to load skin settings
00:45:04 T:2949641120 ERROR: CecLogMessage - Write: write failed !
00:45:04 T:3037475392 ERROR: Control 1000 in window 13001 has been asked to focus, but it can't
00:45:06 T:2949641120 ERROR: CecLogMessage - Write: write failed !
