Posts by michael123

Quote from Krobar

michael123 Can you let me know if they work after the LSPCon update. I have a Coffeelake setup which just will not work with HBR Audio in Linux but is fine in Windows (Seems quite a few people have this issue). I changed from the internal LSPCon to a new Club3D CAC-1088 on the Displayport but although this is consistent/reliable it still does not work with HBR Bitstream in Linux. Some people have suggested that LE10 has less issues with LSPCons but that is not an option for me.

Seems to work fine, old Sony amp correctly identified Dolby True HD with pass through over HDMI. Running Libreelec 11.0.6 (latest). Gone back to direct to HDMI direct to TV and optical for audio now. Obviously lost out on passthrough/hbr audio (normally 5.1 will do for us) but gained 4k/hdr so swings and roundabouts.

I have a NUC6CAYS which has a J3455, it was like $35 from ebay, it has built in 32GB EMMC that I run libreelec on and it happily streams 4k hevc/h265 hdr rips, the biggest I've tried is 135GB and it was fine (you will most likely need to update the hdmi firmware in windows). The inbuilt IR works with my RC6 media remote too and I got a barrel to USB C adapter to power it (I have two but one didn't have a PSU).

Quote from Krobar

michael123 Can you let me know if they work after the LSPCon update. I have a Coffeelake setup which just will not work with HBR Audio in Linux but is fine in Windows (Seems quite a few people have this issue). I changed from the internal LSPCon to a new Club3D CAC-1088 on the Displayport but although this is consistent/reliable it still does not work with HBR Bitstream in Linux. Some people have suggested that LE10 has less issues with LSPCons but that is not an option for me.

I'll see if I can in the next few days, our amp isn't HDMI 2.0 capable so we run the nuc direct into the TV and use optical out for the audio, but I'll see if I can give it a go through the amp, it'll just be 1080P, but that won't matter for the audio.

Quote from Jogee

Actually, NUC 7-13 technical and warranty support has moved to ASUS now (they bought it). There is a link as I recall when searching the NUC section on Intel's download center.

To find my Intel NUC in Asus support site I had to search on my model number.

It doesn't look like everything is over as yet (I didn't see my HDMI firmware listed but know Intel had it earlier in January). But for example I found the HDMI firmware for a NUCI7DNH.

Offered in case it helps.

That's great thanks, I've spent ages looking and couldn't find a trace of 1.79.1.1 anywhere other than the odd reference to some CVE security issues, no changelogs to see what it resolves but I've got a second NUC6CAYS on the way so will update both when the 2nd arrives.

Quote from powerarmour

I tested 1.78 a while back, seemed to help at the time:

Post

RE: Intel NUC 8th Gen: SMP’s HDR build: Atmos Skip fix?

[…]

Also tested the 1.78.4.0.4 firmware from here: https://www.intel.com/content/www/us…e-nuc8i7be.html

Had to double check it's the same MCDP2800 LSPCON, and it is: https://www.kinet-ic.com/mcdp2800/

Again, all updated fine and worked with HDR content switching fine also.

powerarmour

November 16, 2021 at 1:16 PM

Thanks, I'll grab it from softpedia, it's weird but Intel have pulled all hdmi firmwares other than for the nuc6 (maybe migrated them to windows update, I'm not sure.

Quote from zanderf

Now it is solved: TrueHD and DTS-HD passthrough to my Denon under Win 10 and Librelec!

An update to HDMI Firmware for LSPCon 1.79.1.1 was the solution.

NUC7ixDN-HDMI_FW_Update_Tool-1.79.1.1

➢ Dolby Digital (AC3) capable Receiver ➢ ON

➢ Enable Dolby Digital (AC3) transcoding ➢ OFF

➢ Dolby Digital Plus - EAC3 ➢ ON

➢ DTS capable receiver ➢ ON

➢ TrueHD capable receiver ➢ ON

➢ DTS-HD capable receiver ➢ ON

Display More

Old thread but you used the nuc7 firmware on a nuc6? Where did you get 1.79 have you still got a copy? The latest Intel have is just 1.77 for the nuc6, they don't have any hdmi firmware listed for the nuc7 or nuc8 and the latest softpedia have is 1.78.

If anyone else is looking, I took a chance on this for about half the price I could find locally, works great. Stock HDMI/cheap adaptors do 4k/24hz no hdr. This does 4k/60hz and hdr, $16 + possible tax.

DisplayPort  to HDMI-compatible Display Port Adapter Coupler Connector 8K@30Hz 4K@120Hz Extender Cable for PC laptop

I'd also be in support of this, just tried to boot the iso to install Libreelec on a new PC and got the same error, I've not got a spare memory stick to hand and the other 15+ iso's I have all work great off my Ventoy stick, adding the kernel module would be a great help.

Quote from smp

You will have to use an active DP to HDMI 2.0 converter.

Thanks, do you reckon this one will work? It doesn't say active but says displayport 1.4 and hdmi 2.0 as well as 4k 60hz and kenable are generally decent in my experience.

Pro Metal DisplayPort Plug to HDMI Video Cable GOLD 4k 60hz Braided 2m | eBay

I've been offered an itx PC with a ASRock B560M ITX/AC Mobo and an Intel 10100 (Comet Lake/UHD 630), I know I need LE11 for HDR support, I've noticed that the HDMI is only 30hz at 4k, but the displayport is 60hz at 4k. Are there any downsides if I use the displayport out to HDMI on my TV to get 60hz? I presume I'd still get 4k/HDR/Audio etc. Ideally I'd like to avoid having to buy an 11th gen CPU with 60hz HDMI instead. I know 10th gen doesn't have AV1 support but that's not an issue for me.

Cheers.

Quote from The Coolest

michael123

That is my bad. I updated the add-on to allow an index of 7.

Please replace the settings.xml (or just overwrite the whole folder) and try again.

A new driver will be ready soon, which doesn't require per-device DTBs, only a simple configuration file with all that's needed.

But with the current driver, I think that DTBs have not changed since 8.90.4.

Thanks, no joy though sadly, setting Index 0 - 7 blanks the first digit of the time. Would a vid using the test script help? Still no icons either.

Quote from The Coolest

michael123

1. Common Anode should be on. As you can see digits that way, albeit they're upside down.

2. To turn digits right way up, change the display type to something else. (0, 2, 3 have the same orientation, 1 is 'up-side down').

3. What remains is to play with the indexes to find the correct index for each digit (and icons). The numbers in the linked post are a mere suggestion.

Index 0 represents the icons.

Index 1 Hours x10.

Index 2 Hours.

Index 3 Minutes x10.

Index 4 Minutes.

Perhaps values above 4 are valid, try them out.

Edit: I suspect that an index setting of 7, 3, 4, 5, 6 might work.

Display More

Thanks, made some good progress. I now have the time mostly working using a Display Type of 0. Values of X, 3, 4, 5, 6 have got the time working(20 39), but it has no colon in the middle and no icons still, I only have an index setting of up to 6, so I couldn't set the first value to 7, and 0-6 didn't work for it. Let me know if you need anything else, also as I used a DTD you attached somewhere else, what do I do if I need to update my build, keep using the old DTB?

Thanks again for the help so far.

Quote from The Coolest

michael123

Make sure that Common Anode = checked.

Please post a picture with it both checked and unchecked.

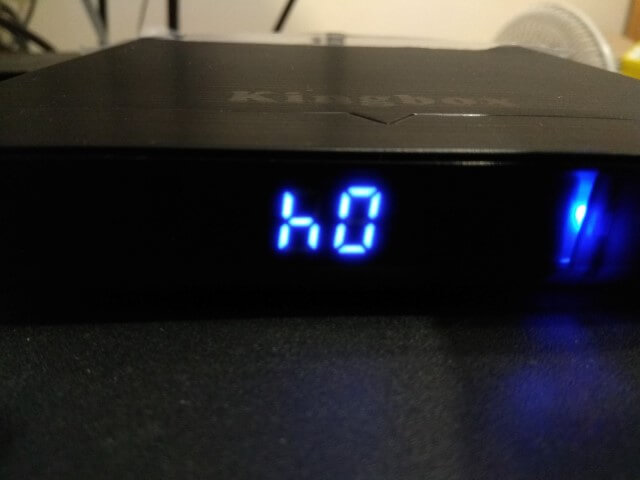

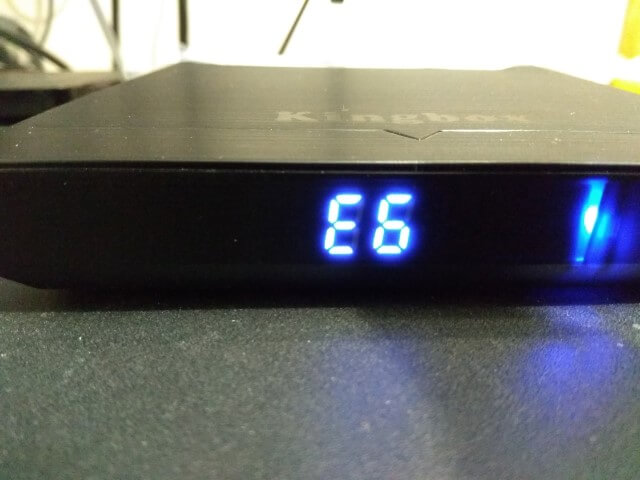

I've attached some pictures with it on and off. I also tried playing with the numbers mentioned by Iceman but didn't have much luck, it just changed the position of numbers and with no reference of what was what it was hard to work out where they should be. The screen went through the below (I missed some, changing every minute).

First value:

E

H

5

0

Example of some of a set:

55

59

5L

58

56

00

Thanks

Quote from The Coolest

michael123

Please look at this post:

LED (VFD) Displays in LibreELEC

Try playing with the different settings, one of them should get it working.

Thanks, any ideas where I start, I've installed it fine now have a wifi icon but the clock is still scrambled, changing the display type didn't seem to do anything and the other values have so many combinations it could take me days to try them all. I tried the ones in that post and all it did was added an Ethernet icon even though Ethernet isn't connected.

The Coolest

You were helping me in the main S912 thread but it's more relevant in here.

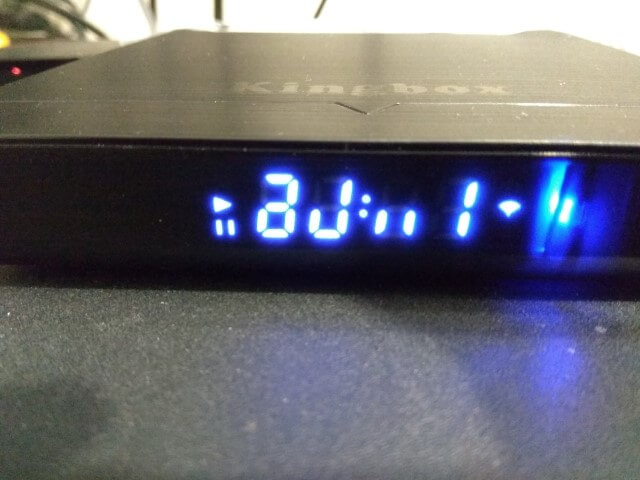

I tried the dtb, the screens now lit up but it's garbled, the 'FD628 Display service' didn't make a difference, the screen is the same with/without. The top of the J (far left), is blinking on and off, the rest changes a little each time I reboot but is always static, the pause seems to have gone off now. Pic attached

If we can get it working great, if not it isn't a huge issue for me. Would be cool if we could get it to show elapsed time of what we're watching.

Quote from boot2k3

You can check in Google you device model and network speed for it.

You can boot to android and check speed to your router (if it has 1GB ports)

And choose q200 for 1Gb or q201 for 100MB

It works with Q200 (although not the LCD screen, not a major loss). This link on Freaktab says Q200 & Q201 are both Gigabit so I'm not sure the difference.

Official list of Amlogic reference boards - FreakTab.com

Ok so I have the DTB and have opened it in Notepad++, it says gxm_s912m82_2g is this a new device? DTB attached, be good if we could get the LCD working, it's a Kingbox K3 made by leelbox, wifi and Bluetooth work with Q200, I've not tested the lan yet.

Quote from ChimeyJimmey

Check your Android build.prop.

It doesn't say in the build.prop, I have the firmware but opening it in AMLogic Customisation Tool then doing KernelDTB is blank. I might just try both and see what happens.

I've just got my first S912 box (have a few S805, S905X, S905W already), how do I know if I need the Q200 or Q201 device tree?

Thanks
