Wow, I finally fixed my device after a lot of effort and followed the output pins hdmi

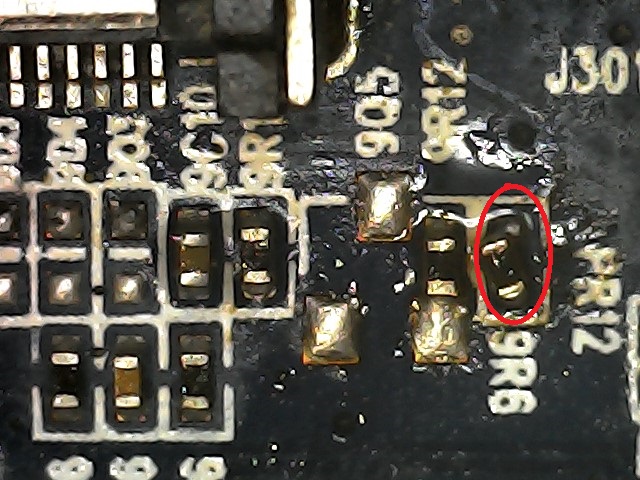

I found pin 16 with a voltage of 0 volts !!! And I changed the resistor no 9R6 With one I took from a broken receiver . As a result, everything came back to work 1920X1080 and sound
I'm sorry for bothering you and thank you again
I think that edid Does not recognize audio data . This is why the image is displayed DVI
Is there a way to skip EDID ? Like a way /sys/class/amhdmitx/amhdmitx0/disp_cap and aud_cap ...etc . Because this method works for me without image or sound problems and 1920x1080 with legacy kernel LE 9.2
Found this chip es7134lv in my carte mere wp2 I think it has to do with the sound . Could you be the cause of the problem? Because I removed it and turned on the device without it. The device works normally without it, nothing happened. I mean, as before, the sound and display work from Android et LE 9.2 but LE 11 screen DVI and not sound
For the record, here's the same logs from my WP2 box (connected to a Marantz AVR > LG-B7V TV) which has no problem with EDID data, and thus we have confidence it's not a general software problem (there's also a moderate number of active WP2 installs).
dmesg: http://ix.io/4JK0
modetest: http://ix.io/4JJZ
I really think there is a technical problem with my device
I was sure when I remembered that I had tried it before on kernel 4.18 and everything was working, displaying the image and sound. I reinstalled the same image that was working, but now the same problem came as the last image LE 11
This video is old, my previous experience when it was working EDID and 1920x1080
The modetest output shows no EDID data. Either the TV doesn't advertise any, or there's a fault with the cable, or the box has a problem so it's not recieved. HDMI 1.4 cables will (or should) still pass EDID info.
I tried the same cable and TV on LE 11 Pc intel or nvidia resolution is work all and edid work my Pc
Do you need a cable HDMI v2,1?
Please note that I flashed my device with a modified Android image with usb burn tool
(8) wetek play2 downgrade android 6 to 5.1 WEOS 3.2 TO 2.0.2 - YouTube
And I got my licenses back usid.ini SEREIAL NEMBER and mac_ether.ini
Did this affect my device? Did I lose any other licenses?
Codemount -o remount,rw /flash cp /flash/uEnv.ini /flash/uEnv.original sed -i 's/quiet/quiet video=HDMI-A-1:1920x1080M@60/g' /flash/uEnv.ini mount -o remount,ro /flash reboot^ That should force output to 1080p@60 .. or you'll get a black screen maybe
Run "dmesg | paste" and "modetest | paste" first, and share the URLs.
is worked 1080p@60 put sound not work
and show DVI on TV
Display MoreUpstream kernels rely on EDID data on the HDMI connection to determine the resolutions available. So one of the following applies:
a) TV has bad EDID data
b) TV has bad HDMI sockets
b) HDMI cable has a problem
c) WP2 box has an HDMI hardware problem
The AMLGX image shows 1080p/4K resolutions fine on my WP2 box so I'm confident there's no software problem. You can try forcing the kernel DRM layer to output at 1080p with "video=HDMI-A-1:1920x1080M@60" in kernel boot params, but that's not a proper solution since you'll be forced to play everything at 60Hz (which doesn't give great results).
To prove whether the box, TV, or cables are at fault .. connect it to another TV, use a different socket, HDMI cable, etc.
NB: If the TV shows "DVI" I'd start with using a different HDMI socket.
Knowing that the TV and cables themselves display the resolution correctly with LE 9.2 and Android tv WEOS 3.2
I will try changing the cable. What type of cable do you use and where is it sold?
You can try forcing the kernel DRM layer to output at 1080p with "video=HDMI-A-1:1920x1080M@60" in kernel boot params
How do I do that? How do I do that?
hi all
i tested LE 11 AND 12 on emmc wetek play 2 is run
i have 2 tv lcd full hd and led 24 and 32
but resolution 1920x1080 not find and sound not work
What is the problem? Are there any settings that must be activated or what?

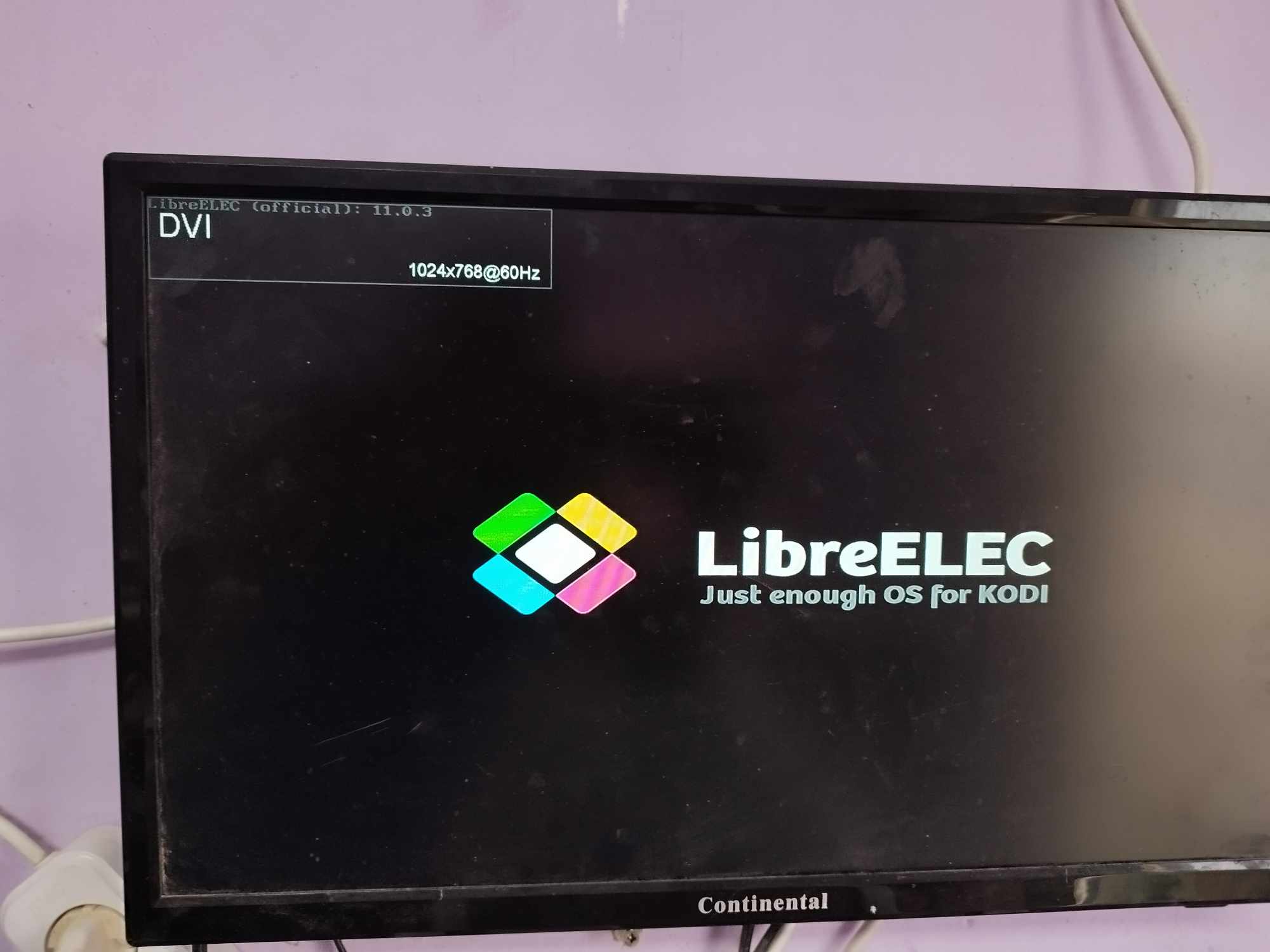

Note: When the device is connected to the TV, it gives a signal DVI !!!!
Knowing when giving the order ssh
tail /sys/class/drm/*/status
==> /sys/class/drm/card0-HDMI-A-1/status <==
connected
I have followed this article https://wiki.libreelec.tv/configuration/edid to generate edid.bin... I used a linux machine.

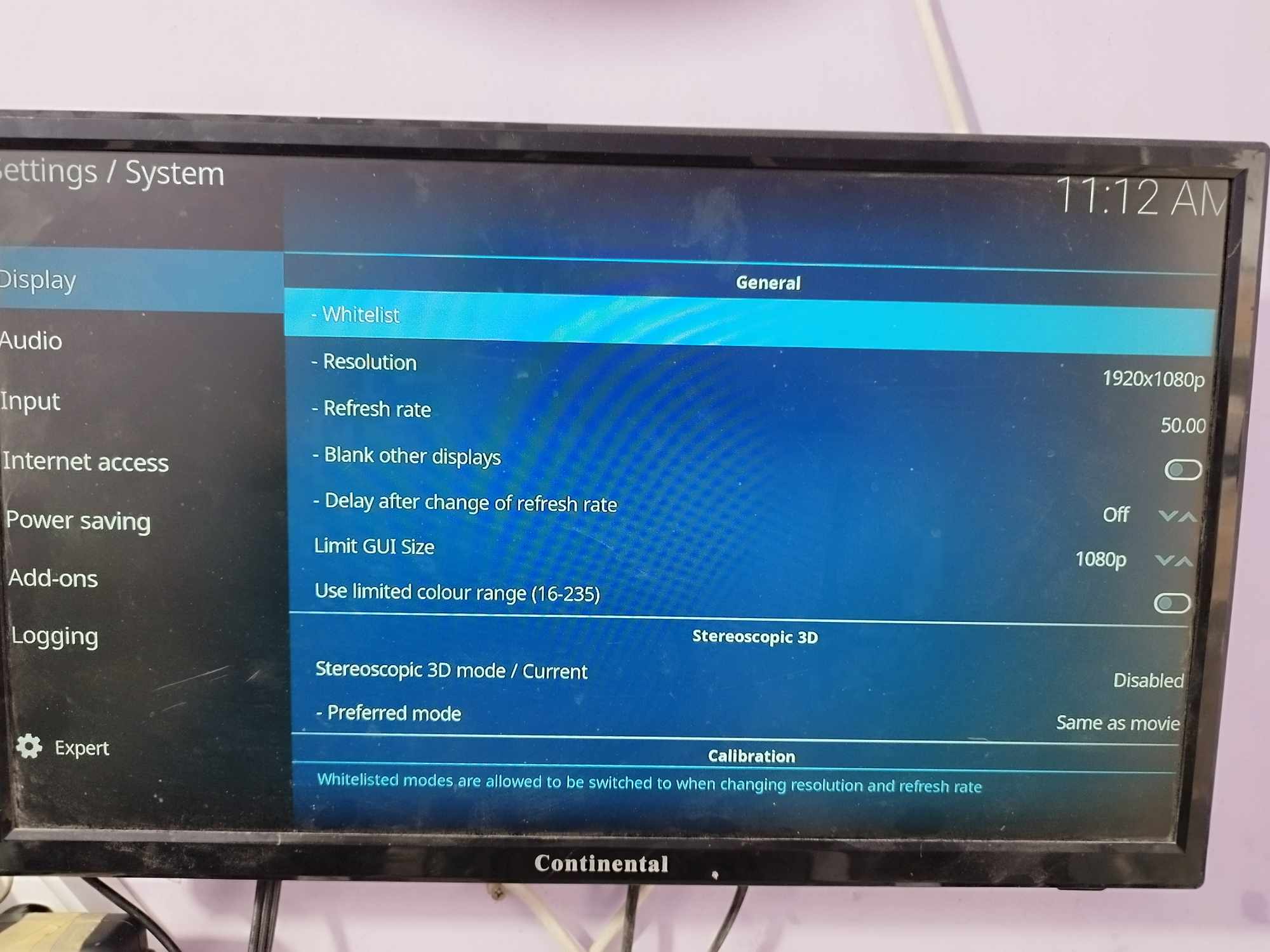

What a surprise I got correct resolution and working audio over HDMI
Thanks for the support!
How did you use, please explain to me
i have box wetek play 2 run on sd card
Please don't be offended, but based on your answers, sometimes I feel like we don't even talk to each other in English.

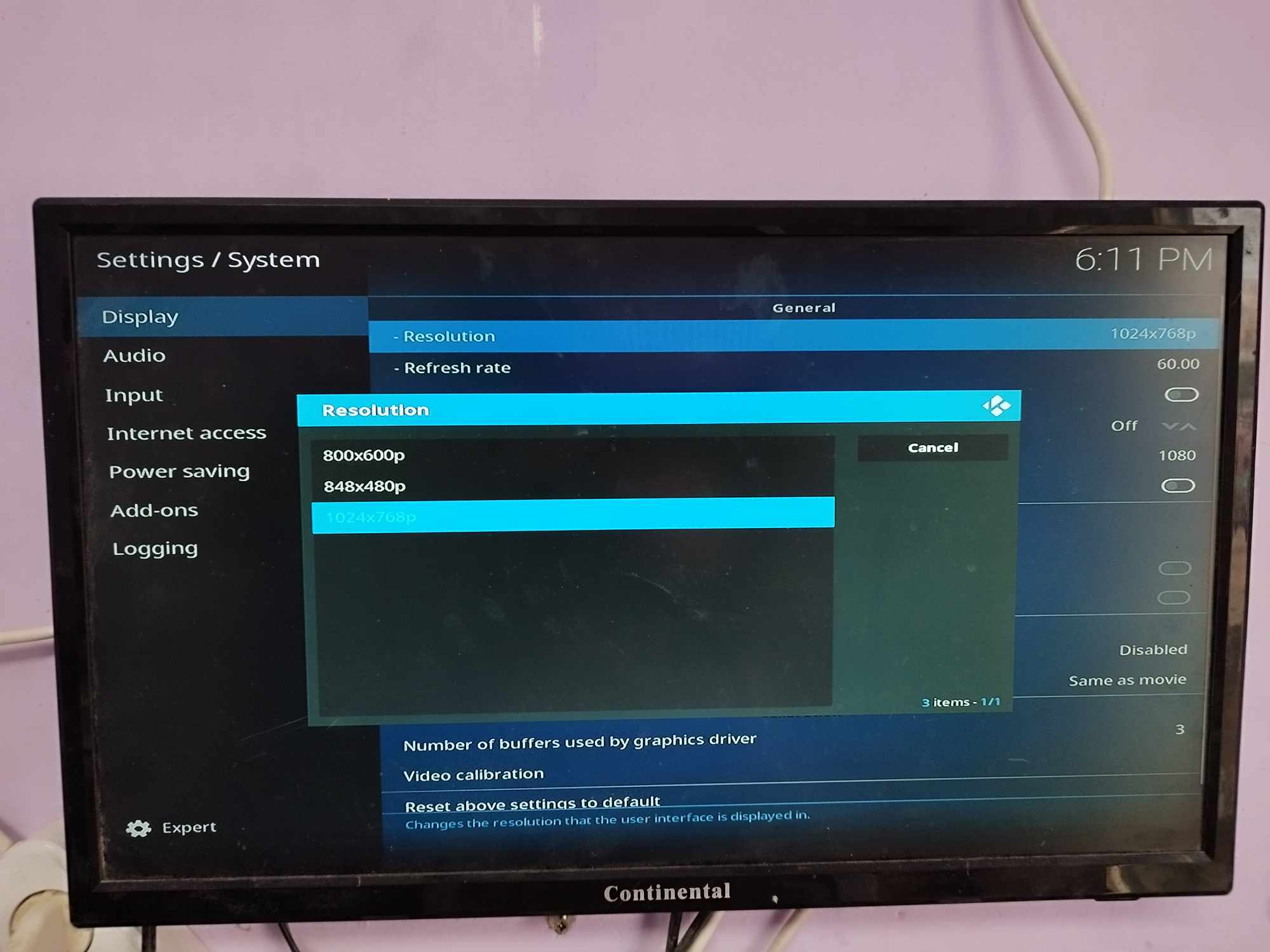

upon entry on LE 11.0.3 for WP2 Display mode not find 1080p50hz or 60hz
but There is only 1024x768p and 848x480p and 800x600p
If you don't answer, then I think it's already irrelevant for you.
thank you I followed this method and it worked perfectly
ou should be able to do that. I used the following method on LE7, but I haven’t tried it on CE.
cat /sys/class/amhdmitx/amhdmitx0/disp_cap > /storage/.kodi/userdata/disp_cap
This will create a copy of the disp_cap in your Configfiles folder.
Use Notepad++ (or edit from SSH) to edit that file and add the resolution/refresh rates you want, according to the format.
Then:
*edit* see post below.
This will tie the disp_cap you created to the one in amhdmitx folder, and Kodi will use that for its resolution list.
Then reboot.
Edit: Now I see that you linked to my own post :slight_smile: I think that it’s a very niche request, I don’t really see the point of 120Hz from a TV box. It does nothing for video, and I doubt it’ll do anything for the GUI, since it’s already plenty smooth at 60Hz. I’m not even sure if the hardware will even support this refresh rate.
You said that the version LE 11 is not supported
But someone turnedYoutube on the internal tuner on the LE 11
How did he do that and is there any hope for a device WP2 ?
Specifications and name of the device being used DVB
https://www3.0zz0.com/2023/10/10/22/512016324.jpeg
https://www12.0zz0.com/2023/10/10/22/778661363.jpg
Tuner Montage RS6060
i am run libreelec 9.2 on wp2
but 50hz not found ... i need active this
How do I do that and how do I always add it?
If you remove all SD cards and USBs and attach the UART cable (which WeTek shipped with the box) you'll see the box fail to boot .. as there is no longer a bootloader. Now if you write the SD card using my wp2 image it should boot (from the SD card) and you'll see UART output. NB: I didn't test the WP2 for a few weeks (as moved back to RPi4 for a bit) but i'm not aware of anyhing that changed enough to break boot.
I thought I did, but the sound is not working
dd on macOS uses =1m, on Linux it's =1M .. I always forget. Note that /dev/device does not exist, you need to swap that for the /dev/mmcblk? device that corresponds to the emmc. If you're booted from one of my images the output of "emmctool" will tell you what the /dev/device is.
HI
dd if=/dev/mmcblk0 of=/var/media/USB/backup.img bs=1M is work fine backup size 13.72 giga
##############################################
# LibreELEC #
# LibreELEC – Just enough OS for KODI #
##############################################
LibreELEC (official): 9.0.2 (WeTek_Play_2.arm)
LibreELEC:~ # dd if=/dev/zero of=/dev/device bs=1M
668+0 records in
667+0 records out
700002304 bytes (667.6MB) copied, 1.316201 seconds, 507.2MB/s
LibreELEC:~ #
Does it mean everything is fine?
HOW DO I KNOW emmc is erased (and vendor u-boot is gone)
LibreELEC-AMLGX.arm-9.80.9-wetek-play2.img.gz
NOT BOOTED
