Quote from Jefken

Hi qashaf,
I would like to try K2ProRC7.img on my Qbox (amlogic 905 2/16GB) in order to get my USB dvb-s2 tuners working.
Should I be able to use this image on my device without bricking it?
regards,
Jefken.

actually k2prorc7.img was modified from k1plus vitmos rc5 . these both boxes same architecture n input output port. I think it is not compatible with other box.
[hr]

Quote from Jefken

Hello, have You tried to put OScam from kzsaq's builds LibreELEC?
I 've copied one for You.
ftp to Your image, generally You have to put it in /usr/bin, don't know for sure how it is for Openpli on Amlogic.
chmod 755, config goes to /usr/keys/oscam.

MEGA

regards, Jefken.

here is oscam from wetek play2 openatv5.3
Version: oscam-1.20-unstable_svn-r0
Compiler: aarch64-linux-gnu
Box type: wetekplay2 (generic)

MEGA

Quote from afl1

Jarvis pvr-s are incompatible with Krypton, but I can compile versions for Krypton.

can we Update from kszaq le 702008 to this krypton version using update folder method?

Quote from ukmark62

Have v007 installed and working 100% on NAND on my Beelink MX64 - (S905 CPU, 2gb RAM and 8gb FLASH - 1gb ethernet and ap6330 wifi module with OTG port)

Downloaded v008 img.gz and used rufus v2.11.995 to load on to 32GBmicro SD card. Then downloaded new device tree from v008 folder (gxbb_p200_2G_1Gbit_OTG_Port.dtb and renamed it to dtb.img and copied this to SD card.) This is what I did for v007 previously (but using the v007 folder instead).

When performing toothpick install, I get error :-

"Error in mount flash: mount_common: could not mount LABEL=BOOT"
"starting debugging shell... type exit to quit"
"ssh: can't access tty: job control turned off".

BOOT is the label of my micro SD card.

I have tried re-applying aml_autoscript on blank sd card with toothpick and then tyring to install v008 again, but still get the above error.

I think I have followed the install steps correctly !?

Any ideas?

Cheers.

EDIT: After reading the 'Update' instructions further I realized that I should update my SD card version v007 of LE using the '.Update' folder method by copying the v008 img.gz file and the new dtb.img to the '.update' folder within LE. I tried this and it worked. I was so used to installing a new version on the SD card (until v007) that I did not notice this method. This method of using the '.update' folder is much easier. Thanks again kszaq!!

Display More

LE v008 installed on K2pro sdcard. All working. I have experiened the error mention above when using LE v007. what i done, don't releash toothpick during installation untill box running, bootlogo,reboot,bootlogo then kodi jarvis logo. at this point you can releash press reset button usin toothpick...thanks

Quote from K 2 pro

Hello
been running Oscam in android
But does not respond DTV and Launcher2

Not work on ENIGMA 2

[hr]
oscam in

libreelec ..... Ok
ENIGMA 2 ..... NOK
software android K2pro .... NoK

wicardd 1.18

ENIGMA 2 ..... OK
libreelec ..... NOk
software android K2pro .... NoK

Display More

hi k2pro, how to activate or running wicard emulator in enigma2? i know to configure but dont know to run the wicard.

i think because tvheadend bug issue. wetek also has same problem when using tvheadend.

Quote from Alessio78

Hello quashaf, did you tried the DVB-T also? Do you know if dvb-t scan correctly? Tks

Inviato dal mio LG-D802 utilizzando Tapatalk

i just teste dvbt2 on vitmod rc6 enigma2 and its not working, bluescreen.

Quote from algdu83

thanks
you fix telnet connection problem in DCC?
test oscam for wetek OpenATV5.1-Oscamemucollection
chmod 755

oscam collection from wetek is not compatible with s905. its arm7 not 64bit aarch64.
i use winscp for ftp and putty for telnet in KODI. After that change to E2.

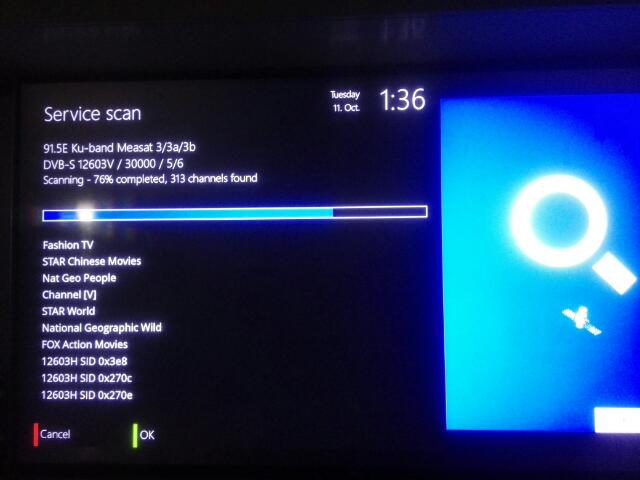

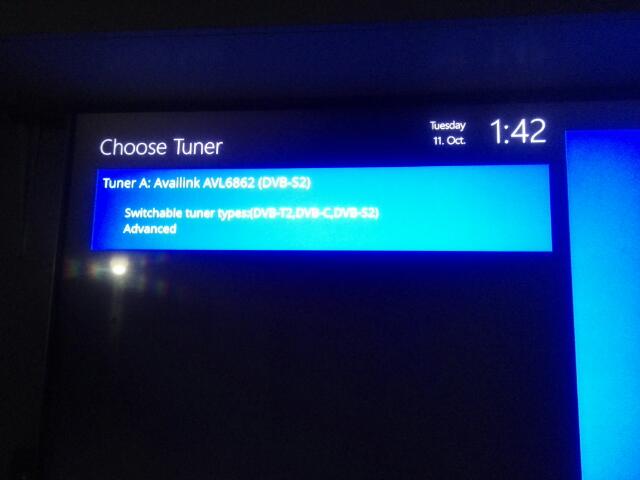

i tested vitmod v2 rc6 with k2pro.dtb and replace rc6 enigma2 folder usr/lib/enigma2 with rc5 enigma2. the broken gui fixed. dvbs2 working well. i attached here some pictures. i use LAN Nework for internet.

Use KODI first to telnet and ftp, use client like PuTTY, SSH, SFTP, WinSCP. User:root Pass:root.

here from someone:

For someone is looking for Enigma2 running on K1 Plus & K2 Pro. I already modified an image from Vitmod RC6. Its all works fine in Enigma2. Channel can scan very well. GUI already fix. But still looking for OSCAM. I already upload to my server but for your information its 3.7GB because it its an image backup from 4GB Sdcard. Here is the link:- K1 Plus Vitmod RC6 (Modification) Version: K1PlusRC7.img K2 Pro Vitmod RC6 (Modification) Version: K2ProRC7.img Thanks to Vitaly for great works. I hope @Vitaliy_S can make an OSCAM-emu working with Enigma2.

Customizing Oscam with HTS Tvheadend

Customizing Oscam with HTS Tvheadend on OpenELEC 5.0 for crafty view

After installation oscam is started automatically, and all config files are located in:

Code:/storage/.kodi/userdata/addon_data/service.softcam.oscam/config
oscam web interface is accessible on port 8888 with username oscam and passowrd oscam.

For an example: If your Box have IP address 192.168.0.5, in web browser you should open http://192.168.0.5:8888

Quote from heisenberghdf

I watch this video and more and more. No solutions for me.

can u specific, which step, part?

Quote from kokovi4

I also test this build yesterday in my K2 pro combo:
There 4K worked OK- Tested in Samsung 4K TV at 3840/2160 24P
Neutrino with DVB-S2 worked OK, tune chanels, but cant use 4K sattelite chanel, DVB-C and DVB-T not worked for me, see signal level 80% SNR 6% and cant tune .
VDR cant tune DVB-S and DVB-C
Enigma not OK

for enigma2 broken gui fixed, but need to replace enigma2 folder from vitmod rc5 folder, hopefully someone can build and wifi dualband and bluetooth drivers will fixed.

Quote from envagyok

When someone need use dvb-t and dvb-s together, 2 important things.
-Need enable power save both dvb device
-recommended disable epg and scanning functions

Sometime when read epg, isn't switch to other tuner, and no adapter error message readable

Use Web epg, or epg addon

yup, if epg function enable, we have to wait epg scanning complete. I think the error DVB-T #0 - poll TIMEOUT like dvb driver issue.

Quote from heisenberghdf

Can someone help me with the cccam configuration of tvheadend and Oscam, please? I am doing something wrong and the cccam is not working...

tvheadend oscam installation and configuration

My K2pro stil with LE 7.0.2.004.1. The dvbs2 and dvbt2 are working successfully now but need to tune setting the tuner. For dvbt2, error exist many time "DVB-T #0 - poll TIMEOUT" and lastly the tuner successfully scan the channel. For dvbs2, the tuner successfully scan for certain satellite. The tuner fail to scan certain satellite, depends on TP frequencies.

make sure power save selected for dvbs2 dvbt2. when the satellite channel turn on, to choose terrestrial T2 channel make sure stop (STOP button on RC) the satellite channel first before turn on T2 channel.

2016-10-08 07:43:44.484 subscription: 00DF: "scan" subscribing to mux "682MHz", weight: 2, adapter: "Availink AVL6862 : DVB-T #0", network: "mytv", service: "Raw PID Subscription"
2016-10-08 07:43:46.173 linuxdvb: Availink AVL6862 : DVB-T #0 - poll TIMEOUT
2016-10-08 07:43:49.479 mpegts: 682MHz in mytv - scan no data, failed
2016-10-08 07:43:49.480 subscription: 00DF: "scan" unsubscribing
2016-10-08 07:43:59.479 mpegts: 682MHz in mytv - tuning on Availink AVL6862 : DVB-T #0
2016-10-08 07:43:59.483 subscription: 00E0: "scan" subscribing to mux "682MHz", weight: 2, adapter: "Availink AVL6862 : DVB-T #0", network: "mytv", service: "Raw PID Subscription"
2016-10-08 07:44:00.982 linuxdvb: Availink AVL6862 : DVB-T #0 - poll TIMEOUT
2016-10-08 07:44:04.464 tot: 682MHz in mytv: invalid checksum (len 8, errors 1)
2016-10-08 07:43:58.015 mpegts: 682MHz in mytv scan complete

2016-10-08 08:10:47.328 service_mapper: mytv/682MHz/TVAH: success
2016-10-08 08:10:47.332 service_mapper: mytv/682MHz/BNC: success
2016-10-08 08:10:47.334 service_mapper: mytv/682MHz/TV3: success
2016-10-08 08:10:47.337 service_mapper: mytv/682MHz/8TV: success
2016-10-08 08:10:47.341 service_mapper: mytv/682MHz/TV9: success
2016-10-08 08:10:47.345 service_mapper: mytv/682MHz/TV1: success
2016-10-08 08:10:47.350 service_mapper: mytv/682MHz/TV2: success
2016-10-08 08:10:47.362 service_mapper: mytv/682MHz/NTV7: success
2016-10-08 08:10:47.368 service_mapper: mytv/682MHz/TVi: success
2016-10-08 08:10:47.371 service_mapper: mytv/682MHz/TestChannel: success

2016-10-08 07:16:09.122 mpegts: 10772V in measatku - tuning on Availink AVL6862 : DVB-S #0
2016-10-08 07:16:10.022 subscription: 0043: "scan" subscribing to mux "10772V", weight: 5, adapter: "Availink AVL6862 : DVB-S #0", network: "measatku", service: "Raw PID Subscription"
2016-10-08 07:16:19.961 mpegts: 10772V in measatku scan complete

Quote from K 2 pro

problem use tvheadend 4.2

not connecting tuner dvbs2

When entering tv adapter I find empty

for first time open a channel on livetv, bug no signal. try open another channel..become OK

Quote from K 2 pro

hi
after test image LibreELEC-Amlogic.aarch64-KI_Plus-7.0.2.004.1.img.gz
very stable
wifi .... OK
VDR .... OK
tuner dvbs2 ..... Ok
cccam in OsCAM ....... OK Very fast to open an encrypted
-----------------
Have a problem
Preparation lnb disque 4x1
not working
and Do not captures channels 4K
thanks

Display More

i use tvheadend 4.2, diseqc 1.0 OK

Quote from willyfan

Sanning fail but tuner is working in some way. I noticed that every time I restart the KII I found more service in the network . It add a mux time by time, may be one mux every restart. But service are not mapped in channel. I tried to "map service" manually (map all service) and channel is added to the list, and also in kodi.
But... if I click on the channel on kodi, the stream don't start (no signal) until I open the channel from web interface with look TV. Actually I have 148 Service, 94 channel but only a few are working (and only with matroska stream profile)

what i understand from wetek forum, this is tvheadend bug for first time open stream livetv
[hr]

Quote from afl1

I repacked installation packages to fix some install issues.

SDcard versions:
LibreELEC-Amlogic.aarch64-KI_Plus-7.0.2.004.2.img.gz
LibreELEC-Amlogic.aarch64-KII_Pro-7.0.2.004.2.img.gz

Install SDcard version to internal connecting to box via ssh and submiting command: /flash/installtointernal
Don't use kszaq version of 'installtointernal' otherwise u brick your box.

Internal flash versions:
LibreELEC-Amlogic.aarch64-KI_Plus-7.0.2.004.2-update.zip
LibreELEC-Amlogic.aarch64-KII_Pro-7.0.2.004.2-update.zip

Unzip file to SDcard or USB stick. Install from recovery or Android update apk.
[hr]

Signal level is very informative value and hard to compare between different boxes. Most important is SNR. 50% is enough for HD channels. Most important parts are satellite dish and LNB. Tuner can hardly improve bad signal. If u have low signal on tuner u have to use LNB with higher gain.

Display More

i tested dvbs2 with 6in' dish high gain lnb (very high signal snr n stregth using satfinder and other box about 90-100%, several tp 80-90%, when using k2pro shows 70-80%), t2 still not working during scan...i think this is because of dvb drivers

i tested dvbt2, scanning fail but dvbs2 working well. blutooth also working successful. i aware that dvbs2 signal low 10% compare to my enigma2 box. normal signal for certain transponder 80-90%, but with k2pro around 70-80%. . tuner sensitivity also weak, this factors gave no signal or lost during scan or livetv. i dont know what is the minimum signal that suitable the box to scan successsfully.
