Quote from chewitt

a) Patch upstream kernel sources to include the dts and build the dtb

b) Patch upstream u-boot sources in include the dts with a u-boot config file

c) Generate patches for the kernel and u-boot changes; ensure those patches apply on-top of existing LE package patches

d) Add patches to the 'patches' folders of either the packages or under projects/Rockchip/devices/RK3399/patches/(linux|u-boot)

e) Modify scripts/uboot_helper to add a device using the kernel dtb and u-boot config file

f) Build the image

There aren't really instructions for this anywhere; GitHub commits serve as 'prior art' and there's a deliberate low-bar requirement for some initiative and general understanding of how distro image building and build-systems work.

Display More

Thanks a lot for such a detailed explanation.

Because it is my first time to do the adaptation of new device, so many are not clear, can you explain it in detail?

a) What are the upstream kernel sources? My current DTS is obtained from the Repositories supported by the current board . In addition, in which environment is dtb built?

b) For the u-boot config file, I got the file named xxxx_defconfig from the current board wiki support library, is it this file?

c) "ensure those patches apply on-top of existing LE package patches", how to do this specifically?

e) Is there a specific smaple you can refer to?

Hello,

I have a 3399 based board and I also have a DTS file that I want to add to LE and then generate the corresponding firmware.

Is it correct to modify the three places of source/u-boot/ in LE? That is, add the DTS file, modify the Makefile, and then add defconfig . Then make a Patch, and then build, is it enough?

What is the naming rule in LE of the patch file?

Quote from chewitt

The build-system unpacks sources for a package, then applies diff patches in alphanumeric sequence before building the package. Patches follow a naming convention and need to be in diff format; patches are relative to the root folder of the unpacked sources.

See LibreELEC.tv/packages/linux-driver-addons/dvb/crazycat/patches at master · LibreELEC/LibreELEC.tv · GitHub for examples. If you're working on 'Generic' (4.14 kernel) ignore the amlogic folders which are specific to other kernels (although the format is the same).

What are the specific naming rules? I'm currently doing a Patch, what is the correct naming convention?

In addition, the purpose of my Patch is to add DTS to support the new RK3399 device. Would like to ask, is it possible to replace the new package in source/u-boot/? Specifically, I changed the Makefile, added the DTS file, and added the defconfig file. That should be fine, right?

Quote from chewitt

Enabling EXT4 filesystem encryption config results in a kernel that supports EXT4 encrypted filesystems. You would still need to modify LE to use an encrypted EXT4 filesystem within the squashfs SYSTEM file. Adding fscryptctl adds a tool to manage encryption, but since this tool is inside a read-only file (SYSTEM) it will not be able to modify the active SYSTEM file. Making LE boot from an encrypted SYSTEM file is probably not impossible (but there is no how-to, so don't ask) but I wouldn't see any advantage to that approach over using sky42 images which can provide encyption to /storage where you can place any sensitive binaries/configuration/content.

Thank you very much for your meticulous reply.

But there is a question. After I use @sky42's image, how to encrypt and decrypt files specifically, is there a help manual? In addition, after the script file is encrypted, will it be decrypted when the system is executed?

Excuse me, can the following features achieve the purpose of protecting the SYSTEM? Because I modified SYSTEM, I want to protect it to prevent third parties from being able to decompress it. Can it be achieved through these two features? If so, how to do it?

- enable kernel config for ext4 filesystem encryption

- added fscryptctl to manage ext4 encryption

Quote from matthuo

Got it.

There is currently a strange situation. After I executed the command, the ssh login always prompted the wrong password. What could be the reason?

unsquashfs SYSTEM

fakeroot

[added some files]

mksquashfs squashfs-root SYSTEM -comp zstd

Display More

It may be that something is wrong with the decompression, and it will be normal after doing it again.

In addition, I would like to ask, if the SYSTEM is encrypted (maybe it can be encrypted when compressed), is it possible to provide the key when the system is started for decryption? Where should this KEY be placed? What script uses this key to decompress?

My purpose is to protect SYSTEM, and I don't want a third party to decompress it.

Quote from HiassofT

Yes. Decompression speed is about the same, but compressed size is smaller.

so long,

Hias

Got it.

There is currently a strange situation. After I executed the command, the ssh login always prompted the wrong password. What could be the reason?

unsquashfs SYSTEM

fakeroot

[added some files]

mksquashfs squashfs-root SYSTEM -comp zstd

Successfully decompressed through ubuntu20.04, thank you for your guidance.

By the way, lzo is used for compression for LE9.2.x, why use zstd instead of LE10? Should the compression quality be more efficient?

It has been updated to the latest squashfs-tools in ubuntu16.04 (see below), but it does not work. I will try to do it in Debian Buster.

”squashfs-tools is already the newest version (1:4.3-3ubuntu2.16.04.3)“

For RPi4, after burning the SD card, unsquashfs the SYSTEM in it, but the prompt is as follows:

unsquashfs SYSTEM

Filesystem uses unknown compression, this is unsupported by this version

Decompressors available:

gzip

lzma

lzo

lz4

xz

Is the decompression tool wrong?

Quote from lrusak

ARCH=arm64 is wrong, you need to use ARCH=arm

For RPi4, why is ARCH=arm64 allowed to execute?

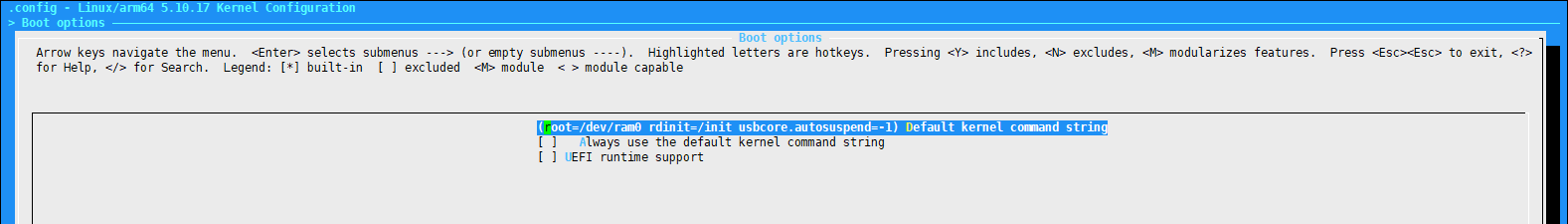

Where is the dtb file of RPi4 created? Is it generated after menuconfig configuration? Relevant boot option keep the default

Only the part of netfilter in network has been changed.

Build Command： PROJECT=RPi DEVICE=RPi4 ARCH=arm64 make image

The image error is generated below, it is due to the lack of dtb file, is it because ARCH=arm64 is selected in the menuconfig configuration, which causes this error?

Successful build, creating image...

Parallel mksquashfs: Using 2 processors

Creating 4.0 filesystem on /home/matt/http://LibreELEC.tv/target/LibreELEC-RPi4.arm-10.0-devel-20210413080833-c5d7822.system, block size 1048576.

[==============================================================================================================================================================================================================/] 7327/7327 100%

Exportable Squashfs 4.0 filesystem, zstd compressed, data block size 1048576

compressed data, compressed metadata, compressed fragments,

no xattrs, compressed ids

duplicates are removed

Filesystem size 111889.52 Kbytes (109.27 Mbytes)

37.11% of uncompressed filesystem size (301542.07 Kbytes)

Inode table size 78152 bytes (76.32 Kbytes)

25.31% of uncompressed inode table size (308790 bytes)

Directory table size 91863 bytes (89.71 Kbytes)

41.49% of uncompressed directory table size (221406 bytes)

Number of duplicate files found 172

Number of inodes 9339

Number of files 7231

Number of fragments 194

Number of symbolic links 721

Number of device nodes 0

Number of fifo nodes 0

Number of socket nodes 0

Number of directories 1387

Number of ids (unique uids + gids) 2

Number of uids 1

root (0)

Number of gids 2

root (0)

unknown (81)

Running /home/matt/http://LibreELEC.tv/packages/tools/bcm2835-bootloader/release

cp: cannot stat '/home/matt/http://LibreELEC.tv/build.LibreELEC-RPi4.arm-10.0-devel/image/system/usr/share/bootloader/*.dtb': No such file or directory

*********** FAILED COMMAND ***********

. ${FOUND_PATH}

**************************************

make: *** [Makefile:12：image] Error1

Thank you for your professional reply.

If I do the alignment of the CMA Dtoverlay, where exactly do I do it?The config. TXT?What are the specific command?

Quote from HiassofT

If you run LE 10 then leave gpu_mem at the default (76MB). It's only needed for H.264 hardware decoding. Setting it higher just wastes memory.

so long,

Hias

Does LE10 dynamically adjust GPU_MEM?Not sure if the video plugin will be used on the GPU (according to the Netflix plugin, it probably won't), so I hope it can be adjusted dynamically.

In addition, stopping a docker container will cause a LE10 restart. Does this have anything to do with the fact that the GPU_MEM setting is still high?For now, though, the default is still 76.

I see. In the network setting, you need to set the location doman. Ha Ha

At present, for RPI4, using LE10 firmware, after installation, it is found that there is no signal of 5G band wireless, but using 9.2.6 version, there is no problem
