I recently revived my NUC8i3 after a few issue the last time I tried. Runing beautifully on Libreelec 11 nightly.
Posts by luckylukz
-
-
I have tried some test files and only Dolby Digital / + work as well as DTS. I can play these audios and when I stop playing audio resumes throughout libreelec.
I cannot play AAC, LPCM or anything with TrueHD/Master Audio/DTS HD.
When I play these files the video plays with no audio. Stoping the video causes libreelec to loose all audio and I need to reboot the system to get audio back.
Replicated the same issue on
LibreELEC-Generic.x86_64-9.80-nightly-20210223-f6986f3
-
I have tried some test files and only Dolby Digital / + work as well as DTS. I can play these audios and when I stop playing audio resumes throughout libreelec.
I cannot play AAC, LPCM or anything with TrueHD/Master Audio/DTS HD.
When I play these files the video plays with no audio. Stoping the video causes libreelec to loose all audio and I need to reboot the system to get audio back.
-
Maybe snd_intel_dspcfg is directly built into the kernel image using the parameter =y? In this case blacklisting might not work.
I have read the document, but there is nothing I myself can further try in terms of kernel and builds.
-
Display More
If anyone has any suggestions:
LibreELEC:~ # lsmod
Module Size Used by
8021q 24576 0
bnep 24576 2
snd_hda_codec_hdmi 61440 1
intel_rapl_msr 20480 0
wl 6385664 0
iwlmvm 323584 0
snd_hda_codec_realtek 122880 1
snd_hda_codec_generic 73728 1 snd_hda_codec_realtek
intel_rapl_common 24576 1 intel_rapl_msr
ledtrig_audio 16384 1 snd_hda_codec_generic
intel_powerclamp 20480 0
mac80211 692224 1 iwlmvm
snd_hda_intel 45056 0
iwlwifi 307200 1 iwlmvm
snd_hda_codec 114688 4 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec_realtek
snd_hda_core 73728 5 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek
snd_intel_dspcfg 16384 1 snd_hda_intel
snd_hwdep 16384 1 snd_hda_codec
idma64 20480 0
cfg80211 700416 4 wl,iwlmvm,iwlwifi,mac80211
exfat 73728 0
hid_multitouch 32768 0
btusb 57344 0
btrtl 24576 1 btusb
btbcm 16384 1 btusb
btintel 28672 1 btusb
bluetooth 524288 49 btrtl,btintel,btbcm,bnep,btusb
ecdh_generic 16384 3 bluetooth
ecc 28672 1 ecdh_generic
rfkill 24576 5 bluetooth,cfg80211
fuse 114688 7
I tried to blacklist snd_intel_dspcfg but it still loads
Codeecho "blacklist snd_intel_dspcfg" >> /storage/.config/modprobe.d/blacklist.conf -
If anyone has any suggestions:
LibreELEC:~ # lsmod
Module Size Used by
8021q 24576 0
bnep 24576 2
snd_hda_codec_hdmi 61440 1
intel_rapl_msr 20480 0
wl 6385664 0
iwlmvm 323584 0
snd_hda_codec_realtek 122880 1
snd_hda_codec_generic 73728 1 snd_hda_codec_realtek
intel_rapl_common 24576 1 intel_rapl_msr
ledtrig_audio 16384 1 snd_hda_codec_generic
intel_powerclamp 20480 0
mac80211 692224 1 iwlmvm
snd_hda_intel 45056 0
iwlwifi 307200 1 iwlmvm
snd_hda_codec 114688 4 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec_realtek
snd_hda_core 73728 5 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek
snd_intel_dspcfg 16384 1 snd_hda_intel
snd_hwdep 16384 1 snd_hda_codec
idma64 20480 0
cfg80211 700416 4 wl,iwlmvm,iwlwifi,mac80211
exfat 73728 0
hid_multitouch 32768 0
btusb 57344 0
btrtl 24576 1 btusb
btbcm 16384 1 btusb
btintel 28672 1 btusb
bluetooth 524288 49 btrtl,btintel,btbcm,bnep,btusb
ecdh_generic 16384 3 bluetooth
ecc 28672 1 ecdh_generic
rfkill 24576 5 bluetooth,cfg80211
fuse 114688 7
-
I kept on HD Audio in bios and disabled Audio DSP.
That seemed to have fixed the passthrough audio, not fully tested yet tho.
Passthrough audio decided to work after disabling DSP Audio in bios.
It has now decided not to work and cuts out once a video is played.
My setup is NUC11PA - Onkyo Receiver TX SR373 - LG TV

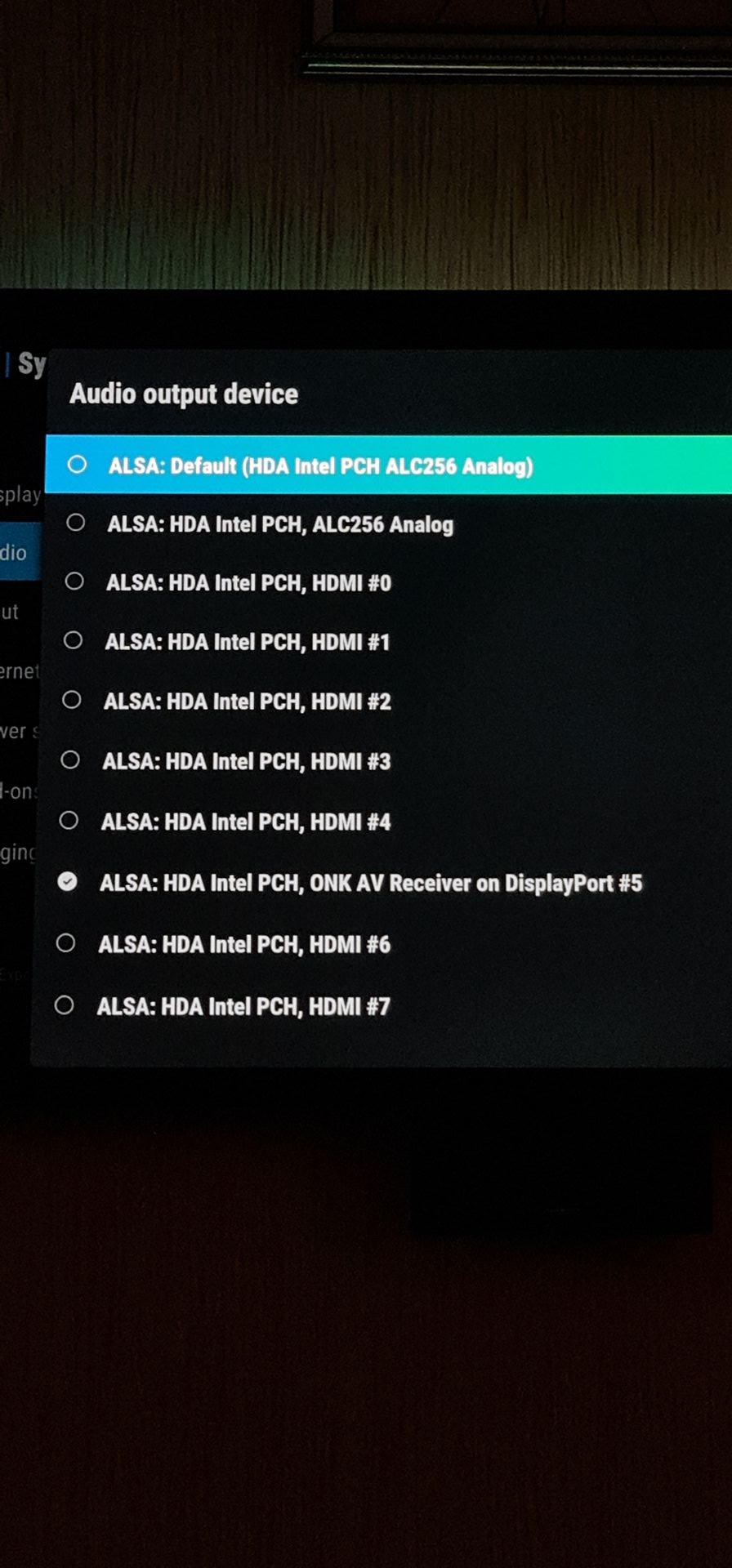

Attached image of all the audio devices available
Any help or suggestion apreciated
-
luckylukz .. do you use passthru audio? Is HD-Audio working properly??
I kept on HD Audio in bios and disabled Audio DSP.
That seemed to have fixed the passthrough audio, not fully tested yet tho.
-
luckylukz .. do you use passthru audio? Is HD-Audio working properly??
Yes I do use passthrough audio and no audio is not currently working properly. Audio cuts out when i play video and only recovers on restart.
-
That's what I uploaded yesterday.
It says RC1 in system info.
I was referring to the full release:
-
During HDR playback, video cuts out when osd is activated. Video comes back when the osd closes.
Video:
Microsoft OneDrive - Access files anywhere. Create docs with free Office Online.
-
Kodi 19 released. Would apreciate a build to test.
-
Just to clarify and remove confusion is this specifically for the Intel Iris X Graphics or will it also work for the Intel UHD Graphics in the i3 model.
-
-
Confirmed HDR is working!
-
Both Ethernet and WiFi now working
Plays SDR video fine
Playing HDR video crashes libreelec and TV displays 'No Signal'. NUC remains powered and on. The only way to recover is to pull the power cord.
Running 'vainfo' results:
LibreELEC:~ # vainfo
libva info: VA-API version 1.10.0
libva info: Trying to open /usr/lib/dri/iHD_drv_video.so
libva info: Found init function __vaDriverInit_1_10
libva info: va_openDriver() returns 0
vainfo: VA-API version: 1.10 (libva 2.10.0)
vainfo: Driver version: Intel iHD driver for Intel(R) Gen Graphics - 20.4.5 (d8b557f424)
vainfo: Supported profile and entrypoints
VAProfileNone : VAEntrypointVideoProc
VAProfileNone : VAEntrypointStats
VAProfileMPEG2Simple : VAEntrypointVLD
VAProfileMPEG2Main : VAEntrypointVLD
VAProfileH264Main : VAEntrypointVLD
VAProfileH264Main : VAEntrypointEncSliceLP
VAProfileH264High : VAEntrypointVLD
VAProfileH264High : VAEntrypointEncSliceLP
VAProfileJPEGBaseline : VAEntrypointVLD
VAProfileJPEGBaseline : VAEntrypointEncPicture
VAProfileH264ConstrainedBaseline: VAEntrypointVLD
VAProfileH264ConstrainedBaseline: VAEntrypointEncSliceLP
VAProfileVP8Version0_3 : VAEntrypointVLD
VAProfileHEVCMain : VAEntrypointVLD
VAProfileHEVCMain : VAEntrypointEncSliceLP
VAProfileHEVCMain10 : VAEntrypointVLD
VAProfileHEVCMain10 : VAEntrypointEncSliceLP
VAProfileVP9Profile0 : VAEntrypointVLD
VAProfileVP9Profile1 : VAEntrypointVLD
VAProfileVP9Profile2 : VAEntrypointVLD
VAProfileVP9Profile3 : VAEntrypointVLD
VAProfileHEVCMain12 : VAEntrypointVLD
VAProfileHEVCMain422_10 : VAEntrypointVLD
VAProfileHEVCMain422_12 : VAEntrypointVLD
VAProfileHEVCMain444 : VAEntrypointVLD
VAProfileHEVCMain444 : VAEntrypointEncSliceLP
VAProfileHEVCMain444_10 : VAEntrypointVLD
VAProfileHEVCMain444_10 : VAEntrypointEncSliceLP
VAProfileHEVCMain444_12 : VAEntrypointVLD
VAProfileHEVCSccMain : VAEntrypointVLD
VAProfileHEVCSccMain : VAEntrypointEncSliceLP
VAProfileHEVCSccMain10 : VAEntrypointVLD
VAProfileHEVCSccMain10 : VAEntrypointEncSliceLP
VAProfileHEVCSccMain444 : VAEntrypointVLD
VAProfileHEVCSccMain444 : VAEntrypointEncSliceLP
VAProfileAV1Profile0 : VAEntrypointVLD
VAProfileHEVCSccMain444_10 : VAEntrypointVLD
VAProfileHEVCSccMain444_10 : VAEntrypointEncSliceLP
-
we know hardware is capable as since Gemnini Lake Intel supports HDR in Windows
so its just Linux which cant do it properly with DP to HDMI. Maybe the patches used for earlier NUCs need to be updated.

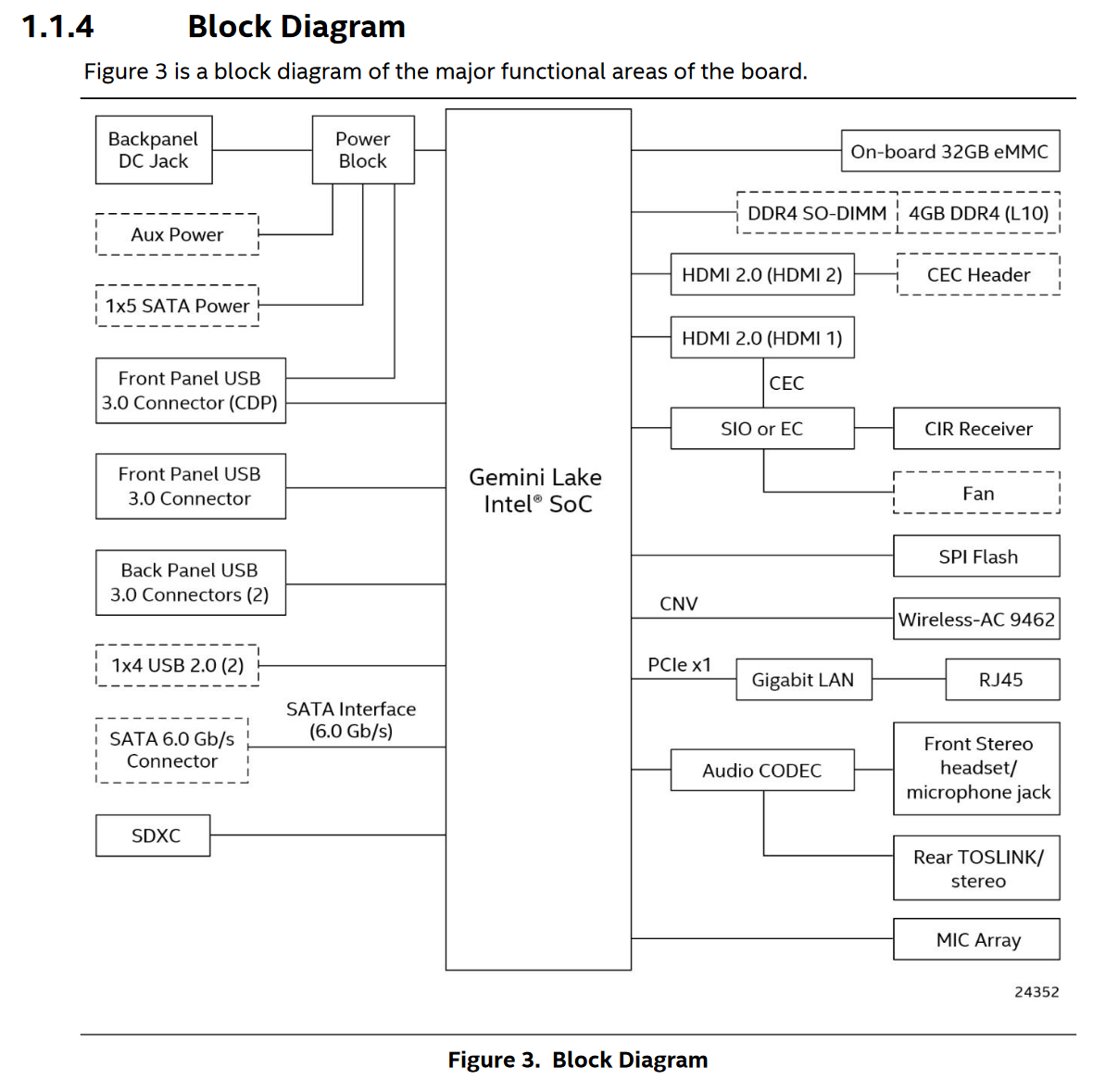

Gemini Lake has native HDMI 2.0a and no LSPCON / PCON
-
In other news......
Ethernet and WiFi also not working in Libreelec on NUC11PAH. I am using a USB Wifi dongle which needs to be unplugged and plugged back in after a reboot.
