cartman74 · Stuck in SAFE MODE cartman74 January 31, 2022 at 1:19 PM

Quote from heitbaum

Hi cartman74 - enabled debug crash logs may help pinpoint the issue.

Hi !

I forgot to enable Debug Mode, you are right

So I managed to reproduce the bug, you can find all my Log Files here : https://www.swisstransfer.com/d/0dfcac30-df6…a7-17af70c5c6de

I hope you'll find something.

Thanks.

cartman74 · Stuck in SAFE MODE cartman74 January 29, 2022 at 10:00 AM

I think i found the bug !

I hadn’t this problem with previous Librelec (<= 9)

So first i need to explain how i use my LibreElec machine. I use a software for my home automation (Jeedom). When i want to watch TV i just say to my Alexa « zap to channel X ».

- it triggers a Wake On LAN on my LibreElec machine

- it tries every second to ping the response of the API on 8080 port

- when it pings it switches to the desired channel with the API

The problem was i guess the « hammering » every second.

I change this to try every 5 sc after 25 sc of booting and now it takes maybe fewer seconds to switch the channel after booting, but it does not reboot in Safe Mode anymore.

So is there something new with the LAN interface and the API in this new version ?

Thanks for the support

cartman74 · Stuck in SAFE MODE cartman74 January 15, 2022 at 6:26 PM

I setup a new KODI in a new SSD drive and after several on/off I have the same problem without plugins etc ...

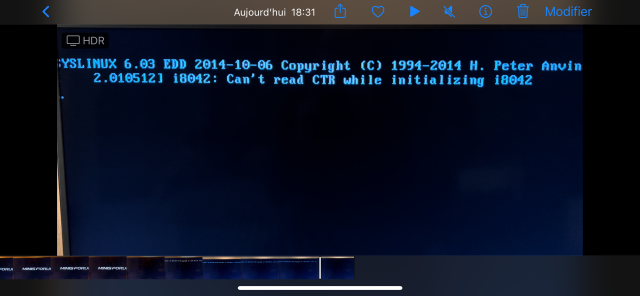

I noticed something when it goes in SAFE MODE at kernel boot :

When i googled i found this :

This message can be safely ignored. This occurs due to the Linux Kernel unable to locate any PS/2 controller.

Do i need to try to set this on boot in the grub ?

quiet splash nomodeset

Code

set timeout="0"
set default="LibreELEC"

menuentry "LibreELEC" {
        search --set -f /KERNEL
        linux /KERNEL boot=UUID=C9FE-B3B2 disk=UUID=046048be-ef87-4380-b66f-f155274b5c7f quiet splash nomodeset
}

cartman74 · Stuck in SAFE MODE cartman74 January 10, 2022 at 12:48 PM

I will setup a new instance of KODI in a spare disk to check this.

The only plugin at startup is IPVR Simple Client and TVHeadEnd when they scan channels and guide i guess.

Quote from chewitt

Nothing stands out, but the most common cause of unexplained crashes is add-ons. So start with a clean install and add things back in small changes until either everything works or you can pinpoint the change that introduces the problem.

cartman74 · Stuck in SAFE MODE cartman74 January 7, 2022 at 2:03 PM

No one has an idea ...?

Software or hardware problems ?

cartman74 · Stuck in SAFE MODE cartman74 January 4, 2022 at 2:02 PM

Hi !

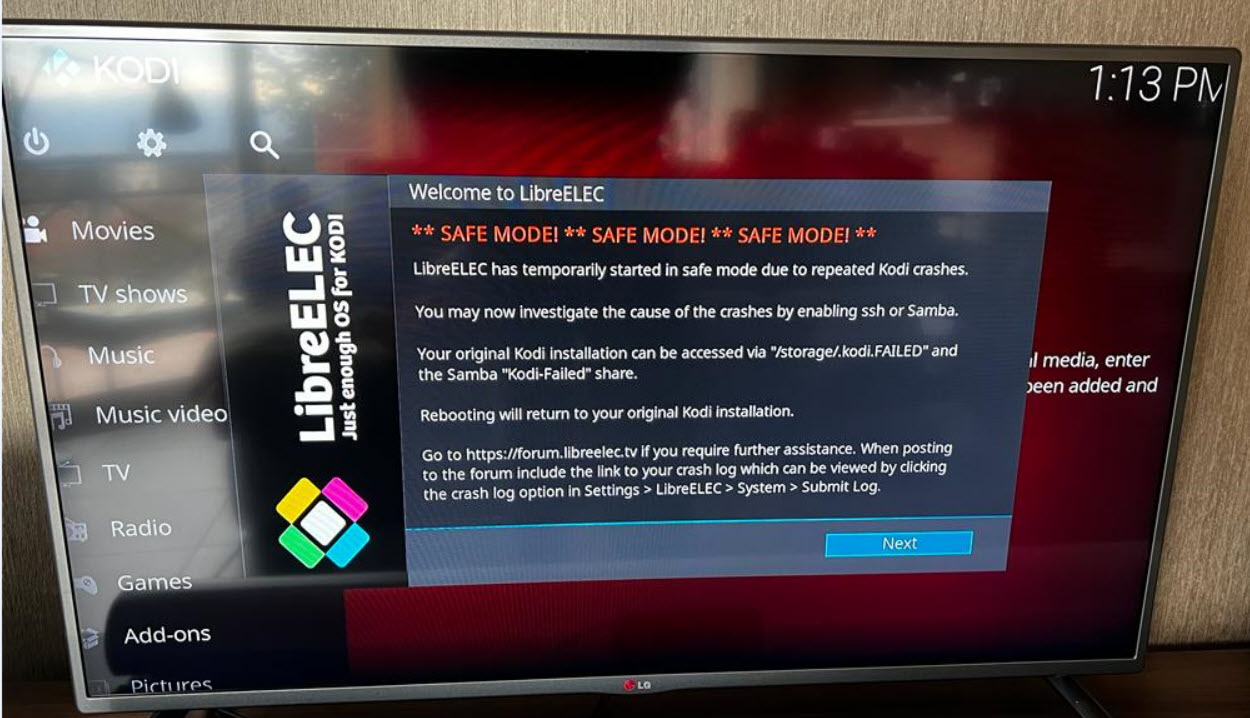

Several times when i boot my LibreElec machine, i'm stuck in SAFE MODE and need to reboot to work again.

You can see since my first setup how many times it fails :

Code

KODI19:~/logfiles # ls -altrh
total 6M
-rw-r--r--    1 root     root      198.3K Sep 15 12:19 log-2021-09-15-10.19.42-FAILED.zip
-rw-r--r--    1 root     root      250.6K Oct 28 17:41 log-2021-10-28-15.41.15-FAILED.zip
-rw-r--r--    1 root     root      248.9K Oct 30 17:20 log-2021-10-30-15.20.29-FAILED.zip
-rw-r--r--    1 root     root      244.1K Nov  8 16:56 log-2021-11-08-15.56.41-FAILED.zip
-rw-r--r--    1 root     root      249.1K Nov 12 17:59 log-2021-11-12-16.59.43-FAILED.zip
-rw-r--r--    1 root     root      249.6K Nov 13 10:44 log-2021-11-13-09.44.41-FAILED.zip
-rw-r--r--    1 root     root      248.1K Nov 14 12:21 log-2021-11-14-11.21.51-FAILED.zip
-rw-r--r--    1 root     root      245.0K Nov 15 18:31 log-2021-11-15-17.31.25-FAILED.zip
-rw-r--r--    1 root     root      244.4K Nov 19 18:26 log-2021-11-19-17.26.28-FAILED.zip
-rw-r--r--    1 root     root      247.1K Nov 23 17:21 log-2021-11-23-16.21.14-FAILED.zip
-rw-r--r--    1 root     root      244.3K Nov 25 12:53 log-2021-11-25-11.53.18-FAILED.zip
-rw-r--r--    1 root     root      245.6K Nov 25 17:36 log-2021-11-25-16.36.37-FAILED.zip
-rw-r--r--    1 root     root      249.0K Nov 26 22:36 log-2021-11-26-21.36.22-FAILED.zip
-rw-r--r--    1 root     root      254.0K Nov 27 21:01 log-2021-11-27-20.01.31-FAILED.zip
-rw-r--r--    1 root     root      252.5K Nov 28 12:00 log-2021-11-28-11.00.51-FAILED.zip
-rw-r--r--    1 root     root      249.5K Dec  1 17:26 log-2021-12-01-16.26.31-FAILED.zip
-rw-r--r--    1 root     root      250.4K Dec  3 21:49 log-2021-12-03-20.49.13-FAILED.zip
-rw-r--r--    1 root     root      245.2K Dec 16 10:21 log-2021-12-16-09.21.38-FAILED.zip
-rw-r--r--    1 root     root      249.6K Dec 16 19:00 log-2021-12-16-18.00.57-FAILED.zip
-rw-r--r--    1 root     root      254.9K Dec 18 17:26 log-2021-12-18-16.26.45-FAILED.zip
-rw-r--r--    1 root     root      253.2K Dec 20 11:30 log-2021-12-20-10.30.41-FAILED.zip
-rw-r--r--    1 root     root      254.5K Dec 21 10:05 log-2021-12-21-09.05.24-FAILED.zip
-rw-r--r--    1 root     root      250.6K Dec 26 19:59 log-2021-12-26-18.59.17-FAILED.zip
-rw-r--r--    1 root     root      247.4K Dec 27 10:36 log-2021-12-27-09.36.14-FAILED.zip
-rw-r--r--    1 root     root      249.9K Jan  1 16:33 log-2022-01-01-15.33.34-FAILED.zip
-rw-r--r--    1 root     root      252.2K Jan  3 17:50 log-2022-01-03-16.50.39-FAILED.zip

Display More

Here is my latest kodi_crash.log.

As you can see I use the database configuration with an external MariaDB which is still in experimental but i never had any problems with this.

The MiniPC I use to run LibreElec is H31G.

If someone finds my problem ?

Thanks !

cartman74

I tried to re-apply this update under Windows and replace my SSD with the Kodi one. Something strange :

Under Kodi 19 the device was recognized like this : PVT MATRIX 8*8 on DisplayPort #0 and i lost my Dolby Atmos capabilities.

Code

Device 3
    m_deviceName      : hdmi:CARD=PCH,DEV=0
    m_displayName     : HDA Intel PCH
    m_displayNameExtra: PVT MATRIX 8*8 on DisplayPort #0
    m_deviceType      : AE_DEVTYPE_HDMI
    m_channels        : FL, FR, LFE, FC, BC, BL, BR, FLOC, FROC, BLOC, BROC, TFC, TC, TFL, TFR, UNKNOWN1
    m_sampleRates     : 32000,44100,48000
    m_dataFormats     : AE_FMT_RAW,AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
    m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEH

Then i reboot one more time and my device was GSM LG TV on DisplayPort #0 like before my upgrade.

Very strange.

But i still have my Dolby Atmos problem under Kodi 19 ( and 18 too ...)

cartman74

Quote from lrusak

Are you actually using a displayport connector or is that symptom of LSPCON? If so can you try an HDMI port?

It's the problem with Intel NUC device and the driver for Audio and Video.

I only have a HDMI port but the driver emulates a DisplayPort.

My model : NUC7i3BNH

cartman74

Hello !

I tried the new beta LibreELEC with Kodi 19 on a spare SSD before definitely migrating my NUC.

I managed to setup my own add-ons with python3 but i still have some audio issue with this Intel NUC Audio driver and linux kernel.

I have a Sonos Arc soundbar with TrueHD Dolby Atmos capabilities.

When i launch a sample video with 3 audio tracks, it does not work with the TrueHD sound track but it works with the Dolby Atmos track and the "simple" AC3 5.1.

If you want to try the file : sample Dolby Atmos

My logs : (i cut it)

My audio device :

Code

     Device 3
         m_deviceName      : hdmi:CARD=PCH,DEV=0
         m_displayName     : HDA Intel PCH
         m_displayNameExtra: GSM LG TV on DisplayPort #0
         m_deviceType      : AE_DEVTYPE_HDMI
         m_channels        : FL, FR, LFE, FC, BC, BL, BR, FLOC, FROC, BLOC, BROC, TFC, TC, TFL, TFR, UNKNOWN1
         m_sampleRates     : 32000,44100,48000,96000,192000
         m_dataFormats     : AE_FMT_RAW,AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEH
     Device 4

My sample video file :

Code

 ffmpeg[0x4df0c80X]: Input #0, matroska,webm, from '/storage/videos/Dolby_Universe_4K_SDR_71-Atmos-thedigitaltheater.mkv':
 ffmpeg[0x4df0c80X]:   Metadata:
 ffmpeg[0x4df0c80X]:     title           : Dolby Cinema - Universe - thedigitaltheater.com
 ffmpeg[0x4df0c80X]:     encoder         : libebml v1.3.9 + libmatroska v1.5.2
 ffmpeg[0x4df0c80X]:     creation_time   : 2020-07-10T18:38:44.000000Z
 ffmpeg[0x4df0c80X]:   Duration: 00:03:07.92, start: 0.000000, bitrate: 100778 kb/s
 ffmpeg[0x4df0c80X]:     Stream #0:0(eng): Video: h264 (Main), yuv420p(tv, bt709, progressive), 3840x2160, SAR 1:1 DAR 16:9, 24 fps, 24 tbr, 1k tbn, 48 tbc (default)
 ffmpeg[0x4df0c80X]:     Metadata:
 ffmpeg[0x4df0c80X]:       BPS-eng         : 92523944
 ffmpeg[0x4df0c80X]:       DURATION-eng    : 00:03:07.917000000
 ffmpeg[0x4df0c80X]:       NUMBER_OF_FRAMES-eng: 4510
 ffmpeg[0x4df0c80X]:       NUMBER_OF_BYTES-eng: 2173352750
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_APP-eng: mkvmerge v41.0.0 ('Smarra') 64-bit
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_DATE_UTC-eng: 2020-07-10 18:38:44
 ffmpeg[0x4df0c80X]:       _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
 ffmpeg[0x4df0c80X]:     Stream #0:1: Audio: truehd, 48000 Hz, 7.1, s32 (24 bit) (default)
 ffmpeg[0x4df0c80X]:     Metadata:
 ffmpeg[0x4df0c80X]:       BPS-eng         : 5998956
 ffmpeg[0x4df0c80X]:       DURATION-eng    : 00:03:05.226000000
 ffmpeg[0x4df0c80X]:       NUMBER_OF_FRAMES-eng: 222270
 ffmpeg[0x4df0c80X]:       NUMBER_OF_BYTES-eng: 138895342
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_APP-eng: mkvmerge v41.0.0 ('Smarra') 64-bit
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_DATE_UTC-eng: 2020-07-10 18:38:44
 ffmpeg[0x4df0c80X]:       _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
 ffmpeg[0x4df0c80X]:     Stream #0:2: Audio: eac3, 48000 Hz, 8 channels, fltp
 ffmpeg[0x4df0c80X]:     Metadata:
 ffmpeg[0x4df0c80X]:       BPS-eng         : 1664000
 ffmpeg[0x4df0c80X]:       DURATION-eng    : 00:03:05.248000000
 ffmpeg[0x4df0c80X]:       NUMBER_OF_FRAMES-eng: 5789
 ffmpeg[0x4df0c80X]:       NUMBER_OF_BYTES-eng: 38531584
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_APP-eng: mkvmerge v41.0.0 ('Smarra') 64-bit
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_DATE_UTC-eng: 2020-07-10 18:38:44
 ffmpeg[0x4df0c80X]:       _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
 ffmpeg[0x4df0c80X]:     Stream #0:3: Audio: ac3, 48000 Hz, 5.1(side), fltp, 640 kb/s
 ffmpeg[0x4df0c80X]:     Metadata:
 ffmpeg[0x4df0c80X]:       BPS-eng         : 640000
 ffmpeg[0x4df0c80X]:       DURATION-eng    : 00:03:05.248000000
 ffmpeg[0x4df0c80X]:       NUMBER_OF_FRAMES-eng: 5789
 ffmpeg[0x4df0c80X]:       NUMBER_OF_BYTES-eng: 14819840
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_APP-eng: mkvmerge v41.0.0 ('Smarra') 64-bit
 ffmpeg[0x4df0c80X]:       _STATISTICS_WRITING_DATE_UTC-eng: 2020-07-10 18:38:44
 ffmpeg[0x4df0c80X]:       _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES

Display More

Errors :

Code

CActiveAESink::OpenSink - trying to open device ALSA:hdmi:CARD=PCH,DEV=0
 CAESinkALSA::Initialize - Attempting to open device "hdmi:CARD=PCH,DEV=0"
 CAESinkALSA::Initialize - Opened device "hdmi:CARD=PCH,DEV=0,AES0=0x04,AES1=0x82,AES2=0x00,AES3=0x00"
 CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
 CAESinkALSA::InitializeHW - Using data format AE_FMT_S32NE
 CAESinkALSA::InitializeHW - Request: periodSize 2205, bufferSize 8820
 CAESinkALSA::InitializeHW - Got: periodSize 2205, bufferSize 8820
 CAESinkALSA::InitializeHW - Setting timeout to 200 ms
 CAESinkALSA::GetChannelLayout - Input Channel Count: 2 Output Channel Count: 2
 CAESinkALSA::GetChannelLayout - Requested Layout: FL, FR
 CAESinkALSA::GetChannelLayout - Got Layout: FL, FR (ALSA: FL FR)
 CActiveAESink::OpenSink - ALSA Initialized:
   Output Device : HDA Intel PCH
   Sample Rate   : 44100
   Sample Format : AE_FMT_S32NE
   Channel Count : 2
   Channel Layout: FL, FR
   Frames        : 2205
   Frame Size    : 8

<general>: libva info: VA-API version 1.10.0
<general>: libva info: Trying to open /usr/lib/dri/iHD_drv_video.so
<general>: libva info: Found init function __vaDriverInit_1_10
<general>: libva info: va_openDriver() returns 0
<general>: Thread Vaapi-Output start, auto delete: false
<general>: COutput::OnStartup: Output Thread created
<general>: VAAPI/vpp vaCreateConfig error: the requested VAProfile is not supported (12)
<general>: CDVDVideoCodecFFmpeg - Updated codec: ff-h264-vaapi
<general>: CVideoPlayerAudio - CDVDMsg::GENERAL_PAUSE: 0
<general>: CDVDAudio::Pause - pausing audio stream
<general>: CVideoPlayer::HandleMessages - player 1 reported state: 0
<general>: CDVDAudio::Pause - pausing audio stream
<general>: CAEStreamParser::SyncTrueHD - TrueHD stream detected (8 channels, 48000Hz)
<general>: Creating audio stream (codec id: 86060, channels: 8, sample rate: 48000, pass-through)
<general>: CVideoPlayerAudio:: synctype set to 0: clock feedback
<general>: CActiveAESink::OpenSink - initialize sink
<general>: CActiveAESink::OpenSink - trying to open device ALSA:hdmi:CARD=PCH,DEV=0
<general>: CAESinkALSA::Initialize - Attempting to open device "hdmi:CARD=PCH,DEV=0"
<general>: CAESinkALSA::Initialize - Opened device "hdmi:CARD=PCH,DEV=0,AES0=0x06,AES1=0x82,AES2=0x00,AES3=0x09"
<general>: CAESinkALSA::InitializeHW - Unable to open the required number of channels
<general>: CAESinkALSA::InitializeHW - Request: periodSize 9600, bufferSize 38400
<general>: CAESinkALSA::InitializeHW - Got: periodSize 9600, bufferSize 38400
<general>: CAESinkALSA::InitializeHW - Setting timeout to 200 ms
<general>: CAESinkALSA::Initialize - could not open required number of channels
<general>: CActiveAESink::OpenSink - trying to open device ALSA:@
<general>: CAESinkALSA::Initialize - Attempting to open device "@"
<general>: CAESinkALSA - Unable to open device "surround71:AES0=0x06,AES1=0x82,AES2=0x00,AES3=0x09" for playback
<general>: CAESinkALSA::Initialize - Opened device "surround71"
<general>: CAESinkALSA::InitializeHW - Unable to open the required number of channels
<general>: CAESinkALSA::InitializeHW - Request: periodSize 9600, bufferSize 38400
<general>: CAESinkALSA::InitializeHW - Got: periodSize 9600, bufferSize 38400
<general>: CAESinkALSA::InitializeHW - Setting timeout to 200 ms
<general>: CAESinkALSA::Initialize - could not open required number of channels
<general>: CActiveAESink::OpenSink - no sink was returned
<general>: ActiveAE::InitSink - returned error

Display More

cartman74 · 9.2.4 - NUC Update cartman74 August 18, 2020 at 9:52 PM

I was with 9.2.3.

But I found the solution :

upgrade NUC’s bios : Download BIOS Update [BNKBL357.86A]

upgrade HDMI’s firmware :

Download HDMI Firmware Update Tool for NUC7i3BN, NUC7i5BN, NUC7i7BN

So I swapped my SSD with an old one to install windows 10.

I downloaded the famous HDMI upgrade.

I swapped back my SSD (with LibreElec) and it booted up with good resolution and audio back !

Happy

cartman74 · 9.2.4 - NUC Update cartman74 August 18, 2020 at 3:18 PM

Hello,

I updated my NUC with the latest Generic x86_x64 image today.

I lost my video settings and totally lost audio. I think it's the same problem as usual with NUC and DisplayPort/HDMI with Audio and video mixed.

Everything is now set by default under Video settings : DP1 / 1024X768. And my Audio does not work anymore.

I found this old trick's post : LibreELEC Testbuilds for x86_64 (Kodi 19.0)

Code

echo "blacklist snd_soc_skl" > /storage/.config/modprobe.d/blacklist-snd-soc-skl.conf

But it didn't work.

This is my today's log :

Code

NOTICE: Starting Kodi (18.8 (18.8.0) Git:18.8-Leia). Platform: Linux x86 64-bit
NOTICE: Using Release Kodi x64 build
NOTICE: Kodi compiled 2020-07-29 by GCC 8.3.0 for Linux x86 64-bit version 5.1.16 (327952)
NOTICE: Running on LibreELEC (official): 9.2.4, kernel: Linux x86 64-bit version 5.1.16
NOTICE: FFmpeg version/source: 4.0.4-Kodi
NOTICE: Host CPU: Intel(R) Core(TM) i3-7100U CPU @ 2.40GHz, 4 cores available
NOTICE: special://xbmc/ is mapped to: /usr/share/kodi/
NOTICE: special://xbmcbin/ is mapped to: /usr/lib/kodi
NOTICE: special://xbmcbinaddons/ is mapped to: /usr/lib/kodi/addons
NOTICE: special://masterprofile/ is mapped to: /storage/.kodi/userdata
NOTICE: special://envhome/ is mapped to: /storage
NOTICE: special://home/ is mapped to: /storage/.kodi
NOTICE: special://temp/ is mapped to: /storage/.kodi/temp
NOTICE: special://logpath/ is mapped to: /storage/.kodi/temp
NOTICE: The executable running is: /usr/lib/kodi/kodi.bin
NOTICE: Local hostname: LibreELEC
NOTICE: Log File is located: /storage/.kodi/temp/kodi.log
...
DEBUG: CFavourites::Load - no system favourites found, skipping
DEBUG: DBus method call to org.freedesktop.ConsoleKit.Manager.CanStop at /org/freedesktop/ConsoleKit/Manager of org.freedesktop.ConsoleKit failed: org.freedesktop.DBus.Error.ServiceUnknown - The name org.freedesktop.ConsoleKit was not provided by any .service files
 INFO: Selected Logind/UPower as PowerSyscall
ERROR: DBus error: org.freedesktop.DBus.Error.ServiceUnknown - The name org.freedesktop.UPower was not provided by any .service files
 INFO: LogindUPowerSyscall - UPower not found, battery information will not be available
DEBUG: LogindUPowerSyscall - inhibit lock taken, fd 12
DEBUG: DBus method call to org.freedesktop.UPower.EnumerateDevices at /org/freedesktop/UPower of org.freedesktop.UPower failed: org.freedesktop.DBus.Error.ServiceUnknown - The name org.freedesktop.UPower was not provided by any .service files
DEBUG: Thread ActiveAE start, auto delete: false
DEBUG: Thread AESink start, auto delete: false
DEBUG: Thread FDEventMonitor start, auto delete: false
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:767:(parse_card) cannot find card '$CARD'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_card_driver returned error: No such device
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:392:(snd_func_concat) error evaluating strings
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_concat returned error: No such device
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1246:(snd_func_refer) error evaluating name
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such device
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such device
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH,DEV=0
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4898:(parse_args) Unknown parameter DEV
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5031:(snd_config_expand) Parse arguments error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4898:(parse_args) Unknown parameter DEV
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5031:(snd_config_expand) Parse arguments error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.front.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH,DEV=0
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH,DEV=0
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH,DEV=0
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5014:(snd_config_expand) Unknown parameters CARD=PCH
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.surround51.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.surround40.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.surround51.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.surround51.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.surround51.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.surround71.1:CARD=PCH'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.iec958.1:CARD=PCH,AES0=4,AES1=130,AES2=0,AES3=2'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/confmisc.c:1281:(snd_func_refer) Unable to find definition 'cards.HDA-Intel.pcm.hdmi.8:CARD=PCH,AES0=4,AES1=130,AES2=0,AES3=2'
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:4568:(_snd_config_evaluate) function snd_func_refer returned error: No such file or directory
INFO: CAESinkALSA - ALSA: /var/lib/jenkins/LE/build4/workspace/Generic/LibreELEC.tv/build.LibreELEC-Generic.x86_64-9.2.4/alsa-lib-1.1.9/src/conf.c:5047:(snd_config_expand) Evaluate error: No such file or directory
   INFO: CAESinkALSA - Unable to open device "surround21:CARD=PCH,DEV=0" for playback
  DEBUG: CAESinkALSA - HDMI device "hdmi:CARD=PCH,DEV=0" may be unconnected (no ELD data)
  DEBUG: CAESinkALSA - HDMI device "hdmi:CARD=PCH,DEV=1" may be unconnected (no ELD data)
  DEBUG: CAESinkALSA - HDMI device "hdmi:CARD=PCH,DEV=2" may be unconnected (no ELD data)
  DEBUG: CAESinkALSA - HDMI device "hdmi:CARD=PCH,DEV=3" may be unconnected (no ELD data)
  DEBUG: CAESinkALSA - HDMI device "hdmi:CARD=PCH,DEV=4" may be unconnected (no ELD data)
  DEBUG: PulseAudio: Context authorizing
  DEBUG: PulseAudio: Context setting name
  DEBUG: PulseAudio: Context ready
WARNING: Pulseaudio module module-allow-passthrough not loaded - opening PT devices might fail

NOTICE: Found 2 Lists of Devices
NOTICE: Enumerated ALSA devices:
NOTICE:     Device 1
NOTICE:         m_deviceName      : @
NOTICE:         m_displayName     : Default (HDA Intel PCH ALC283 Analog)
NOTICE:         m_displayNameExtra:
NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 48000
NOTICE:         m_dataFormats     : AE_FMT_S32NE
NOTICE:         m_streamTypes     : No passthrough capabilities
NOTICE:     Device 2
NOTICE:         m_deviceName      : @:CARD=PCH,DEV=0
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: ALC283 Analog
NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 48000
NOTICE:         m_dataFormats     : AE_FMT_S32NE
NOTICE:         m_streamTypes     : No passthrough capabilities
NOTICE:     Device 3
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=0
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #0
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 4
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=1
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #1
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 5
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=2
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #2
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 6
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=3
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #3
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 7
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=4
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #4
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE: Enumerated PULSE devices:
NOTICE:     Device 1
NOTICE:         m_deviceName      : Default
NOTICE:         m_displayName     : Default
NOTICE:         m_displayNameExtra: Bluetooth Audio (PULSEAUDIO)
NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 5512,8000,11025,16000,22050,32000,44100,48000,64000,88200,96000,176400,192000,384000
NOTICE:         m_dataFormats     : AE_FMT_U8,AE_FMT_S16NE,AE_FMT_S24NE3,AE_FMT_S24NE4,AE_FMT_S32NE,AE_FMT_FLOAT
NOTICE:         m_streamTypes     : No passthrough capabilities
NOTICE: Checking resolution 16
NOTICE: Using visual 0x20

Display More

When it worked the last time, it was :

Code

NOTICE: Found 2 Lists of Devices
NOTICE: Enumerated ALSA devices:
NOTICE:     Device 1
NOTICE:         m_deviceName      : @
NOTICE:         m_displayName     : Default (HDA Intel PCH ALC283 Analog)
NOTICE:         m_displayNameExtra:
NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 48000
NOTICE:         m_dataFormats     : AE_FMT_S32NE
NOTICE:         m_streamTypes     : No passthrough capabilities
NOTICE:     Device 2
NOTICE:         m_deviceName      : @:CARD=PCH,DEV=0
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: ALC283 Analog
NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 48000
NOTICE:         m_dataFormats     : AE_FMT_S32NE
NOTICE:         m_streamTypes     : No passthrough capabilities
NOTICE:     Device 3
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=0
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: GSM LG TV on DisplayPort #0
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR, LFE, FC, BC, BL, BR, FLOC, FROC, BLOC, BROC, TFC, TC, TFL, TFR, UNKNOWN1
NOTICE:         m_sampleRates     : 32000,44100,48000,96000,192000
NOTICE:         m_dataFormats     : AE_FMT_RAW,AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 4
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=1
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #1
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 5
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=2
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #2
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 6
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=3
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #3
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE:     Device 7
NOTICE:         m_deviceName      : hdmi:CARD=PCH,DEV=4
NOTICE:         m_displayName     : HDA Intel PCH
NOTICE:         m_displayNameExtra: HDMI #4
NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 32000,44100,48000,88200,96000,176400,192000
NOTICE:         m_dataFormats     : AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S16LE,AE_FMT_RAW
NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_DTSHD,STREAM_TYPE_DTSHD_MA,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_512,STREAM_TYPE_EAC3,STREAM_TYPE_TRUEHD
NOTICE: Enumerated PULSE devices:
NOTICE:     Device 1
NOTICE:         m_deviceName      : Default
NOTICE:         m_displayName     : Default
NOTICE:         m_displayNameExtra: Bluetooth Audio (PULSEAUDIO)
NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
NOTICE:         m_channels        : FL, FR
NOTICE:         m_sampleRates     : 5512,8000,11025,16000,22050,32000,44100,48000,64000,88200,96000,176400,192000,384000
NOTICE:         m_dataFormats     : AE_FMT_U8,AE_FMT_S16NE,AE_FMT_S24NE3,AE_FMT_S24NE4,AE_FMT_S32NE,AE_FMT_FLOAT
NOTICE:         m_streamTypes     : No passthrough capabilities
NOTICE: Checking resolution 16
NOTICE: Using visual 0x20

Display More

cartman74 · Latest LibreElec on Intel NUC and audio cartman74 March 11, 2020 at 12:42 PM

Great it worked after the reboot !!

Thank you very much

http://ix.io/2dXo

Code

echo "blacklist snd_soc_skl" > /storage/.config/modprobe.d/blacklist-snd-soc-skl.conf

cartman74 · Latest LibreElec on Intel NUC and audio cartman74 March 11, 2020 at 11:32 AM

Hi there,

I updated my kodi with the newest version and i lost my audio support.

http://ix.io/2dX0

I give you my dmesg log file.

Any help please ?

Posts by cartman74

Stuck in SAFE MODE

Stuck in SAFE MODE

Stuck in SAFE MODE

Stuck in SAFE MODE

Stuck in SAFE MODE

Stuck in SAFE MODE

LibreELEC-Generic.x86_64-9.95.1.img.gz on Intel NUC and hdmi video/audio

LibreELEC-Generic.x86_64-9.95.1.img.gz on Intel NUC and hdmi video/audio

LibreELEC-Generic.x86_64-9.95.1.img.gz on Intel NUC and hdmi video/audio

9.2.4 - NUC Update

9.2.4 - NUC Update

Latest LibreElec on Intel NUC and audio

Latest LibreElec on Intel NUC and audio
