Posts by Calimero Oeuf

Quote from prekopix

Hi, any tutorial or a shopping cart? I´m thinking to do something like your project.

You can find all items in Amazon,

- The case is HTPC format, there is plenty of it. (don't forget to make a drawing with all dimensions (H x W x D)

- Cables are mal/femal small lenght cables for USB3.0, USB2.0, USB-C, HDMI, RJ45

- Fans are 5cm x 5cm x 1cm or 4cm x 4cm x 1cm in 5 Volt

- HDD is 2.5" + sata to USB3.0 adapter like Inateck Adapter USB3.0 to SATA (with power supply included in option)

- Micro SD card SDXC

- RF remote plugged to USB2.0

- Some 330ohm resistors and mal/femal wires for case leds and

- Soldering iron, some screws from old computer, pin headers

- Efforts and times to build

No tutorial as it is quite easy.

The only difficult part is to screw RPI4 in the case and to cut and drill a metal plate for the rear side and for the bottom side.

Don't forget to make drawing before building, dimensions are very important if you want to include RPI4 with 1 or 2 HDDs inside the case

And a drawing for the GPIO for fans and leds and power button.

GPIO Configuration

01.-> FAN PROC + ........02.->....................

03.->................................04.->.........................

05.->................................06.-> FAN PROC -

07.->................................08.-> POWER LED +

09.-> FAN HDD - .............10.->.........................

11.->................................12.->.........................

13.->................................14.-> POWER LED -

15.->................................16.->.........................

17.-> FAN HDD + ............18.->.........................

19.->................................20.-> HDD LED -

21.->................................22.-> HDD LED +

23.->................................24.->.........................

25.->................................26.->.........................

27.->................................28.->.........................

29.->................................30.->.........................

31.->................................32.->.........................

33.->................................34.->.........................

35.->................................36.->.........................

37.->................................38.->.........................

39.->................................40.->.........................

GLOBAL_EN -> POWER SWITCH +

GROUND.......-> POWER SWITCH -

RUN...............->...............................

It doesn"t work for me

I can't find my factory code to continue

in attachment the ssh log from very first demsg -c and all following other demsg -c

Please help

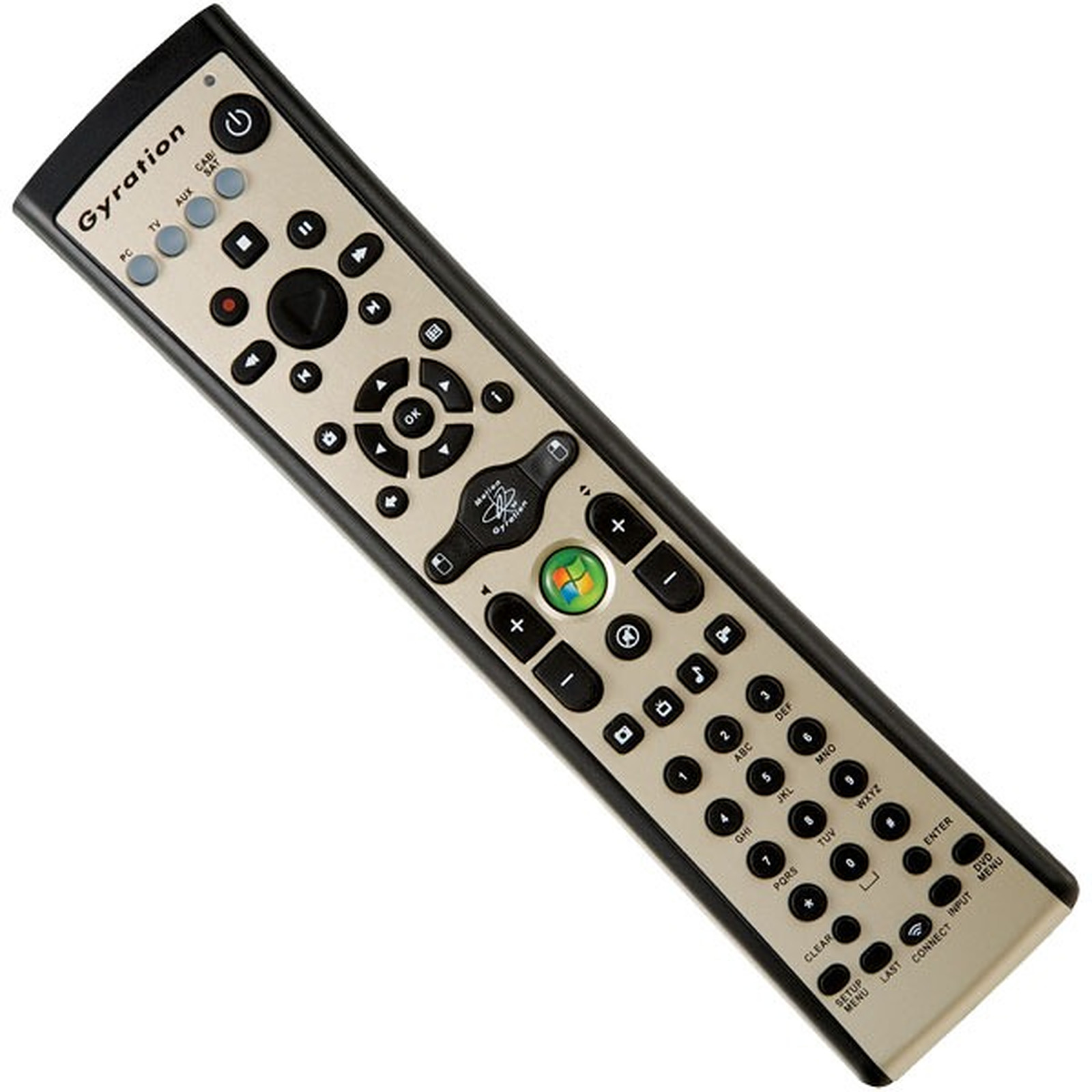

Can someone help me with Gyration GYR3101EU remote ?

It is a RF remote and few buttons don't works at all or are duplicated with other buttons.

It would be wonderfull if someone own this remote and succesfully made a remote.conf with all buttons and mouse fonctions.

Thanks in advance

I tried all skins and definitly stay with Transparency!

The best skin ever for me is Transparency!

Hi all !

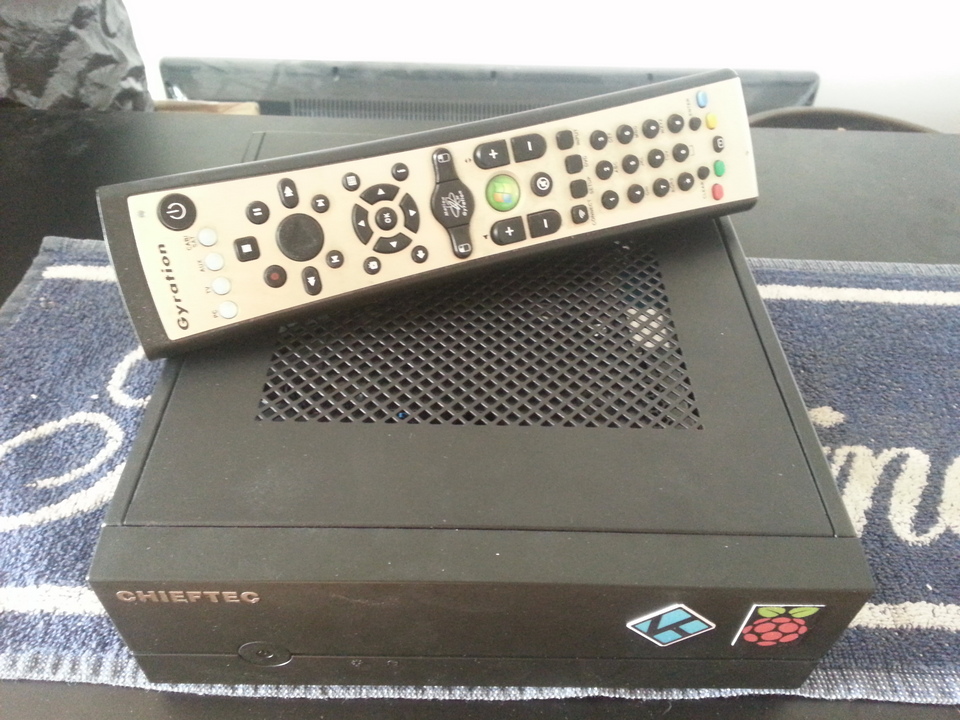

I'm proud to present you my LIBREELEC Kodi case !

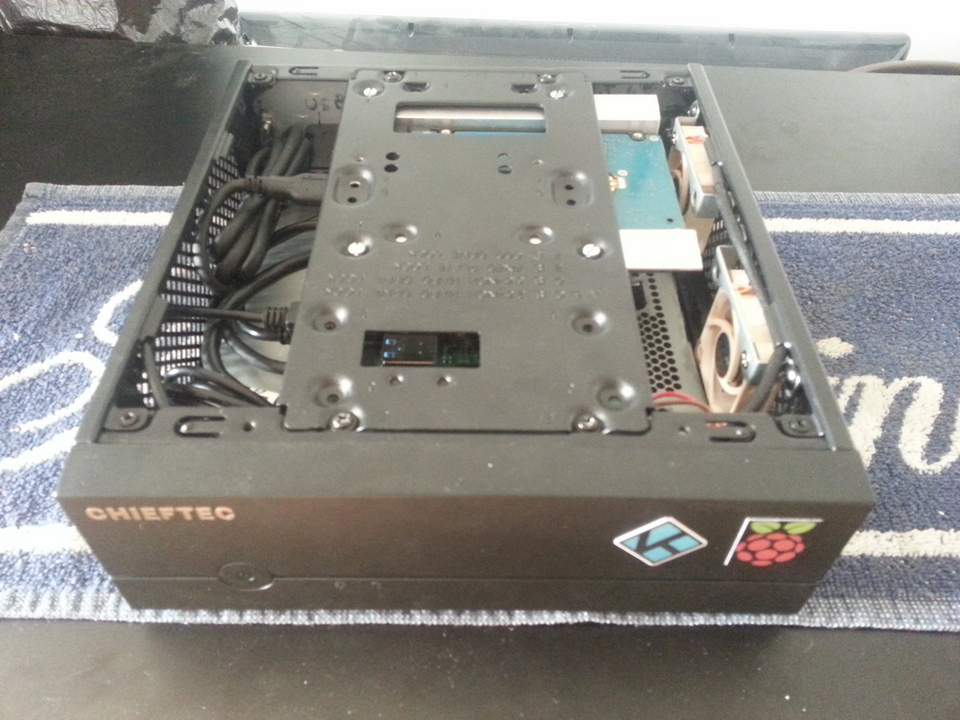

1 Chieftec case with working leds for HDD and power and working power button

1 RF remote Gyration gyr3101eu

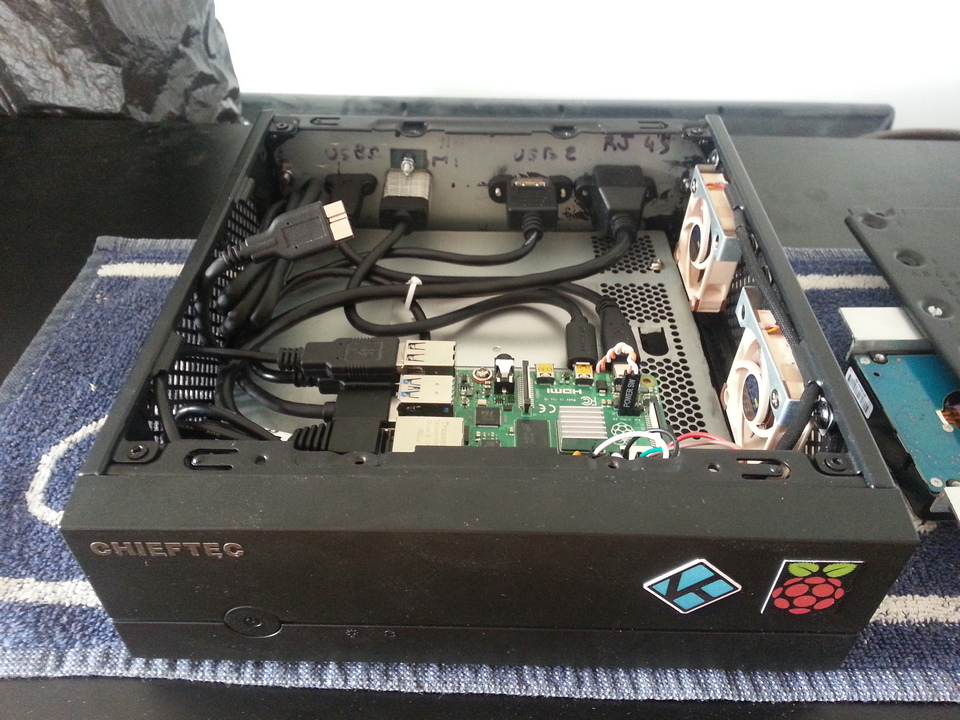

1 Raspberry PI4

1 HDD 4To 2.5" + SATA to USB 3.0 adapter

1 Fan for HDD

1 Fan for CPU

1 Heat sink for CPU

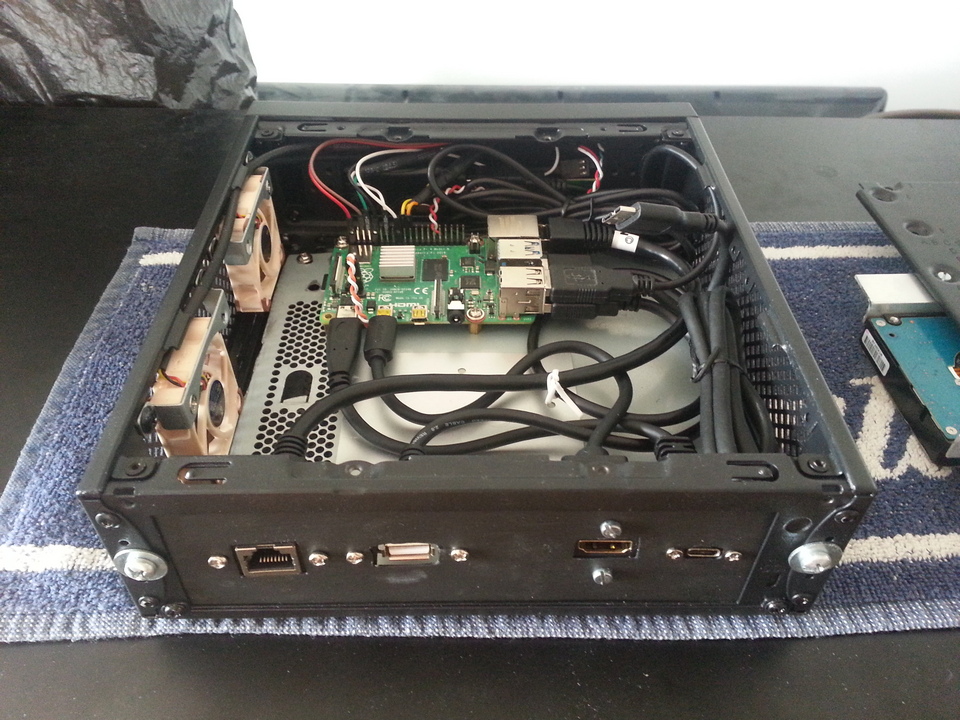

1 Custom I/O shield (back panel)

Cables for USB-C, USB2.0 Network and HDMI for the rear panel

And a lot of time to make it hahaha !

THANK YOU VERY MUCH LIBREELEC TEAM !!!

Here is what I bought and it works perfectly for 1 drive without the power supply included.

There is a menu to setup plenty of parameters for CEC in Kodi, I don't remember where it is.

Did you check them ?

I give up, it's too hard for me.

I will not use anymore some keys of my remotes :~(

Ok with lirc method all buttons are working except one but the problem is I don't have anymore the mouse fonction

I will try this weekend the method with remapping keys but I doubt.

Thanks again

May be method with lirc is easier... but lirc can work with RF remote ? I thought it was only for IR remote

OK, it is chinese for me but I will try

Thanks for your help

I will tell you if did it... or not

Thank you to try to help me, here is the log file with some keys pushed (not all).

pushed keys are at the end of the file and each not working keys are different and says "pressed, action is Info" but the code is invalid.

I tried it with kodi log file via ssh, I found 50% of all my remote keys but the other 50% are not working, I got the same code 0x... for all these keys and also the code is longer as normal, more than 6 numbers after 0x

Is there a generic driver to install to have all keys working ?

I did but no 3840x2160 in these menus

... OK I forgot my Yamaha RX-V471, it is certainly not 4K compatible.

I installed LibreELEC-RPi4.arm-9.1.001.img.gz on my PI4 4GB (hdmi 0 used on card)

in kody system resolution, 3840x2160 resolution is missing so I can't have 4k resolution.

Also My TV is 4K TV

I try to edit config.txt and put hdmi_enable_4kp60=1 and hdmi_enable_4k=1 but 4k resolution doesn't appear after reboot

Can you help me How to put 4K ?

Thanks

Thanks

I will try that

Hi all !

I got a pi4 4gb with a 4tb HDD and a Gyration RF remote gyr3101eu

I installed LibreELEC and it works like a charm (so happy) !

I tried to use Keymap Editor add-on but all menus of this addon are very hard to understand, all menus are mixed and not really explicit.

I would like to know if there is an add-on or a command like LIRC for IR remote but for RF remote.

I want to know all my remote keys and make my own remote.xml

Thanks
