Beelink Mini mxii ii w (s905x) + LibreELEC-S905.arm-8.2.4.2-C2 -> causes some slight stutter. Unfortunately I had similar problems with the previous version 8.2.3.1.

Also tried to change advancedsettings (algorithmdirtyregions + adjustrefreshrate) but there are still some stutter issues….

Any further ideas?

THX

I also tried corelec. But it had issues with the ethernet and the remote, so unfortunately it was not the best solution for me. I could stay with android and Kodi, but somehow I think the picture quality (video) is not the best

i took the file from njozsef and.... its woking

thanks a lot

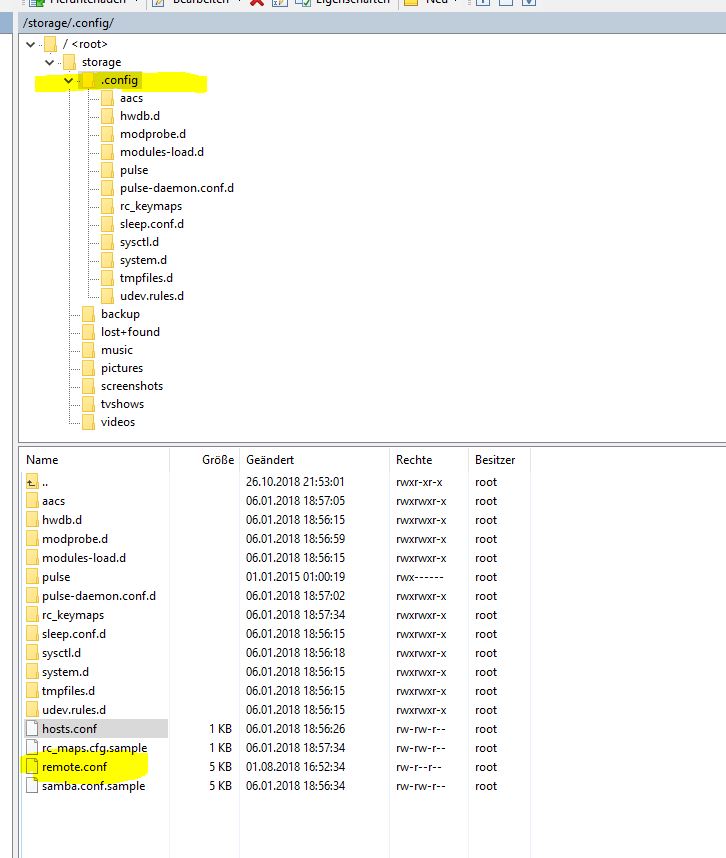

Now I put it in storage\.config and rebooted… But it is still not working

Quote from Ygdrassil

#

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

#

# This file can be used with Open/LibreElec for the configuration of a factory

# remote control for: T95x, QBOX, NEXBOX and possible other brands of

# Smart Android Tv Boxes using the Amlogic U2C remote controller

#

# Location of remote.conf: root of the Open/LibreElec startup disk (USB, MC, NaND)

#

# factory_code each device has it's unique factory code.

# pattern: custom_code(16bit) + index_code(16bit)

# examble: 0xff000001 = 0xff00(custom_code) + 0001(index_code)

#

# work_mode

# 0 : software mode

# 1 : hardware mode

#

# repeat_enable

# 0 : disable repeat

# 1 : enable repeat

#

# release_delay unit: ms

# release will report from kernel to user layer after this period

# of time from press or repeat triggered.

#

# debug_enable
# 0 : debug disable

# 1 : debug enable

#

# SW MODE:

#

# bit_count how many bits in each frame

# tw_leader_act time window for leader active

# tw_bit0 time window for bit0 time.

# tw_bit1 time window for bit1 time

# tw_repeat_leader time window for repeat leader

#

# REG:

#

# reg_base_gen set value for PREG_IR_DEC_BASE_GEN

# reg_control set value for PREG_IR_DEC_CONTROL

# reg_leader_act set value for PREG_IR_DEC_LEADER_ACTIVE

# reg_leader_idle set value for PREG_IR_DEC_LEADER_IDLE

# reg_repeat_leader set value for PREG_IR_DEC_REPEAT_IDLE

# reg_bit0_time set value for PREG_IR_DEC_BIT0_TIME

#

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

#

# KEY ASSIGNMENT FORMAT:

#

# KEY ACTION #COMMENT

#

# 0x00 000 #EXAMPLE

#

# ORIGINAL:

#

# 0x5f 45 #X-STOP (K-SQUARE)

#

# ADJUSTED:

#

# 0x5f 113 #MUTE (K-SQUARE)

#

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

#

# Amlogic U2C remote (Blue OK button and TV controls, red power button).

#

factory_code = 0xdf000001

work_mode = 0

repeat_enable = 1

repeat_delay = 40

repeat_peroid = 39

release_delay = 121

debug_enable = 1

#

fn_key_scancode = 0x03 #MOUSE

left_key_scancode = 0x47 #LEFT

right_key_scancode = 0x07 #RIGHT

up_key_scancode = 0x1a #UP

down_key_scancode = 0x48 #DOWN

ok_key_scancode = 0x06 #OK

#

mouse_begin

#

0 0x47 #LEFT

1 0x07 #RIGHT

2 0x1a #UP

3 0x48 #DOWN3

#

mouse_end

#

key_begin

#

0x1c 31 #S-POWERMENU (POWER)

0x01 164 #PLAYPAUSE (TV)

0x5f 113 #MUTE (KBUTTON)

0x4b 168 #REWIND (|<<)

0x4f 208 #FASTFORWARD (>>|)

#

0x47 105 #LEFT

0x07 106 #RIGHT

0x1a 103 #UP

0x48 108 #DOWN

0x06 28 #ENTER (OK)

#

0x42 102 #HOME (HOUSE)

0x0a 14 #BACKSPACE (BACK ARROW)

0x18 46 #CONTEXTMENU (DOCUMENT)

#

0x0c 11 #KEY No.0

0x54 2 #KEY No.1

0x16 3 #KEY No.2

0x15 4 #KEY No.3

0x50 5 #KEY No.4

0x12 6 #KEY No.5

0x11 7 #KEY No.6

0x4c 8 #KEY No.7

0x0e 9 #KEY No.8

0x0d 10 #KEY No.9

#

0x10 24 #O-CODEC INFO (BACKSPACE)

0x41 23 #INFO (GLOBE)

#

0x5c 114 #VOLUMEDOWN (VOL-)

0x5d 115 #VOLUMEUP (VOL+)

#

repeat_key_begin

#

0x47 105 #LEFT

0x07 106 #RIGHT

0x1a 103 #UP

0x48 108 #DOWN

0x5d 104 #PAGEUP (VOL+)

0x5c 109 #PAGEDOWN (VOL-)

#

repeat_key_end

#

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

# #

## ##

### 0x52 nn #MOUSE (!!! NEVER !!! use this line, this key is mapped in fn_key_scancode) ###

## ##

# #

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

#

# UNASSIGNED

#

# 0x5f 45 #X-STOP (THUMBS UP)

#

# 0x4d 113 #MUTE

# 0x09 364 #FAVORITES

# 0x42 102 #HOME

# 0x0a 14 #BACK

# 0x4f 171 #CONFIG

#

# 0x09 398 #RED

# 0x11 399 #GREEN

# 0x54 400 #YELLOW

# 0x4f 401 #BLUE

#

# 0x5d 104 #PAGEUP

# 0x5c 109 #PAGEDOWN

#

key_end

#

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

#

A95X_Remote_Blue.zip

Display More

I have this blue remote for the T95Z Plus and I put it in the root folder but it does not work.

Is this for LibreELEC-S912.arm-8.2xxx?

Thank you, just tried it in CoreELEC but it is also not working, only for the first
few minutes

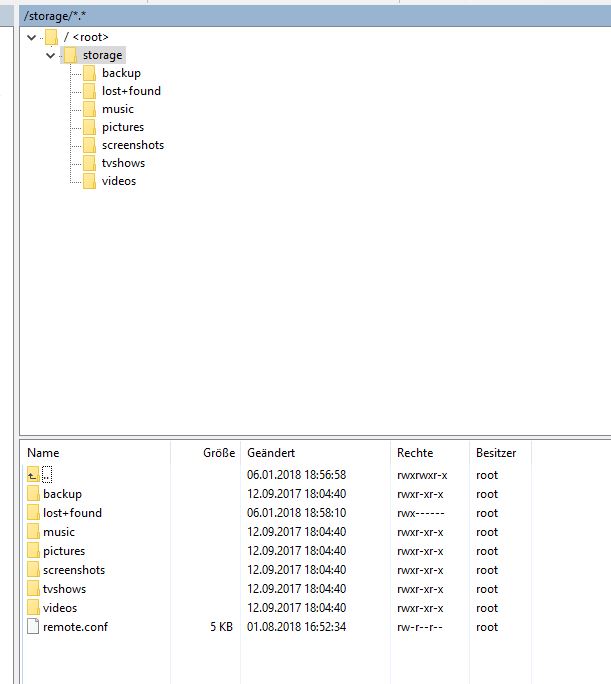

Quote from bubblegum57

did you copy the remote.conf to \storage\config ?

to get access to that, you need to enable ssh in the initial Libreelec settings on first boot use a keyboard if neccessary

Just tried this with LibreELEC 8.2 for S912 and T95Z with no success

Attached "gxm_q201_2g_1gbit_nocal.zip" did not work for my t95z plus 2/16 and LibreELEC 8.2 for S912 -> no LAN connection

So whats wrong in my setup?

Hello @all

Can please someone confirm for the GT1 Ultimate: 4K + HDR + audio passthrough is working?

THX
