You need to get Android firmware for that box and extract dtb.img from it.
kszaq , I have extracted dtb from Android firmware with CustomizationTool provided by Amlogic, please take a look at it. Thank you in advance.
You need to get Android firmware for that box and extract dtb.img from it.
kszaq , I have extracted dtb from Android firmware with CustomizationTool provided by Amlogic, please take a look at it. Thank you in advance.
Please post dtb.img from Android firmware.
Where can I get it? I have backed up the blocks of system, boot, bootloader and recovery.
I've got an S905L-B box a few days ago, and I tried to intall kszaq's S905 LibreELEC build on it. But I found that all existing dtb.img are not working properly. None of dtb files for S905L and S905D would boot properly, and all dtb files for S905 have no USB device accessable. When I use dtb file for S905, the box would boot properly, but no USB port would work.
So how could I get a working dtb.img? What can I do to help the devs figure it out?

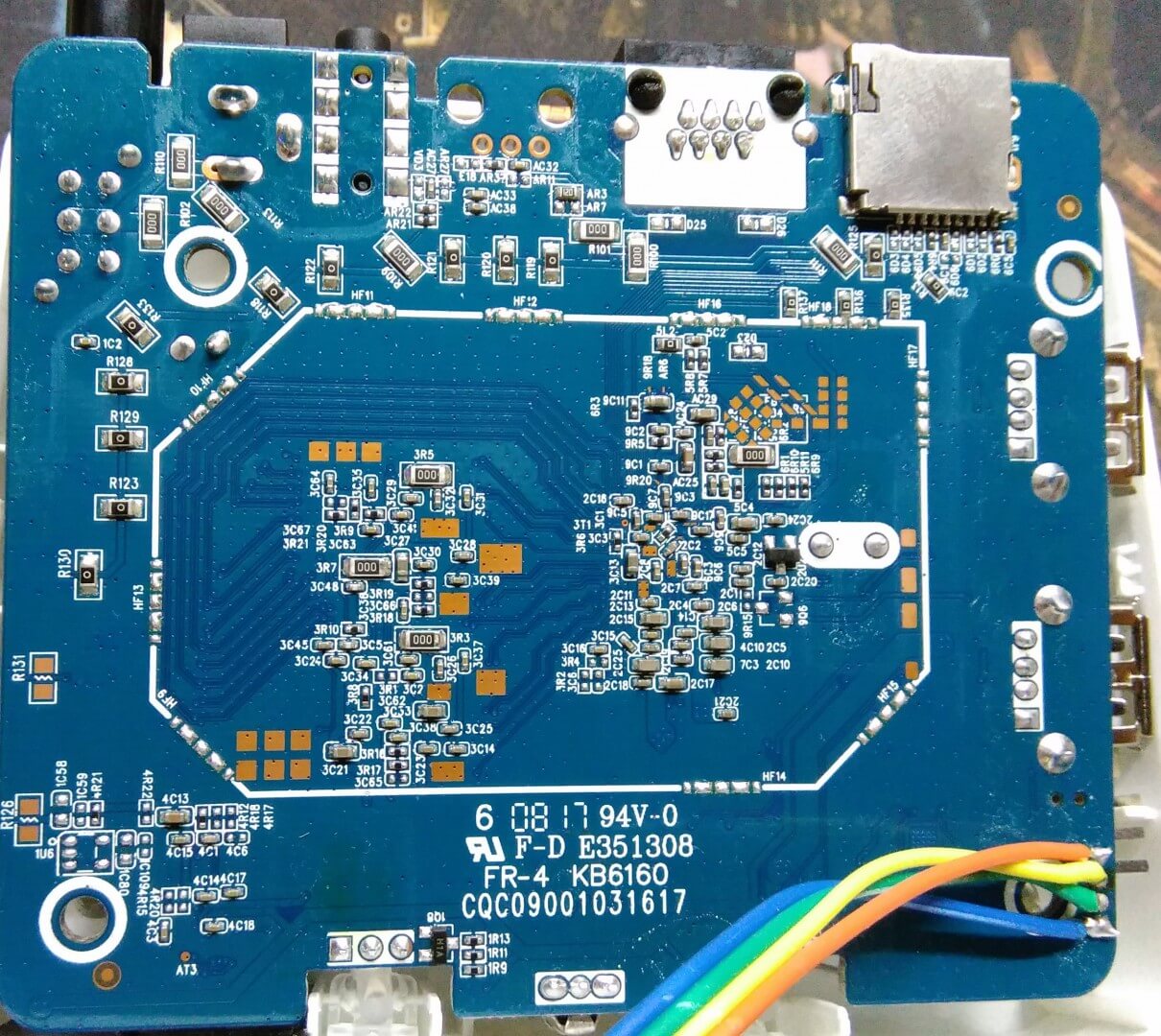

Here are the pictures of board of box.
Thank you, niabi. Your build is brilliant.
Thanks very much,ill try in a sec, playing around with retroarch on @kszaq's build atm.
So you are Matt Wang, are you?
niabi Indeed your SYSTEM image is too big. You might want to change compression method to gzip or xz, whichever fits 512MB.
Edit: I noticed that you changed the size some days ago. This is generally not a good idea, users cannot upgrade after size change. Using a different compression may help you keep the size below 512MB.
kszaq, can you help niabi fix the CVBS output under ES and Lakka for his build? The CVBS outputof niabi's build is OK under KODI, but doesn't work properly under ES and Lakka. Since his box is without CVBS output, he can not fix it. We talked about it on github, however, I can't help him since I'm a Linux noob. You can see the issue here: How can I change the resolution for ES and Retroarch? · Issue #42 · shantigilbert/LibreELEC.tv · GitHub. Thanks in advance.
